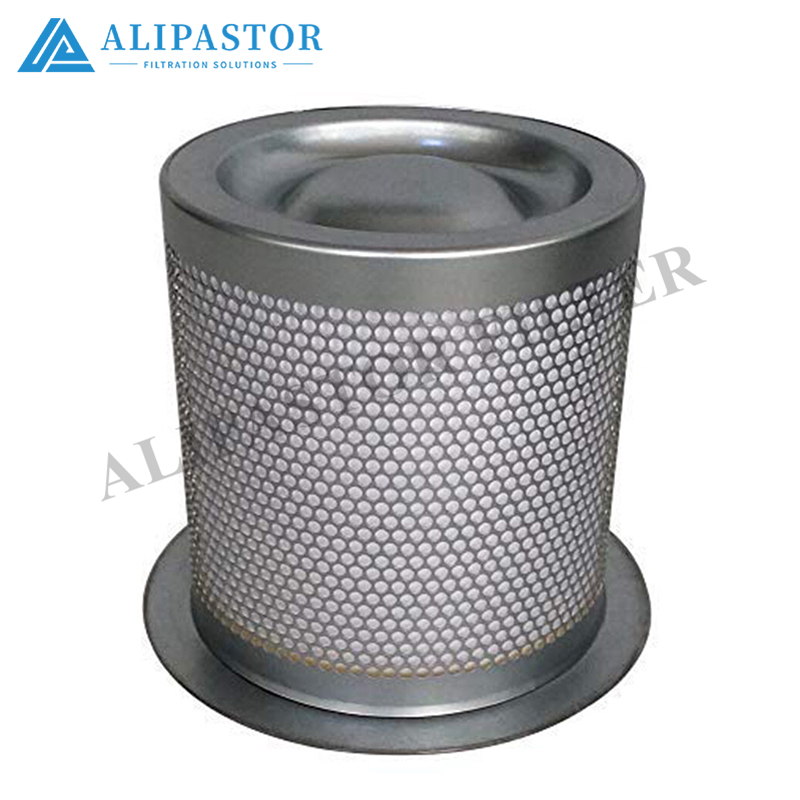

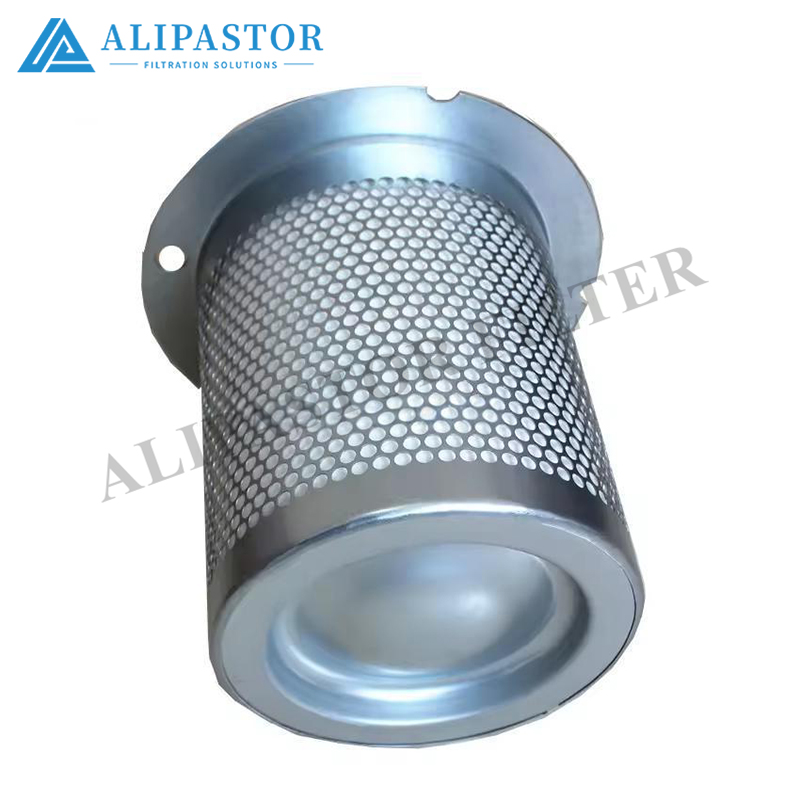

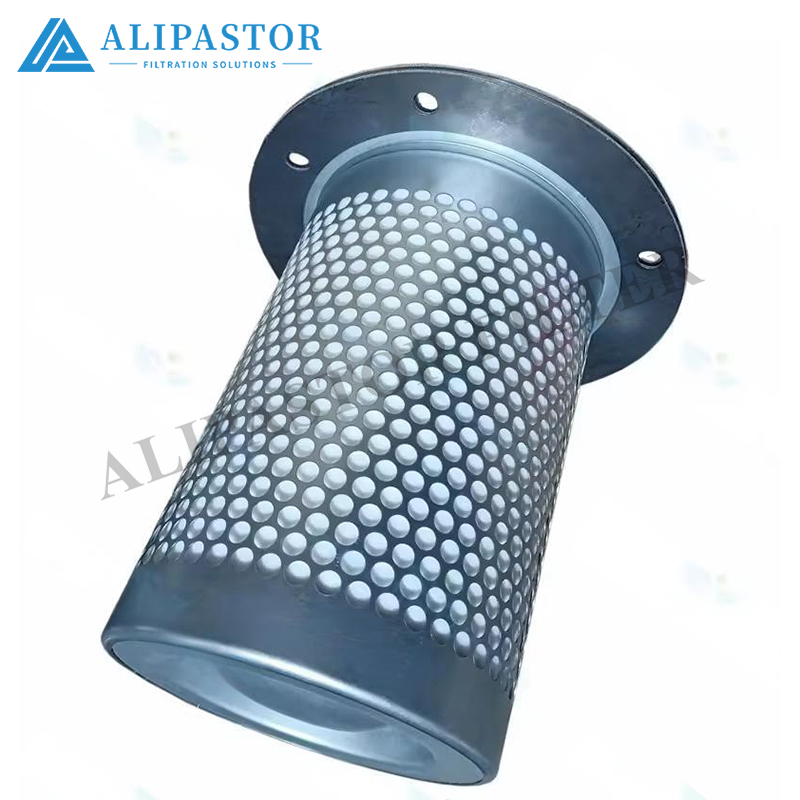

42585943 Ingersoll Rand Oil-Gas Separator Filter – Technical Specifications & Performance

Product Overview

The 42585943 is a specialized oil-gas separator filter designed for Ingersoll Rand screw air compressors, engineered to deliver reliable performance in demanding industrial environments. As a critical component of the compressed air system, it effectively removes oil mist, aerosols, and solid contaminants from compressed air, ensuring clean, dry air output for downstream equipment while optimizing energy efficiency and extending compressor lifespan.

Key Technical Specifications

• Filtration Efficiency: Achieves 99.97% separation efficiency for oil mist (0.1μm nominal rating), reducing oil carryover to ≤3ppm in the compressed air stream.




• Initial Pressure Drop: ≤0.02MPa, minimizing energy loss during air compression.




• Service Life: Designed for 3,500–4,000 operating hours under normal conditions (adjustable based on air quality and usage intensity).




• Operating Temperature Range: -20°C to +100°C, suitable for diverse industrial settings.




• Compatibility: Optimized for Ingersoll Rand R-series and GA-series compressors (e.g., R4-11i, GA110-250), with dimensions matching OEM specifications for seamless integration.




Material & Design Features

• Filter Media: Constructed with multi-layer borosilicate glass fiber, imported from HV&Lydall (a leading supplier of industrial filtration materials), to ensure high dirt-holding capacity and consistent performance.




• Housing: Manufactured from corrosion-resistant 304 stainless steel, providing durability against harsh chemicals, moisture, and mechanical stress.




• Sealing System: Features a dual O-ring design (FDA-approved silicone) to prevent air leaks and oil contamination, ensuring airtight operation.




• Maintenance Indicators: Integrated visual differential pressure gauge (color-coded: green=normal, yellow=warning, red=replace) for easy monitoring of filter status.




Performance Benefits

• Energy Savings: Low initial pressure drop reduces compressor workload, cutting energy consumption by up to 15% compared to generic filters.




• Equipment Protection: Prevents oil contamination of downstream components (e.g., air dryers, pneumatic tools), extending their service life by 25–30%.




• Air Quality Compliance: Meets ISO 8573-1 Class 1 standards for oil content (≤0.01mg/m³), ensuring suitability for sensitive applications like food processing, electronics manufacturing, and pharmaceutical production.




Usage & Maintenance Guidelines

• Installation: Turn off the compressor, relieve system pressure, and replace the filter in accordance with Ingersoll Rand’s service manual. Use only genuine 42585943 filters to avoid voiding warranties.




• Monitoring: Check the differential pressure gauge weekly; replace the filter when the indicator turns red (typically at 3,500 hours) or if pressure drop exceeds 0.15MPa.




• Storage: Store unused filters in a cool, dry place away from direct sunlight to preserve filter media integrity.




Consequences of Delayed Replacement

• Reduced Efficiency: Clogged filters increase pressure drop, forcing the compressor to work harder and consume more energy (up to 20% increase in electricity costs).




• Equipment Damage: Excess oil carryover contaminates downstream components, leading to costly repairs (e.g., air dryer failure, pneumatic tool corrosion).




• Production Downtime: Contaminated air can cause product defects (e.g., in food packaging, electronics) or equipment malfunctions, resulting in lost productivity and revenue.




Warranty & Support

• Backed by a 12-month limited warranty (extendable to 24 months with registered purchase).




• Ingersoll Rand’s global service network provides technical support and replacement services for the 42585943 filter.




Conclusion

The 42585943 oil-gas separator filter combines Ingersoll Rand’s engineering expertise with high-quality materials to deliver reliable, cost-effective air filtration for industrial compressors. Its compliance with international standards, energy-saving features, and easy maintenance make it a preferred choice for businesses seeking to optimize their compressed air systems and reduce operational costs.
