39906334 Good Quality Air Compressor Water Separator 39906334 Apply to Ingersoll Rand and Water Separator

39906334 Ingersoll Rand Oil-Water Separator for Industrial Air Compressors – Precision Moisture & Oil Removal for Compressed Air Systems

Product Description

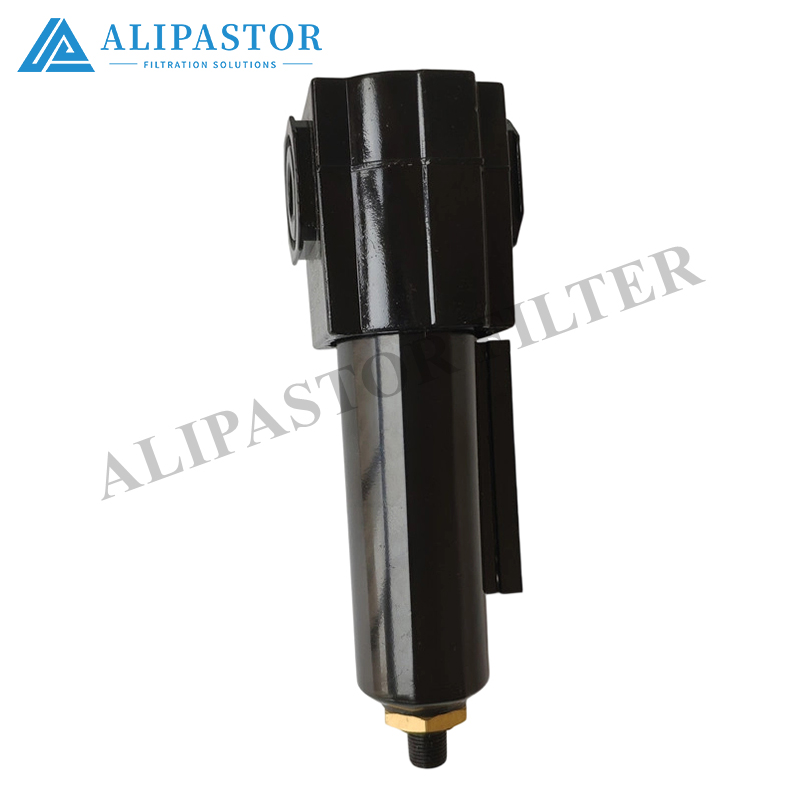

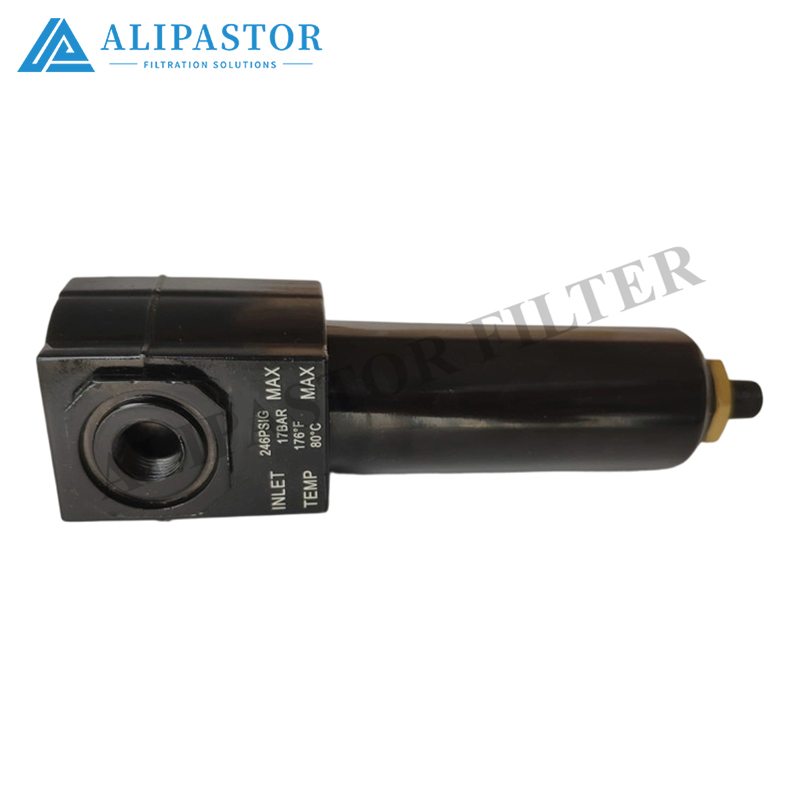

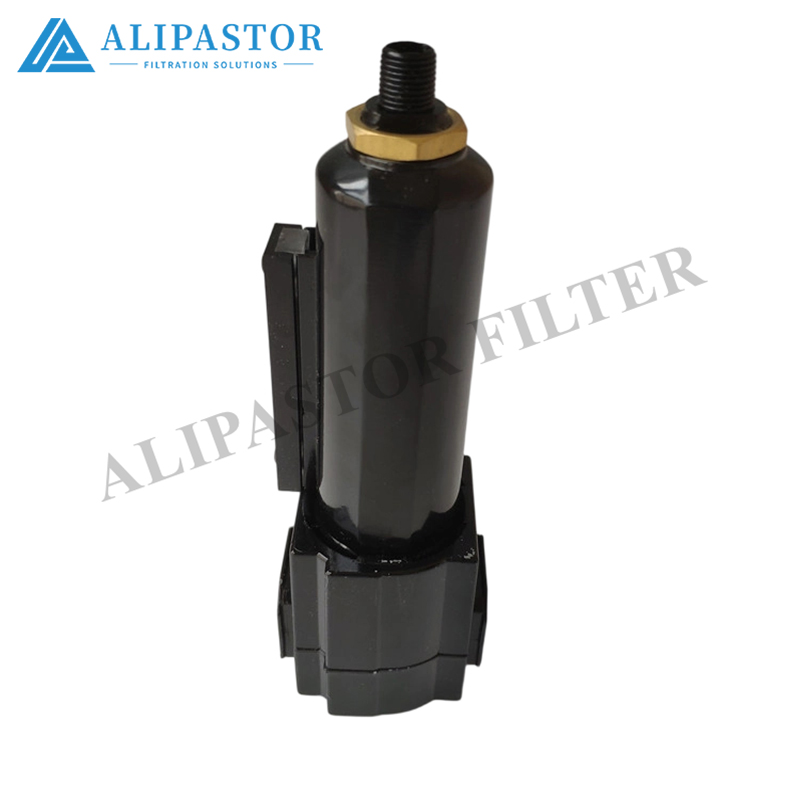

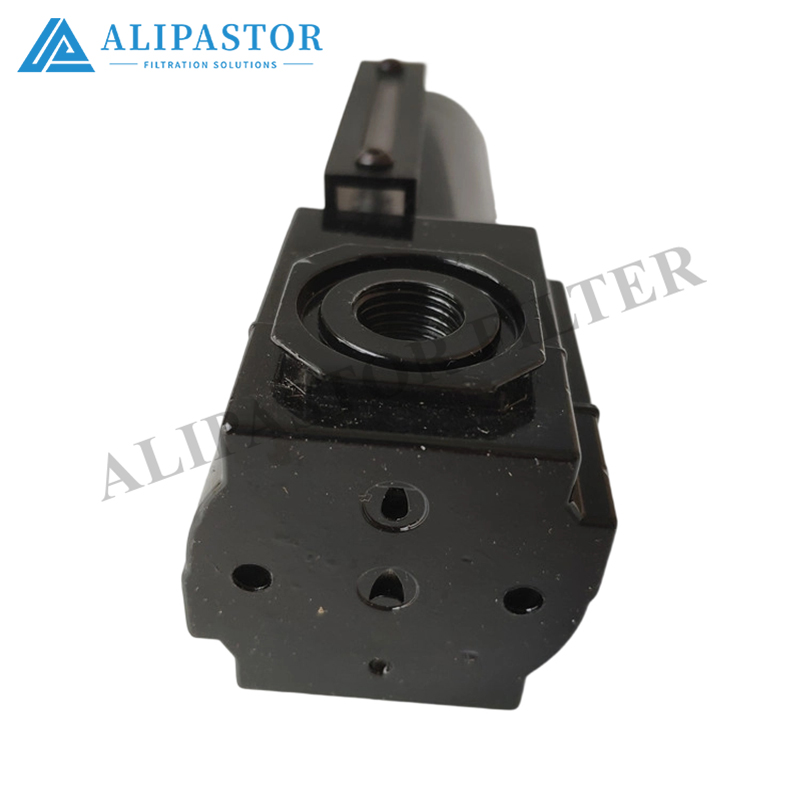

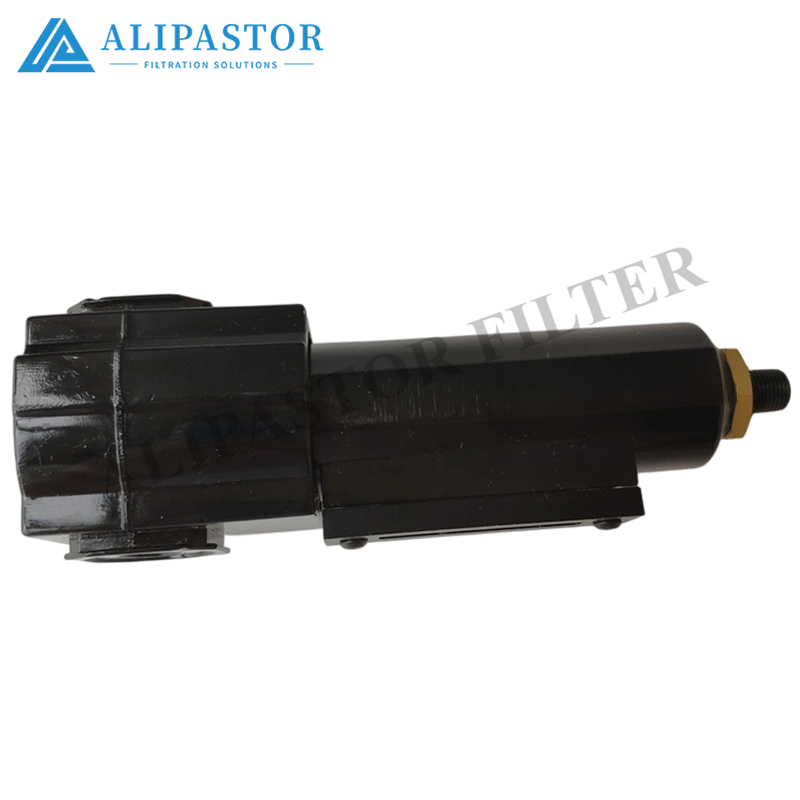

The 39906334 is a genuine Ingersoll Rand oil-water separator designed specifically for IR series industrial air compressors, engineered to remove liquid water, oil mist, and solid contaminants from compressed air streams. As a critical component of the compressed air treatment system, it ensures clean, dry air delivery to downstream tools and equipment, preventing corrosion, contamination, and premature wear. Constructed with a corrosion-resistant ABS housing (IP54-rated) and a multi-stage filtration media (polyester felt + activated carbon), it achieves a 99% moisture removal efficiency and reduces oil content to ≤5ppm, meeting ISO 8573-1 Class 4 moisture and Class 3 oil standards. Compatible with 20–75 HP IR compressors (e.g., IR 2020, IR 3020), it integrates seamlessly into existing systems to enhance operational reliability.

Usage & Maintenance Guidelines

1. Installation:

   • Turn off the compressor and relieve all pressure before replacing the separator.




   • Align the new unit with the compressor’s air outlet (ensure the O-ring is properly seated) and tighten the clamp securely to prevent air leaks.




   • For IR models like IR 2020, refer to the compressor’s user manual for specific piping configurations.







2. Monitoring:

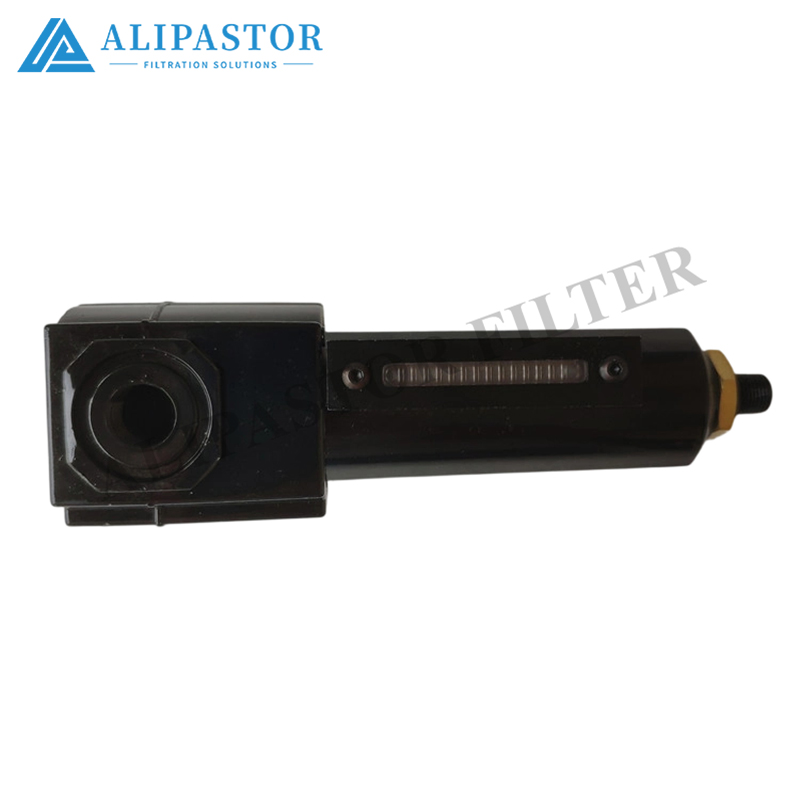

   • Check the transparent polycarbonate window (installed on the separator) weekly for water accumulation or oil discoloration.




   • Use the built-in differential pressure gauge to monitor clogging: replace the separator when the pressure drop across it reaches 0.08–0.10 MPa (indicating reduced airflow and filtration efficiency).




   • Inspect the housing for cracks or loose connections monthly to avoid contamination ingress.







3. Replacement Cycle:

   • Normal operating conditions (clean air, stable temperature): Replace every 4,000–5,000 hours.




   • Harsh environments (dusty, high humidity, or corrosive atmospheres): Shorten the cycle to 3,000–3,500 hours.




   • Immediate replacement is required if the compressor’s oil consumption increases by 15% or more (a sign of separator failure).







4. Best Practices:

   • Use only genuine Ingersoll Rand replacement separators (or OEM-equivalent) to ensure dimensional compatibility and filtration performance.




   • After replacement, run the compressor for 10–15 minutes to bleed air from the system and check for leaks.




   • Drain the separator’s sump weekly (using the manual drain valve) to remove accumulated liquid contaminants.







Consequences of Delayed Replacement

Neglecting to replace the 39906334 separator on time can lead to severe operational, financial, and safety risks:

• Reduced Air Quality: Clogged separators fail to remove moisture and oil effectively, leading to rust in pneumatic tools, contamination of painted surfaces, and damage to sensitive equipment (e.g., CNC machines, sensors).




• Increased Energy Consumption: A blocked separator increases pressure drop, forcing the compressor to work harder to maintain output. This raises energy costs by 8–12% (adding ~$1,200–$1,800 annually for a 50 HP compressor).




• Accelerated Equipment Wear: Excess moisture and oil in the compressed air contaminate the compressor’s lubrication system, increasing friction in bearings, pistons, and gears. This shortens the compressor’s lifespan by 15–20% and leads to costly repairs (e.g., replacing worn bearings costs $300–$600 per incident).




• Production Downtime: Severe contamination can cause downstream equipment (e.g., spray guns, drills) to fail, resulting in unplanned shutdowns. For manufacturing plants, this can cost $8,000–$15,000 per hour in lost output. Air purity drops, accelerating tool wear and compromising product quality (e.g., paint defects, contaminated packaging).




Summary

The 39906334 oil-water separator is a vital component for Ingersoll Rand IR series air compressors, ensuring clean air output, reducing energy consumption, and extending equipment life in industrial environments. By following the recommended usage and maintenance guidelines (regular monitoring, timely replacement), users can avoid costly downtime, reduce repair expenses, and maintain efficient operations. For optimal performance, always use genuine Ingersoll Rand parts and adhere to the manufacturer’s maintenance schedule.
