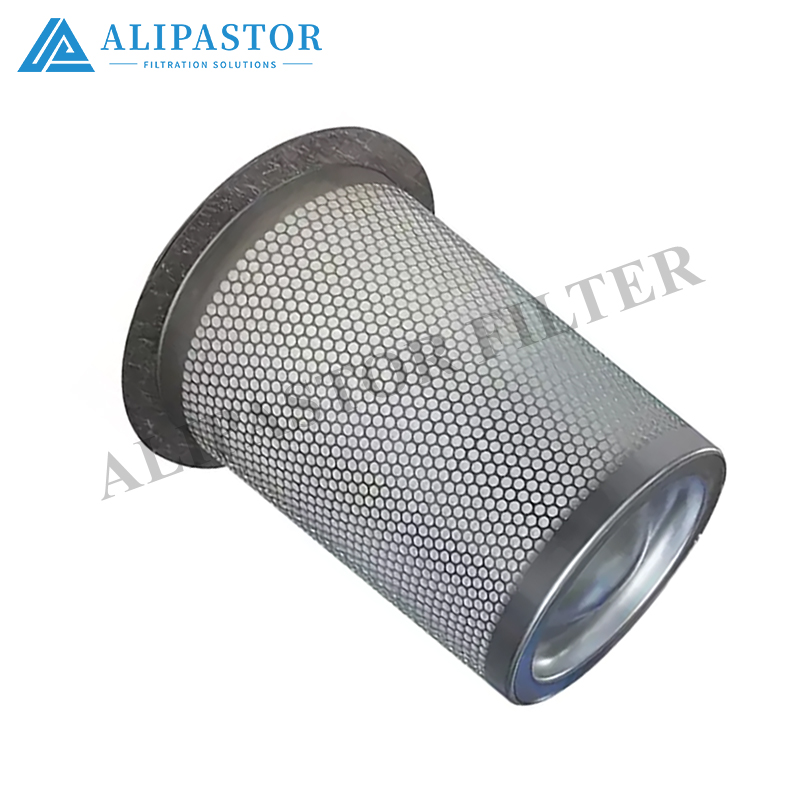

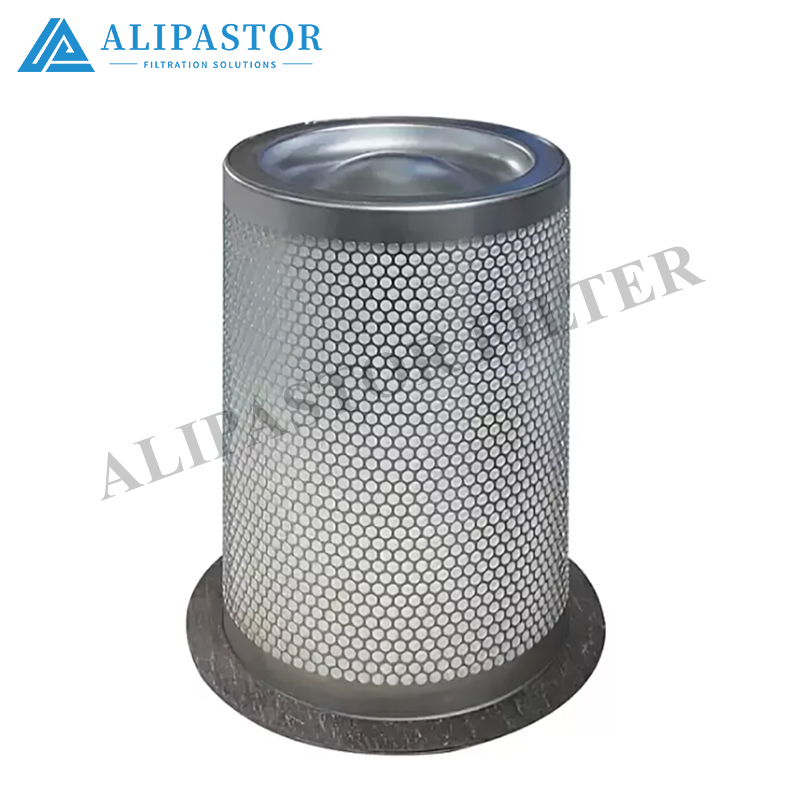

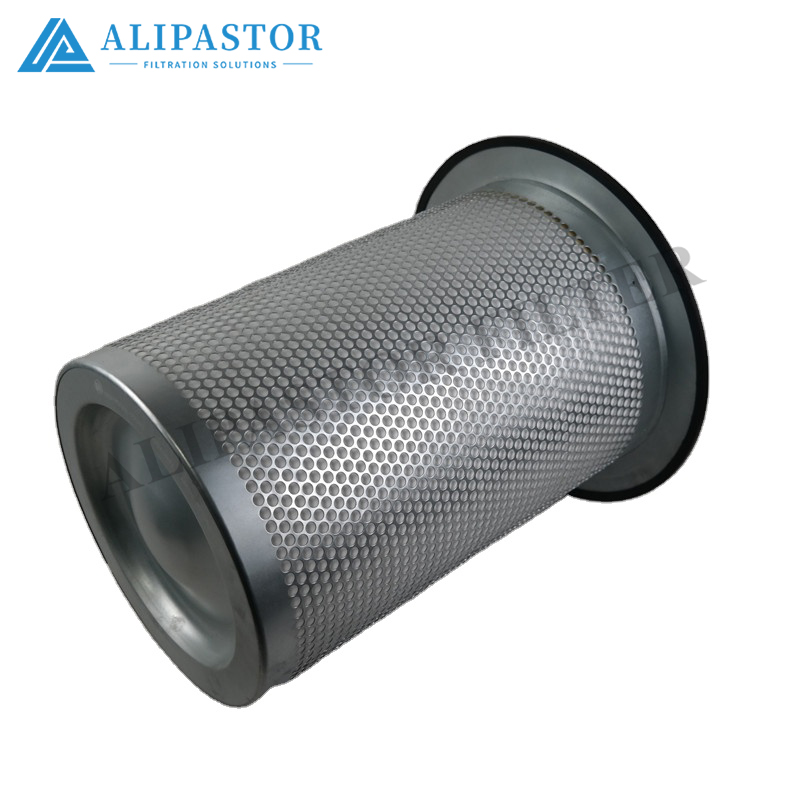

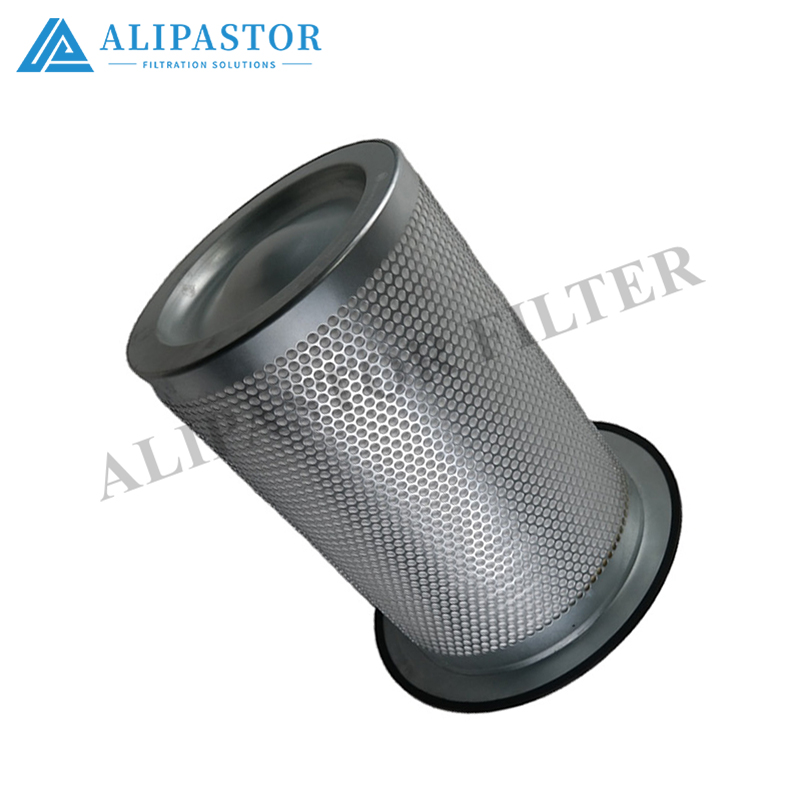

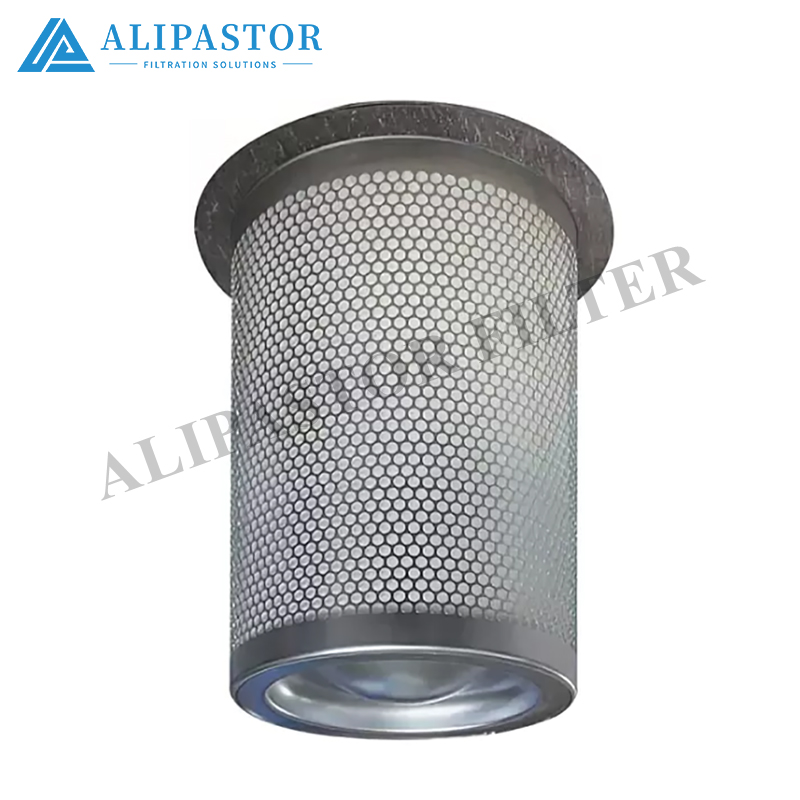

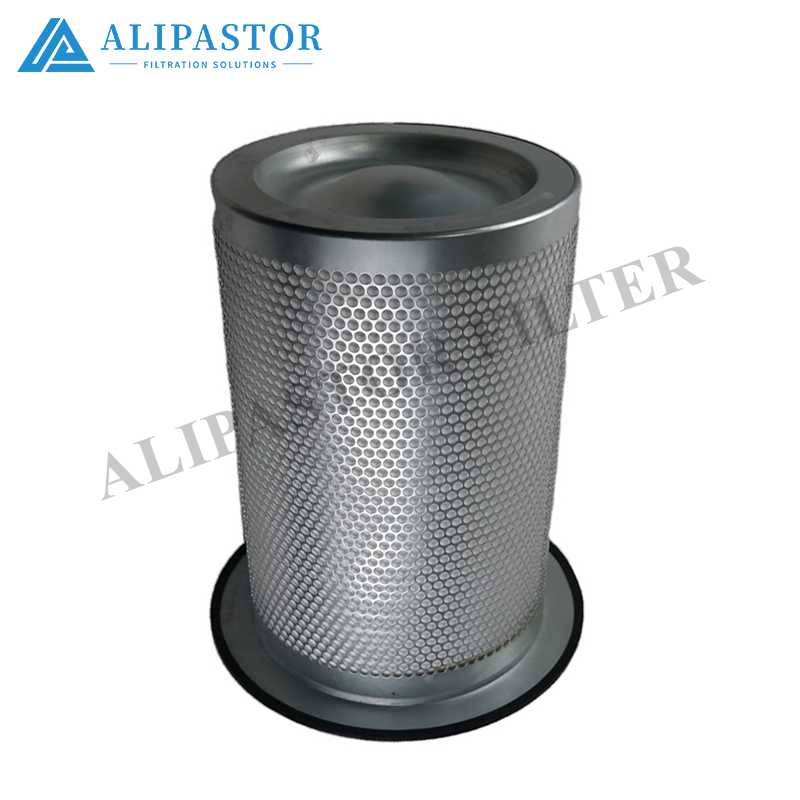

4093201200 4051008502 4061000900 High Separation Efficiency Oil-Gas Separator Filter for Screw Air Compressor
Similar models
4093201200 4051008502 4061000900
Basic Info.
Type | Air Oil Separator | Material | Imported fiberglass |
Warranty | 6 Month | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | Place of Origin | Henan, China |
Brand Name | ALIPASTOR | Application | for air compressor |
Product Name | Air Oil Separator | Part Number | 4093201200 4051008502 4061000900 |
Keyword | Air Oil Separator | Weight | Standard |
Filtration | 10micron | Color | Customize |
Filtration Grade | 99% | Warranty | 3 Months |
Production Capacity | 1000 PCS/Week |
Product Parameters
Model Number | 4093201200 4051008502 4061000900 |
Type | Air Oil Separator element |
Dimension | Standard |
Working Temperature | According to customer's request |
Work Pressure Different | Customized |
Material | Imported fiberglass |
Filter Precision | 10~20μm |
Life span | 2000h |
MOQ | 1 pieces |
Lead Time | Around 5-7 days after order confirmed |
Package | PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement |
Shipping Method | By sea, by air, by express |
Oil-Gas Separation Filter Element – Product Detail
Oil-gas separation filter elements are engineered to remove oil aerosol and mist from compressed air streams in rotary screw compressors, vacuum pumps, and gas processing systems. They ensure low oil carry-over (≤3 ppm standard, ≤0.01 ppm high-grade) and stable differential pressure throughout service life.
Construction & Working Principle
The element consists of a borosilicate glass microfiber coalescing layer, a hydrophobic resin treatment for enhanced water repellency, an outer polyester drainage mesh, and galvanized steel end caps with nitrile or fluorocarbon O‑rings. Oil-laden air flows radially outward; fine droplets coalesce into larger ones, gravitate to the sump, and are returned to the oil circuit. Initial differential pressure is typically <0.2 bar.
Technical Specifications (Three Models)
Model Number | Rated Flow (m³/min) | Filtration Rating (µm) | Max Operating Temp (°C) | Initial ΔP (bar) | Oil Carry‑Over (ppm) |
|---|---|---|---|---|---|
4093201200 | 12.0 | 0.01 | 80 | ≤0.15 | ≤0.5 |
4051008502 | 8.5 | 0.1 | 100 | ≤0.20 | ≤2.0 |
4061000900 | 9.0 | 0.05 | 80 | ≤0.18 | ≤1.0 |
All models feature M‑threaded connections (DIN standard) and are compatible with mineral oils, synthetic lubricants, and selected phosphate esters. End caps are available in carbon steel or stainless steel upon request.
Applications
Rotary screw compressors (lubricated)
Vacuum pump exhaust coalescing
Natural gas / biogas compression trains
Instrument air packages requiring low oil content
Offshore and marine compressor skids
Maintenance & Replacement
Recommended service interval: 4 000–8 000 operating hours, or when differential pressure reaches 0.7 bar. Always replace O‑rings during element change. Store in dry, clean environment away from UV and ozone sources.
For optimal performance, pair with a pre‑filter (particulate grade) and a post‑filter (activated carbon for breathing‑air applications). Our elements meet ISO 8573‑1 Class 1‑2 oil content requirements when properly installed.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4.What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q5.What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q6. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q7. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
