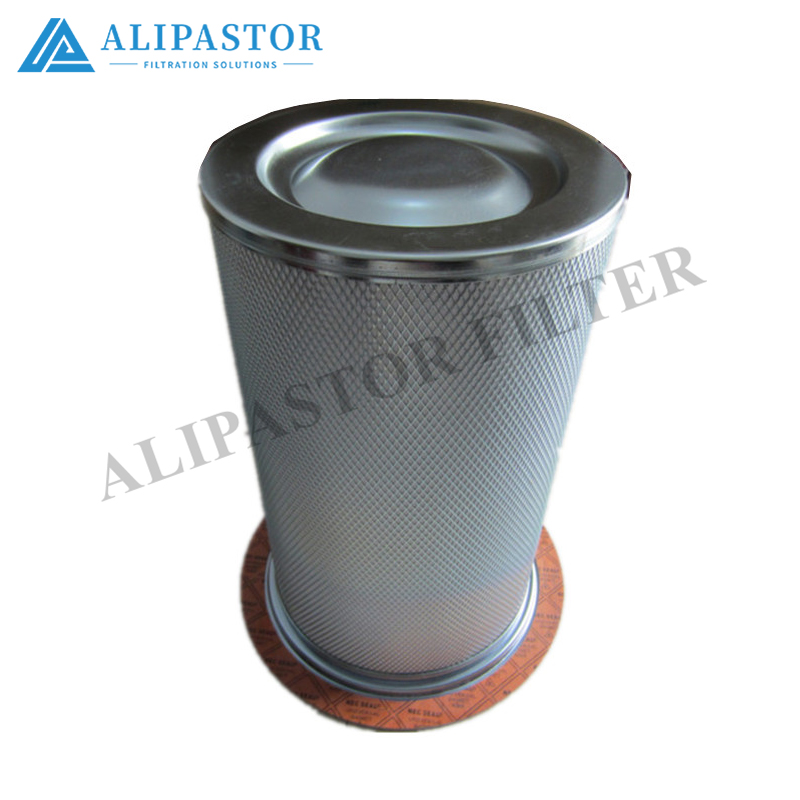

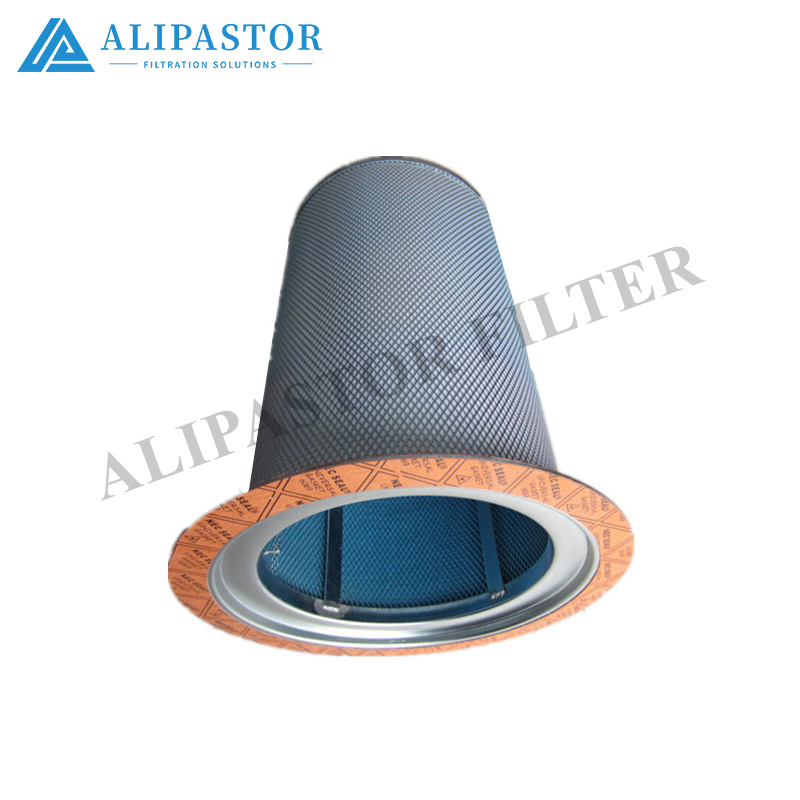

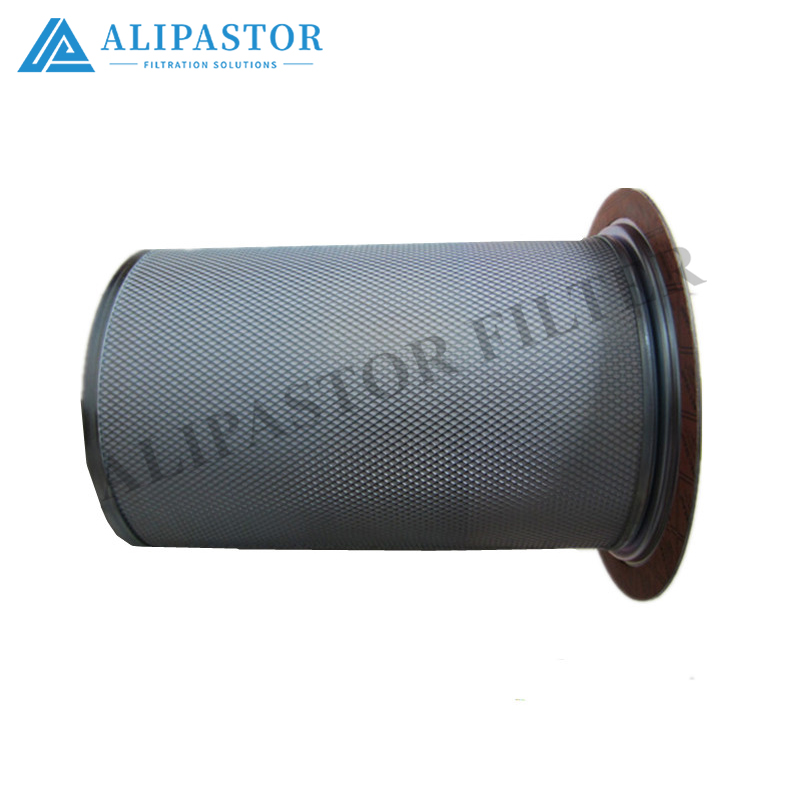

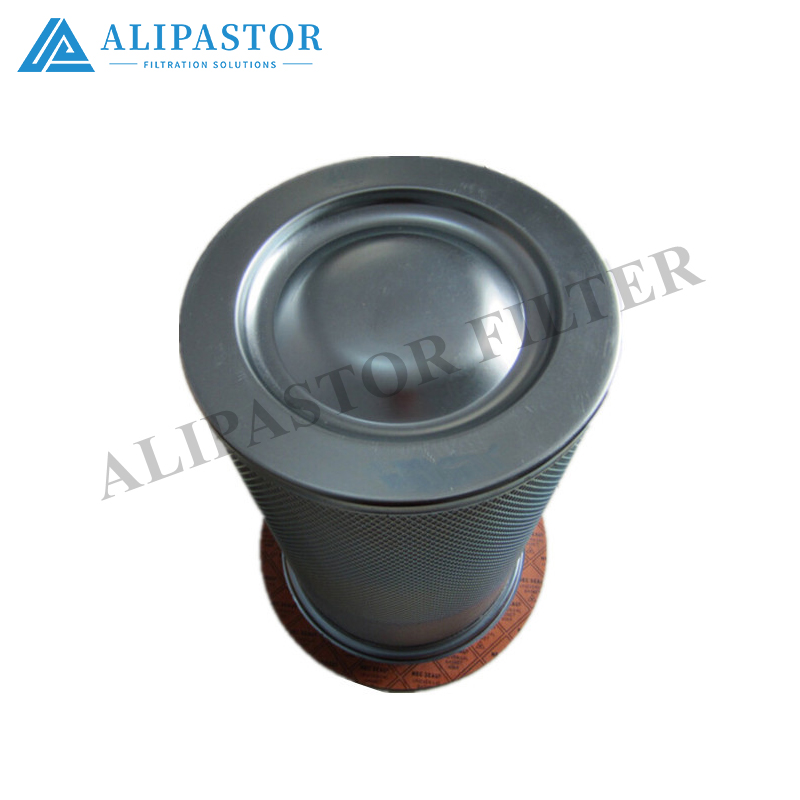

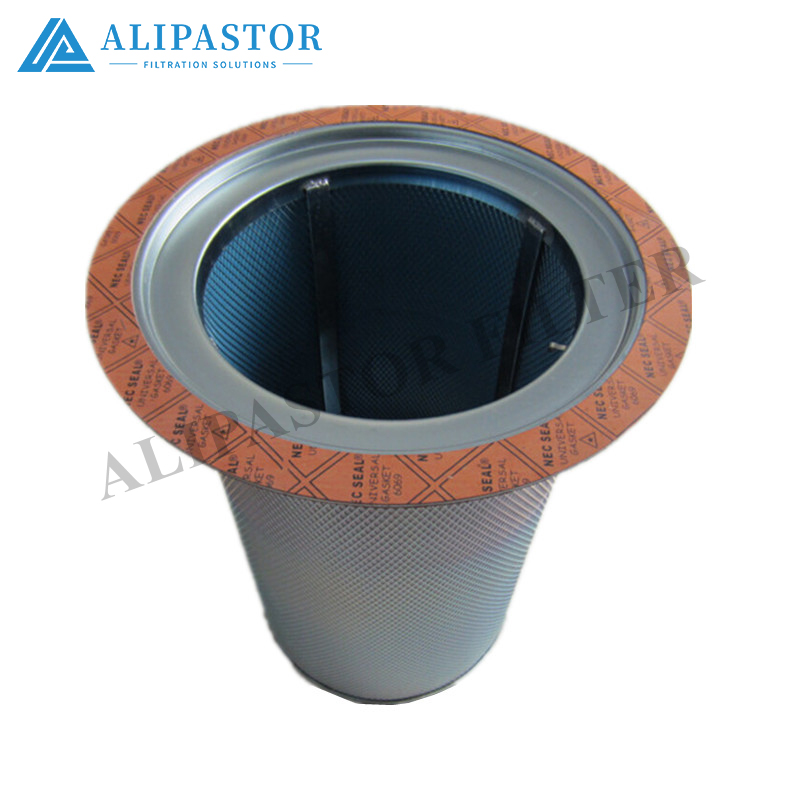

92871326 Oil-Gas Separator Filter for Ingersoll Rand Air Compressors – Technical Specifications & Performance Overview

Product Description

The 92871326 is a high-efficiency oil-gas separator filter designed exclusively for Ingersoll Rand screw air compressors, serving as a critical component to maintain clean, dry compressed air output and extend compressor lifespan. Engineered with advanced multi-layer filtration technology, it effectively removes oil mist, aerosols, and solid contaminants from compressed air, ensuring compliance with strict industrial air quality standards (e.g., ISO 8573-1) for applications like manufacturing, mining, and construction.

Technical Specifications

• Filtration Efficiency: Achieves 99.9% removal of oil aerosols and particles as small as 0.1μm, reducing oil carryover to ≤3ppm in the compressed air output (meeting ISO 8573-1 Class 0 standards for clean air).




• Initial Pressure Drop: ≤0.02 MPa, minimizing energy loss during air compression and ensuring maximum airflow.




• Service Life: 3,500–6,000 operating hours (depending on air quality and maintenance practices).




• Operating Temperature: -20°C to +100°C, suitable for diverse industrial environments.




• Compatibility: Exclusively designed for Ingersoll Rand SSRM series screw compressors (e.g., SSRM75), ensuring seamless integration with existing systems.




• Material: Constructed with 7-layer glass fiber media (imported from HV Company) with a nanofiber coating, enhancing filtration efficiency while maintaining low airflow resistance. The housing is made of corrosion-resistant stainless steel (304 grade) to withstand high pressure and harsh industrial conditions.




• Sealing System: Equipped with a high-temp fluorocarbon elastomer gasket (zero-leak design), preventing oil mist leakage and ensuring airtight performance.




Performance Benefits

• Clean Air Assurance: Effectively removes oil mist, solid particles, and aerosols from compressed air, delivering clean air for downstream equipment (e.g., pneumatic tools, spray guns) and preventing damage to critical components.




• Energy Savings: The low initial pressure drop reduces compressor workload, cutting energy consumption by up to 15% compared to generic filters. Over the filter’s lifespan, this translates to significant cost savings for industrial users.




• Durable Performance: The 7-layer glass fiber media and stainless steel housing ensure long-lasting performance, even in high-dust or high-humidity environments. The filter’s corrosion-resistant design extends service life by 30–50% compared to non-OEM alternatives.




Usage & Maintenance Guidelines

• Installation:

  • Turn off the compressor and relieve all pressure from the system (open the drain valve and allow the compressor to cool).




  • Locate the oil-gas separator housing on the compressor and remove the old filter (use a wrench to loosen the retaining nut).




  • Align the new filter (92871326) with the housing threads and tighten the retaining nut by hand (do not overtighten to avoid damaging the seal).




  • Reconnect all hoses and turn on the compressor. Check for leaks around the filter housing and tighten the nut if necessary.







• Monitoring:

  • Check the pressure drop across the filter regularly (using a pressure gauge installed upstream and downstream of the filter). A pressure drop exceeding 0.08 MPa indicates that the filter is clogged and needs replacement.




  • Inspect the filter housing and seal for leaks or damage during routine maintenance (every 1,000 hours).







• Replacement:

  • Replace the filter every 3,500–6,000 operating hours (or sooner if the pressure drop exceeds 0.08 MPa).




  • Dispose of the old filter according to local environmental regulations (oil-contaminated filters may require special handling).







Consequences of Delayed Replacement

• Reduced Air Quality: A clogged filter fails to remove oil mist and contaminants, leading to contaminated compressed air. This can damage downstream equipment (e.g., pneumatic tools, spray guns) and compromise product quality (e.g., oil stains on painted parts).




• Increased Energy Consumption: A clogged filter increases the pressure drop, forcing the compressor to work harder to maintain airflow. This increases energy consumption by up to 20% and raises operational costs.




• Compressor Damage: Excess oil carryover from a clogged filter can contaminate the compressor’s lubrication system, leading to increased wear on moving parts (e.g., bearings, pistons). In severe cases, this can cause compressor failure, resulting in costly repairs (up to $10,000) and extended downtime.




• Production Downtime: Contaminated air or compressor failure can halt production lines, leading to lost revenue (up to $50,000 per hour for large manufacturing plants).




Summary

The 92871326 oil-gas separator filter is a high-performance, OEM-compatible solution for Ingersoll Rand SSRM series screw compressors. Its advanced filtration technology, durable design, and reliable performance make it an ideal choice for industrial users seeking to maintain clean, dry compressed air and extend compressor lifespan. By following the recommended usage and maintenance guidelines, users can avoid costly downtime and ensure optimal performance of their compressed air systems.
