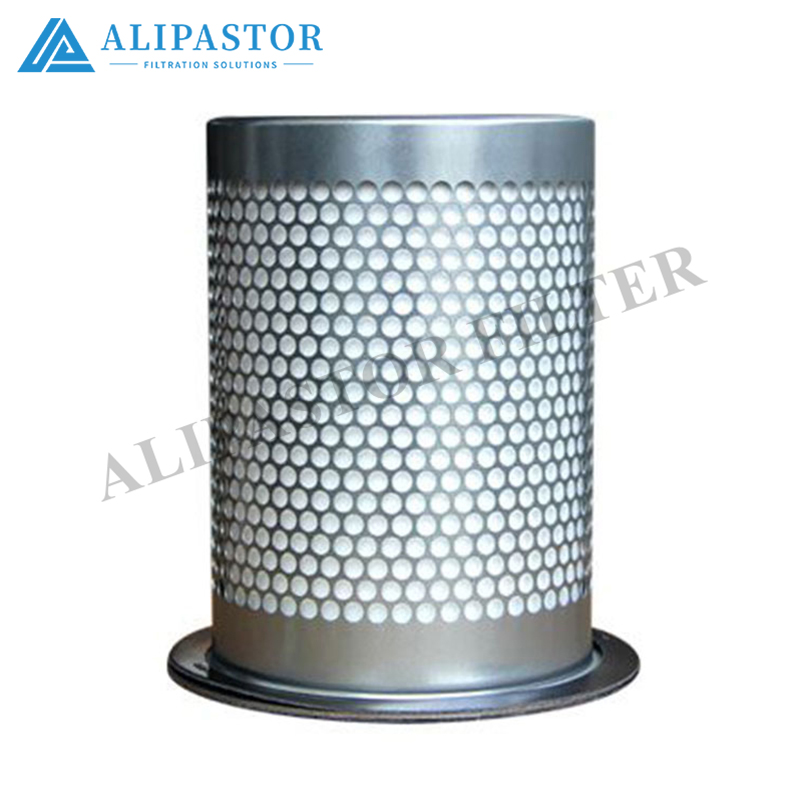

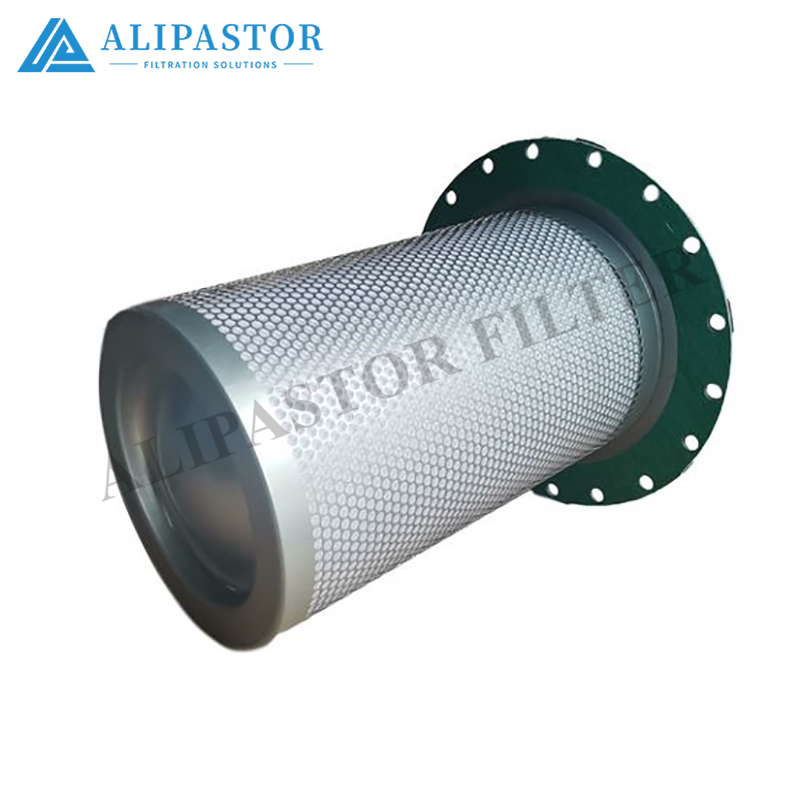

1100400032 Oil Separator for Screw air Compressor Filter element Oil Separator Filter

1100400032 Oil-Gas Separator Filter Element – Technical Specifications & Maintenance Guide

Product Overview

The 1100400032 oil-gas separator filter element is a precision-engineered component designed for industrial air compressors, serving as a critical barrier against oil aerosols and solid contaminants in compressed air. It ensures clean, oil-free air output for downstream equipment (e.g., pneumatic tools, painting systems) while extending compressor lifespan by preventing lubricant contamination. Manufactured to meet international quality standards, this filter combines high-efficiency coalescing media with durable construction to handle harsh industrial environments.

Key Technical Specifications

Material Composition

The filter element is constructed from high-performance materials to ensure reliability:

• Coalescing Media: Borosilicate glass fiber – efficiently captures oil aerosols by merging small droplets into larger ones, which settle and return to the compressor’s lubrication system via a built-in return tube.




• Particulate Filter: Stainless steel mesh – prevents solid contaminants (dust, metal shavings) from entering the compressed air stream.




• Seal: Nitrile rubber – resists oil degradation and maintains a tight seal to prevent leaks.




• Housing: Corrosion-resistant alloy – protects internal components from environmental damage.




Function & Importance

The 1100400032 filter performs two critical roles for air compressors:

1. Oil-Gas Separation: Removes oil aerosols from compressed air using a coalescing process. Large oil droplets are separated by centrifugal force, while small droplets (≤1μm) are captured by the glass fiber media and returned to the lubrication system, reducing oil consumption and ensuring oil-free air output.




2. Particulate Filtration: Traps solid contaminants (dust, debris) from the intake air, preventing them from entering the compressor’s rotor chamber and causing wear. This extends the life of critical components (bearings, seals) and maintains compressor efficiency.




Usage Guidelines

1. Installation

• Preparation: Shut down the compressor, relieve all pressure, and drain condensate from the air receiver.




• Removal: Use a filter wrench to loosen the old element counterclockwise. Clean the mounting surface to remove residual oil or debris.




• Installation: Align the new element with the housing threads and tighten clockwise by hand. Use a wrench to secure it (do not over-tighten to avoid damaging the seal).




• Testing: Reconnect the compressor to the power supply, start it, and check for air leaks around the filter housing.




2. Maintenance

• Inspection: Check the filter element monthly for signs of clogging (reduced air flow, increased pressure drop) or damage (tears, cracks). In dusty environments, inspect every 2–4 weeks.




• Cleaning: For reusable elements, remove the media and tap it gently to dislodge loose dirt. Use compressed air (≤0.5 MPa) to blow away debris from the inside out. Do not wash with water or solvents.




• Replacement: Replace the element every 1,000–2,000 operating hours or annually (whichever comes first). In high-dust or high-humidity environments, reduce the interval to 500–1,000 hours.




3. Disposal

Dispose of used filters according to local environmental regulations. Most jurisdictions classify them as hazardous waste due to residual oil and contaminants. Recycle whenever possible (e.g., through authorized metal recycling centers).

Consequences of Delayed Replacement

Failing to replace the 1100400032 filter on time can lead to severe issues:

• Reduced Efficiency: Clogged filters increase pressure drop, forcing the compressor to work harder and consume more energy (up to 10% increase in costs).




• Compressor Wear: Solid contaminants bypass the filter and damage rotor bearings, seals, or vanes, leading to costly repairs (e.g., replacing a damaged rotor can cost $5,000–$10,000).




• Oil Contamination: Failed oil-gas separation causes oil to enter the compressed air stream, contaminating downstream equipment (e.g., painting systems, pneumatic tools) and ruining products.




• Safety Risks: Overheating from clogged filters can cause oil degradation, increasing the risk of fires in industrial settings.




Compatibility

The 1100400032 filter is compatible with most industrial air compressors, including:

• Screw Compressors: 5–30 HP models (e.g., Atlas Copco, Ingersoll Rand).




• Reciprocating Compressors: Medium-duty (10–50 HP) for manufacturing, construction, or automotive repair.




• Applications: Pneumatic tools, painting systems, food processing (oil-free air requirement), and HVAC systems.




Summary

The 1100400032 oil-gas separator filter element is a reliable solution for maintaining clean, efficient compressed air in industrial settings. Its multi-stage filtration design, durable materials, and compatibility with various compressors make it a cost-effective choice for reducing downtime and extending equipment life. By adhering to the recommended maintenance guidelines—including timely replacement—you can avoid costly repairs, improve energy efficiency, and ensure consistent performance. For more information on specific applications or compatibility, consult the compressor manufacturer’s manual or an authorized distributor.
