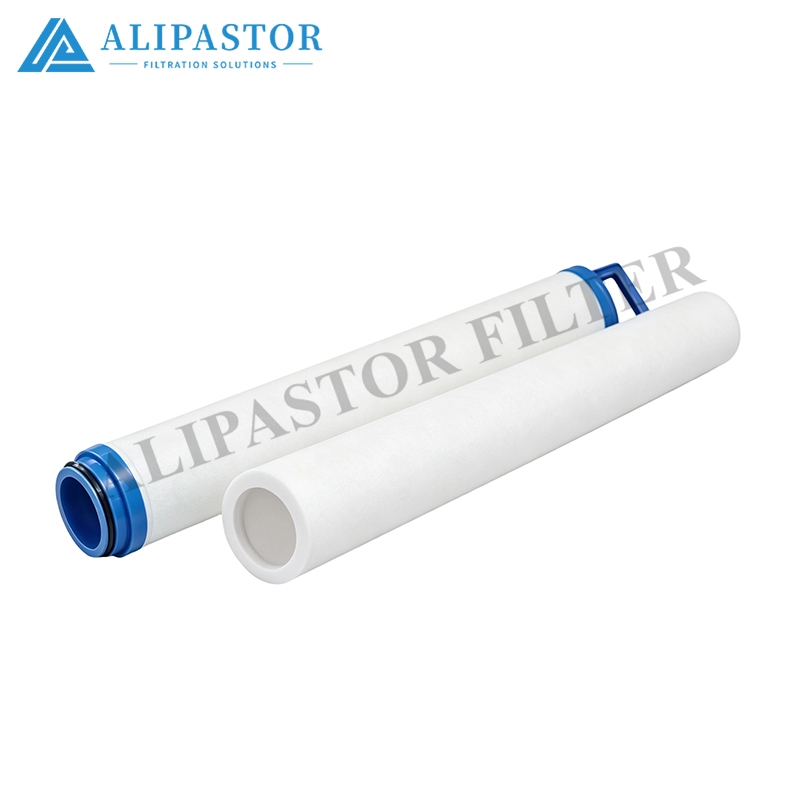

High-Performance Pleated Polypropylene Filter Element – Model EZ-PSFG-343-PP

Designed as a high-surface-area pleated cartridge for low-pressure hydraulic loops and auxiliary filtration circuits, the EZ-PSFG-343-PP uses 100 % polypropylene melt-blown media in a gradient-density, binder-free construction. While PP media is most often specified for water-glycol (HFC) and environmentally acceptable hydraulic fluids (HEES/HETG) where glass fiber is not compatible, this element also serves as a tank-breather guard, offline kidney-loop cartridge, or return-line prefilter in large reservoir systems. The 43" (1092 mm) length and 4.5" (114 mm) OD deliver roughly 3–5× the surface area of a comparable straight-wrap element, keeping ΔP low through long service intervals.

Key Features

• PP pleated media, thermally bonded, no adhesives to leach into fluid




• Gradient pore structure – outer coarse, inner fine – for depth-style particle capture

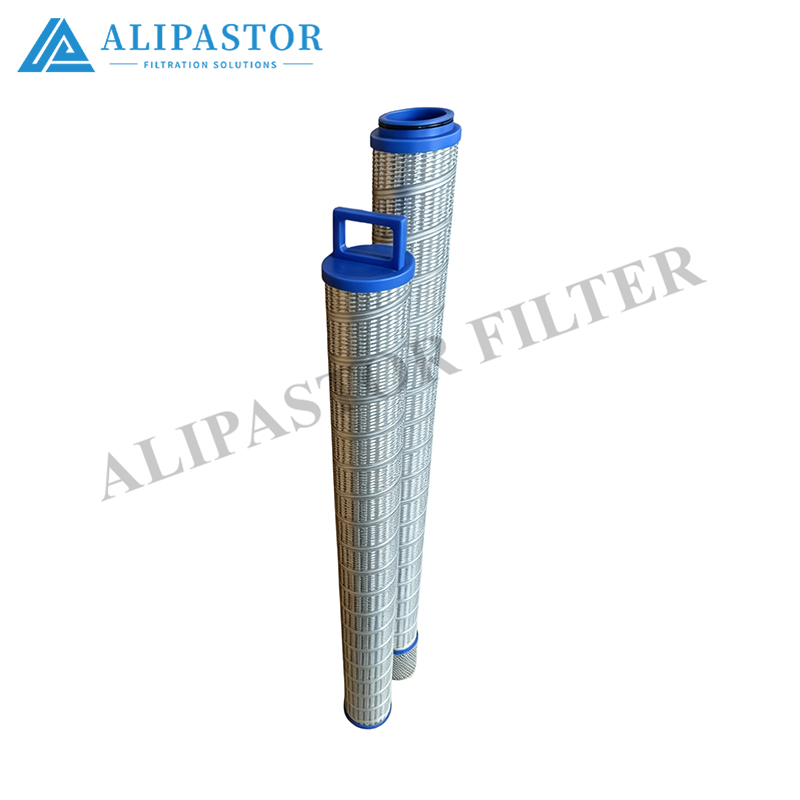

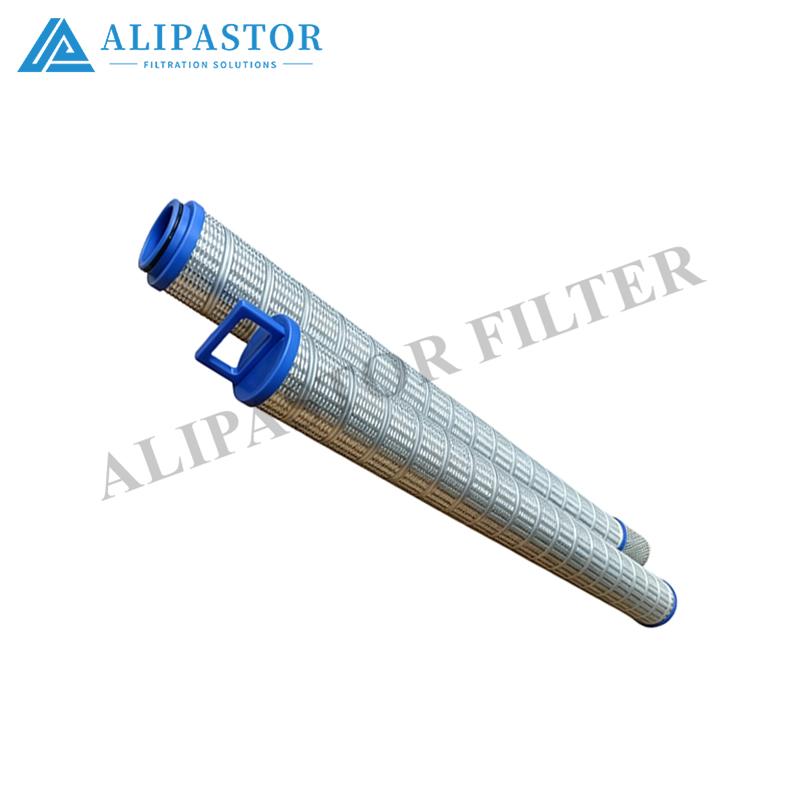

• EZ-Install top handle + alignment tabs, tool-free swap, single-person service




• Tin-plated carbon-steel core & outer cage resist collapse under surge flow




• Viton (FKM) lip-seal std. (EPDM/NBR optional) for HFC/HFAS compatibility




• Outside-in flow, 4-pcs per bank typical for vessel-mount layouts




Technical Specifications

Where It Fits in a Hydraulic System

• Tank-mounted breather / guard on large reservoirs where airborne dust and filler contamination need blocking at the return path




• Offline kidney-loop carts circulating HFC (water-glycol) fire-resistant fluid – PP won't degrade the way cellulose/glass will




• Low-pressure return prefilter ahead of a finer 3/5 μm final element, extending the final element's life




• Make-up / topping filtration stations where fluid is conditioned before entering the main circuit




⚠️ PP media is not intended for mineral-oil HV/HM service above 70–80 °C long-term – standard glass-fiber elements are preferred there. For mineral-oil duty at this form factor, a polyester or glass-media version of the same PSFG-343 body is the correct substitution.

Fluid Compatibility

• ✅ HFC (water-glycol) – primary target




• ✅ HEES / HETG biodegradable esters (confirm seal: FKM recommended)




• ✅ HFAS dilute solutions




• ❌ Mineral oil > 80 °C prolonged, phosphate ester (HFDR) – choose glass or polyester variant instead




• ❌ Strong oxidizers / concentrated acids – PP will degrade




Installation & Service

1. Verify vessel is depressurized and drained below the element seat before opening.




2. Lift old element out by the top handle; inspect the lip-seal groove and cage for debris.




3. Seat new element – the EZ-Align tabs click into the vessel head, preventing rotation or sag.




4. Re-pressure slowly; check for bypass leakage around the seal (ΔP gauge recommended on vessel inlet/outlet).




5. Log hours or gallons processed; replace at 12–15 psi (0.8–1.0 bar) ΔP or per fluid-condition report.




Quality Notes

Media lot-tested for bubble point and gravimetric efficiency; each element pressure-checked on the cage before packing. PP pleat pack is thermally bonded – no urethane or adhesive that could soften in HFC service.

Ordering

Part number: EZ-PSFG-343-PP – specify micron rating (0.5 / 1 / 5 / 10 / 20 / 50 μm absolute), seal material (FKM std., EPDM/NBR on request), and quantity per bank. Alternative media (polyester for 116 °C, glass for highest efficiency) available under EZ-PSFG-343-PE / EZ-PSFG-343-GL if duty moves out of the PP envelope.

Nominal values; confirm fluid chemistry, vessel model, and operating temperature before selecting PP vs. polyester/glass variant.
