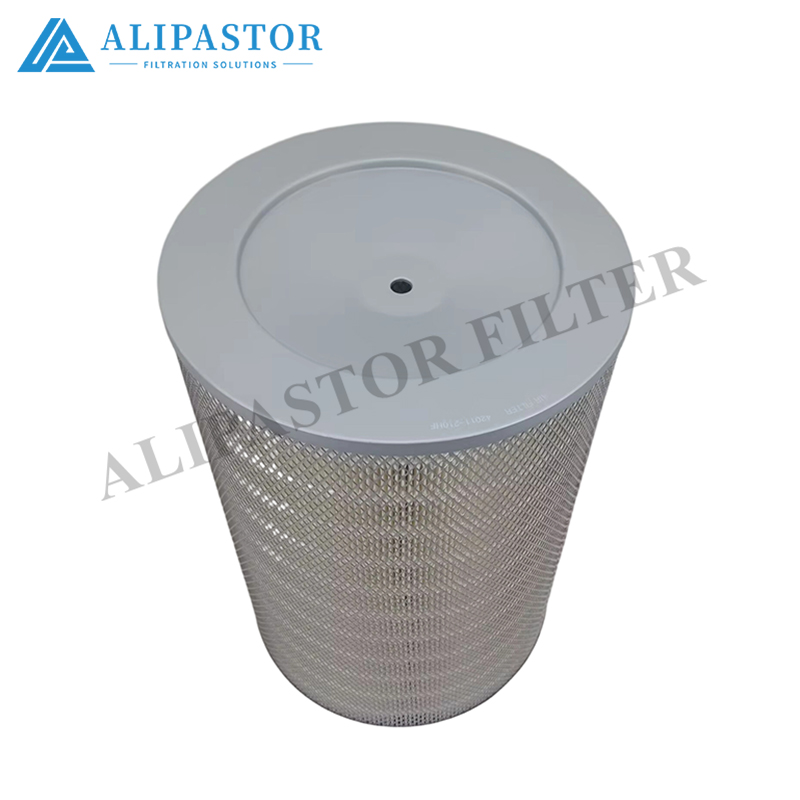

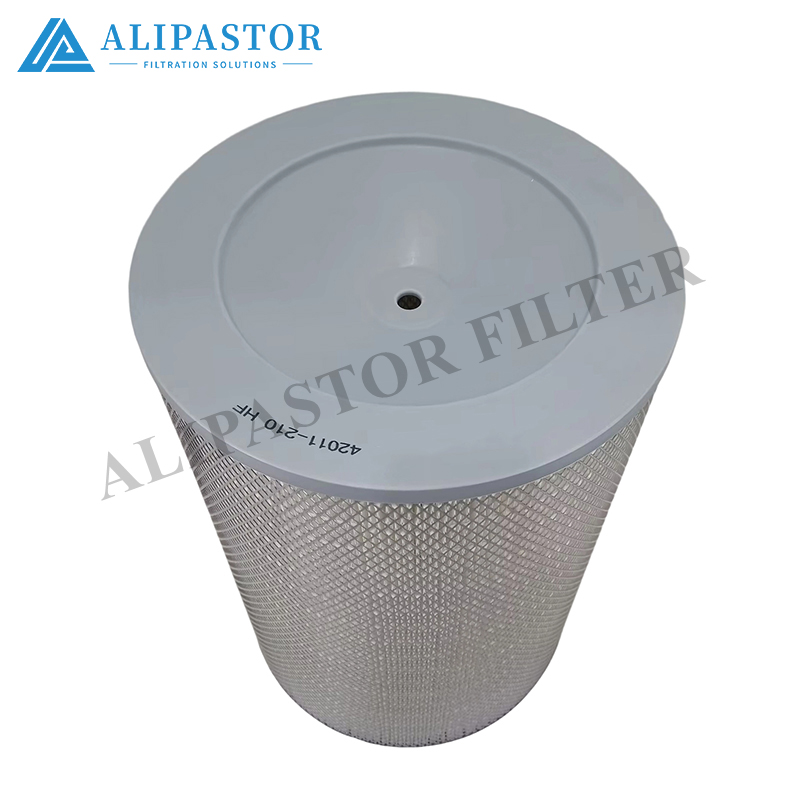

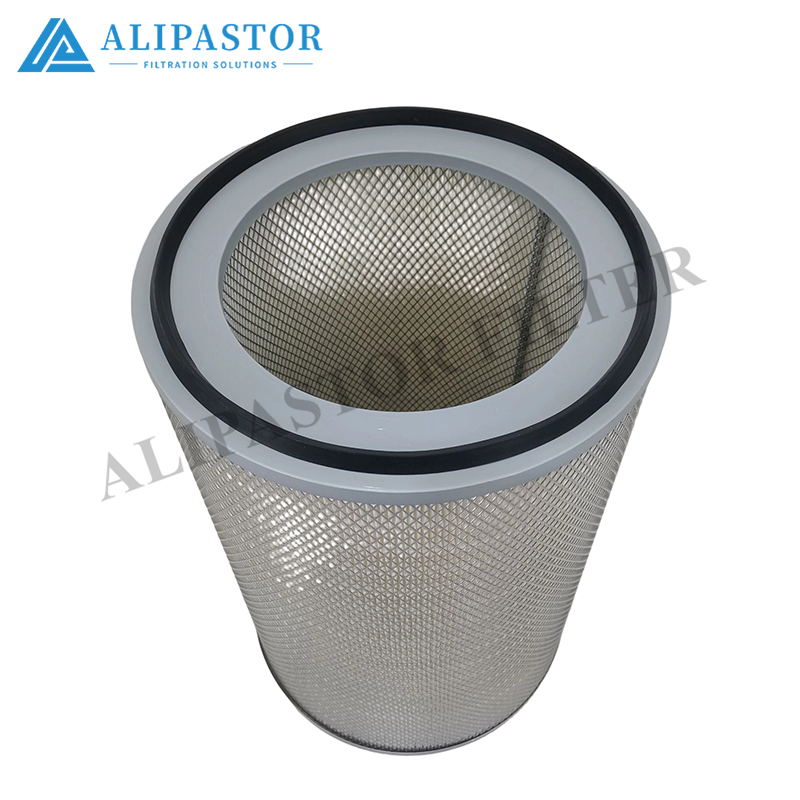

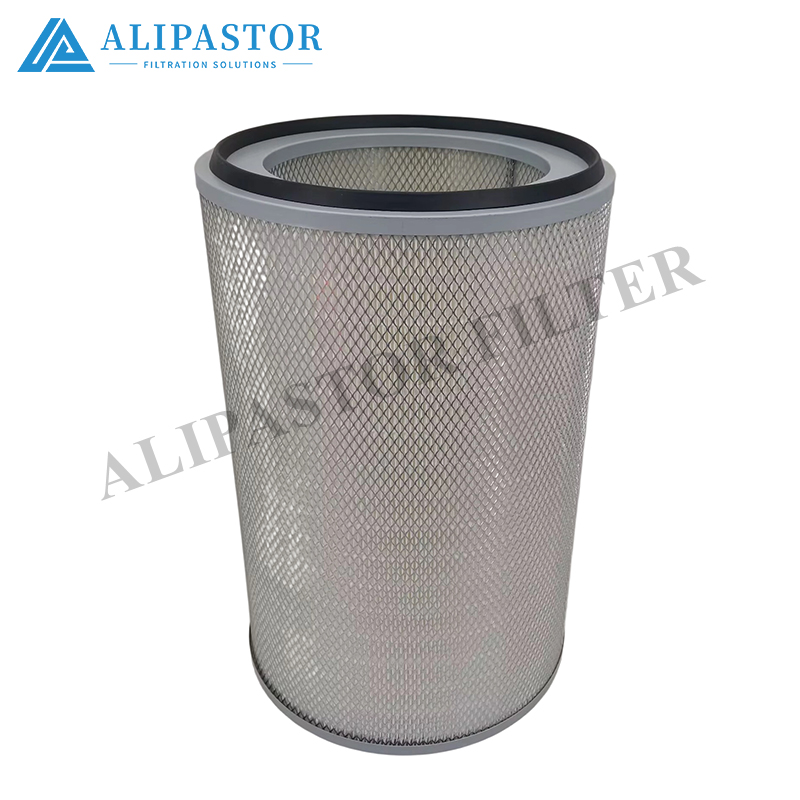

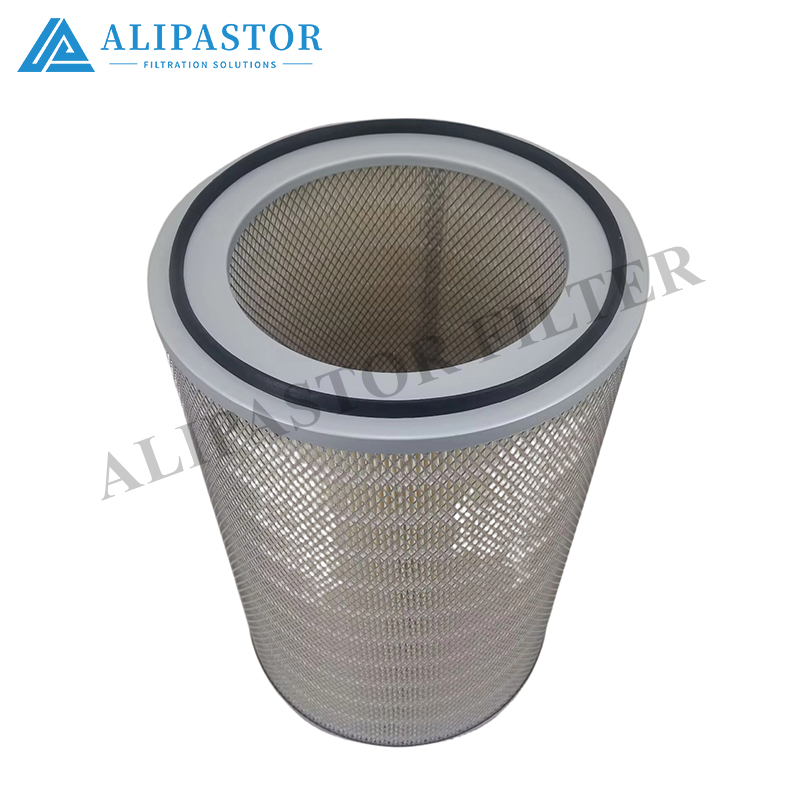

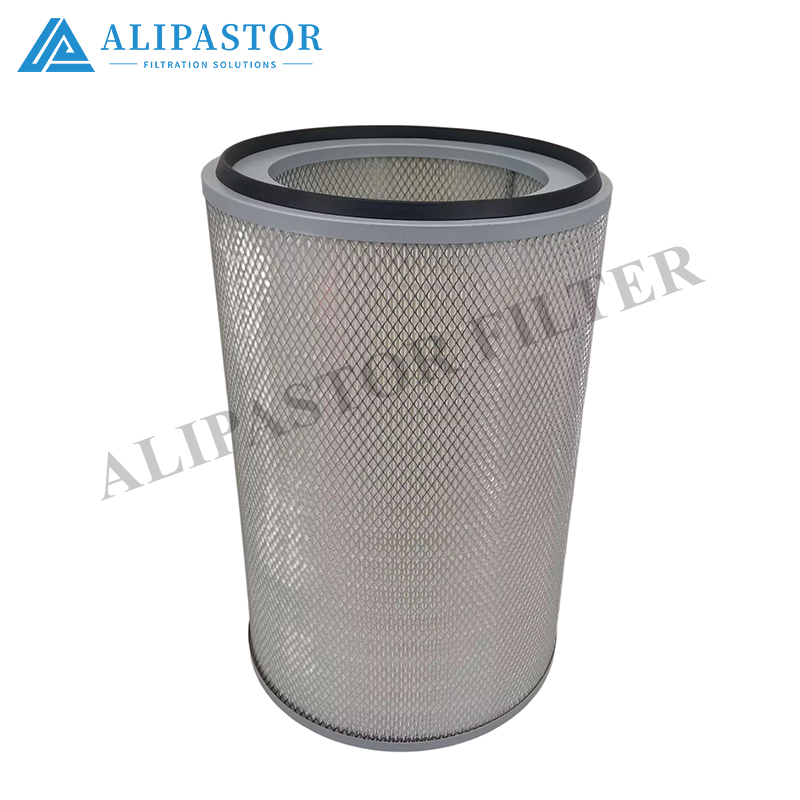

42011-210HF Industrial Grade Air Filter Element 42011-210HF High Efficiency Engine Replacement Parts
Similar models
42011-210HF
Basic Info.
Type | Air Filter | Material | Filter paper |
Warranty | 6 Month | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | Place of Origin | Henan, China |
Brand Name | ALIPASTOR | Application | for air compressor |
Product Name | Air Filter | Part Number | 42011-210HF |
Keyword | Air Filter | Weight | Standard |
Filtration | 3-100micron | Color | Customize |
Filtration Grade | 99% | Warranty | 3 Months |
Production Capacity | 1000 PCS/Week |
Product Parameters
Model Number | 42011-210HF |
Type | Air Filter element |
Dimension | Standard |
Working Temperature | According to customer's request |
Work Pressure Different | Customized |
Material | Filter paper |
Filter Precision | 3~100μm |
Life span | 2000h |
MOQ | 1 pieces |
Lead Time | Around 5-7 days after order confirmed |
Package | PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement |
Shipping Method | By sea, by air, by express |
42011-210HF Air Filter Element – Industrial Technical Reference Guide
1. Product Overview
This model belongs to the category of industrial high-efficiency intake air filter elements, primarily designed for rotary screw air compressors, industrial HVAC systems, and high-flow pneumatic equipment. Its core function is to intercept ambient dust, pollen, sand, and other particulate contaminants before air enters the compression chamber or combustion system, preventing abrasive wear of precision components (bearings, rotors, impellers) and extending equipment service life.
2. Universal Technical Specifications (for this Class)
All parameters below represent standard performance benchmarks for industrial-grade high-efficiency intake filters, applicable to 42011-210HF and equivalent models:
Parameter | Typical Specification | Notes |
|---|---|---|
Filtration Media | Multi-layer gradient density synthetic fiber / cellulose blend | Electrostatically charged to enhance submicron particle capture |
Nominal Filtration Rating | 5–10 μm (99% efficiency at 5 μm, per ISO 5011 standard) | Removes >99% of airborne particulates ≥5 μm |
Initial Pressure Drop | ≤ 0.002 MPa (0.02 bar) | Low pressure drop minimizes compressor energy consumption |
Dust Holding Capacity | ≥ 150 g (tested per ISO 5011) | Higher capacity reduces replacement frequency |
Max. Operating Temp. | 80°C (176°F) | Resistant to high ambient temperatures and cyclic heating |
Max. Operating Pressure | 0.01 MPa (0.1 bar) differential pressure | No structural deformation under normal suction pressure |
Seal Material | Nitrile Rubber (NBR) / Fluorocarbon (FKM) | Chemical and ozone resistant |
Compliance Standards | ISO 5011, ISO 8573-1, SAE J726 | Certified for industrial filtration performance |
3. Model Code Breakdown
The model naming follows universal industrial filter coding conventions:
42011: Product series identifier for standard high-efficiency intake filters
210: Nominal size code corresponding to a standard outer diameter range of 210–220 mm and length of 400–410 mm
HF: Suffix indicating "High Flow / High Efficiency" design variant optimized for high-volume airflow systems
4. Core Advantages & Selection Guide
Key Performance Benefits
Multi-layer Composite Media: Gradient density structure balances high filtration efficiency with low pressure drop, extending service life by 30–50% compared to single-layer cellulose filters
Electrostatic Charge Treatment: Traps submicron particles (0.3–1 μm) that standard media cannot intercept, reducing downstream equipment wear
Robust Construction: Reinforced steel end caps and bonded pleat structure prevent media collapse under suction pressure
Selection Checklist
Use this list to verify compatibility when sourcing replacements:
Verify physical dimensions (outer diameter, inner diameter, overall height) match your filter housing
Confirm filtration rating aligns with your equipment's OEM recommendation (5 μm minimum for screw compressors)
Ensure max operating temperature matches your ambient environment (e.g., 80°C for hot workshop environments)
Match seal material to local air quality (FKM seals for corrosive or high-ozone environments)
5. Application Recommendations
Optimal Use Cases:
Rotary screw air compressors (oil-injected or oil-free)
Large-scale HVAC intake systems
Pneumatic conveying systems
Industrial dust collection pre-filtration units
Avoid Use In: High-temperature exhaust gas filtration, chemical fume filtration, or applications exceeding 80°C operating temperature
6. Maintenance & Replacement Guidelines
Indicator | Action Required |
|---|---|
Replacement Interval | 2000–4000 operating hours, or every 6 months (whichever comes first) |
Differential Pressure Alarm | Replace immediately when ΔP reaches 0.005–0.01 MPa (0.05–0.1 bar) |
Visible Damage | Replace if media is torn, end caps are deformed, or seal gaskets are brittle/cracked |
High Ambient Dust Load | Reduce replacement interval by 50% if installed in dusty environments (e.g., cement plants, mining sites) |
Installation Best Practices
Lightly lubricate the rubber gasket with clean air compressor oil before installation
Firmly seat the filter in the housing to ensure a complete airtight seal
Never reuse old gaskets when replacing filters
Dispose of used filters in accordance with local environmental regulations
7. Important Notes
Non-interchangeability: Always verify physical dimensions and thread specifications before substituting filters from different manufacturers
Performance Validation: Request test reports (ISO 5011) from suppliers to confirm advertised performance claims
System Impact: A clogged air filter can increase compressor discharge temperature by 10–20°C, leading to oil degradation and bearing failure
8. Summary
The 42011-210HF is a high-efficiency, multi-layer intake air filter designed for industrial high-flow applications. Its core value lies in balancing high particulate capture efficiency with low pressure drop to optimize equipment performance and minimize operating costs. Proper sizing, installation, and proactive replacement are critical to realizing its full service life potential.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4.What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q5.What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q6. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q7. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
