SA55-75 SA110 Durable Air Compressor Maintenance Kit Oil Filter Air Filter Separator for SA Series Compressor
Similar models
| SA55-75 |
| SA110 |
| 6259092000 |
| 2901900300 |
| LU90-8 |
| LU132W-7、8 |
| LU132W-10、13 |
| LU15-30E |
| LU15-30E |
Basic Info.
Type | Air Filter | Material | Filter paper |
Warranty | 6 Month | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | Place of Origin | Henan, China |
Brand Name | ALIPASTOR | Application | for air compressor |
Product Name | Air Filter | Part Number | SA55-75 SA110 |
Keyword | Air Filter | Weight | Standard |
Filtration | 3-100micron | Color | Customize |
Filtration Grade | 99% | Warranty | 3 Months |
Production Capacity | 1000 PCS/Week |
Product Parameters
Model Number | SA55-75 SA110 |
Type | Air Filter element |
Dimension | Standard |
Working Temperature | According to customer's request |
Work Pressure Different | Customized |
Material | Filter paper |
Filter Precision | 3~100μm |
Life span | 2000h |
MOQ | 1 pieces |
Lead Time | Around 5-7 days after order confirmed |
Package | PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement |
Shipping Method | By sea, by air, by express |

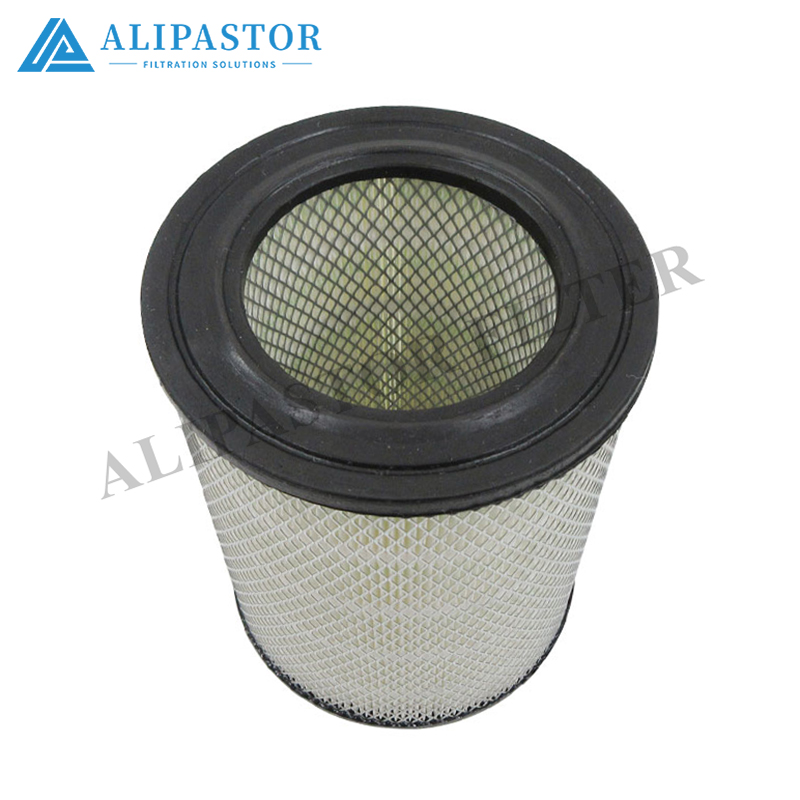

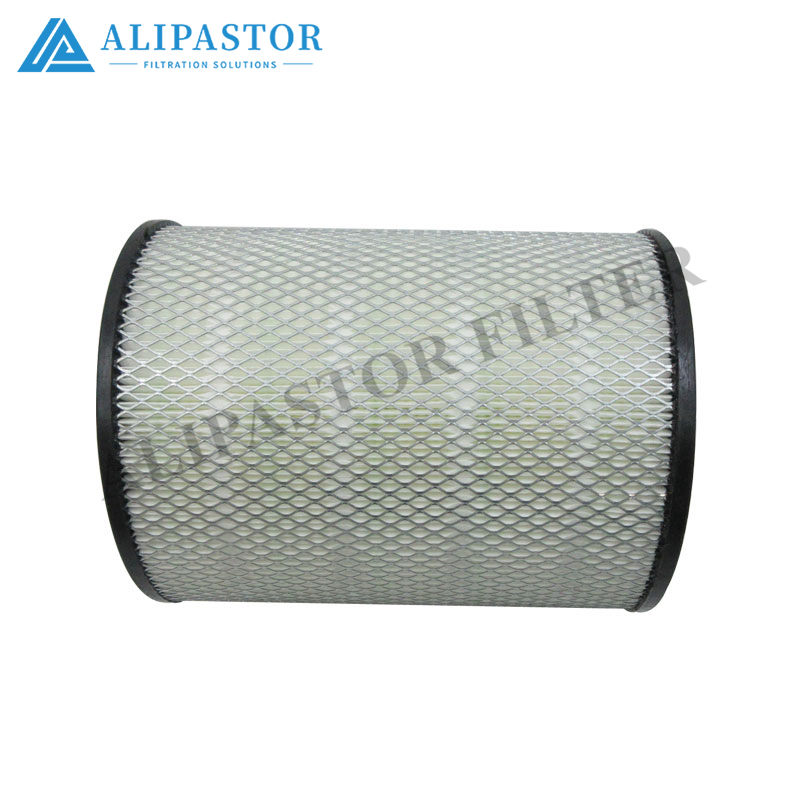

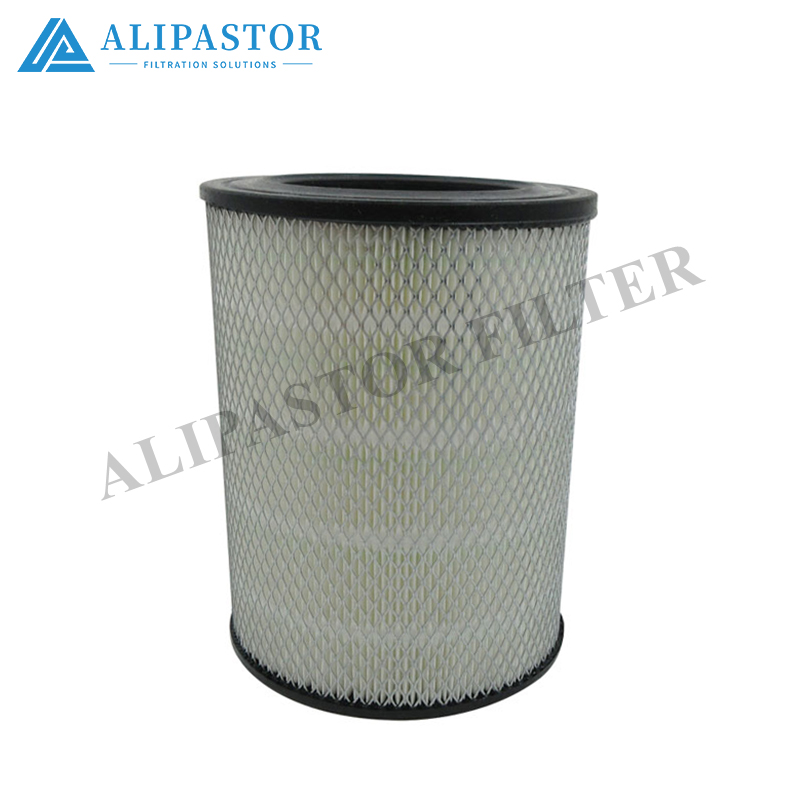

Air Filter Service Kit – Models SA55-75 & SA110
Two complete air filter service kits designed for rotary screw compressors, blowers, and vacuum pumps in the 37–185 kW power range. Each kit includes the primary air filter element, safety (secondary) cartridge, gaskets, and sealing hardware required for a full air-intake service. The SA55-75 kit covers SA55, SA60, and SA75 compressor frames, while the SA110 kit serves SA110, SA120, SA132, SA160, and SA185 frames. Both use high-efficiency cellulose media with a flame-retardant treatment, achieving >99.9 % dust arrestance per ISO 5011.
Key Features
Primary element: Deep-pleat cellulose, resin-impregnated, flame-retardant, 99.9 % efficiency (ISO 5011)
Safety element: Non-woven polyester, installed inside the primary to protect the compressor during element change
Kit contents: Primary + safety element + pre-cut gaskets + O-rings + installation instructions
Housing compatibility: Direct replacement for the OEM air-intake canister on the designated compressor frame
Service interval: Typically 2000 operating hours (primary) / safety replaced every second primary change
Technical Specifications
Parameter | Kit SA55-75 | Kit SA110 |
|---|---|---|
Compatible Compressor Frame | SA55 / SA60 / SA75 | SA110 / SA120 / SA132 / SA160 / SA185 |
Primary Element OD × Height | ~320 × ~420 mm (nominal) | ~420 × ~520 mm (nominal) |
Safety Element OD × Height | ~200 × ~380 mm | ~280 × ~480 mm |
Media Type | Cellulose, flame-retardant | Cellulose, flame-retardant |
Filtration Efficiency | >99.9 % (ISO 5011) | >99.9 % (ISO 5011) |
Max Dust-Holding Capacity | ~800 g | ~1400 g |
Initial Pressure Drop | ≤0.02 bar (clean) | ≤0.02 bar (clean) |
Max Operating Temperature | 80 °C continuous | 80 °C continuous |
Gasket Material | Closed-cell neoprene | Closed-cell neoprene |
Storage Condition | Dry, <50 °C, original packaging | Dry, <50 °C, original packaging |
Test Standard | ISO 5011 / ASHRAE 52.2 | ISO 5011 / ASHRAE 52.2 |
Application Guidance
SA55-75 Kit – Air intake service for 37–75 kW rotary screw compressors used in workshops, automotive repair centers, light industrial plants, and pneumatic conveying systems. The compact primary element fits the standard air-canister on these frames.
SA110 Kit – Air intake service for 90–185 kW compressors found in heavy industrial factories, mining ventilation, large-scale manufacturing, and central compressed-air networks. The larger media pack handles higher dust loads and extends service life in dusty environments.
📎 Both kits are direct replacements for the OEM air-filter service set. They include all sealing components – no additional gaskets or hardware needed. The safety element stays in place during primary changes, preventing unfiltered air entry.
Installation Procedure
Depressurize the compressor air receiver and isolate the machine electrically.
Open the air-filter housing (typically hinged or bolted); carefully remove the old primary element.
Inspect the safety element – if it is due for replacement (every second primary change), remove it now.
Clean the housing interior with a damp lint-free cloth; check the gasket sealing surfaces.
Install the new safety element (if replacing) – push firmly onto the centre tube.
Insert the new primary element – align the end-cap notch with the housing key.
Replace the housing gasket (provided in the kit) and close the lid, torquing bolts evenly.
Restart the compressor; check the differential pressure gauge – reading should be near zero initially.
Log the installation date and hours – plan next service at 2000 h or when ΔP reaches 0.05 bar.
Fluid / Environmental Compatibility
Ambient air up to 80 °C continuous
Relative humidity up to 95 % (non-condensing)
Oil-mist environments (common in compressor rooms) – media treated for oil mist resistance
Not for corrosive gas streams (SO₂, HCl, etc.)
Quality Assurance
ISO 5011 – gravimetric efficiency & dust capacity
ASHRAE 52.2 – minimum efficiency reporting value (MERV 14–15 class)
ISO 2942 – fabrication integrity (bubble point)
Flame retardancy tested per UL 900 class 2
Ordering
Quote SA55-75 Kit (for SA55/SA60/SA75 compressors) or SA110 Kit (for SA110/SA120/SA132/SA160/SA185 compressors). Each kit contains one primary element, one safety element, and a full set of gaskets/O-rings. Cross-reference to the OEM part numbers available on request – provide your compressor serial number and existing air-filter part number for confirmation.
All dimensions nominal; confirm housing type (horizontal vs. vertical) and element orientation before ordering. Store spare kits in original packaging away from direct sunlight and moisture.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4.What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q5.What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q6. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q7. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
