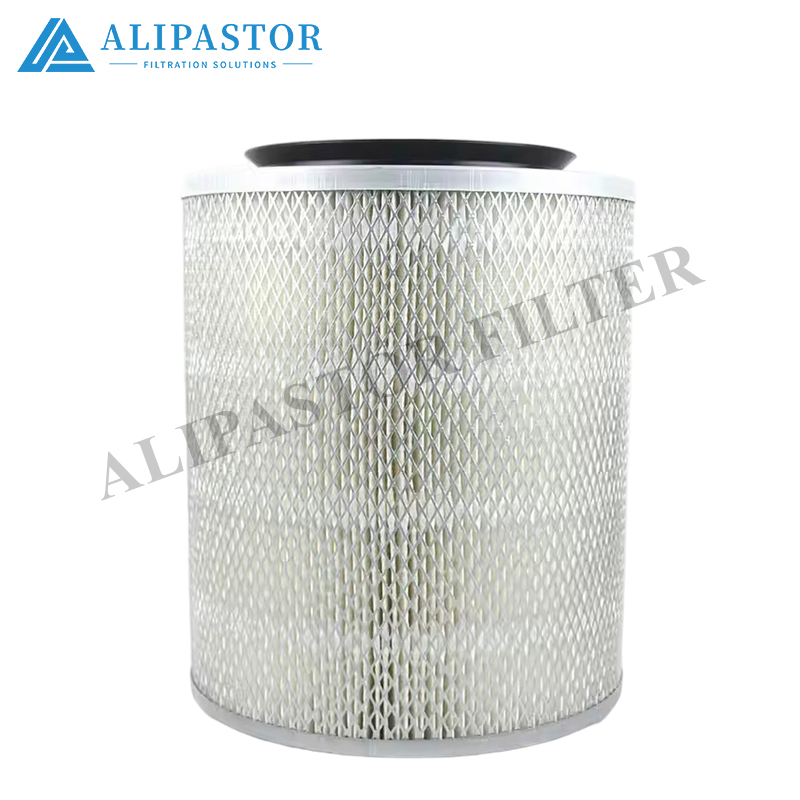

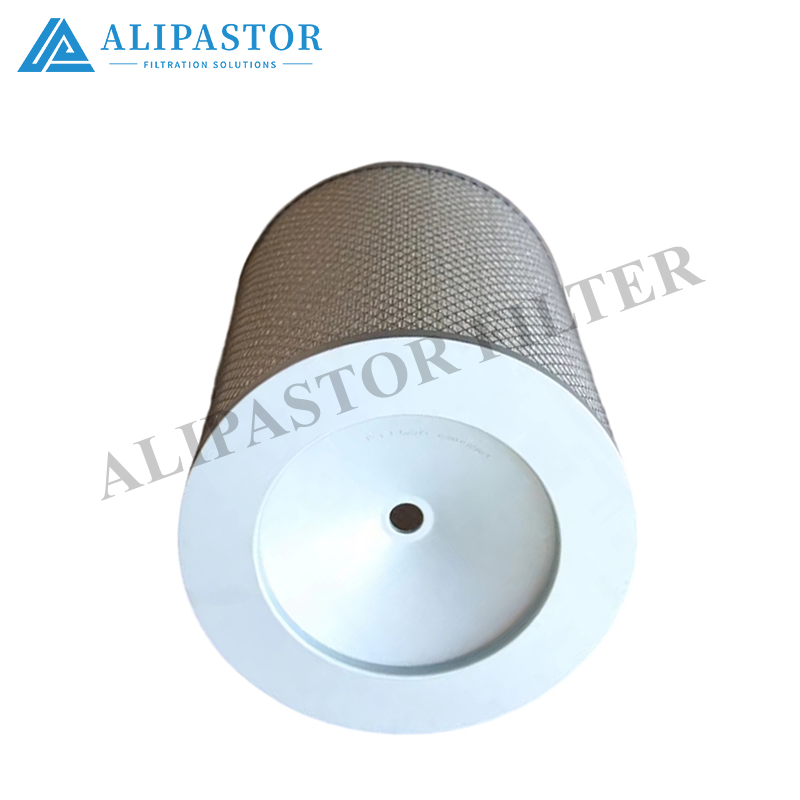

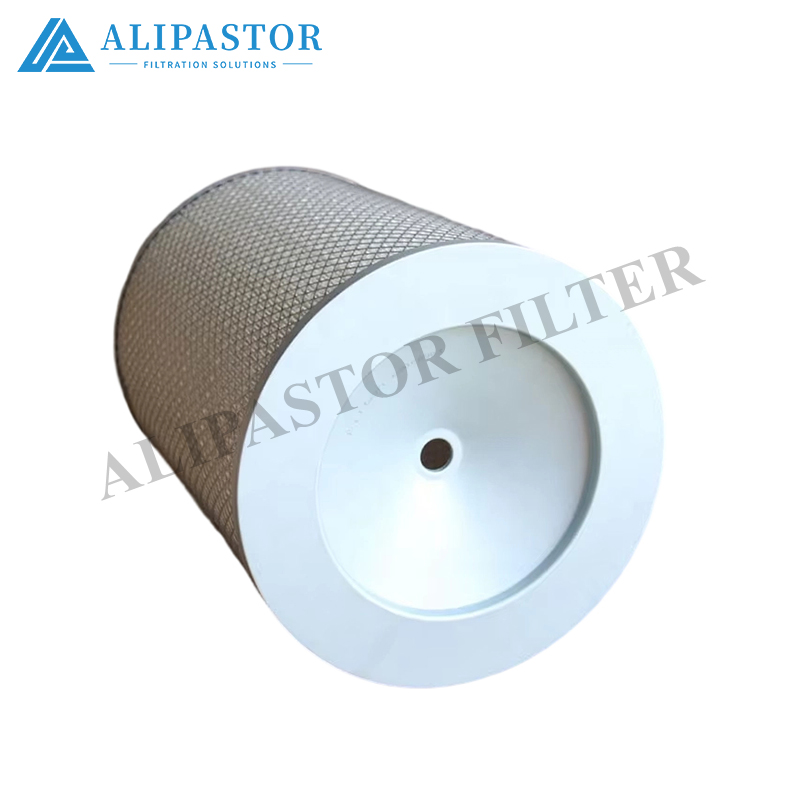

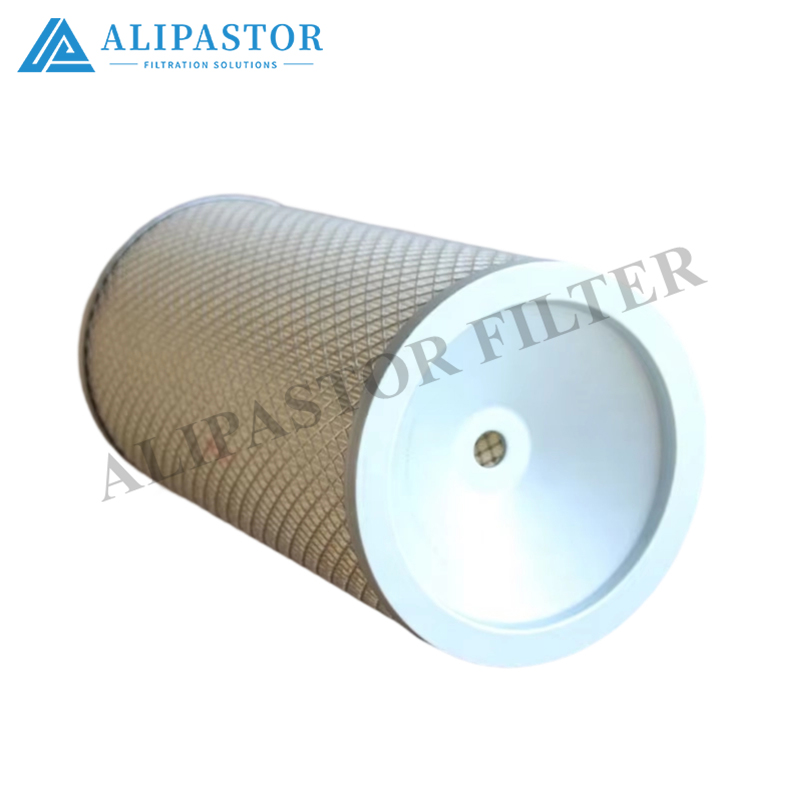

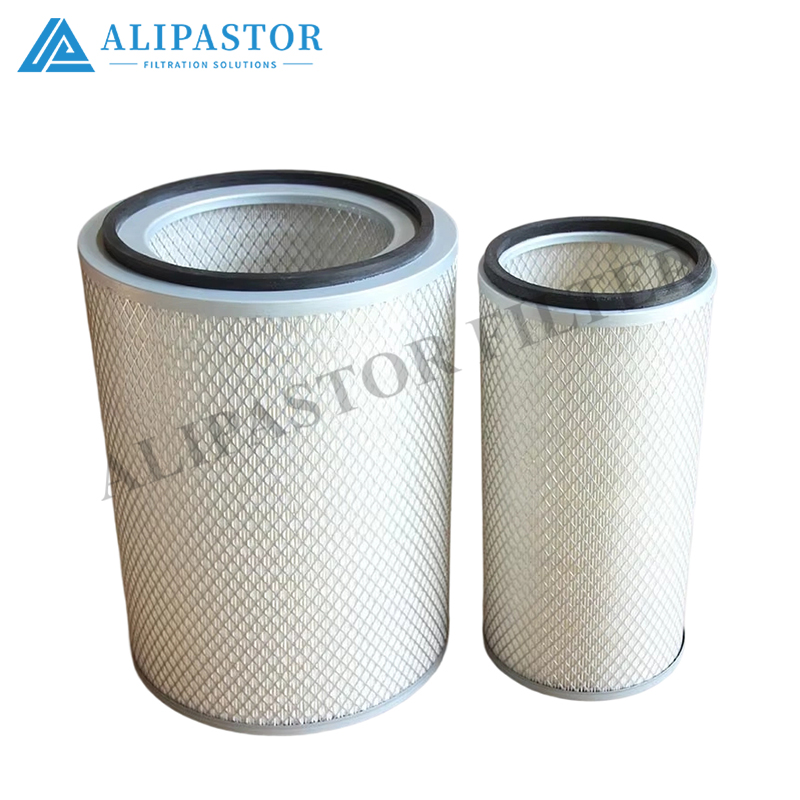

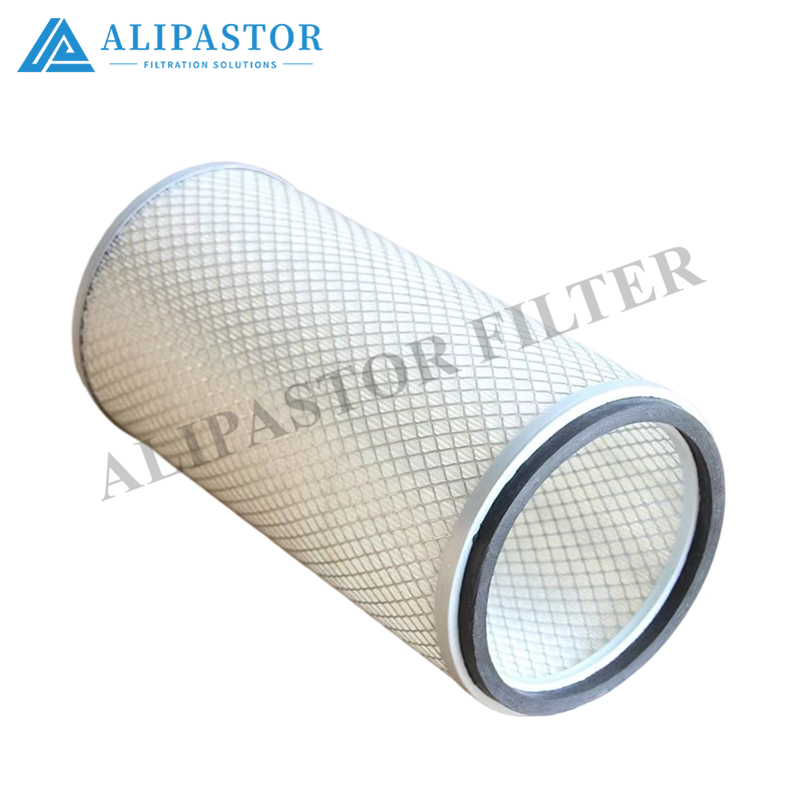

Engine Intake Air Filter Elements – Models 69008859 & 69008903

Two heavy-duty primary air filter elements engineered for engine intake systems on construction equipment, agricultural machinery, and industrial power units. 69008859 and 69008903 belong to the same air-filter family and are offered as dimensional variants — one tuned for standard-duty intake volumes, the other for higher air-flow engines. Both use high-efficiency cellulose or synthetic-blend media with a pleated, resin-impregnated pack to achieve 99.9 % dust arrestance per ISO 5011, protecting turbochargers, cylinders, and valve trains from abrasive wear.

Key Features

• High-efficiency cellulose media (synthetic blend optional) with flame-retardant treatment per UL 900 Class 2




• RadialSeal™-style design or facial polyurethane seal — proven sure-fit sealing, vibration resistant




• Rigid structural support — inner and outer steel liner system protects the media from damage or collapse




• Deep-pleat geometry maximizes media area for high air-flow engines under continuous load




• Service interval: 500–1000 h in moderate dust; 250 h in severe dust environments




• Always paired with a safety inner element — never operate without it




Technical Specifications

* Exact OD / ID / length and seal style (radial vs. facial) vary by suffix — confirm against your existing element before ordering.

Application Guidance

Both elements serve as primary (outer) stage intake filters on construction and agricultural machinery — excavators, wheel loaders, telehandlers, tractors, and generator-set engines. The deep-pleat geometry is specifically engineered to maximize dust-holding capacity in high air-flow intake systems where continuous operation in dusty environments is expected.

69008859 — Specified for standard-duty intake volumes on mid-size machinery (engines in the 150–250 kW class). The media pack balances high filtration efficiency with low restriction for optimal engine performance.

69008903 — Tuned for higher air-flow engines (250–400 kW class), with extended dirt-holding capacity for longer service intervals in severe dust conditions.

⚠️ Both elements are primary (outer) stage filters. They work in tandem with a safety inner element. Never operate without the safety element in place — a torn primary during service would otherwise allow unfiltered air straight into the engine.

Fluid / Environmental Compatibility

• Ambient intake air up to 120 °C




• Relative humidity up to 100 % (non-condensing)




• Oil-mist environments (common in engine bays) — media treated for oil-mist resistance




• Dust loads typical of construction, agriculture, mining, and quarry sites




• Not for corrosive gas streams (SO₂, HCl, etc.)




Installation & Service

1. Shut down the engine and relieve intake depression.




2. Open the air cleaner housing (typically band clamp or bolted lid); carefully withdraw the old primary element.




3. Inspect the safety element — if it shows dust accumulation, replace it (typically every second primary change).




4. Clean the housing interior with a damp lint-free cloth; check the sealing surfaces and the air-feed duct for leaks.




5. Seat the new primary element — align end-cap markings with housing keys; ensure the radial seal or facial gasket seats correctly.




6. Close the housing, torque clamps/bolts evenly. Do not over-torque band clamps — they crush the PU end cap.




7. Restart and check for air leaks (soap-test intake joints if pressure differential gauge reads abnormal).




8. Replace per OEM interval (typically 500–1000 h in moderate dust; 250 h in severe dust) or when the restriction indicator reaches redline.




📌 Do not blow out the element with compressed air to "extend" its life — this drives dust deeper into the media and past the fibers, accelerating engine wear. Once the restriction indicator trips, replace.

Quality Assurance

• ISO 5011 – gravimetric efficiency & dust capacity




• ASHRAE 52.2 – Minimum Efficiency Reporting Value (MERV 14–15 class)




• ISO 2942 – fabrication integrity (bubble point)




• Flame retardancy tested per UL 900 Class 2




• End-cap bond shear-tested to >50 N per pleat




• Vibration resistance validated per industry standard for on-road and off-road duty




Ordering

Specify 69008859 or 69008903 with quantity. Provide the following to confirm dimensional fit:

• Host machine make and model




• Existing element OD / ID / length




• Seal type (radial or facial, polyurethane or nitrile)




• Whether a safety element is also required




Cross-reference to common OEM patterns in the same application class is available on request. Custom dimensions or media grades (100 % synthetic for extended life, or with pre-cleaner vortex sleeves) available on request.

All values nominal; 69008859 and 69008903 dimensional envelopes vary by host machine — confirm against your current element or housing drawing before installation. Always pair primary replacement with a fresh safety element to guarantee engine protection.
