Hydraulic Filter Items — Quick Reference (English)

Items: HP102L18-60WB· HP321-12(GE = equipment reference tag)

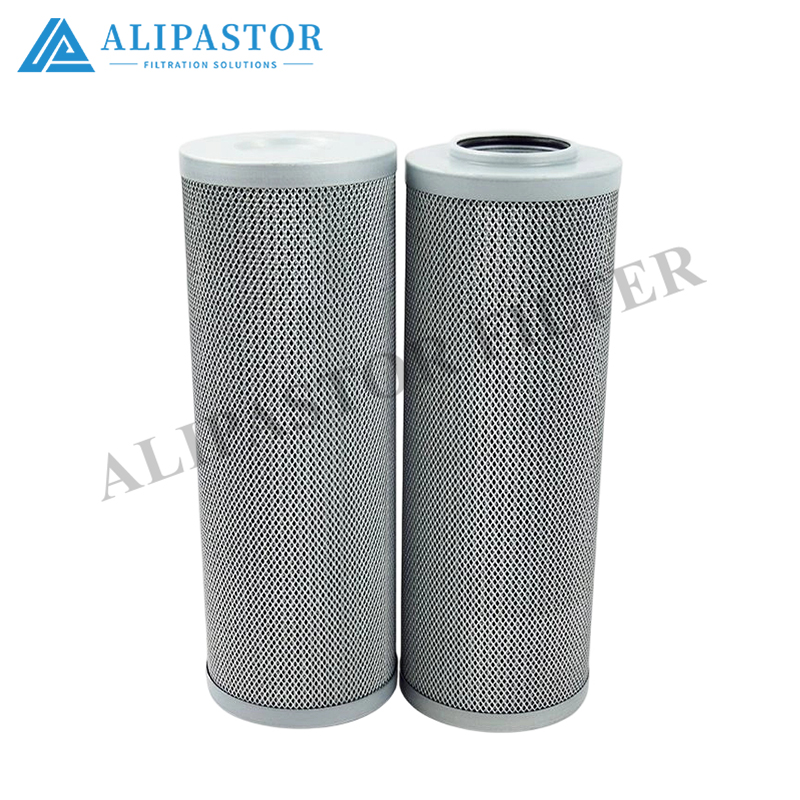

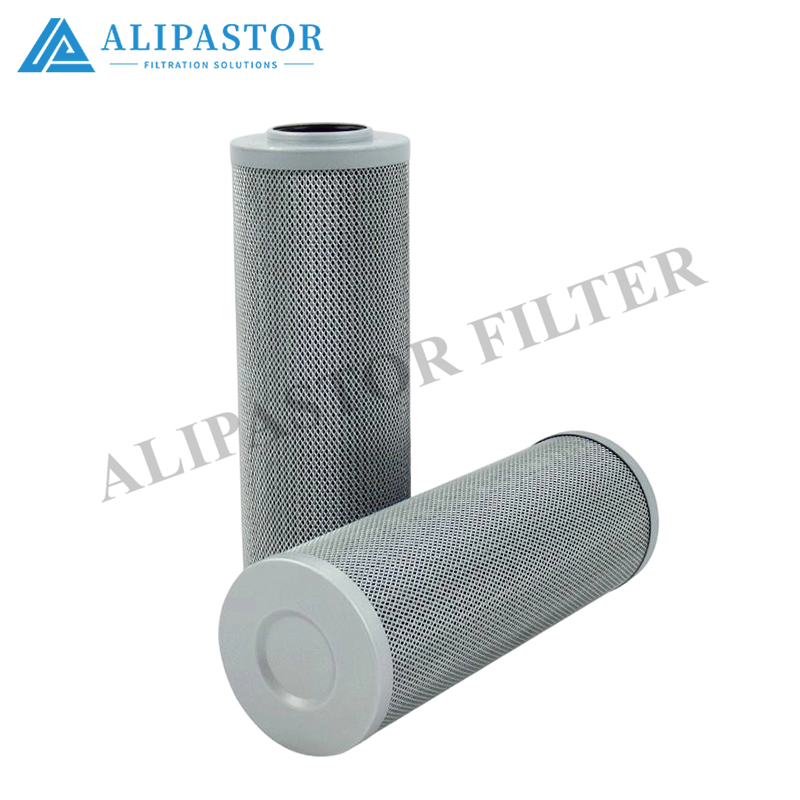

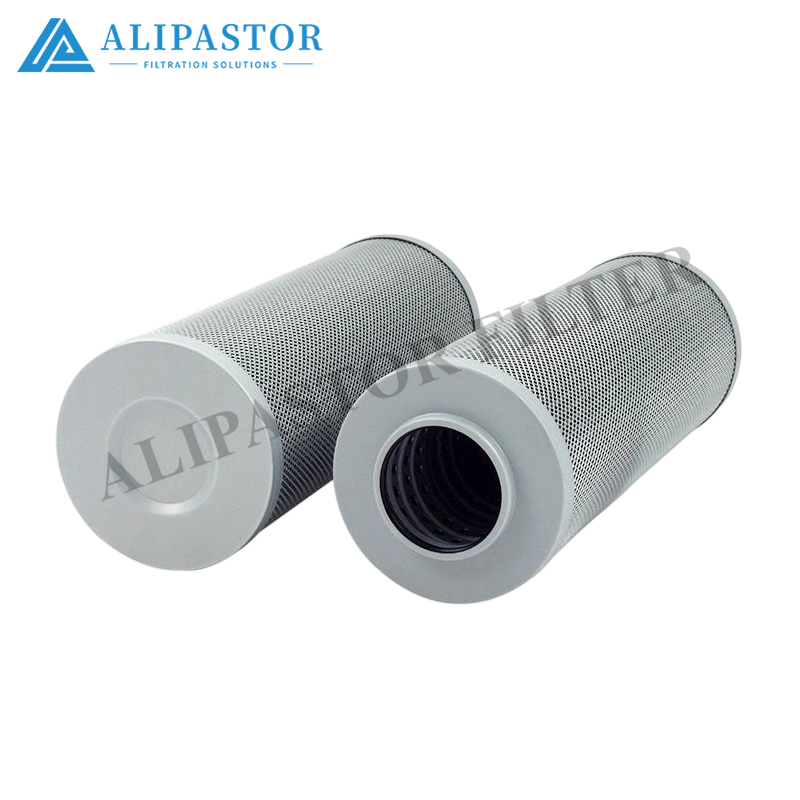

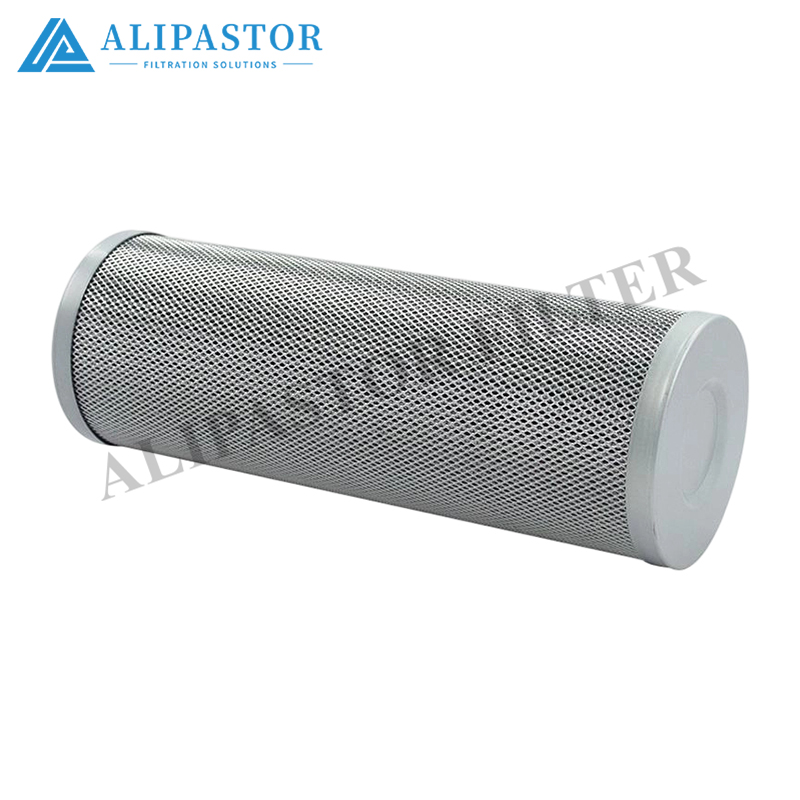

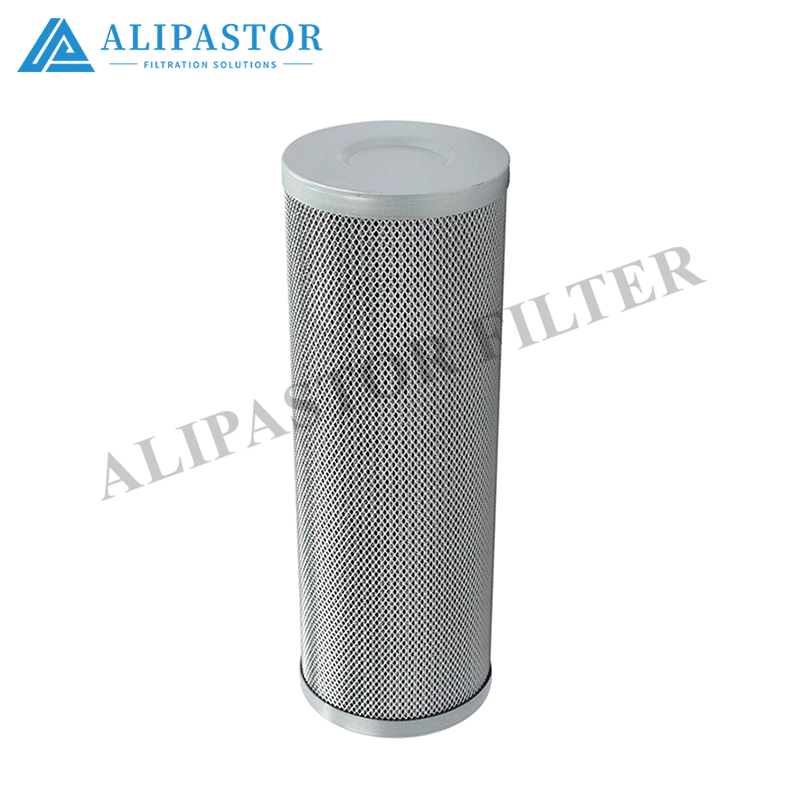

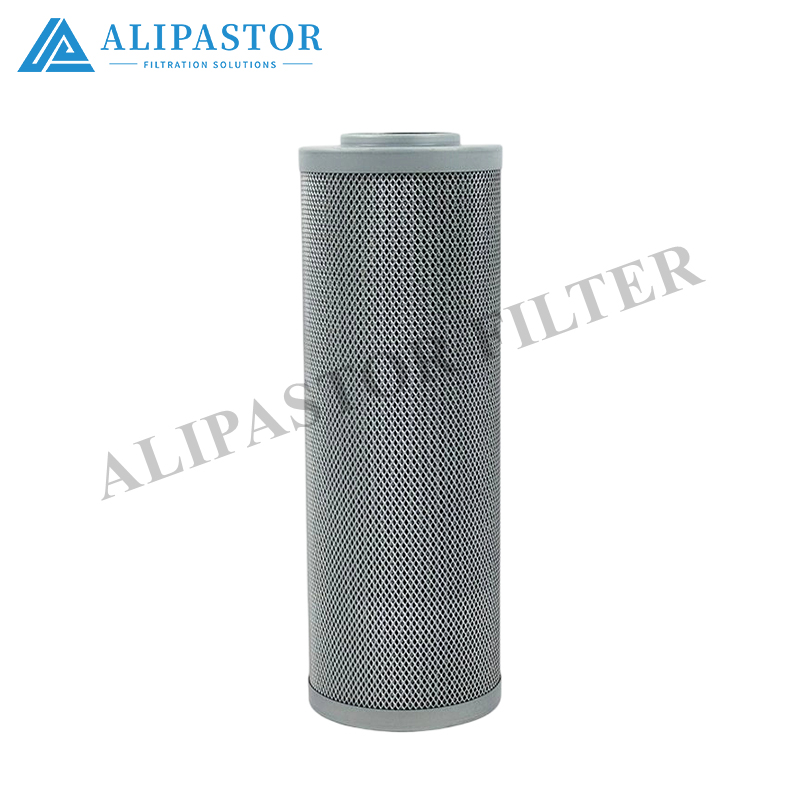

1) HP102L18-60WB— Pressure-Side Filter Element

What it is

A disposable filter element mounted on the pressure line (between pump and valves). The housing is a heavy cast-steel head with SAE/MS threaded ports, and it is rated for much higher pressure than a return filter.

• HP102 = pressure filter housing family




• L18 = size/length class (defines OD and element length)




• 60 = bypass/performance class (these units commonly use a ~3–3.5 bar bypass — when ΔP is too high, oil goes around the element unfiltered)




• WB = Wing-Bolt closure (hand-operated bowl removal, no tools for the bowl) + NBR seal (black/dark grey O-ring)




Safety point (important)

Because this sits on the pressure leg, trapped pressure is dangerous:

• Close any upstream isolation if fitted




• Crack the vent/bleed slowly until the gauge reads zero before touching anything




Replacement steps

1. Isolate → bleed slowly until pressure = 0 and no more hissing.




2. Support the bowl — pressure hardware is heavy; don’t let it hang on the piping.




3. Loosen the wing-bolt yoke → swing it clear → lift the bowl straight.




4. Pull the element straight out → check bowl bottom for bright metal shavings (pump/valve wear signal).




5. Wipe seal lands → thin film of clean hydraulic oil on the O-ring (no grease).




6. Seat element square on the centre tube → swing yoke back → snug wing-bolt to metal contact + a small final tighten (don’t over-tighten).




7. Close vent → bring pressure up gradually → watch closely for leaks before walking away.




Procurement wording (safe)

HP102L18-60WB — Element for HP102 pressure housing — supply exact match confirmed against the head nameplate model / serial. Require supplier to state OD / length / centre bore / seal compound before delivery. No “same-size” substitute.

2) HP321-12— Return-Line Filter Element (GE Machine Tag)

What it is

A return-line filter element (pipe-mounted canister, clamp-band bowl, flow arrow on the head). It protects tank cleanliness after oil has done its work.

• HP321 = return-line housing family




• 12 = size/length index (fixes OD / height / centre-tube)




• Seal compound is normally NBR (black/grey) unless the nameplate calls out Viton




The trailing GE here is not part of the element code — it is a machine/owner tag telling Stores which unit this position belongs to (the hydraulic power unit supplied by / labelled for GE).

Replacement steps

1. Stop pump → open vent/bleed until pressure = 0.




2. Support bowl → release clamp band → lift element straight out.




3. Check for bright metal shavings (wear sign).




4. Thin oil on O-ring → seat square on centre tube → close vent → ΔP indicator green, no seep.




Procurement wording (safe)

HP321-12 — Element for HP321 return housing — fit only to the housing model on the head nameplate. State OD / length / centre bore / seal (NBR unless nameplate says Viton) when ordering. Write equipment tag GE on the BOM line so Stores know which machine.

3) One-Line BOM (copy-paste)

• HP102L18-60WB— Pressure-line element, HP102 family, wing-bolt (WB), NBR, full depressurize first




• HP321-12— Return-line element, HP321 family, NBR, fits HP321 head nameplate only  (GE = equipment tag, not a filter code)




One rule that covers both

Vent/bleed until the gauge is zero — pressure-side (HP102) because it can hurt you, return-side (HP321) because it can still spray you. After that, the rest is just: seat square, clean O-ring, tighten evenly, watch for leaks.
