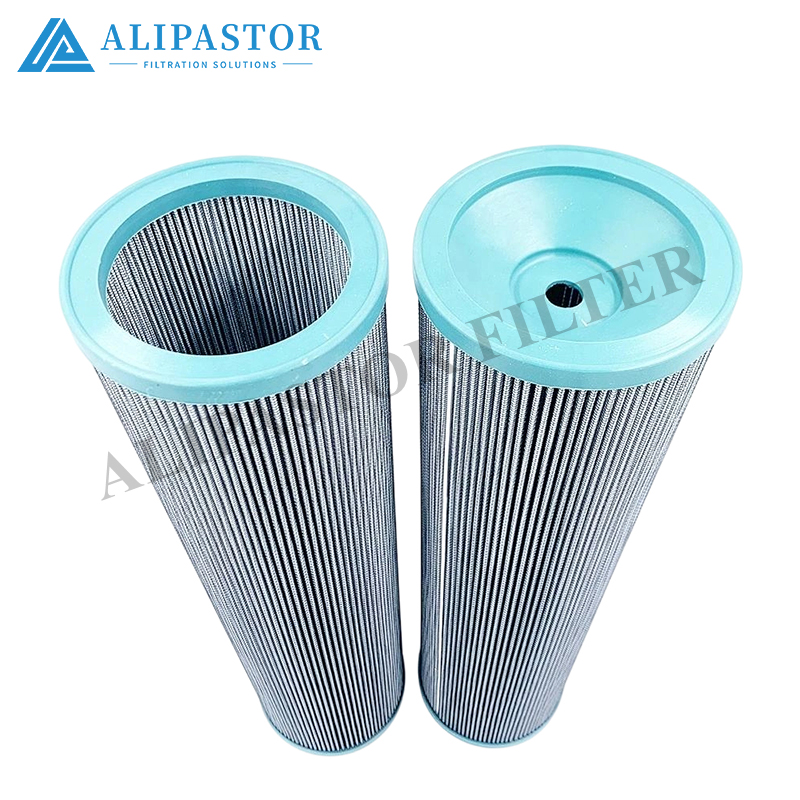

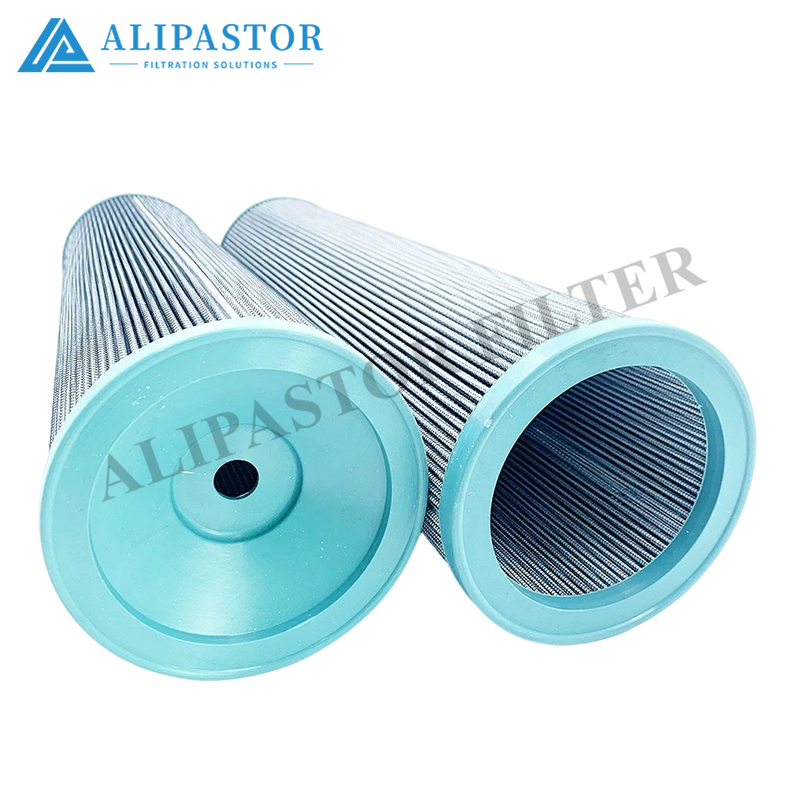

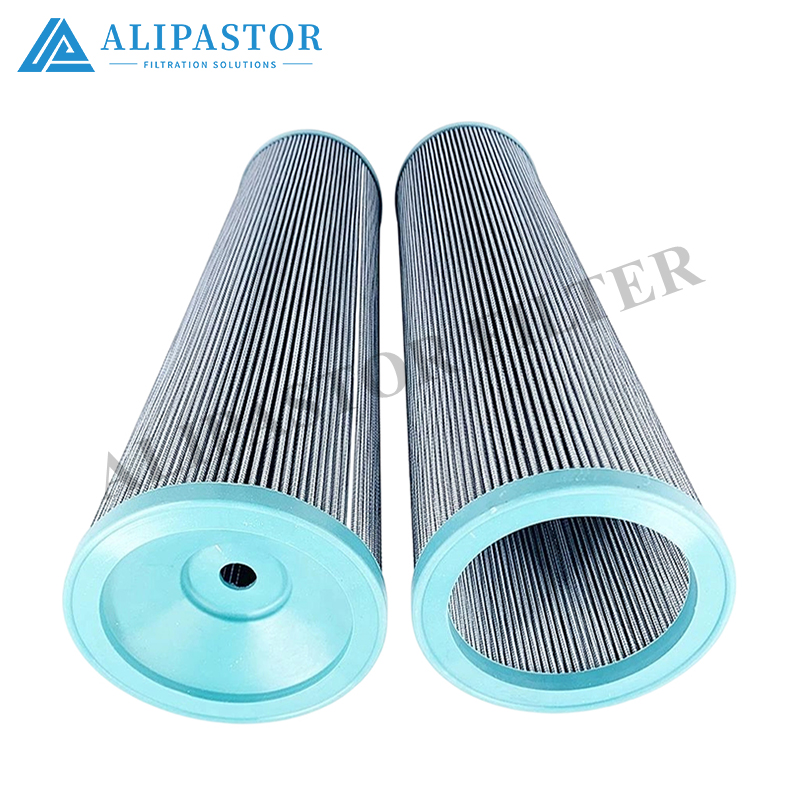

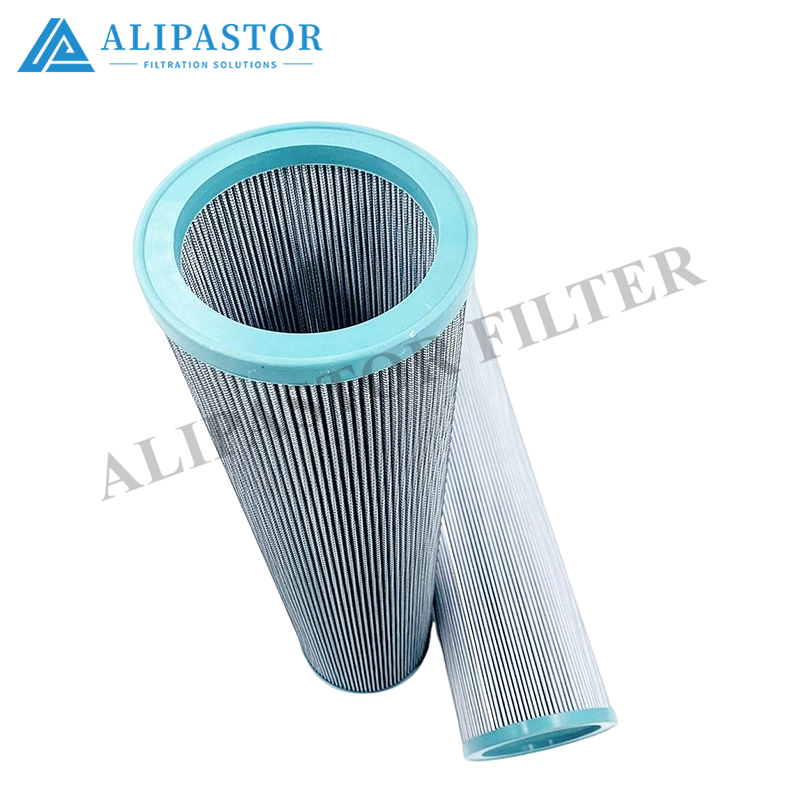

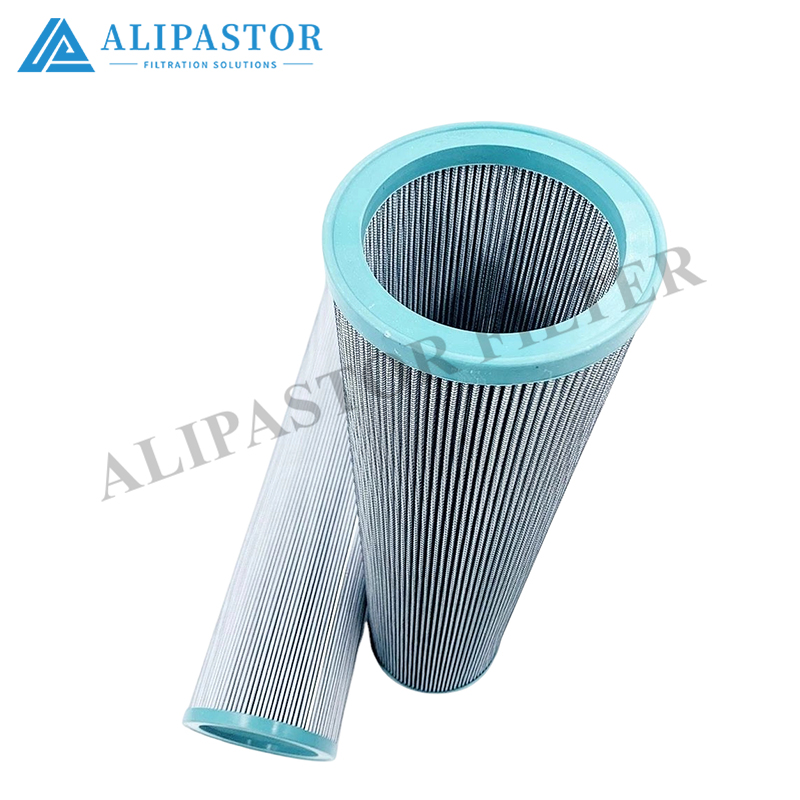

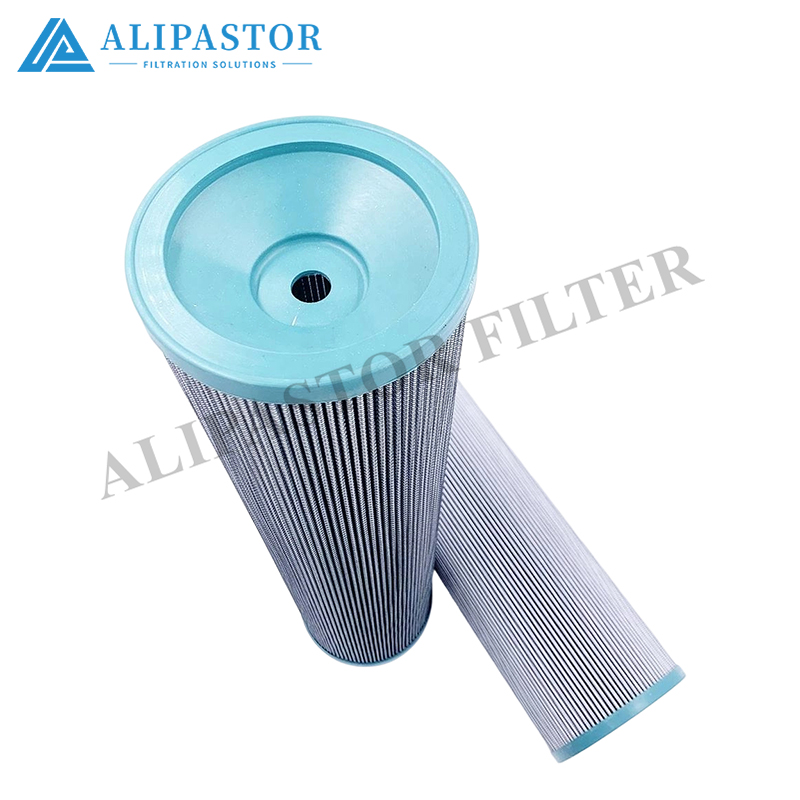

Hydraulic Oil Filter Elements – Models 923110.0577 & 923110.0578

Two high-performance hydraulic oil filter elements engineered for return-line, suction-line, and low-pressure inline filtration on heavy mobile equipment and industrial hydraulic power units. These elements are supplied as a matched pair – 923110.0577 serves as the primary (outer) element, and 923110.0578 acts as the secondary (inner) element – providing two-stage contamination control in a single filter housing. Each element uses imported glass-fiber media with a gradient-density pleated structure, delivering high dirt-holding capacity and low initial differential pressure.

Key Features

• Two-stage design: Outer element (0577) captures coarse and intermediate particles; inner element (0578) polishes the fluid, extending service life and protecting downstream components




• Imported glass-fiber media: 10–15 µm typical filtration accuracy (1–200 µm configurable); ≥ 98 % efficiency




• 2000-hour service life in standard mineral hydraulic oil duty




• 5× filtration area vs. standard cartridges – pleated construction maximizes effective surface area




• Configurable micron grades: 1 / 3 / 5 / 10 / 20 / 25 / 40 / 50 / 80 / 100 / 150 / 200 µm




• Media options: glass-fiber, filter paper, stainless steel wire mesh




• End caps: carbon steel, stainless steel, aluminum, or nylon




• Collapse pressure: 21–210 bar (hydraulic trim)




• Seals: NBR standard; FKM for phosphate-ester or high-temperature fluids




• Laser-cut and laser-welded seams – leak-tight under vibration




Technical Specifications

Note: Dimensions shown are for the matched pair configuration. Alternate envelopes are available on request – confirm against your existing element.

Application Guidance

This two-stage hydraulic filter set is deployed on:

• Large excavators, wheel loaders, and reach stackers




• Hydraulic power units for steel mills, mines, and ports




• Return-line and suction-line circuits requiring extended service intervals




• Systems with high contamination ingression rates (construction, mining, waste handling)




Select micron grade by circuit position:

• 1–5 µm – servo and proportional valve protection




• 5–10 µm – high-pressure piston pumps




• 10–25 µm – vane/gear pumps and general return loops




• 25–100 µm – suction-line pre-filtration




Over 70 % of hydraulic system failures originate from fluid contamination. The two-stage design captures progressively finer particles, reducing wear on pumps, valves, cylinders, and bearings while maximizing element life.

Fluid Compatibility

• Mineral hydraulic oil (ISO HM, HV) – NBR seals




• Water-glycol (HFC) – NBR acceptable; FKM recommended




• Phosphate-ester (HFDR) – FKM seals mandatory




• Biodegradable esters (HEES, HETG) – FKM recommended




Installation & Service

1. Shut down equipment; relieve system pressure to 0 bar and isolate the filter housing.




2. Open the housing cover; withdraw the outer element (0577) first, then the inner element (0578).




3. Inspect the housing interior, bypass spring, and seal grooves. Check spent media for metal particles – copper/iron debris indicates pump or valve damage.




4. Install the new inner element (0578) – confirm flow direction (outside → inside). Then install the outer element (0577) over it.




5. Renew all O-rings/seals. Close the housing; torque bolts evenly. Bleed air at the bleed port.




6. Restart and gradually ramp up to working pressure.




7. Replace per clogging indicator or 2000-hour service interval. In high-contamination environments, shorten to 500–1000 h.




8. Glass-fiber elements are disposable – never attempt to clean.




Ordering

Specify 923110.0577 (outer element) and 923110.0578 (inner element) together with:

• Required micron rating (1–200 µm)




• Media type (glass-fiber / filter paper / stainless steel mesh)




• Collapse pressure class (21 / 60 / 160 / 210 bar)




• Seal material (NBR / FKM)




• End cap material (carbon steel / stainless steel / aluminum / nylon)




Provide your existing element dimensions or host machine model for cross-reference confirmation. Custom configurations are available on request.

All values nominal; 923110.0577 and 923110.0578 are hydraulic oil filter elements with imported glass-fiber media, 10–15 µm typical accuracy, ≥ 98 % efficiency, 2000 h service life, 21–210 bar collapse pressure, and full ISO test suite. Dimensions shown (278.6 mm OD × 147.6 mm ID × 522.3 mm height for the outer element) represent a common two-stage configuration. Confirm housing compatibility before installation. Select micron grade to match circuit position. Glass-fiber elements are disposable; replace per clogging indicator or service interval.
