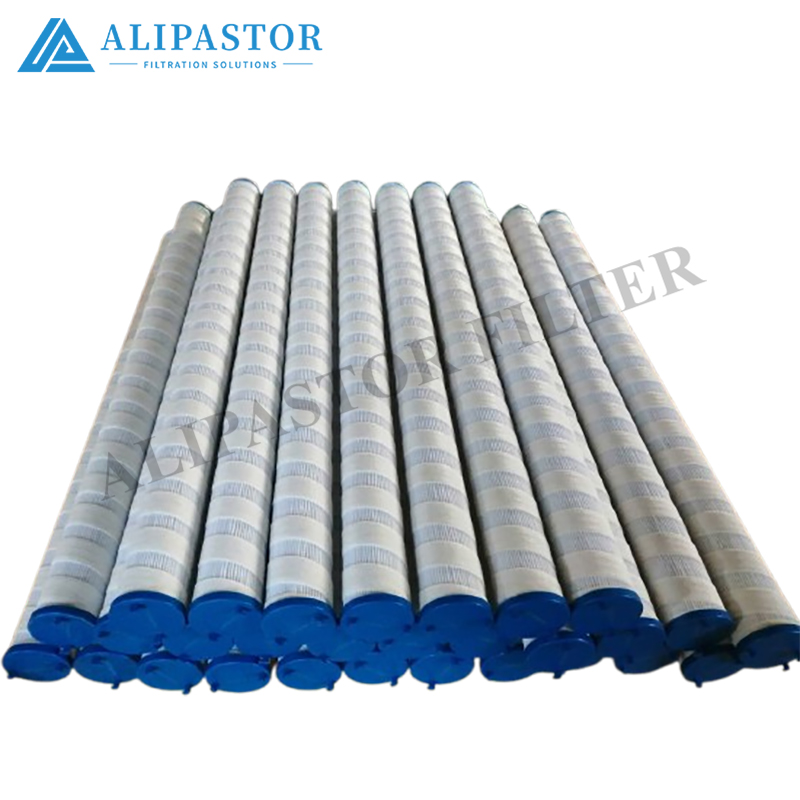

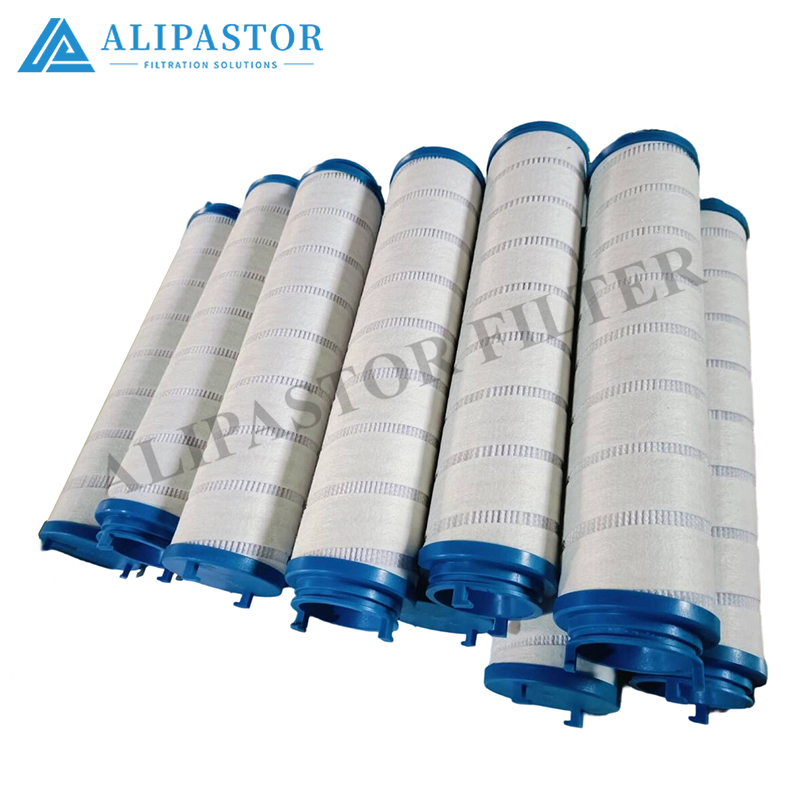

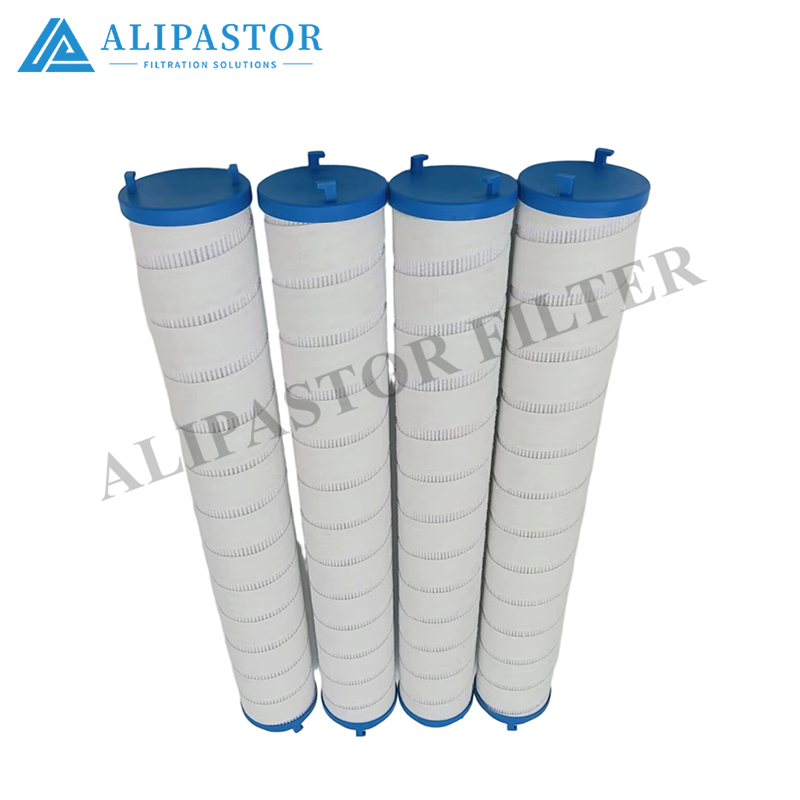

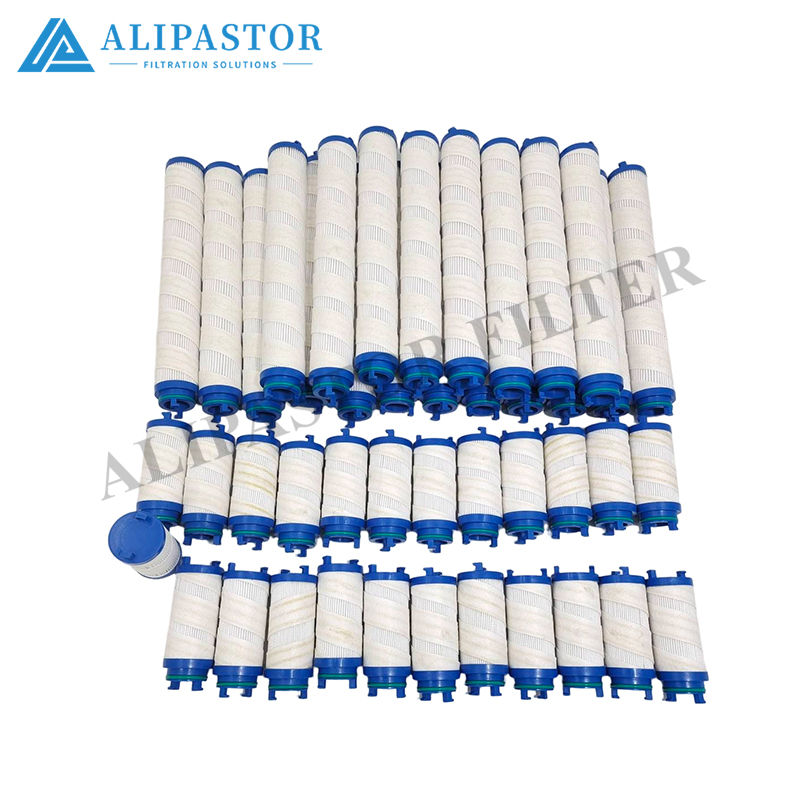

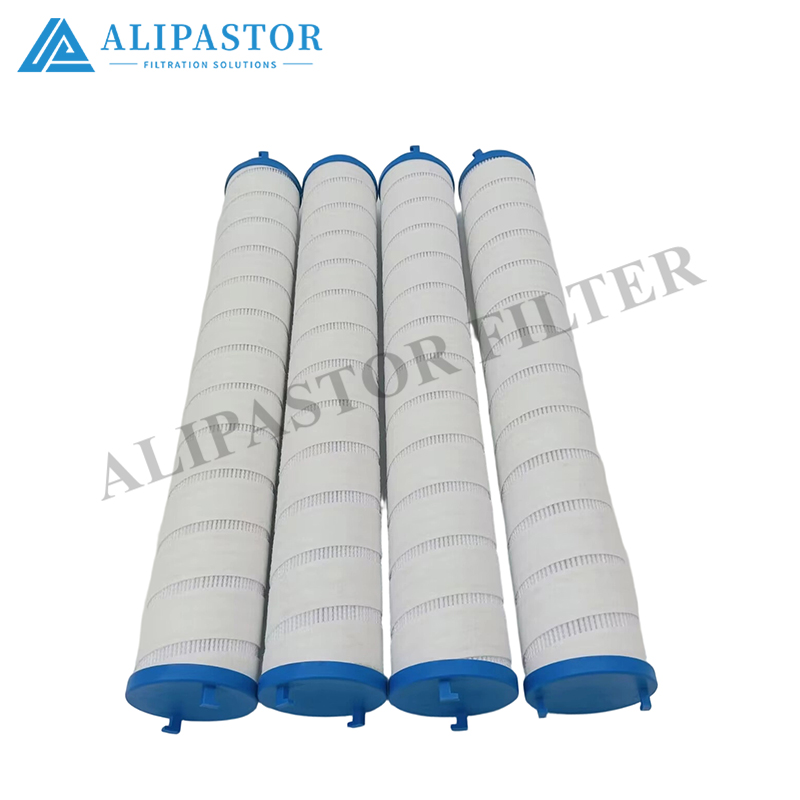

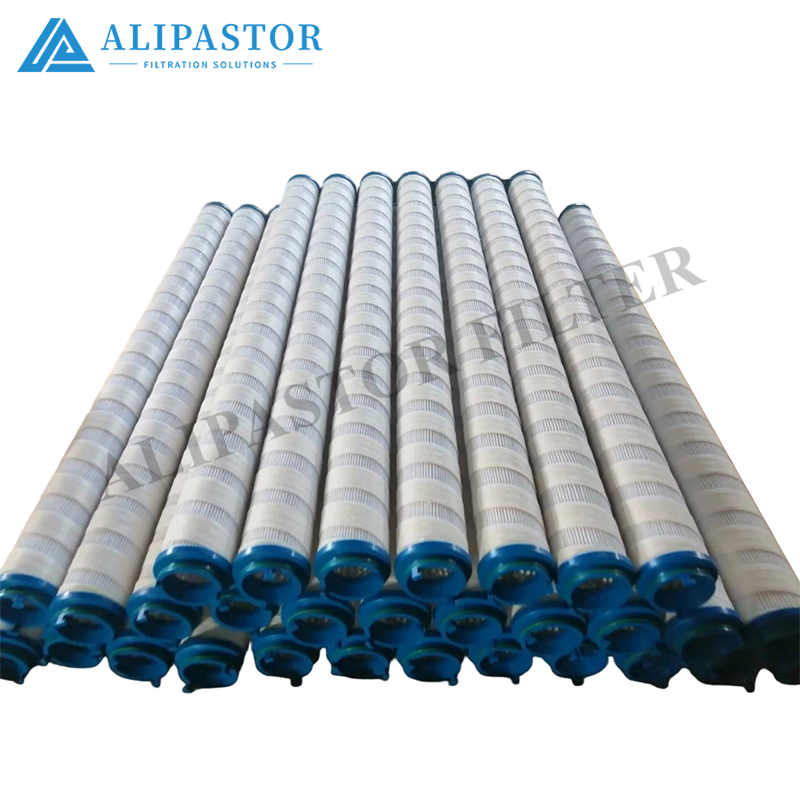

Hydraulic Oil Filter Elements – Models BEP-319-19 & BEP-319-39

Two high-performance replacement hydraulic oil filter elements engineered for return-line, suction-line, and low-pressure inline filtration on industrial hydraulic power units, mobile equipment, and stationary machinery. Both models are supplied as configurable cartridges – micron grade, media type, end-cap material, seal compound, and dimensional envelope are all selectable to match the host filter housing and fluid type. They share the same core architecture and differ primarily in their dimensional configuration; confirm the exact envelope against your existing element before ordering.

Key Features

• Configurable filtration accuracy: 1 / 3 / 5 / 10 / 20 / 25 / 40 / 50 / 80 / 100 / 150 / 200 µm

• Media options: glass-fiber (high β-ratio, ≥ 99.9 % efficiency at rated micron), filter paper, stainless steel wire mesh (reusable)

• End cap materials: carbon steel, stainless steel, aluminum, nylon

• Collapse pressure: 21–210 bar (hydraulic trim)

• Operating temperature: -20 °C to +135 °C (media dependent; glass-fiber rated to 135 °C)

• Seals: NBR (standard for mineral oil), FKM (for phosphate-ester, water-glycol, high-temperature)

• Flow direction: Outside → Inside

• Gradient-density pleated structure – maximizes effective filtration area, minimizes initial ΔP

• Laser-welded seams – leak-tight under vibration

Technical Specifications

Note: Dimensional envelope (OD, ID, length, thread/flange pattern) must be verified against the existing element or host filter housing drawing.

Application Guidance

These elements are deployed on:

• Hydraulic power units for steel mills, mines, ports, and manufacturing

• Mobile equipment – excavators, loaders, forklifts, agricultural machinery

• Machine tool hydraulic systems

• Press and injection molding machine circuits

Select micron grade by circuit position:

• 1–5 µm – servo and proportional valve protection

• 5–10 µm – high-pressure piston pumps

• 10–25 µm – vane/gear pumps and general return loops

• 25–100 µm – suction-line pre-filtration

Over 70 % of hydraulic system failures originate from fluid contamination. Matching the correct micron grade and β-ratio is the single most cost-effective maintenance decision.

Fluid Compatibility

• Mineral hydraulic oil (ISO HM, HV) – NBR seals

• Water-glycol (HFC) – NBR acceptable; FKM recommended

• Phosphate-ester (HFDR) – FKM seals mandatory

• Biodegradable esters (HEES, HETG) – FKM recommended

Installation & Service

1. Shut down equipment; relieve system pressure to 0 bar and isolate the filter housing.

2. Open the housing cover; withdraw the spent cartridge by its center tube.

3. Inspect housing interior, bypass spring (if fitted), and seal grooves. Check spent media for metal particles – copper/iron debris indicates pump or valve damage.

4. Seat the new element – confirm flow direction (Outside → Inside). Renew all O-rings.

5. Close the housing; torque bolts evenly. Bleed air at the bleed port.

6. Restart and gradually ramp up to working pressure.

7. Replace per clogging indicator or when ΔP reaches 0.35–0.5 MPa (0.8 MPa for high-pressure systems).

8. Glass-fiber and paper elements are disposable – never attempt to clean; only stainless steel mesh media can be washed and reused.

Ordering

Specify BEP-319-19 or BEP-319-39 together with:

• Required micron rating (1–200 µm)

• Media type (glass-fiber / filter paper / stainless steel mesh)

• Collapse pressure class (21 / 60 / 160 / 210 bar)

• Seal material (NBR / FKM)

• End cap material (carbon steel / stainless steel / aluminum / nylon)

• Mounting dimensions (OD, length, ID, thread or flange pattern)

• System flow rate (element capacity should exceed system flow by 1.5–2×)

Provide your existing element's dimensions or host machine model for cross-reference confirmation. Custom configurations are available on request.

All values nominal; BEP-319-19 and BEP-319-39 are configurable hydraulic oil filter elements with glass-fiber / paper / stainless steel mesh media, 1–200 µm filtration accuracy, 21–210 bar collapse pressure, -20 °C to +135 °C operating temperature, NBR/FKM seals, and full compliance with ISO 16889 / 2941 / 2942 / 2943 / 3723 / 3724 / 3968. Dimensions are configurable per host housing – confirm against your existing element before installation. Select micron grade to match circuit position. Glass-fiber and paper elements are disposable; replace per clogging indicator or change-out differential pressure.
