Filter / Separator Cartridges — Quick Reference (English)

Items: HC645-01-C· HC645-1-CWB

1) What These Are (Plain English)

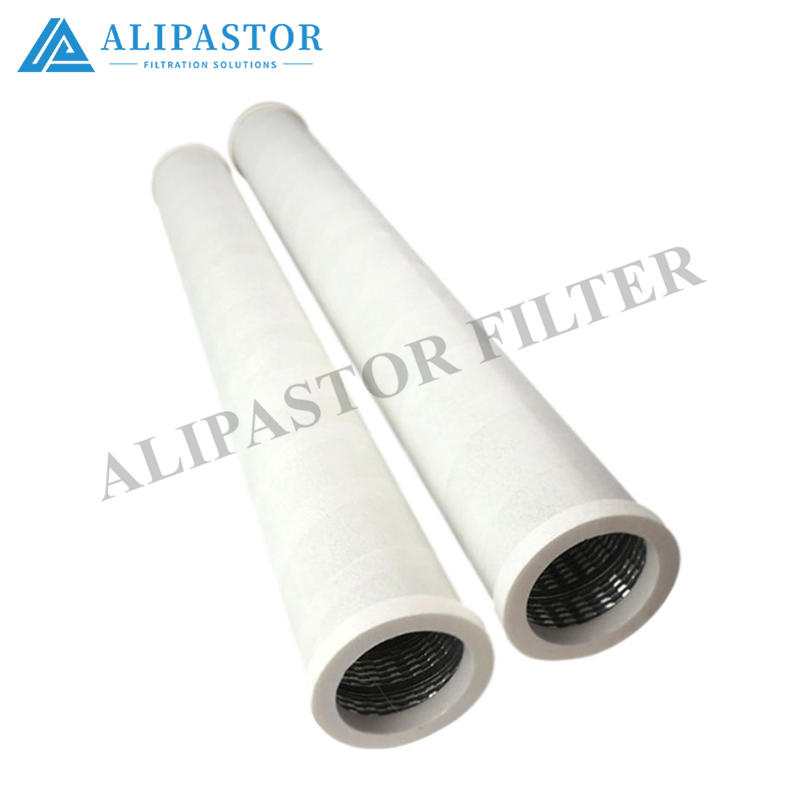

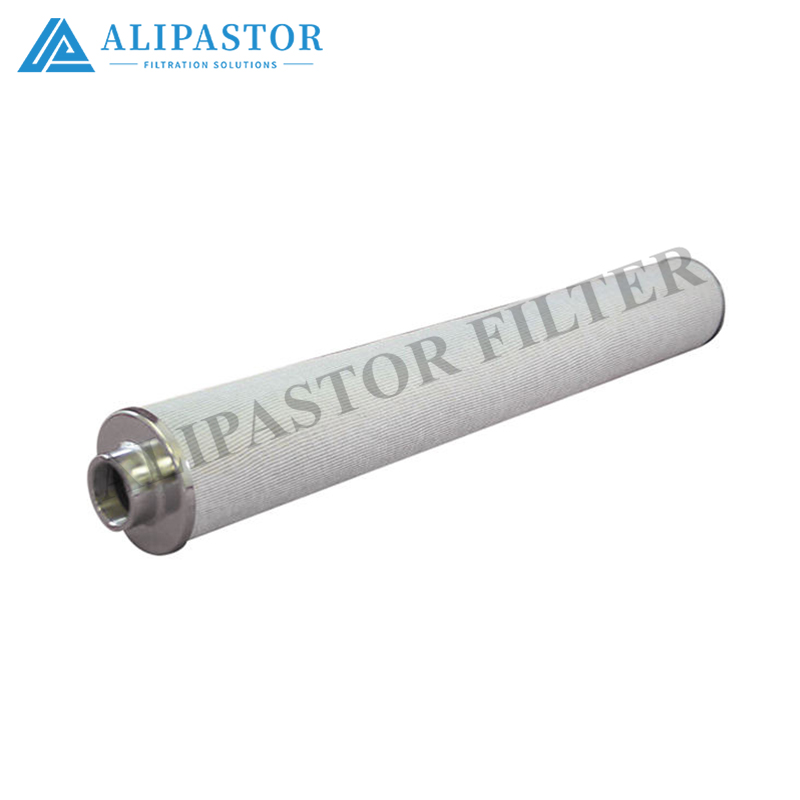

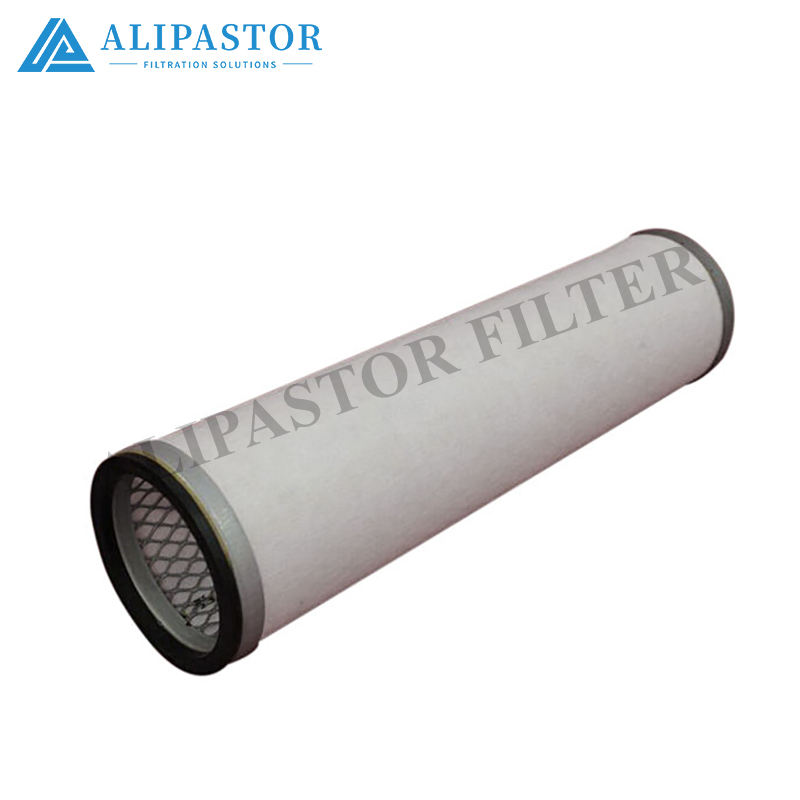

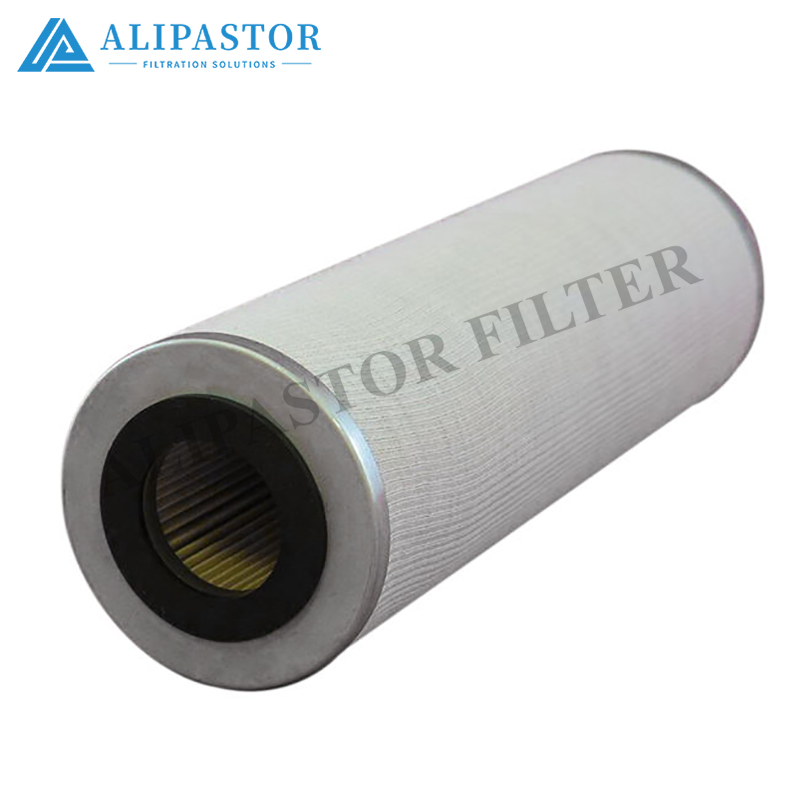

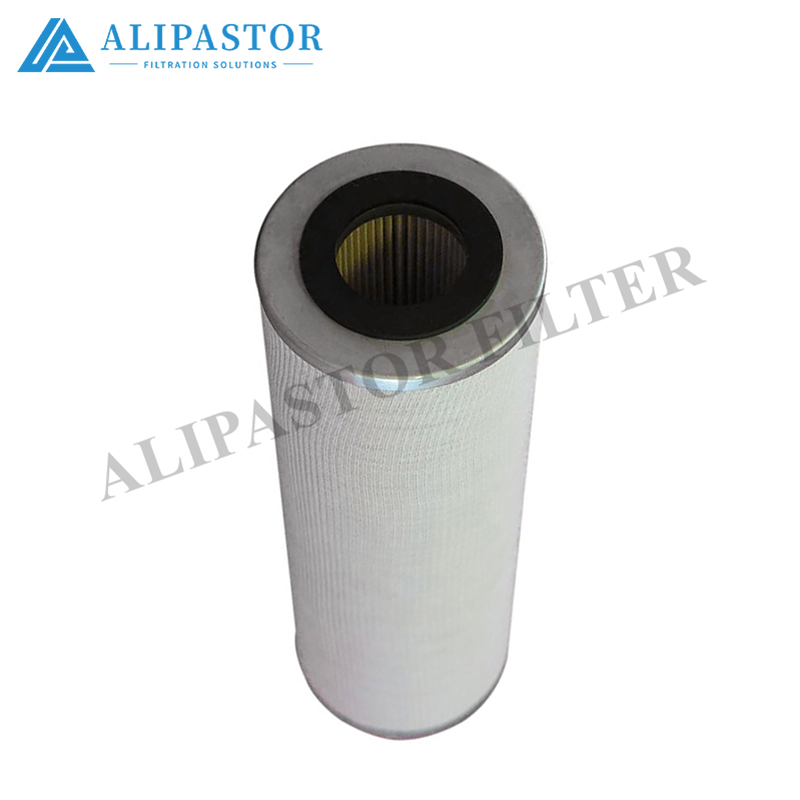

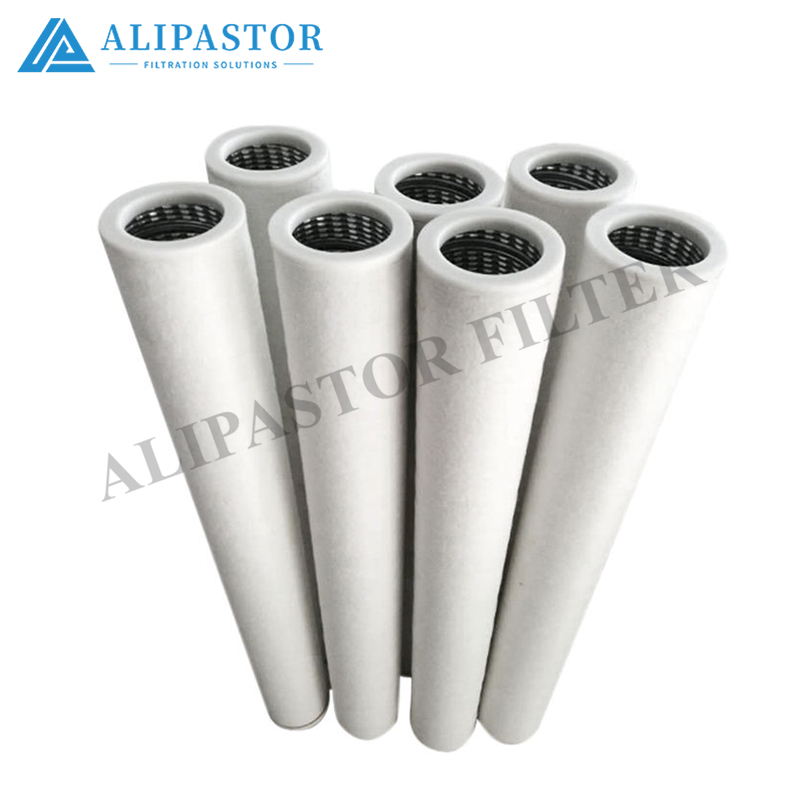

Both belong to the same HC645 size class — a compressed air or gas filter/separator cartridge used to remove liquid droplets (oil/water mist) and fine particles from the gas stream.

• They are not hydraulic oil elements (different fluid, different housing pressure/temp ratings).




• The two suffixes describe the same filtration size with a different closure / hardware style.




The "01" vs "1" is the same length/size index — the real difference you care about on the floor is the closure style (wing-bolt vs standard) and making sure the O-ring seats every time.

2) What to Check Before Installation

On the filter housing nameplate/tag (on the head or bowl):

• Model line containing HC645…




• Max working pressure (bar / psi) and temperature range




• Port size (usually NPT or BSP threads for air lines)




• FLOW DIRECTION (arrow on the head or bowl — gas must flow the correct way or separation fails)




On the old cartridge (once out):

• Overall length & diameter (ruler check against the new one)




• Seal colour: both use NBR → black/dark grey.

  If yours is brown/red, stop — the housing may be specified for Viton/FKM and you need the correct variant.




• End style: note whether the cartridge has a centre stud (threads onto housing) or open ends (drops onto a centre tube).




3) Replacement Steps

A) Preparation

1. Isolate the filter (close upstream shut-off valve).




2. Open the drain (these separators collect liquid — relieve pressure slowly through the drain cock so it doesn’t spray).




3. Confirm pressure reads zero on the local gauge.




B) Bowl / Cartridge Removal

• HC645-01-C (standard closure): loosen the bowl retaining clamp/nut with proper tool → lift bowl straight.




• HC645-1-CWB (wing-bolt): loosen the wing-bolt by hand/crescent → swing the yoke → lift bowl straight.




C) Cartridge Swap

1. Pull the old cartridge straight out — check the housing interior for sludge/standing water (drain fully).




2. Wipe the sealing face clean → thin film of compatible lubricant on the O-ring (often a dab of the same system lubricant or recommended grease — follow housing label).




3. Seat the new cartridge square (centre it on the stud/tube — off-centre = leak/bypass).




4. Reinstall bowl:

   • -CWB: snug the wing-bolt until metal-to-metal contact + a small final tighten — don’t gorilla it or you’ll distort the bowl seat.




   • -01-C: torque clamp/nut evenly per the nameplate spec.







5. Close drain → slowly repressurise (crack the inlet valve gradually — you may hear brief foaming/pop as trapped liquid clears).




6. Check for air/condensate leaks and confirm the automatic drain operates if fitted.




4) Procurement — What to Write

• HC645-01-C

  → Cartridge for HC645 housing (01 length/size, NBR seal, standard closure). Supply exact match confirmed against housing nameplate model — no “equivalent size” substitute.




• HC645-1-CWB

  → Cartridge for HC645 housing (size 1, NBR seal, wing-bolt closure). Same housing family, different bowl latch — confirm wing-bolt/WB style matches your head casting before accepting.




5) One-Line BOM (copy-paste)

• HC645-01-C— Air/gas separator cartridge, HC645 size, standard closure, NBR seal (black/grey)




• HC645-1-CWB— Air/gas separator cartridge, HC645 size, wing-bolt closure, NBR seal (black/grey)




Field Rule (keeps it simple)

Gas goes in the side → down/through media → clean gas out the top (on most coalescing housings).

If the arrow on the head points a different way, follow the arrow — not your memory.

And: if the bowl fills with liquid faster than the auto-drain can handle, the element is either oversaturated or the upstream dryer/stages are failing — changing the cartridge alone won’t fix that root cause.
