Filter Items — Quick Reference (English)

Items: FC-5900-12· HC628-01-GWB

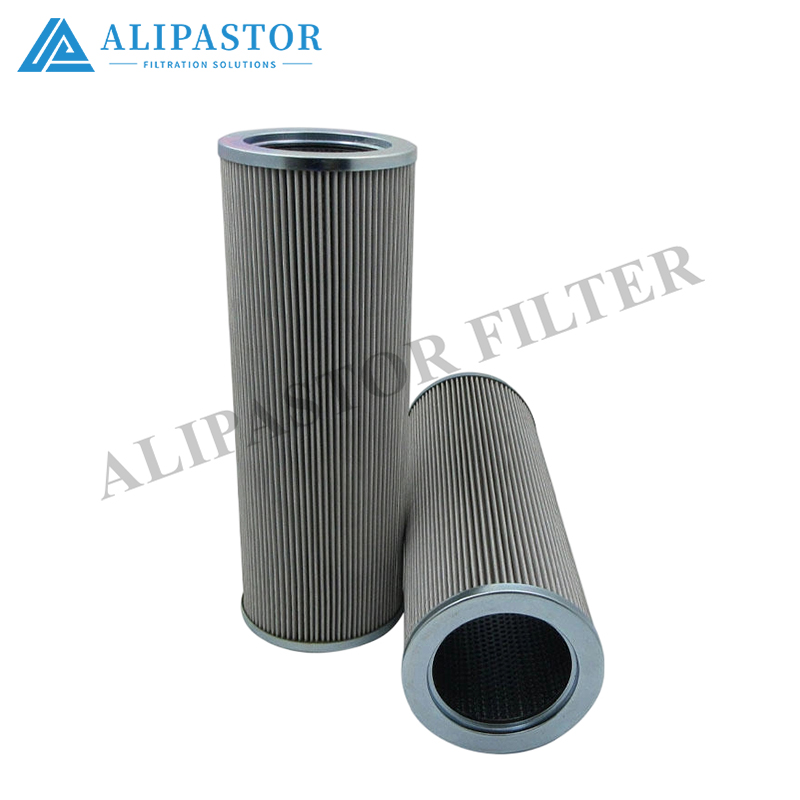

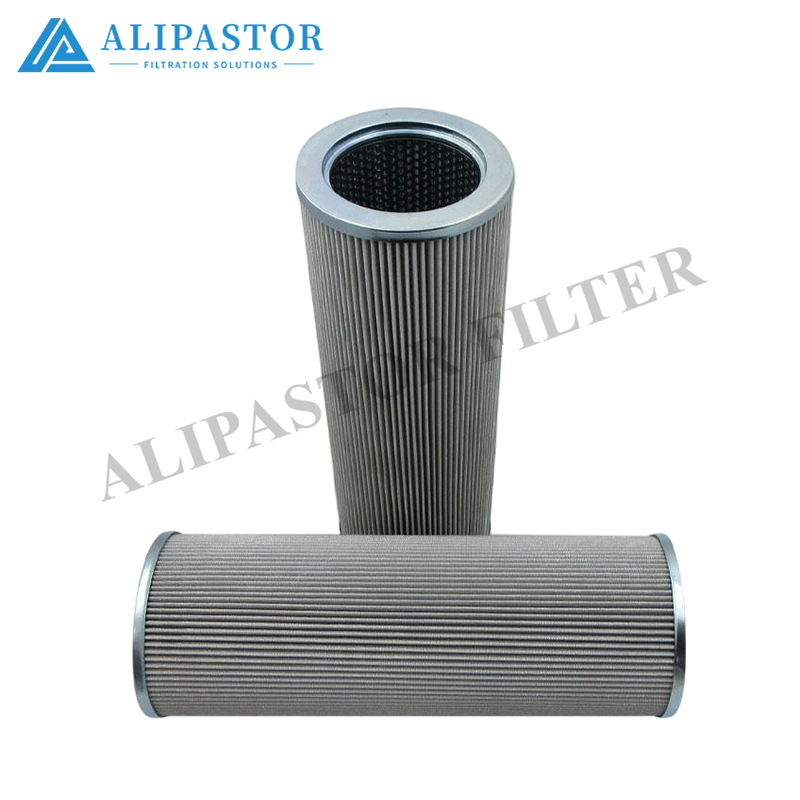

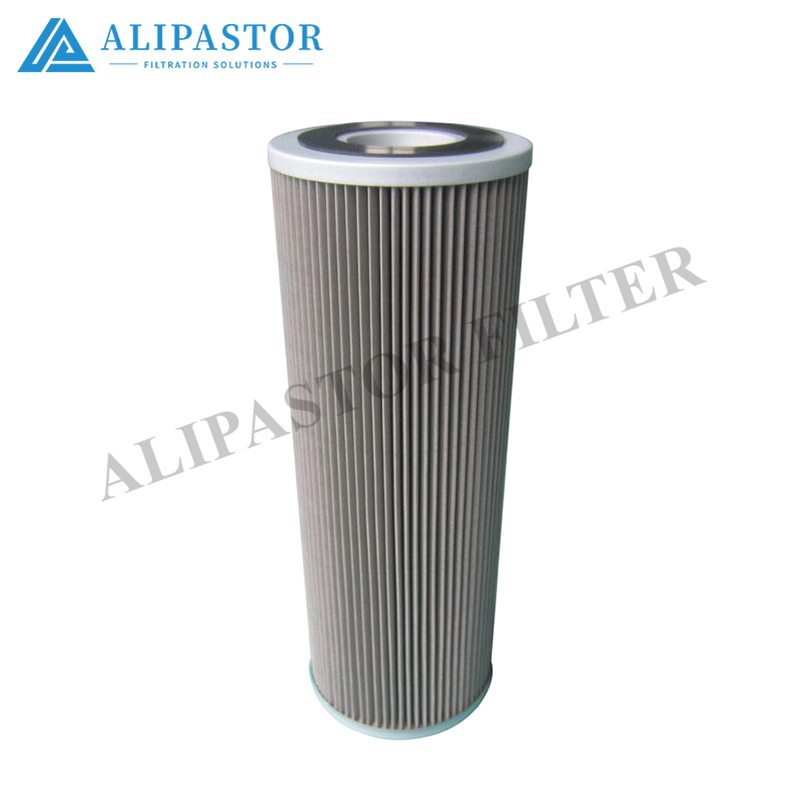

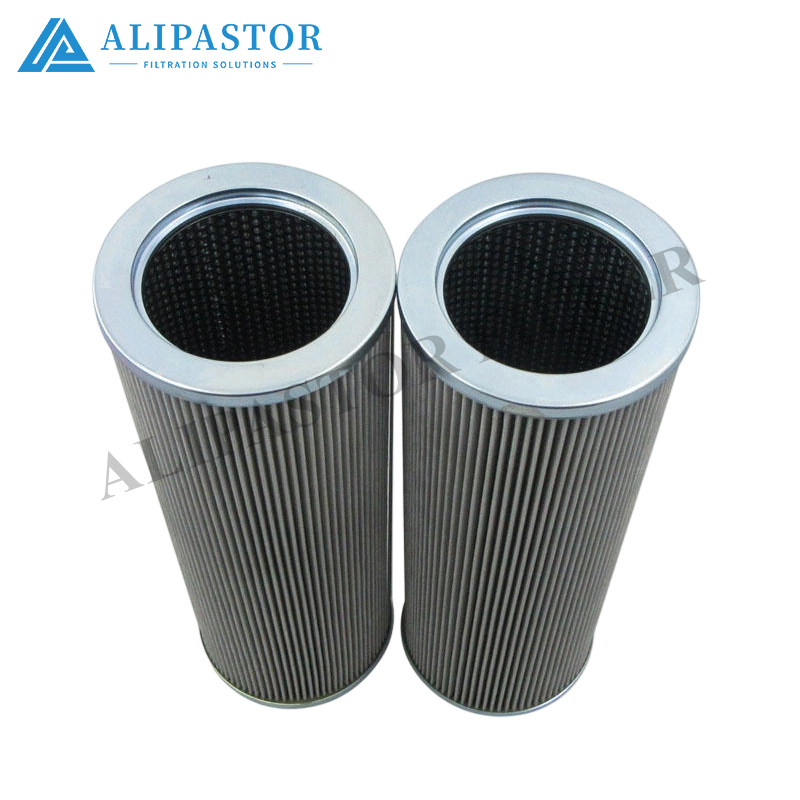

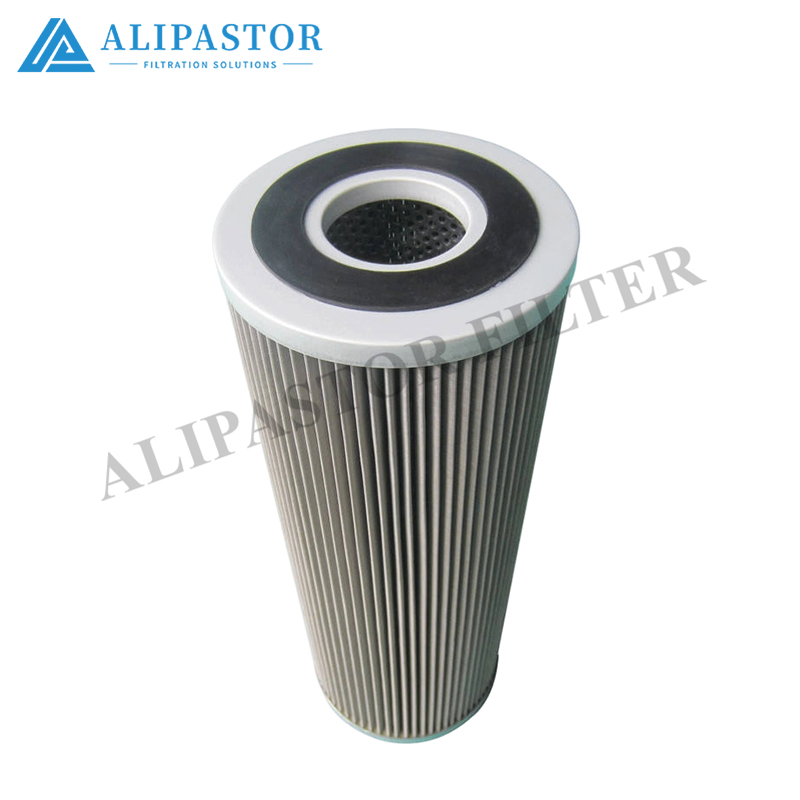

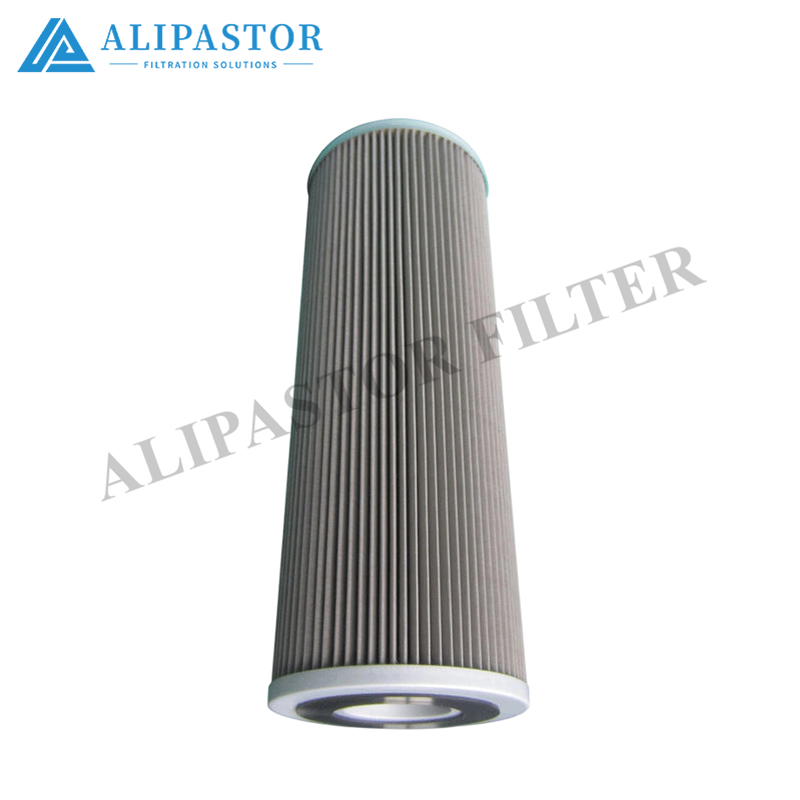

1) FC-5900-12— Return-Line / Lube-Oil Canister Element

What it is

A disposable pleated filter element installed inside a pipe-mounted return canister (clamp-band bowl, flow arrow on the head). It protects downstream components by catching particles before oil returns to tank.

What to check before fitting

• Read the filter head nameplate near the pipe ports: it should show the FC-5900 family model, pressure rating, port size, and flow arrow.




• Compare the new element with the old one using a ruler: overall height / outer diameter / centre-hole diameter must match.




• Seal colour: most FC-5900-12 units run NBR (black/dark grey). If your old seal is brown/red (Viton), stop and confirm the fluid/temperature requirement before using a different seal type.




Replacement steps

1. Stop pump → open vent/bleed until pressure reads zero.




2. Support the bowl — don’t let it hang on piping.




3. Release clamp band → lift element straight out (no prying).




4. Check bowl bottom for bright metal shavings (pump/gear wear warning).




5. Wipe sealing face → thin film of clean hydraulic oil on the O-ring (nothing else).




6. Seat element square on the centre support tube → close vent slowly → ΔP indicator green, no seep.




Procurement wording (safe)

FC-5900-12 — Element for FC-5900-series housing — confirm against the head nameplate model. Require supplier to state OD / height / centre bore / seal compound before delivery. No “looks similar” substitutes.

2) HC628-01-GWB— Coalescer / Gas-Liquid Separation Cartridge

What it is

A coalescing/separation cartridge (often used on oil-mist, fuel gas, or lube-oil dehydration/polishing loops).

Letters like GWB in this family usually describe end-cap/length style (G) + seal material (WB = commonly Buna-N/NBR unless otherwise specified) — but only the housing nameplate proves it.

What to check before fitting

• Read the housing nameplate/tag: model, pressure/temperature limits, and which fluid stream it handles (oil-mist / gas / fuel-polishing / lube bypass loop).




• Measure the old cartridge if possible: OD / overall length / centre-hole — and note the end-cap style (flange lip, threaded centre, or bail handle).




• Confirm the seal colour matches what the system is designed for (black/grey vs brown/red).




Replacement steps

1. Isolate / depressurize the vessel or filter housing (coalescers can hold trapped pressure — crack the vent slowly).




2. Open the closure → withdraw the cartridge straight, avoiding damage to the delicate outer sock/media wrap.




3. Inspect the housing interior for sludge/water pooling (tells you if the separator stage is overloaded).




4. Light film of correct fluid on the O-ring/gasket → seat square → re-close → vent correctly.




5. Restart gradually and watch for abnormal pressure drop or liquid carry-over downstream.




Procurement wording (safe)

HC628-01-GWB — Coalescer/separation cartridge — issue only against the housing model shown on the nameplate. Require supplier to confirm length / OD / centre bore / end-cap style / seal compound before delivery.

3) One-Line BOM (copy-paste)

• FC-5900-12— Return-line/lube canister element, fits FC-5900-series housing per head nameplate




• HC628-01-GWB— Coalescer/separation cartridge, fits HC628-family housing per nameplate (different duty from a plain hydraulic return element — treat as liquid/gas separation, not simple particle filtration)




Quick field rule

If the two items sit next to each other on the same skid, remember:

• FC-5900-12 = “keep particles out of tank”




• HC628-01-GWB = “knock droplets/water/mist out of a gas or polisher loop”




They are not interchangeable, even if they look like “another cylinder.” The housing nameplate decides which is which.
