Filter Elements — Quick Reference (English)

Items: DM830-00-C· DM839-00-C

1) What These Are (Plain English)

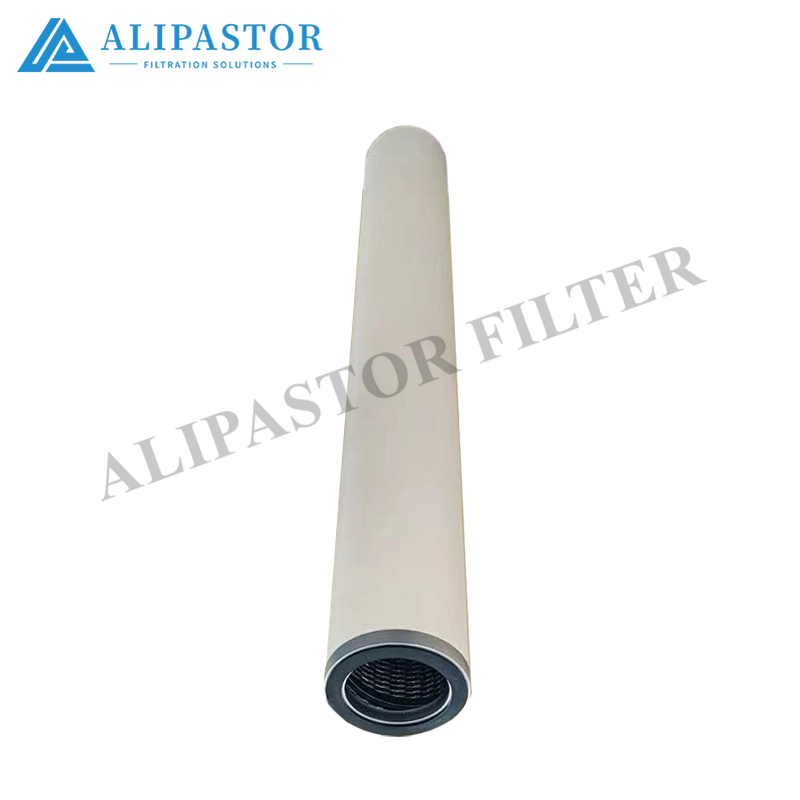

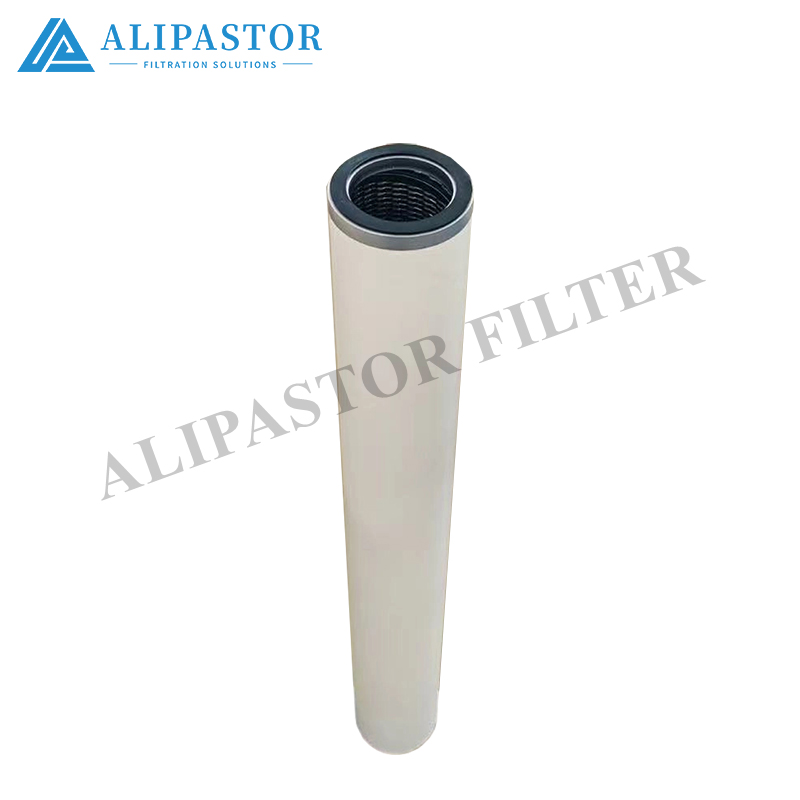

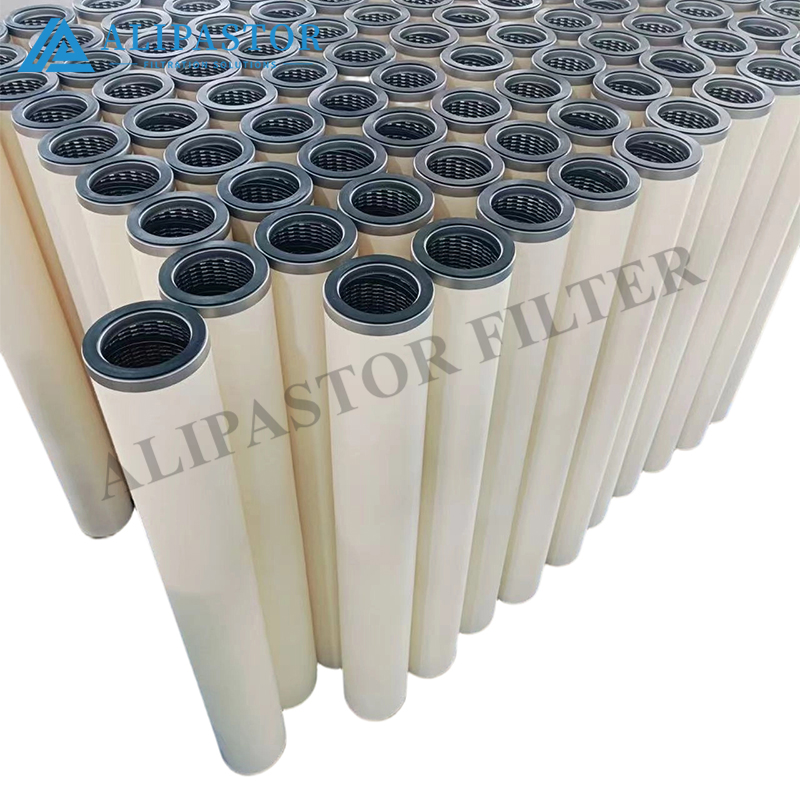

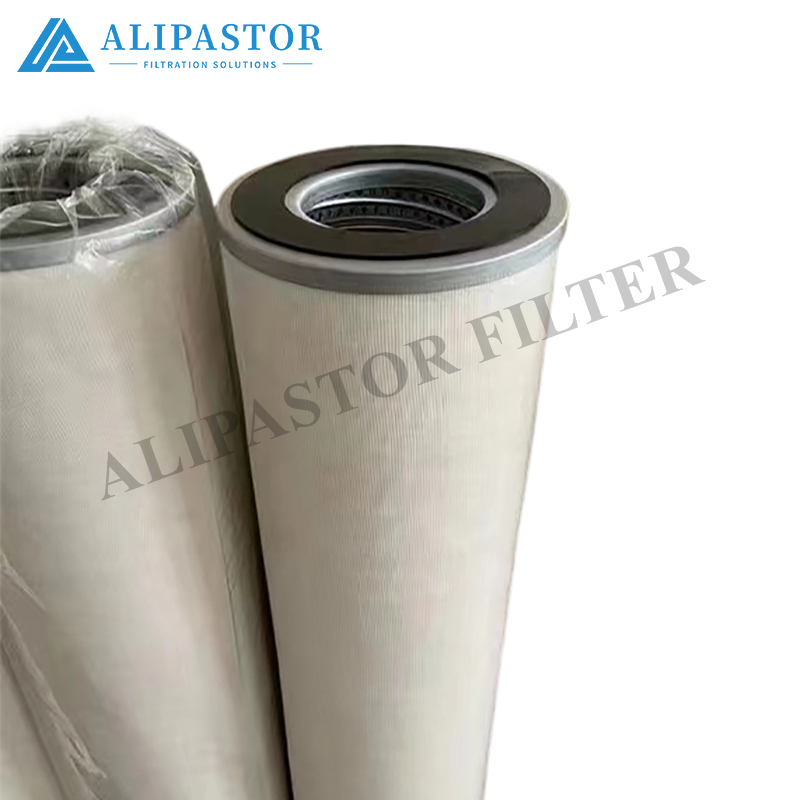

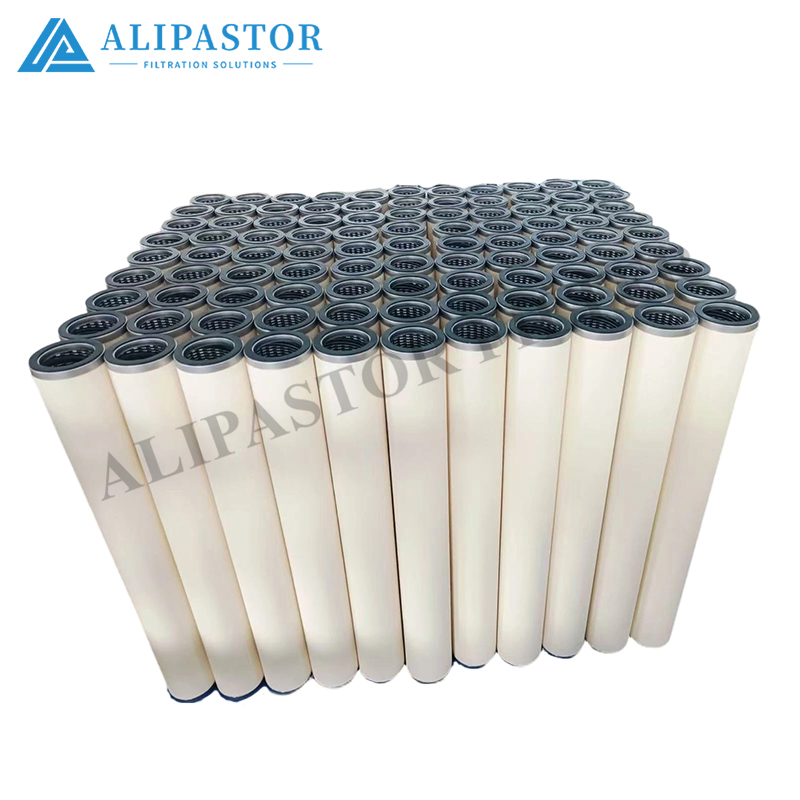

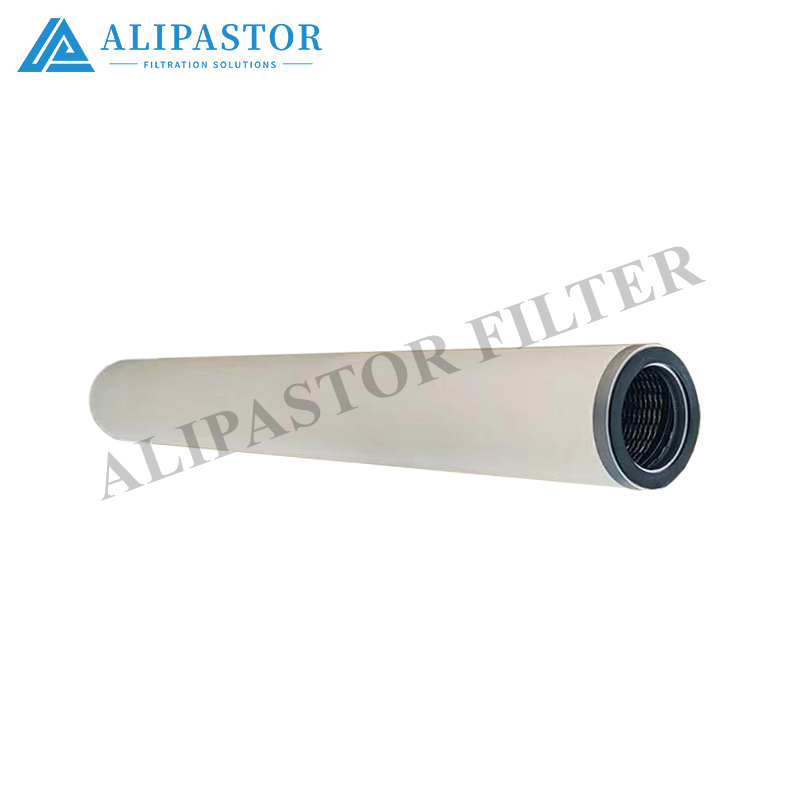

Both are disposable pleated filter elements used inside pipe-mounted return-line canisters (the type with a flow arrow stamped on the head and a clamp-band bowl).

• The number before the dash (830 / 839) defines the size/flow class, which fixes the outer diameter, height, and centre-tube dimensions.




• -00 means the standard configuration (no drain cock/heater/magnet unless your specific head casting has them).




• C at the end means the seal compound is NBR — the O-ring will be black or dark grey, suitable for mineral hydraulic oil (HLP/HM).




⚠️ 830 and 839 are different size classes. Even if the element “looks close,” the seal lands and centre locator differ. Never swap 830 ↔ 839.

2) What You Must Check Before Installation

On the filter head (near the inlet/outlet ports), read the metal nameplate:

• It should show the model containing DM830… or DM839…




• Pressure rating (bar / MPa)




• Port size (thread or flange)




• FLOW ARROW — oil must enter where the arrow says; installing the bowl backwards defeats filtration




On the old element (once it’s out):

• Confirm overall height / outer diameter roughly matches the new one (ruler is enough)




• Confirm the O-ring colour is black/grey (NBR).

  If it is brown/red, someone previously fitted a Viton version — in that case, ask maintenance engineering before fitting a “C” (NBR) part.




3) Replacement Steps (Field-Safe Sequence)

1. Stop pump → open vent/bleed until pressure reads zero.




2. Support the bowl so it does not hang by the piping.




3. Release the clamp band → remove the bowl → pull the element straight out (no prying against the pleats).




4. Check the bottom of the bowl for bright metal shavings (pump/gear wear warning).




5. Wipe sealing surfaces clean → apply a thin film of clean hydraulic oil to the O-ring (no grease, no sealant).




6. Seat the new element squarely onto the centre support tube until it locates fully.




7. Reassemble → tighten the clamp evenly → close vent slowly.




8. Restart → confirm no leaks and that the ΔP indicator is green.




4) Procurement — What to Write (No Guessing Allowed)

• DM830-00-C

  → Element for DM830 housing only (not DM839). Supply exact fit: confirm OD / height / centre bore / seal groove against the head nameplate before delivery.




• DM839-00-C

  → Element for DM839 housing only (not DM830). Same rule as above.




5) One-Line BOM (Copy-Paste)

• DM830-00-C— Return-line canister element, NBR seal (C), fits DM830 housing per head nameplate only




• DM839-00-C— Return-line canister element, NBR seal (C), fits DM839 housing per head nameplate only




Field Rule to Remember

If the nameplate is painted over and you can’t read it, use the ruler: measure the old element’s height & OD, write those numbers on the BOM line, and keep the two spares strictly separated by size. That alone prevents 99% of “wrong element” mistakes.
