Hydraulic / Lubrication Filter Spares — Quick Reference (English)

Items: 300161· 0391-00-407-T

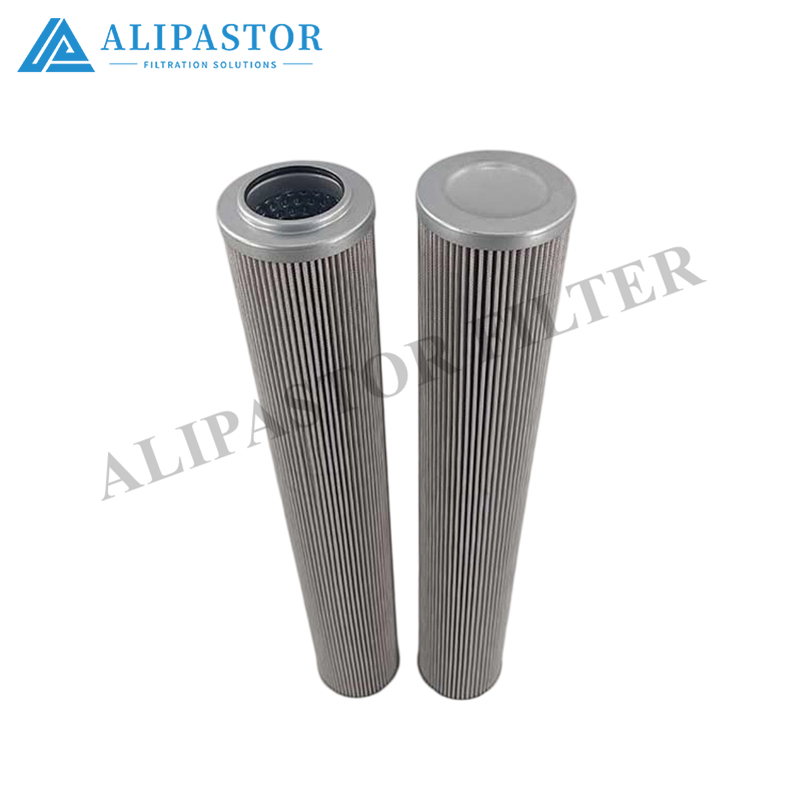

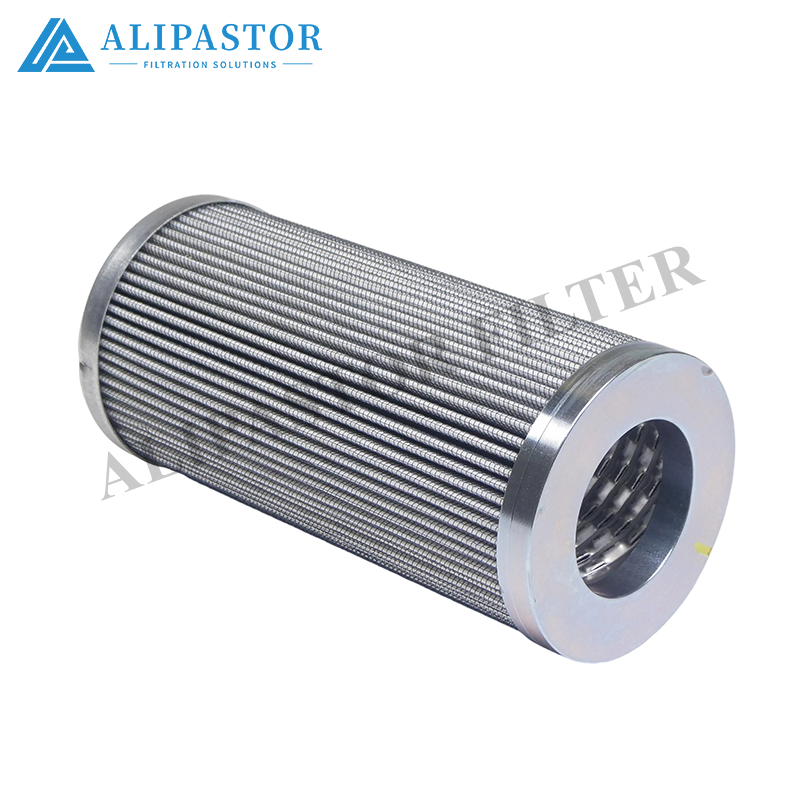

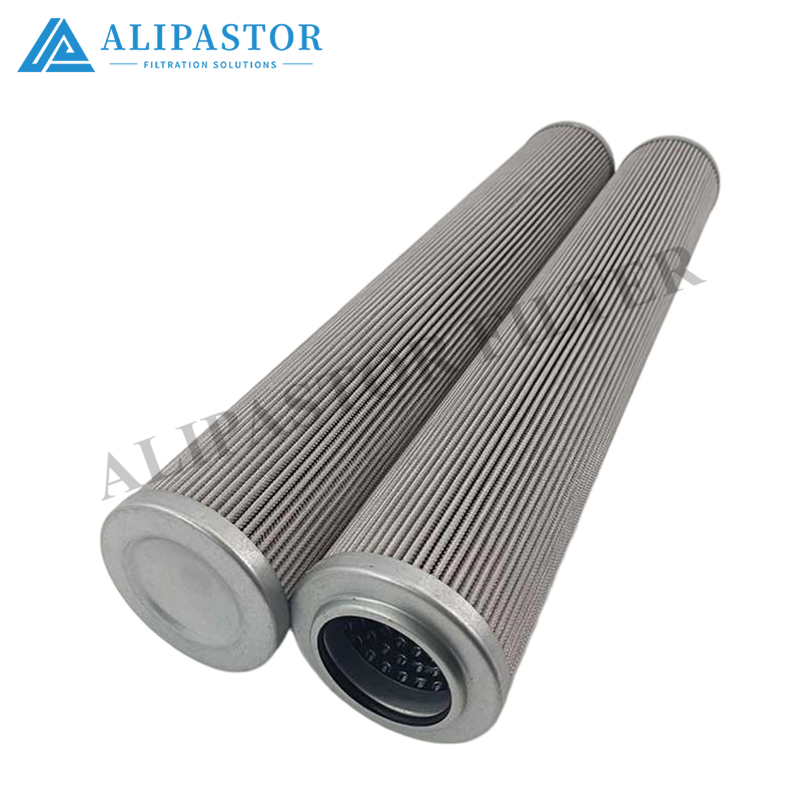

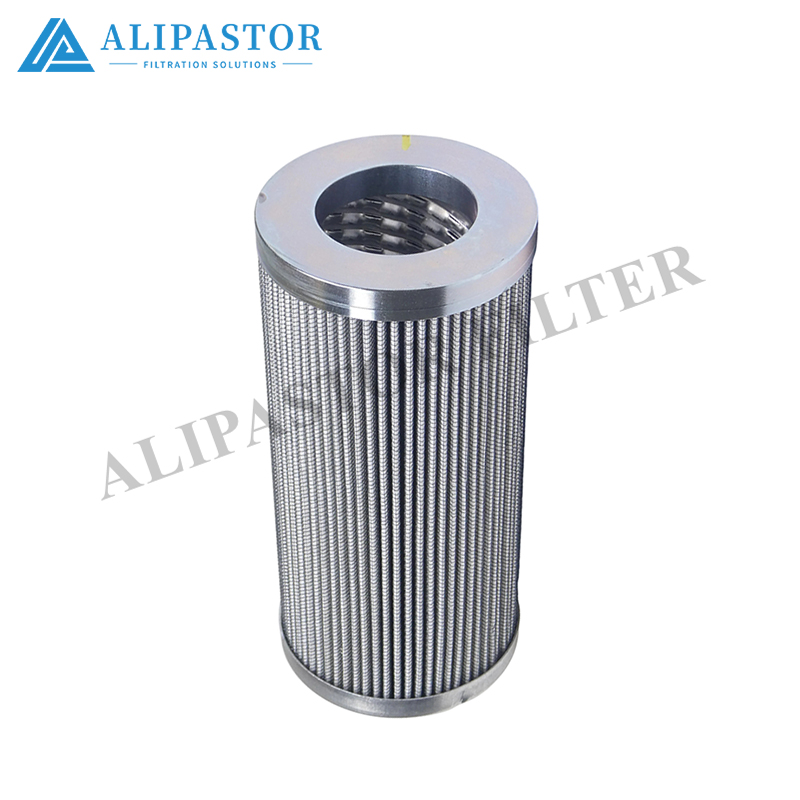

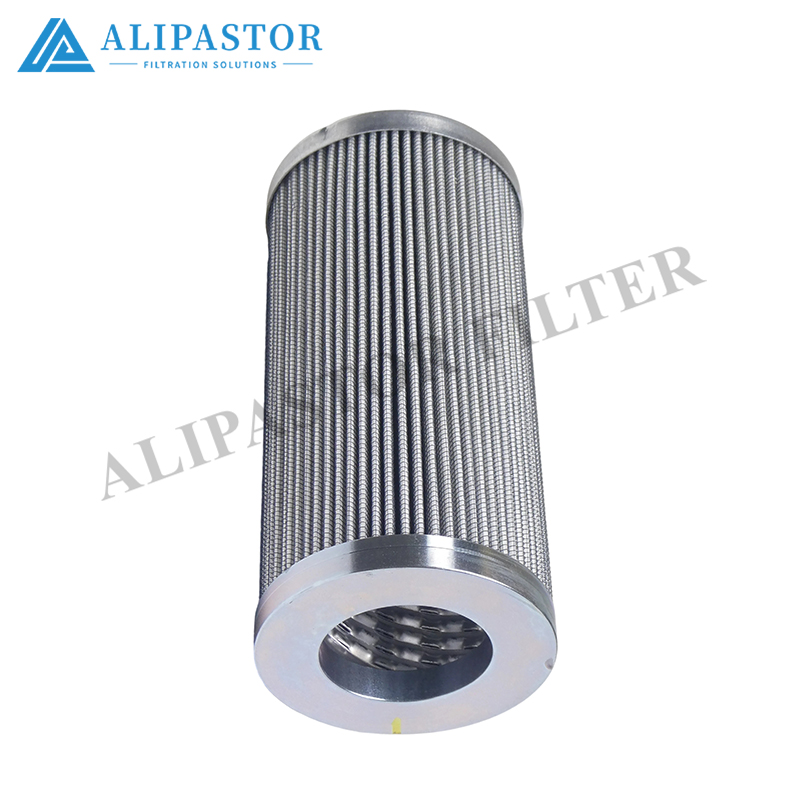

1) 0391-00-407-T— Duplex / Lube-Oil Filter Element

What it is (plain English)

This belongs to a duplex filter (two bowls + a switch handle) used on a lube-oil / thin-oil circulation circuit or a return guard — not on a high-pressure pump discharge.

The suffix T usually points to the higher-temperature seal option (most commonly Viton/FKM → O-ring looks brown/reddish).

What you must check before fitting

• Read the housing nameplate on the duplex body:

  • Model / series (contains 0391…)




  • Pressure rating (often 1.0–1.6 MPa / 10–16 bar for lube duty)




  • Port size / DN




  • Handle position marking (A/B side)







• Look at the old element:

  • Overall height H, OD, centre-hole ID (ruler is enough)




  • End style (usually double-open)




  • O-ring colour: should be brown/red if truly “T”.

    If it is black/grey, stop — you may have the wrong spare or someone swapped seals.







Safe replacement steps

1. Move the duplex handle to the other side so the system keeps running (or follow your site rule to stop flow if you must open).




2. Vent / drain the isolated side (catch oil — these bowls can be tall).




3. Open the cover → lift element straight out → check bottom for bright metal shavings (gear/bearing wear warning).




4. Wipe sealing face → thin film of clean lube/hydraulic oil on the O-ring (no grease).




5. Seat element square on the centre rod → close cover → bleed air.




6. When work is done, you can move the handle back (or leave as your procedure says).




Procurement wording

“0391-00-407-T — issue / reorder against the housing model stamped on the duplex body. Seal option T = higher-temp compound (match brown/red Viton, not black NBR unless nameplate allows). Confirm H / OD / centre bore from our old element before delivery — no substitute by ‘looks close’.”

2) 300161— Plant Stock / Material Number (Must Be Verified)

What it is

A purely internal stock number (ERP/material number). It can be:

• a filter element for a specific housing, or




• a seal/repair kit (O-rings, gaskets, drain plug seal…)




How to qualify it (one minute)

• Check the bag/bin label (or the BOM line): does it say “element / cartridge” or “seal kit / repair kit / O-ring kit”?




• If it is an element: match it only to the housing nameplate (model + ports + pressure + flow arrow) and the old element’s H / OD / ID.




• If it is a kit: use it only for the equipment/model the BOM says it belongs to — not as a filter element.




Procurement wording (safe)

“300161 — issue against the equipment tag / housing model written in the BOM. If supplier must ship an element, require housing model + OD + height + seal compound first. If it is a seal/repair kit, issue only as that specified kit.”

3) One-Line BOM (copy-paste)

• 0391-00-407-T— Lube/hydraulic filter element — fit only to 0391-family duplex housing shown on the body nameplate (seal option T = higher-temp / Viton-type, brown/red)




• 300161— Internal stock/material number — confirm from housing nameplate / bin tag whether element or kit before use




Field rule (simple, safe)

On duplex positions, the handle must clearly show which side is online before you open anything.

And if an element’s O-ring colour disagrees with the suffix letter (T vs black), stop and verify the housing nameplate — don’t force a seal compound mismatch just because “the number matches.”
