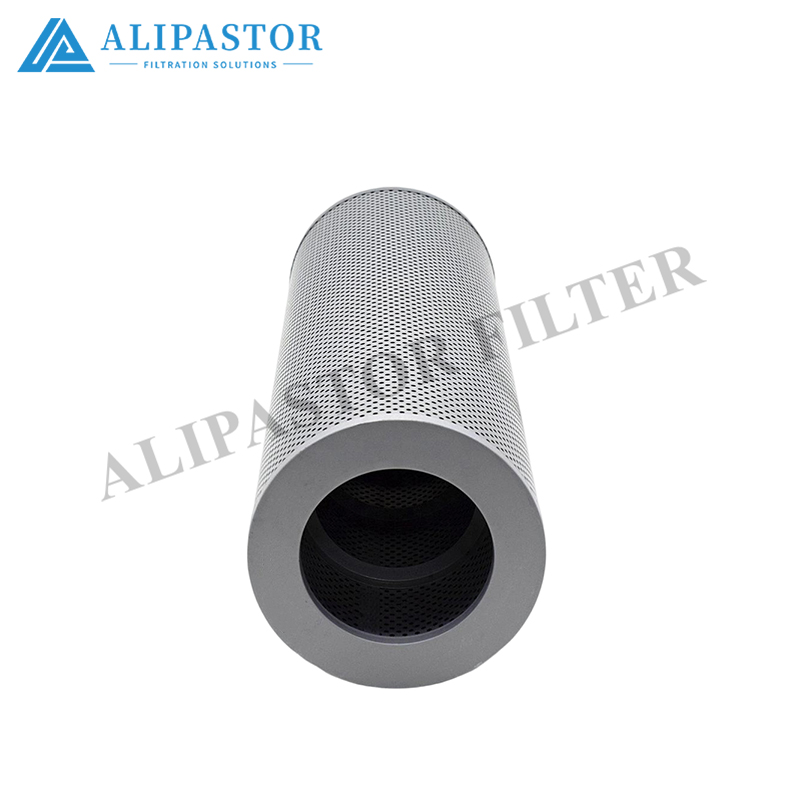

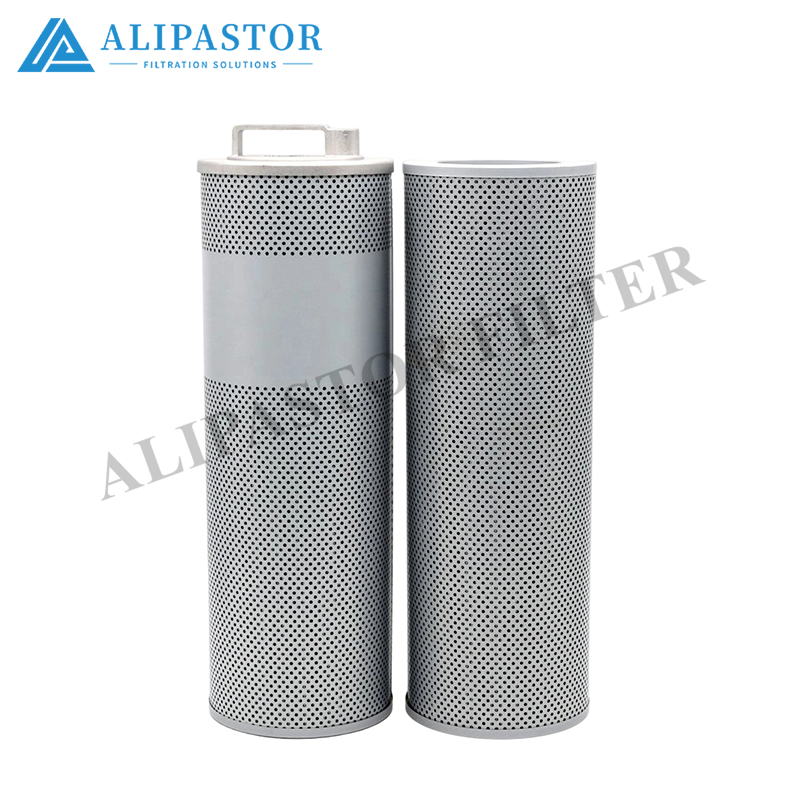

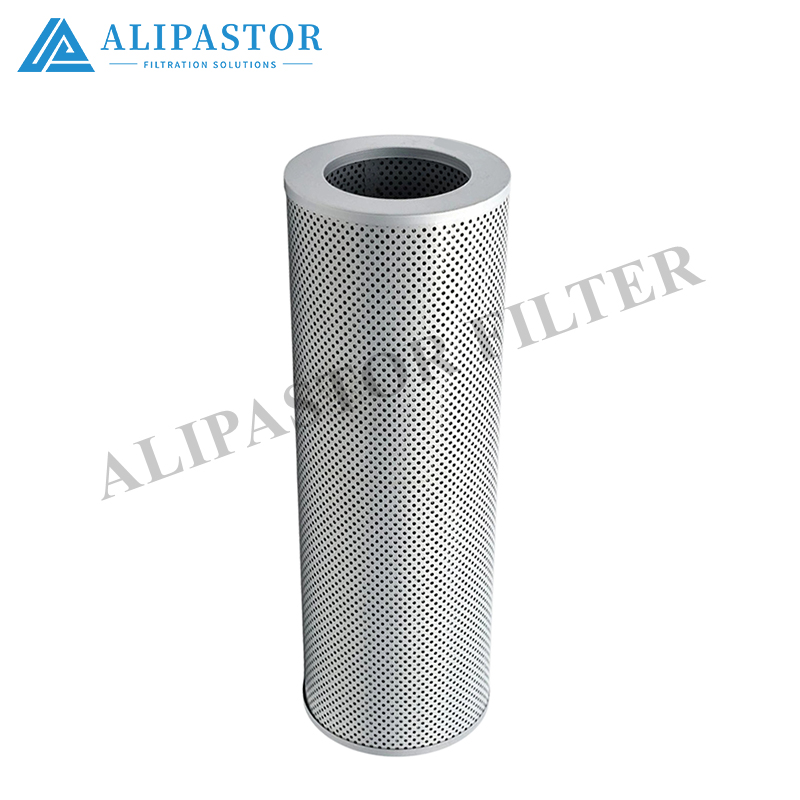

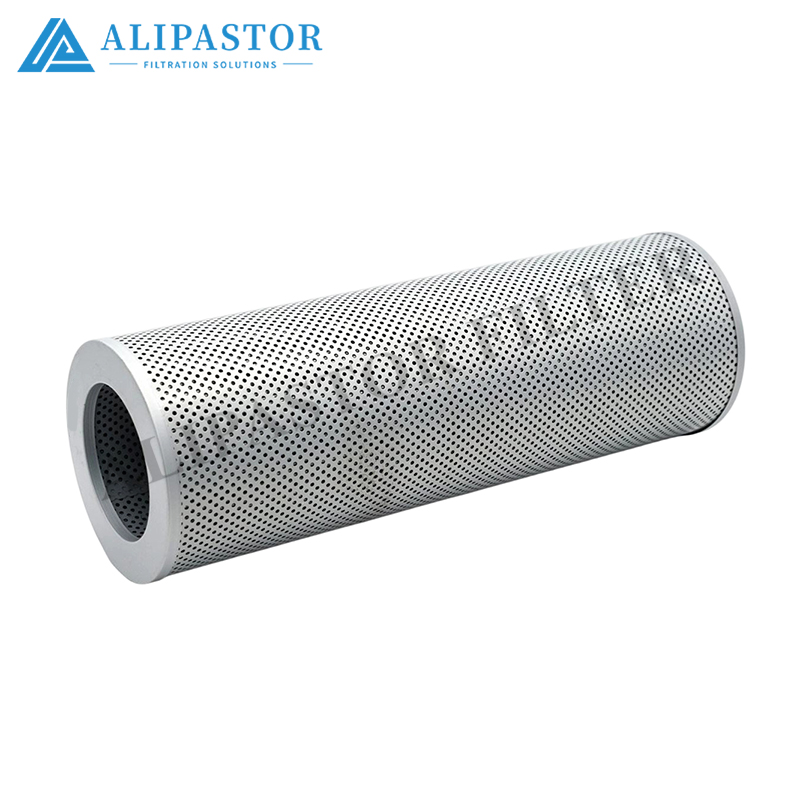

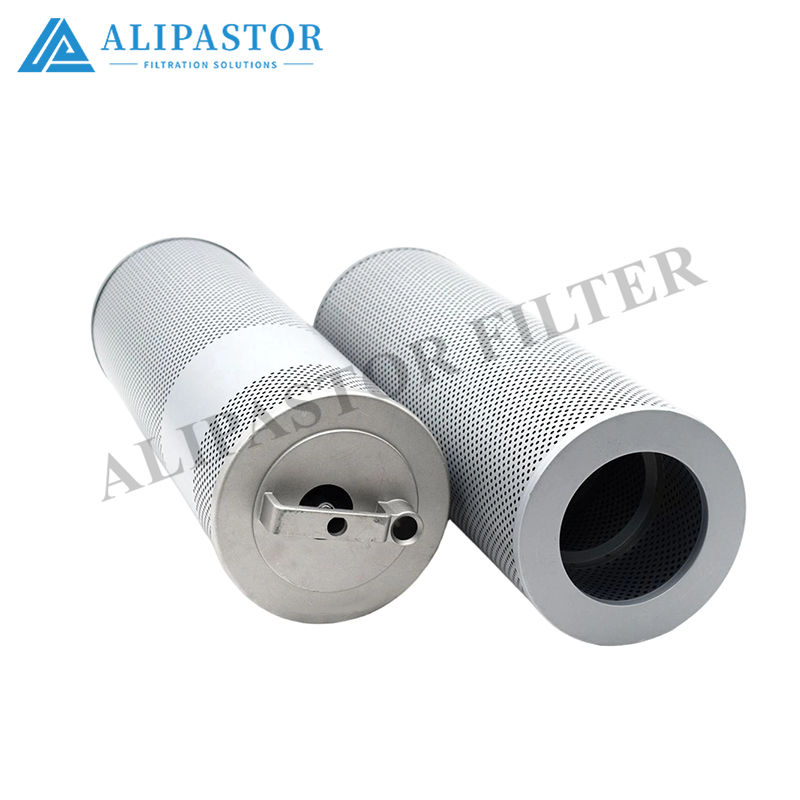

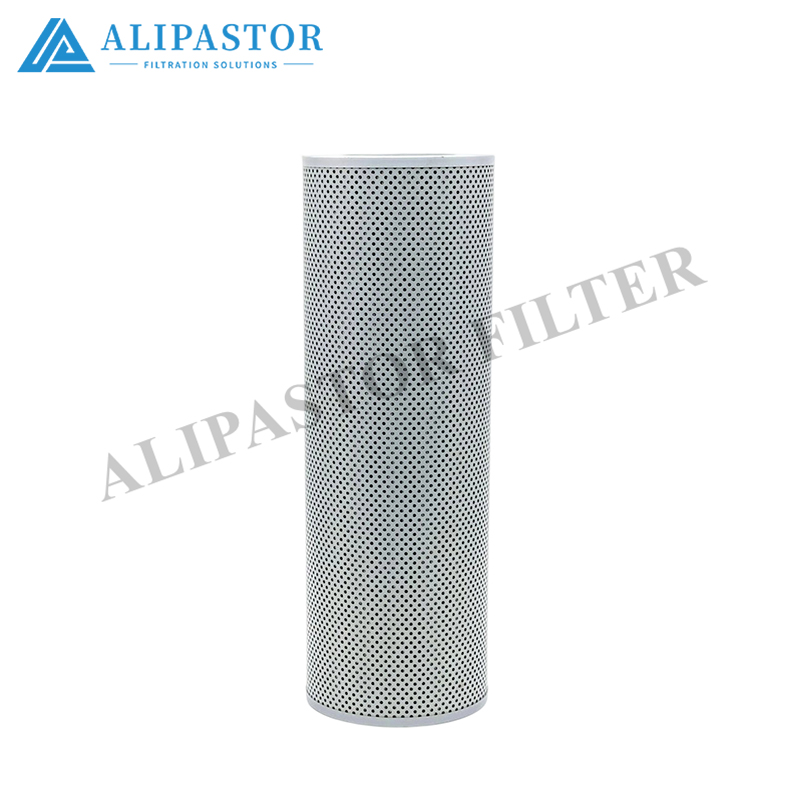

V4051B3C20 C6360232 Anti-Emulsification Hydraulic Filter V4051B3C20 C6360232 For Humid Metallurgical Working Conditions
Similar models
| D6360529 | V4051V7C10 | V4051B7V05 | 573083 |
| V4054B7H20 | V4051B3C20 | C6360112 | C6360232 |
| C6370467 | V4051B7C10 | R29C10GB | FT8501A10A |
| 941074 （941448/398856） |
Basic Info.
Type | Hydraulic oil filter | Material | Stainless steel wire mesh |
Warranty | 6 Month | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | Place of Origin | Henan, China |
Brand Name | ALIPASTOR | Application | for Hydraulic system |
Product Name | Hydraulic oil filter | Part Number | V4051B3C20 C6360232 |
Keyword | Hydraulic oil filter | Weight | Standard |
Filtration | 1-70micron | Color | Customize |
Filtration Grade | 99% | Warranty | 3 Months |
Production Capacity | 1000 PCS/Week |
Product Parameters
Model Number | V4051B3C20 C6360232 |
Type | Hydraulic oil filter element |
Dimension | Standard |
Working Temperature | According to customer's request |
Work Pressure Different | Customized |
Material | Stainless steel wire mesh |
Filter Precision | 3~100μm |
Life span | 2000h |
MOQ | 1 pieces |
Lead Time | Around 5-7 days after order confirmed |
Package | PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement |
Shipping Method | By sea, by air, by express |
Hydraulic Oil Filter Elements — Quick Reference
Item Numbers: V4051B3C20· C6360232
1) What These Are (Plain English)
Both are hydraulic filter elements (disposable, pleated media). They belong to different housing families and must not be interchanged.
Item | Typical Form | Approx. Dimensions (verify on your unit) | Filtration | Seal |
|---|---|---|---|---|
V4051B3C20 | Slender return-line cartridge (pipe-mounted) | OD ≈ 99 mm · Length ≈ 235 mm · Centre ID ≈ 42 mm | 25 µm (coarse guard) | NBR (black/grey) |
C6360232 | Large-diameter canister element (tank-mounted or inline heavy-duty) | OD ≈ 160 mm class · Length ≈ 330 mm class · Centre tube ≈ 86 mm | Typically 10–25 µm class (glass-fiber) | NBR (black/grey standard) |
⚠️ The only safe authority is the housing nameplate + the old element dimensions, not the sticker alone.
2) How to Confirm the Correct Fit (30 Seconds Each)
A) Read the Housing Nameplate
On the filter head (near the ports), copy or photo:
Housing model / series number
Pressure rating (bar / MPa)
Port size (thread or flange)
FLOW ARROW
Temperature range / fluid note (mineral oil / HLP / other)
B) Check the Old Element
Check | Why |
|---|---|
OD / Length (ruler photo is enough) | Instantly separates the slender V4051 type from the large OD C-series can |
Seal colour | Black/grey = NBR · Brown/red = FKM/Viton — don't mix compounds |
Media look | White/cream uniform pleats = glass-fiber/synthetic (disposable) |
Bowl bottom | Bright metal shavings = pump/gear wear warning |
3) Replacement — Safe Sequence
Stop pump → open vent/bleed until pressure reads 0
Support the bowl (C6360232 size is heavy — don't let it hang on piping)
Open clamp/retainer → lift element straight out, no prying
Inspect bowl bottom for bright metal shavings (wear sign)
Wipe sealing face → thin film of clean hydraulic oil on O-ring (no grease, no sealant)
Seat new element square on the centre support tube (feel it locate)
Close vent → bring pressure back slowly → check for leaks & ΔP indicator GREEN
If the ΔP indicator stays RED after a fresh element, either the element is wrong (size/bypass mismatch) or the system is heavily contaminated. Investigate — don't ignore.
4) Procurement — What to Write (keeps suppliers honest)
Buy | Write / Say |
|---|---|
V4051B3C20 | *Element V4051B3C20 — for our [housing model from nameplate] return canister. Spec: 25 µm, pleated synthetic/glass composite, NBR seal. Confirm OD≈99 / L≈235 / centre ID≈42 mm + seal groove before delivery. No silent substitute. |
C6360232 | Element C6360232 — for our [housing model from nameplate] (large canister). Spec: glass-fiber fleece, NBR (confirm if FKM is required). Confirm OD / L / centre-tube interface against the existing element before delivery — match housing, not sticker. |
5) One-Line BOM (Copy-Paste)
V4051B3C20— Hydraulic return element, ~25 µm, NBR, fit to [housing model shown on head]C6360232— Hydraulic/lube canister element, glass-fiber, NBR, fit to [housing model shown on head] (verify OD/L/centre tube on sample)
📸 If you want exact mm instead of ranges:send one photo of the housing nameplate (ports + arrow + pressure) + old element upright next to a ruler for each item. I'll lock OD / Length / centre-tube / seal type in the same clean layout — still brand-free.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4.What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q5.What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q6. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q7. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
