Hydraulic Filter Elements — Quick Reference (English)

Items: V4051V7C10· 573083

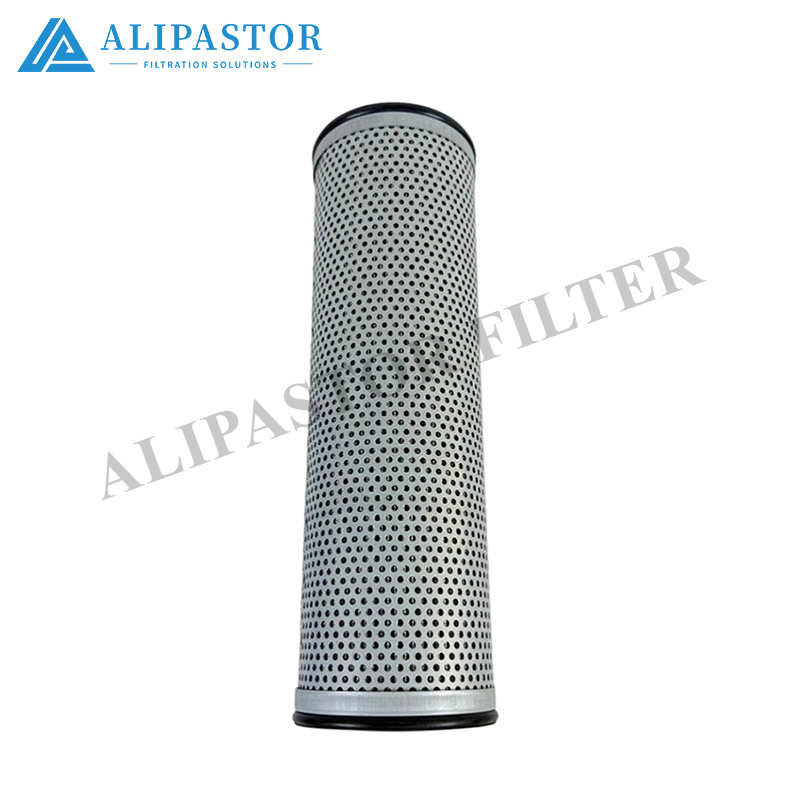

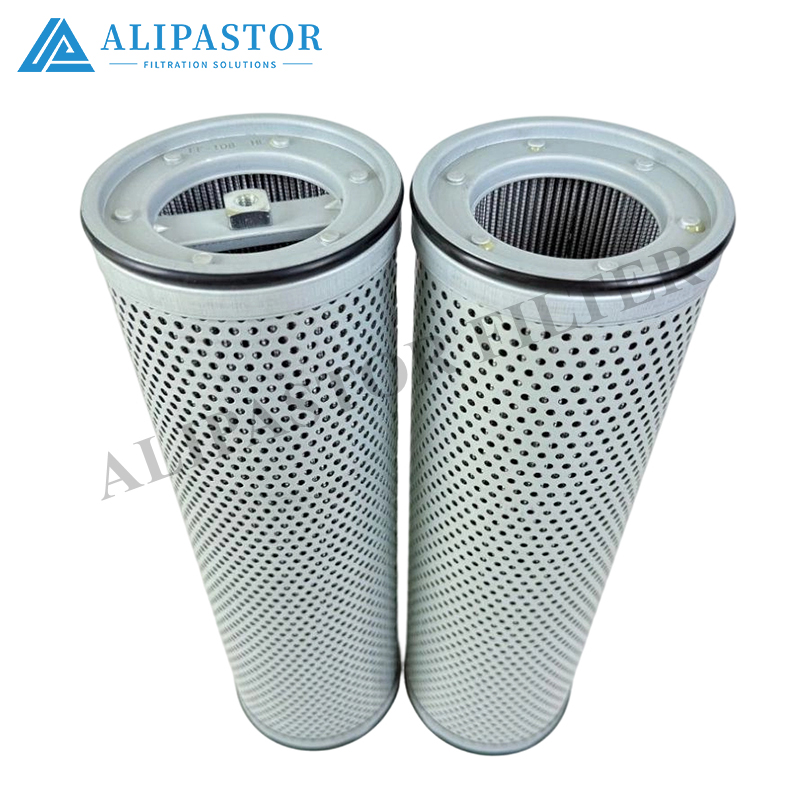

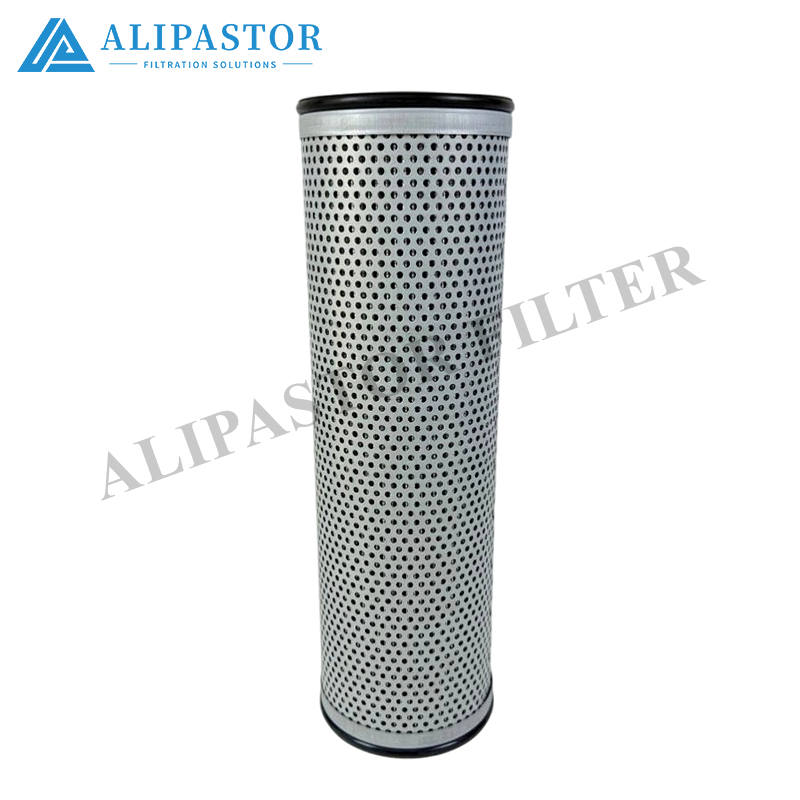

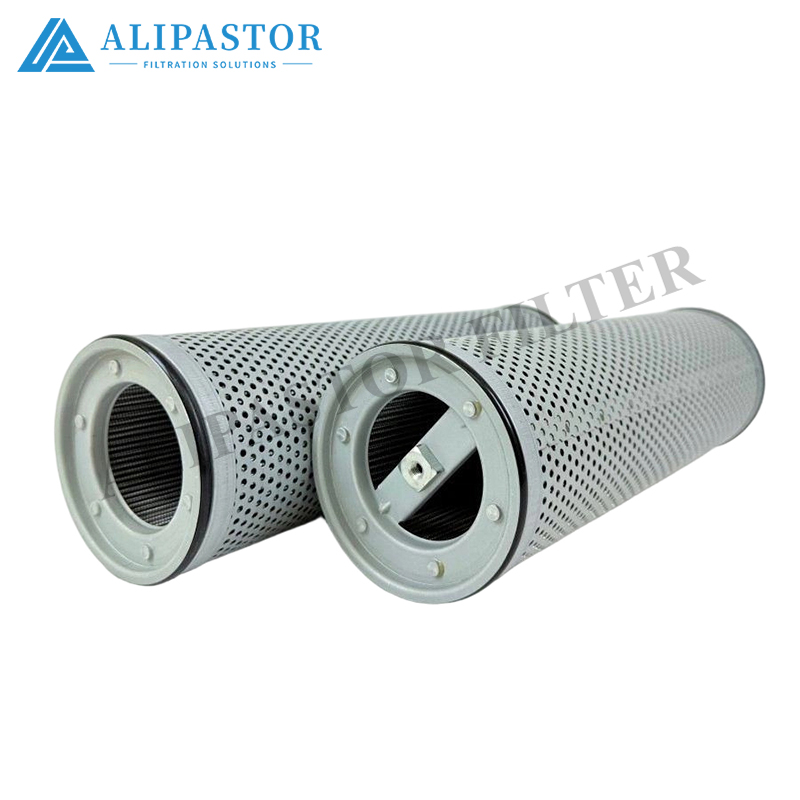

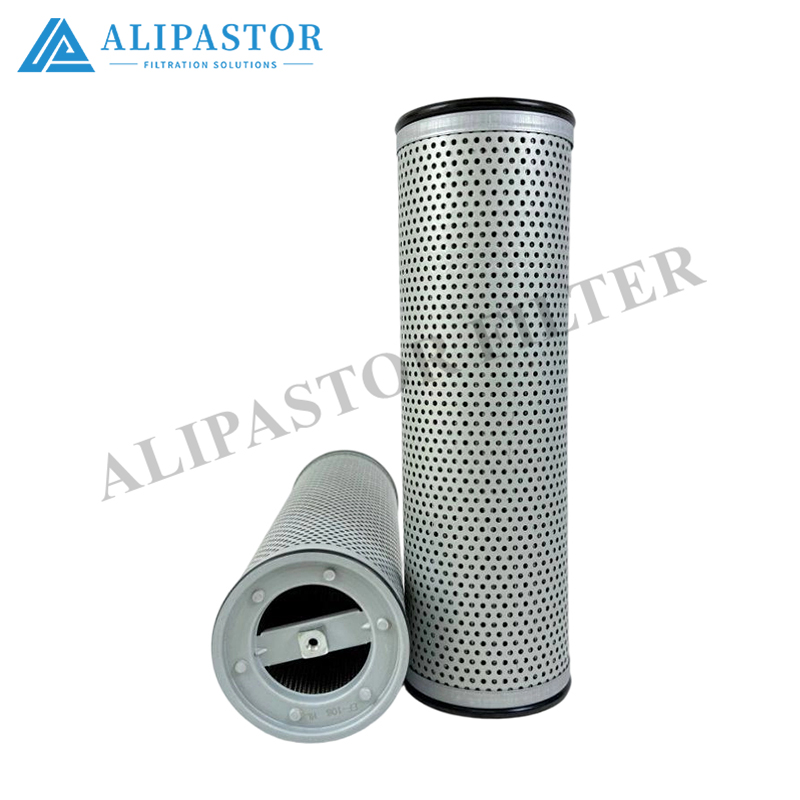

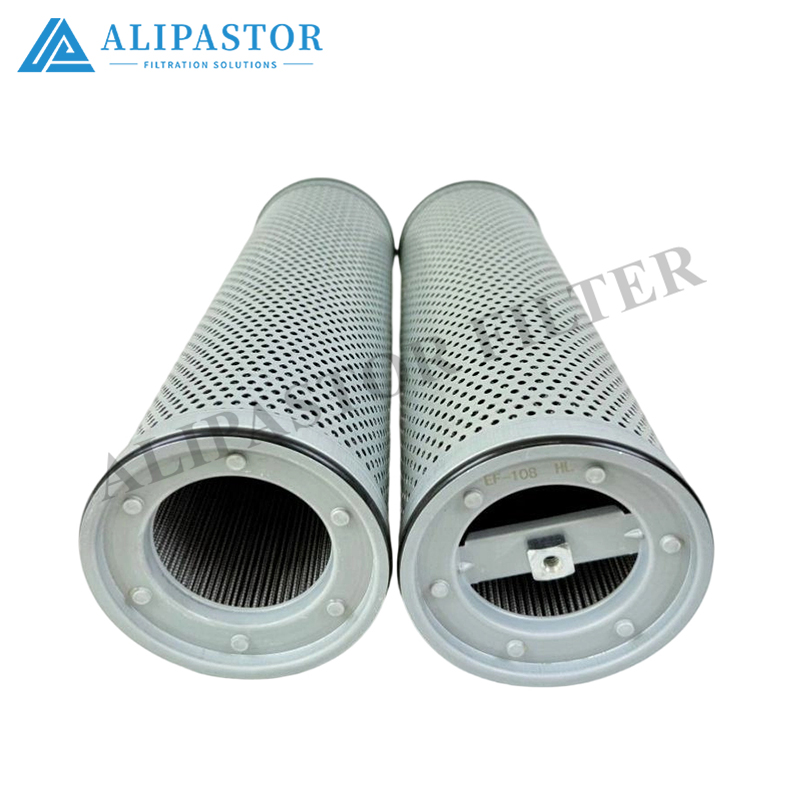

1) V4051V7C10— Return-Line Cartridge Element

What it is

• A disposable pleated cartridge used in a pipe-mounted return-line filter housing




• Oil flows outside → inside (through the pleats); clean oil leaves via the centre




• The housing has a flow arrow on the head — keep the arrow aligned with pipe flow




Code meaning (plain-language)

• V4051 = element size/family for a return canister (centre-rod / clamp-band bowl)




• C10 = media class aimed at 10 µm (disposable synthetic/glass composite)




• V7 = seal compound is Viton/FKM (brown/reddish O-ring; do not replace with black NBR unless the housing nameplate explicitly allows it)




On-site checks (30 seconds)

• Seal colour: should look brown/reddish (Viton).

  If it is black/grey, stop — you may have the wrong spare or someone swapped seals.




• Housing nameplate: confirm the head is stamped with the expected model near the ports + pressure rating + FLOW ARROW.




Replacement steps

1. Stop pump → open vent/bleed until pressure reads zero




2. Support the bowl (don’t let it hang on piping)




3. Open clamp/retainer → lift element straight out (no prying)




4. Check bowl bottom for bright metal shavings (wear sign)




5. Wipe sealing faces → thin film of clean hydraulic oil on O-ring only (no grease, no sealant)




6. Seat element square on the centre support tube (feel it locate)




7. Close vent → bring pressure back slowly → no leaks & ΔP indicator GREEN




2) 573083— Internal Stock / Material Number (Needs Identification)

What it usually is

• A plant stock number from your ERP/BOM (not a public filter “catalog number” you can trust by digits alone)




• It can be either:

  • a filter element for a different housing, or




  • a seal/repair kit (O-rings, plugs, gaskets) issued against a piece of equipment







How to qualify it (one minute)

Check the bag/box label or bin tag:

• Does it say “element / cartridge” or “seal kit / repair kit / O-ring kit”?




• If it’s an element: match it to the housing nameplate model (photo the nameplate near the ports).




• If it’s a kit: match it to the equipment tag / BOM line it belongs to.




Procurement wording (safe)

Material No. 573083 — issue against equipment tag / housing model stated in the BOM.

If supplier treats it as an element, require: housing model + OD + length + seal compound before delivery.

If it is a kit, issue as the specified spare kit only — do not use as a filter element.

3) One-Line BOM (copy-paste)

• V4051V7C10— Return-line cartridge, 10 µm class, Viton seal, fits the V4051-family housing shown on the head nameplate




• 573083— Internal stock/material number — confirm from bin tag / BOM equipment tag whether element or kit before use




Quick field rule (easy to remember)

Seal brown/red = Viton. Seal black/grey = NBR. If the colour doesn’t match the code, stop and verify — don’t force it.
