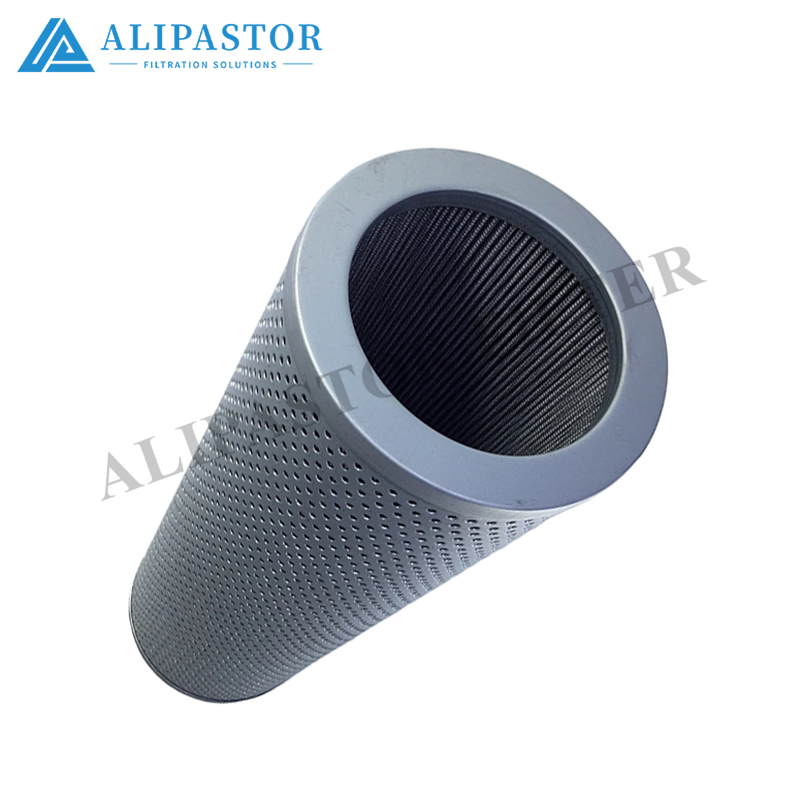

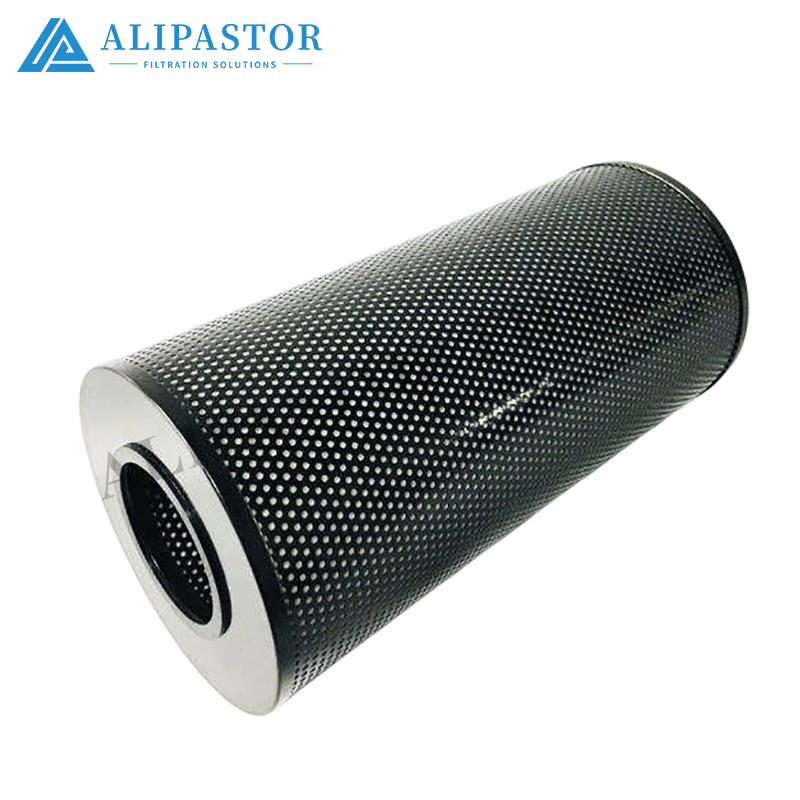

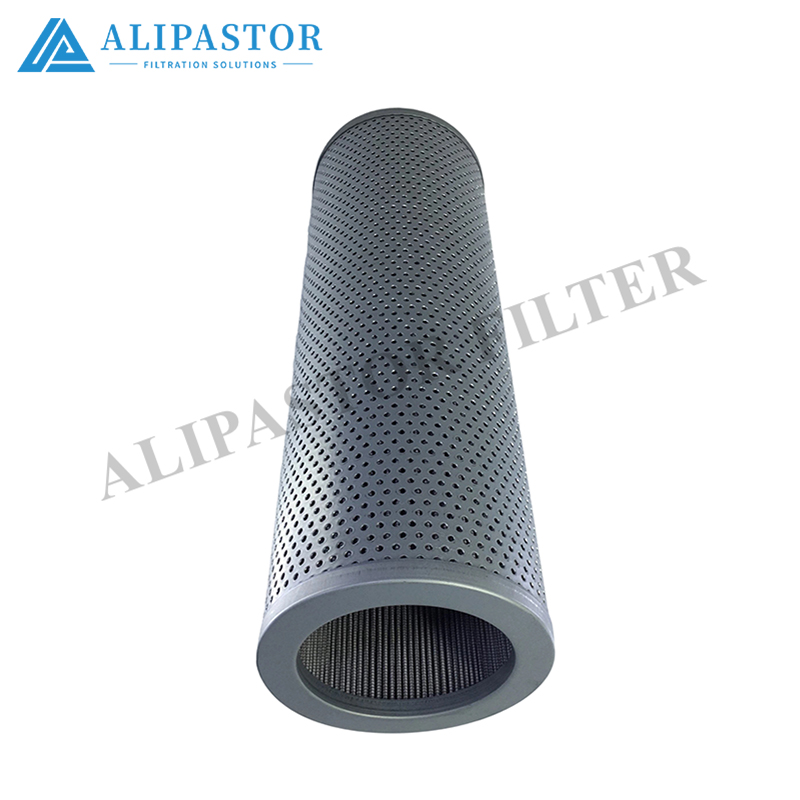

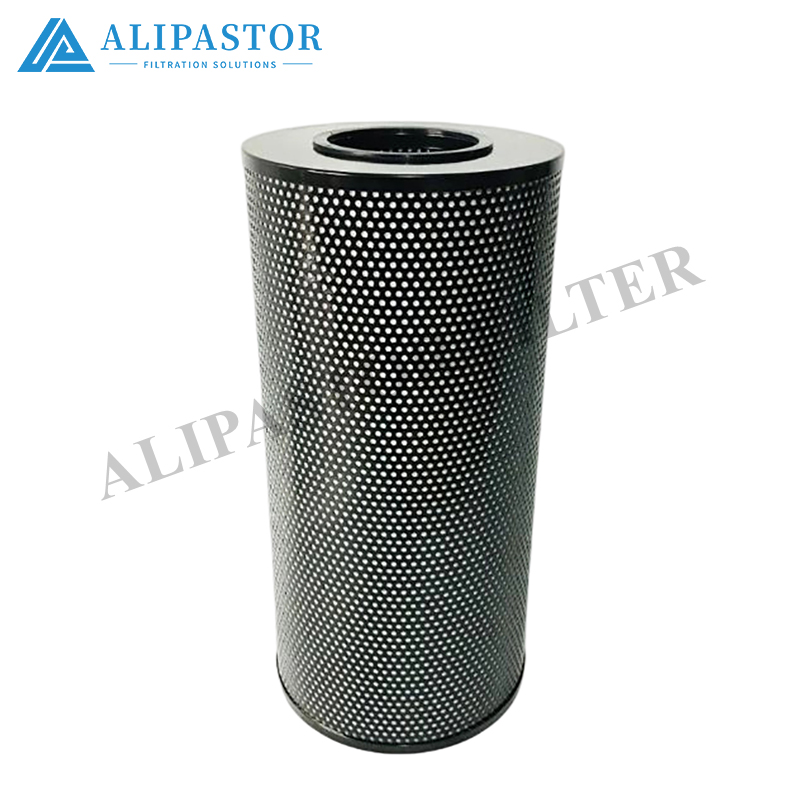

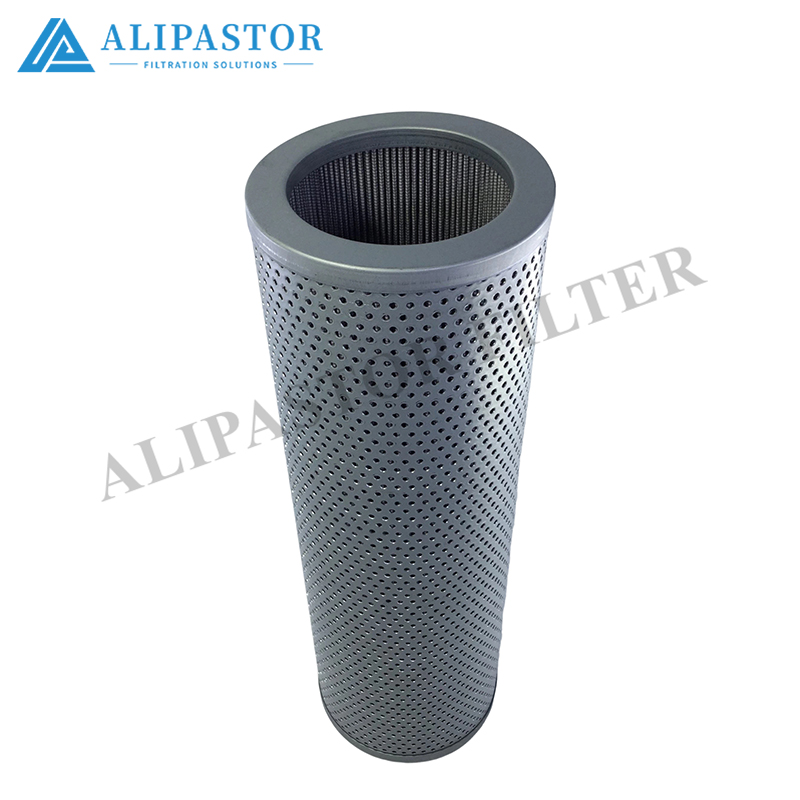

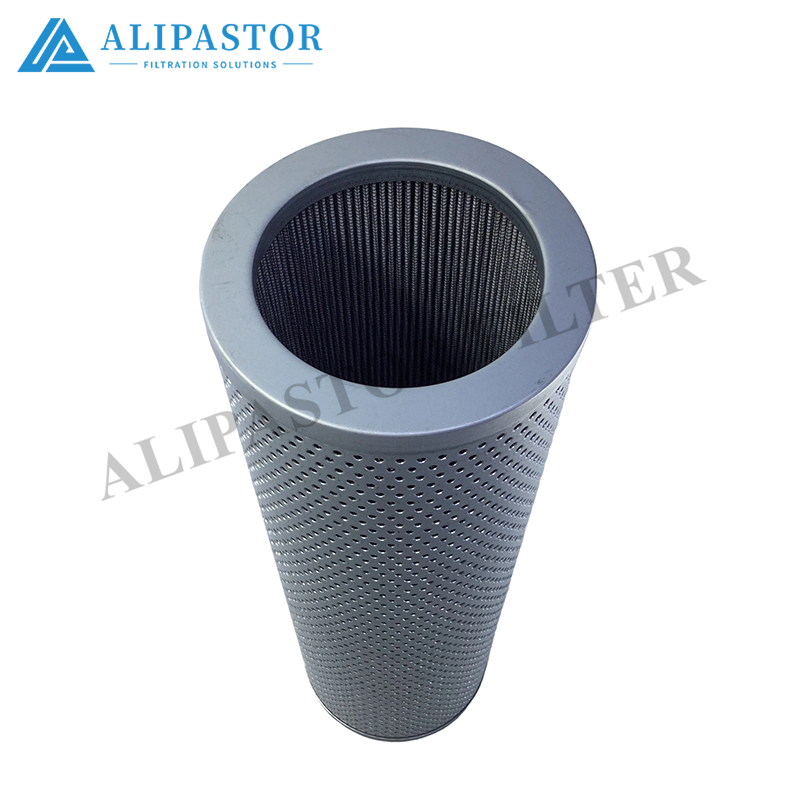

D6360529 FT8501A10A High Impact Resistant Filter Element D6360529 FT8501A10A For Heavy Mining Hydraulic Machinery
Similar models
| D6360529 | V4051V7C10 | V4051B7V05 | 573083 |
| V4054B7H20 | V4051B3C20 | C6360112 | C6360232 |
| C6370467 | V4051B7C10 | R29C10GB | FT8501A10A |
| 941074 （941448/398856） |
Basic Info.
Type | Hydraulic oil filter | Material | Stainless steel wire mesh |
Warranty | 6 Month | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | Place of Origin | Henan, China |
Brand Name | ALIPASTOR | Application | for Hydraulic system |
Product Name | Hydraulic oil filter | Part Number | D6360529 FT8501A10A |
Keyword | Hydraulic oil filter | Weight | Standard |
Filtration | 1-70micron | Color | Customize |
Filtration Grade | 99% | Warranty | 3 Months |
Production Capacity | 1000 PCS/Week |
Product Parameters
Model Number | D6360529 FT8501A10A |
Type | Hydraulic oil filter element |
Dimension | Standard |
Working Temperature | According to customer's request |
Work Pressure Different | Customized |
Material | Stainless steel wire mesh |
Filter Precision | 3~100μm |
Life span | 2000h |
MOQ | 1 pieces |
Lead Time | Around 5-7 days after order confirmed |
Package | PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement |
Shipping Method | By sea, by air, by express |
Hydraulic Filter Elements — Quick Reference (English)
Item Numbers: D6360529· FT8501A10A
Typical Use: Hydraulic / lubrication oil filtration (return line or kidney-loop circuit)
1) At a Glance
Item | Typical Form | Key Reference Dimensions (≈) | Filtration | Media | Seal |
|---|---|---|---|---|---|
D6360529 | Large-diameter cylindrical element (outside → inside flow) | OA Length ≈ 6.04" (≈153 mm) (verify OD/centre-tube on your housing) | Often quoted as ≈ 11 µm class (confirm by housing/application) | Pleated glass-fiber / composite (disposable) | NBR (Buna-N, black/grey) as standard (FKM/Viton if your spec requires) |
FT8501A10A | Large-diameter short canister element (inside–out flow common) | OD ≈ 7.9" (≈200 mm) · Length ≈ 13.0" (≈330 mm) · ID ≈ 6.0–6.2" (≈155 mm) | 10 µm class (beta-rated glass/synthetic) | Pleated microglass / synthetic composite (disposable) | Buna-N (NBR) |
⚠️ These are different housing families — they look “big and round,” but OD / length / centre-tube / locator profile differ.
Always trust the housing nameplate + old element dimensions, not appearance alone.
2) How to Confirm the Correct Fit (2-minute check)
A) Read the filter head / housing nameplate
Note down (photo is best):
Housing model / series stamped near the inlet & outlet ports
Pressure rating (bar / psi)
Port size (thread or flange)
FLOW ARROW
Any temperature or fluid note (mineral oil / phosphate ester / water-glycol)
B) Check the old element
Check | Why it matters |
|---|---|
OA Length & OD (ruler next to element) | Locks the size family instantly |
Seal colour | Black/grey = NBR · Brown/red = FKM/Viton — don’t swap blindly |
End style | Double-open ends (slides over centre tube) vs closed bottom / integrated base |
Media look | Uniform “synthetic felt” = glass-fiber class; shiny weave = mesh (rare for these two part numbers) |
3) Replacement — Safe Sequence
Stop pump → vent/bleed the filter head until pressure = 0
Support the bowl (both sizes are heavy — don’t let weight hang on piping)
Open clamp/retainer → remove element straight, no prying
Inspect bowl bottom for bright metal shavings (pump/component wear warning)
Wipe sealing surfaces → thin film of clean hydraulic oil on O-ring (no grease, no sealant)
Seat new element square on the centre support tube (feel it locate)
Close vent → bring pressure back slowly → check for leaks & ΔP indicator GREEN
Rule: if the differential-pressure indicator stays RED after a fresh element, either the element is wrong (dimension/bypass mismatch) or the system is heavily contaminated — investigate before ignoring.
4) Procurement — What to Write (keeps suppliers honest)
Buy | Write / Say |
|---|---|
D6360529 | “Element D6360529 — for our [fill housing model from nameplate]. Supply as exact spec: ~11 µm class, glass-fiber/composite media, NBR seal (quote FKM only if nameplate/fluid requires). Confirm OA length ≈ 153 mm + OD + centre-tube interface before delivery — no silent substitute.” |
FT8501A10A | “Element FT8501A10A — for our [fill housing model from nameplate]. Supply as exact spec: 10 µm, pleated microglass/synthetic, Buna-N (NBR) seal, reference dims OD≈7.9" / L≈13.0" / ID≈6.0–6.2". Must fit the existing head (flow arrow / centre locator). No generic cross-reference without matching our sample.” |
5) One-Line BOM (copy-paste)
D6360529— Hydraulic/lube filter element, cylindrical, ~11 µm class, glass-fiber composite, NBR seal; fit to housing model shown on head nameplate (verify OA length ≈153 mm)FT8501A10A— Hydraulic filter element, ~10 µm (beta-rated), microglass/synthetic, Buna-N (NBR), OD≈7.9" × L≈13.0" × ID≈6.0–6.2"; fit to housing model shown on head nameplate
📸 If you want this turned into a “locked” datasheet with exact mm OD/H/centre-tube & collapse pressure instead of ranges:send one photo of the housing nameplate (ports + arrow + pressure) + the old element upright next to a ruler for each item. I’ll strip it down to the final fit-critical numbers only — still brand-free.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4.What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q5.What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q6. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q7. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
