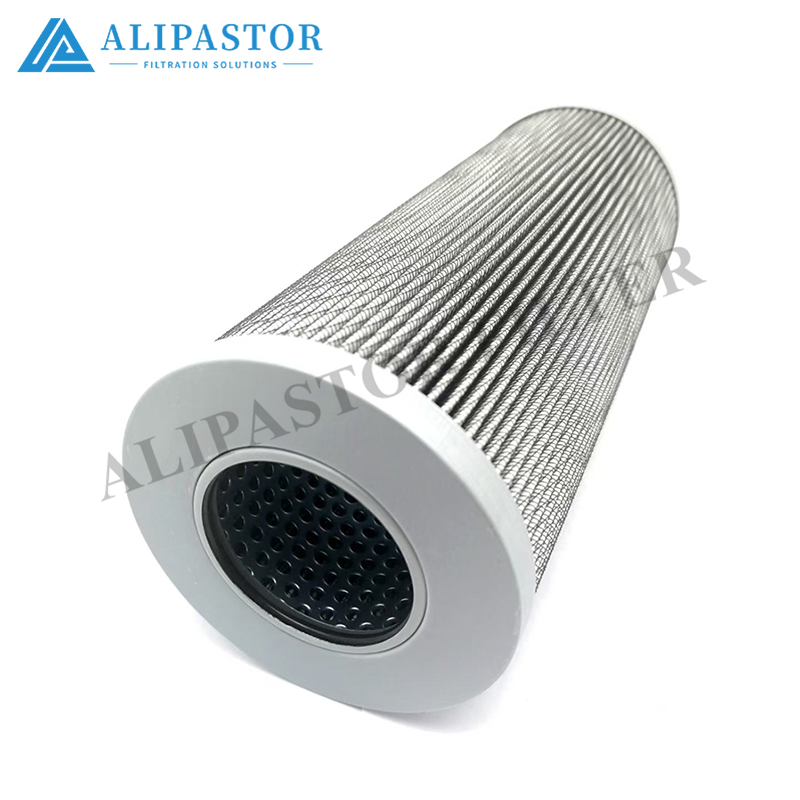

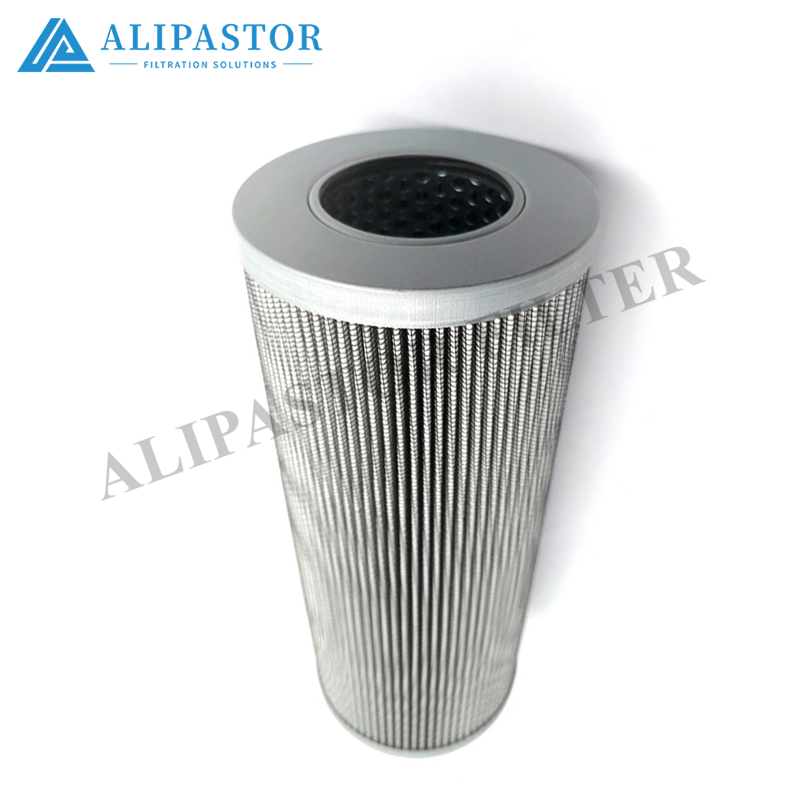

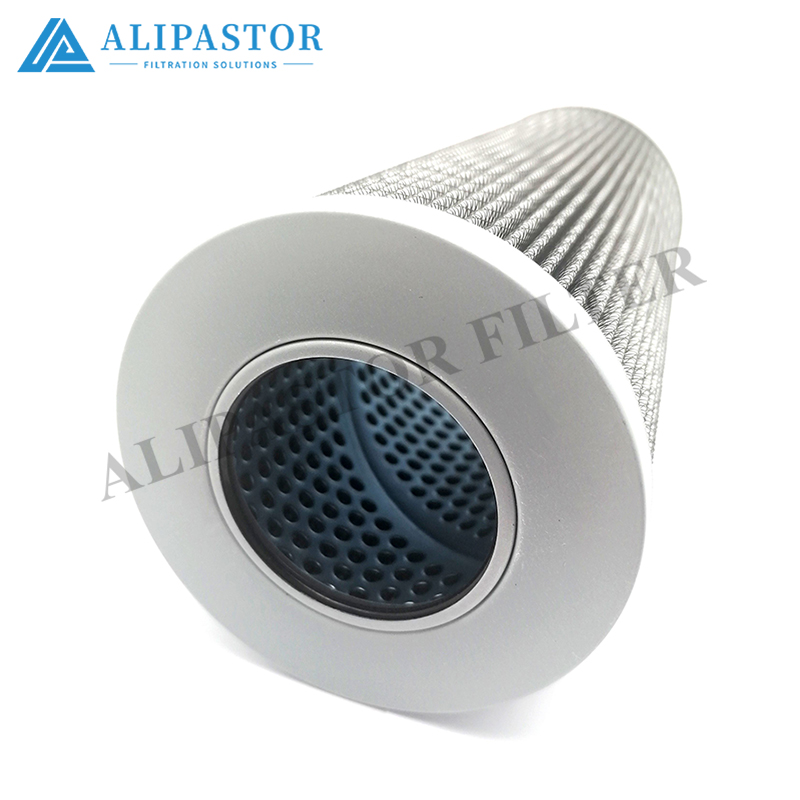

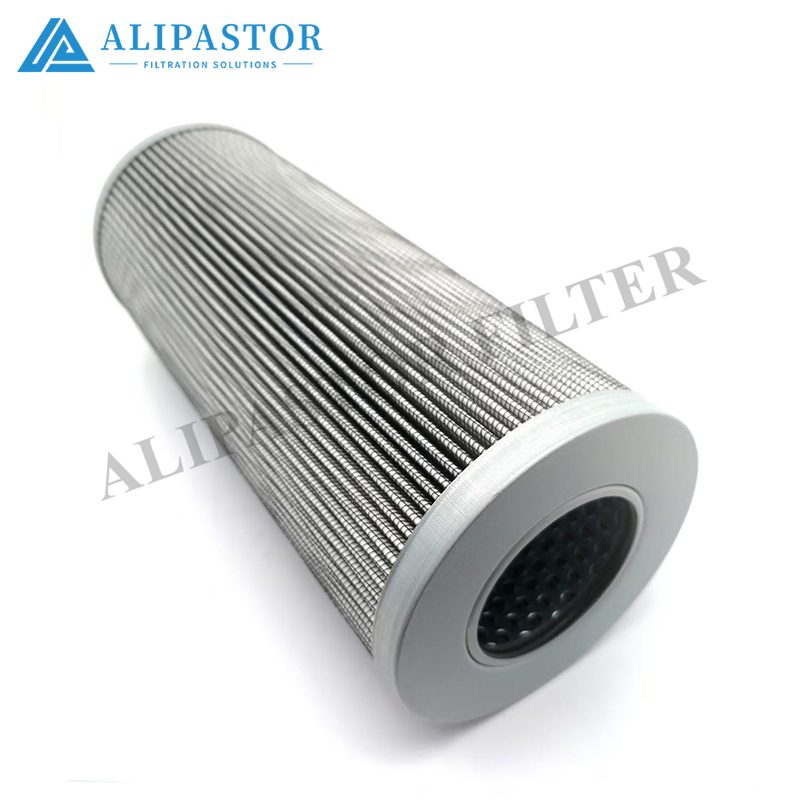

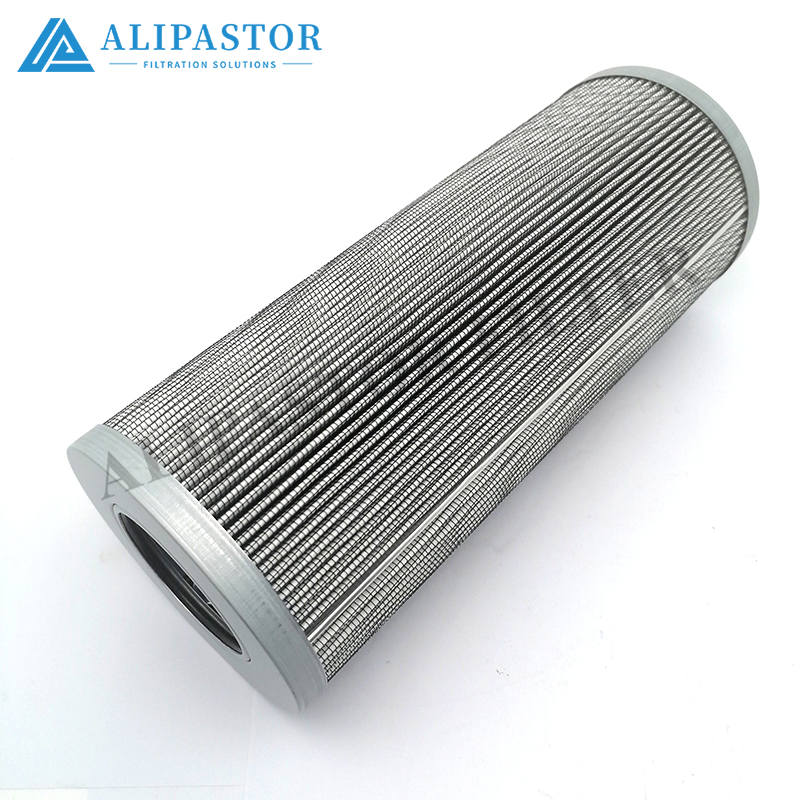

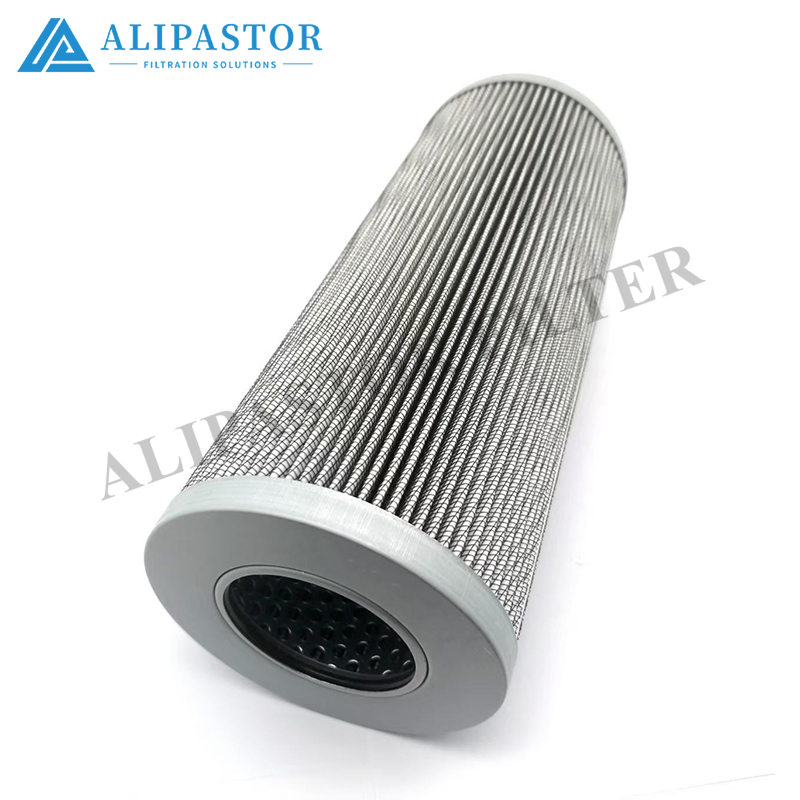

C6370467 V4054B7H20 Fiberglass Hydraulic Oil Filter C6370467 V4054B7H20 Replacement For Vokes Vickers Industrial Equipment
Similar models
| D6360529 | V4051V7C10 | V4051B7V05 | 573083 |
| V4054B7H20 | V4051B3C20 | C6360112 | C6360232 |
| C6370467 | V4051B7C10 | R29C10GB | FT8501A10A |
| 941074 （941448/398856） |
Basic Info.
Type | Hydraulic oil filter | Material | Stainless steel wire mesh |
Warranty | 6 Month | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | Place of Origin | Henan, China |
Brand Name | ALIPASTOR | Application | for Hydraulic system |
Product Name | Hydraulic oil filter | Part Number | C6370467 V4054B7H20 |
Keyword | Hydraulic oil filter | Weight | Standard |
Filtration | 1-70micron | Color | Customize |
Filtration Grade | 99% | Warranty | 3 Months |
Production Capacity | 1000 PCS/Week |
Product Parameters
Model Number | C6370467 V4054B7H20 |
Type | Hydraulic oil filter element |
Dimension | Standard |
Working Temperature | According to customer's request |
Work Pressure Different | Customized |
Material | Stainless steel wire mesh |
Filter Precision | 3~100μm |
Life span | 2000h |
MOQ | 1 pieces |
Lead Time | Around 5-7 days after order confirmed |
Package | PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement |
Shipping Method | By sea, by air, by express |
Hydraulic Oil Filter Elements — Quick Reference (English)
Item Numbers: C6370467· V4054B7H20
(written below without brand names — identify the correct element by housing model / dimensions / seal, not by label alone)
1) Quick Comparison
Item | Typical Form | Typical Dimensions (reference) | Media | Seal | Mount / Circuit Clue |
|---|---|---|---|---|---|
C6370467 | Large-diameter cylindrical element (often outside→inside flow) | OD ≈ 180 mm, Length ≈ 328–340 mm, Centre tube ≈ 86 mm (check your sample) | Glass-fiber fleece / synthetic composite (disposable) | NBR (black/grey) standard; FKM/Viton possible if your unit is high-temp spec | Larger return-line or tank-mounted canister (heavy bowl — support it during service) |
V4054B7H20 | Long, slimmer return-line element (pleated cartridge) | OD ≈ 3.8" (≈97 mm), Length ≈ 28" (≈711 mm), ID ≈ 1.6" (≈41 mm) | Pleated synthetic / composite (disposable) | Buna-N (NBR) — “B7” type seal compound | Return-line pipe housing (flow arrow on head; bypass ~3 bar typical for this family) |
⚠️ If the housing nameplate says a different model than the element sticker you have, trust the housing and match dimensions before fitting anything.
2) How to Confirm You Have the Right One (30 seconds each)
A) Check the filter head / housing nameplate
Look for:
Housing model (contains size/family code)
Pressure rating (bar / psi)
Port size (G1¼, G1½, flange, etc.)
FLOW ARROW
Any line that mentions MINERAL OIL / HLP or temperature range
B) Check the old element
What to note | Why |
|---|---|
OD / Height (ruler photo is enough) | Proves it’s the “large OD” vs “long slim” type |
Seal colour | Black/grey = NBR · Brown/red = FKM/Viton (don’t mix) |
End style | Double-open ends (slides on centre tube) vs closed bottom |
Media feel | Fibrous/white-cream = glass-fiber/paper family (disposable) |
3) Replacement — Standard Safe Sequence
Stop the pump → open the bleed/vent on the filter head until pressure reads zero
Support the bowl (C6370467 size is heavy — don’t hang it on piping)
Release clamp / retainer → remove the element straight, no prying
Inspect bowl bottom for bright metal shavings (early wear warning)
Wipe seal lands → apply a thin film of clean hydraulic oil on the O-ring
Seat the new element square on the centre tube (feel it locate, don’t tilt)
Close vent → bring pressure back slowly → check for leaks & ΔP indicator green
Rule of thumb: if the ΔP indicator stays RED after a fresh element, either the element is wrong (dimensions/bypass) or the system is heavily contaminated — don’t just ignore it.
4) Procurement — What to Write (keeps suppliers honest)
Buy | Write / Say |
|---|---|
C6370467 | “Element C6370467 — for our [fill housing model from nameplate] canister. Supply as exact spec: glass-fiber/composite media, disposable, NBR seal (confirm if FKM needed), reference dims OD≈180 / L≈328–340 / centre tube≈86 mm. No silent substitute — confirm collapse/bypass spec before delivery.” |
V4054B7H20 | “Element V4054B7H20 — for our [fill housing model from nameplate] return housing. Supply as exact spec: pleated synthetic/composite, Buna-N (NBR) seal, reference dims OD≈97 / L≈711 / ID≈41 mm. Must fit the existing head (flow arrow / centre locator). No generic cross-reference without matching our sample.” |
One-Line BOM (copy-paste)
C6370467— Hydraulic filter element (large OD ~180 mm), glass-fiber/composite, NBR, fit to housing model shown on head nameplateV4054B7H20— Hydraulic return-line element (long ~711 mm, OD ~97 mm), pleated synthetic, Buna-N (NBR), fit to housing model shown on head nameplate
📸 If you want these two turned into a “finished dimensions card” with exact mm instead of ranges:send one photo of the housing nameplate (near the ports/arrow) + old element upright next to a ruler for each item. I’ll lock OD/H/centre-tube and seal type in the same clean layout — still brand-free.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4.What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q5.What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q6. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q7. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
