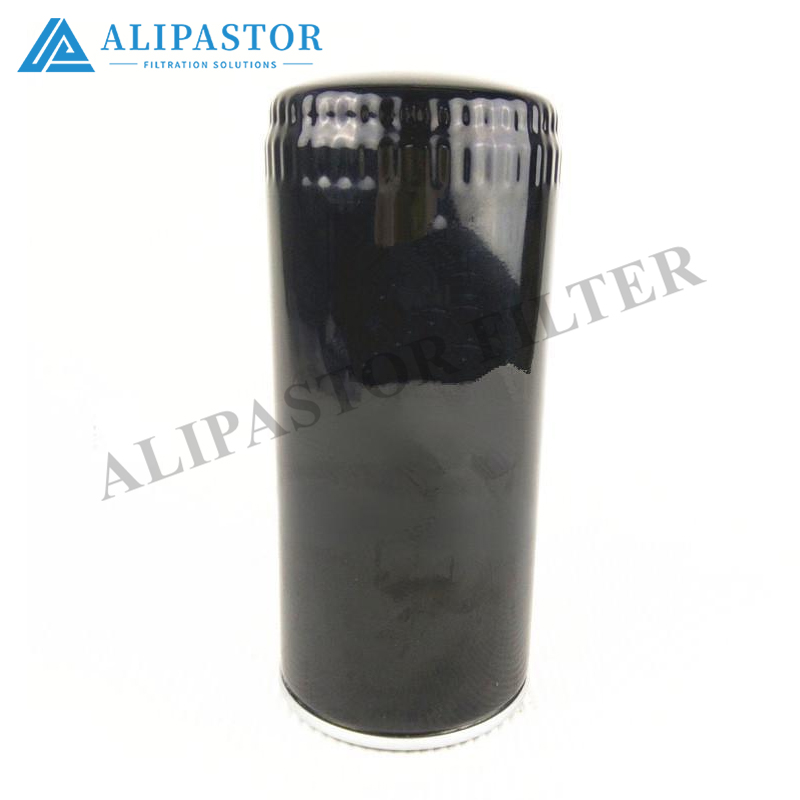

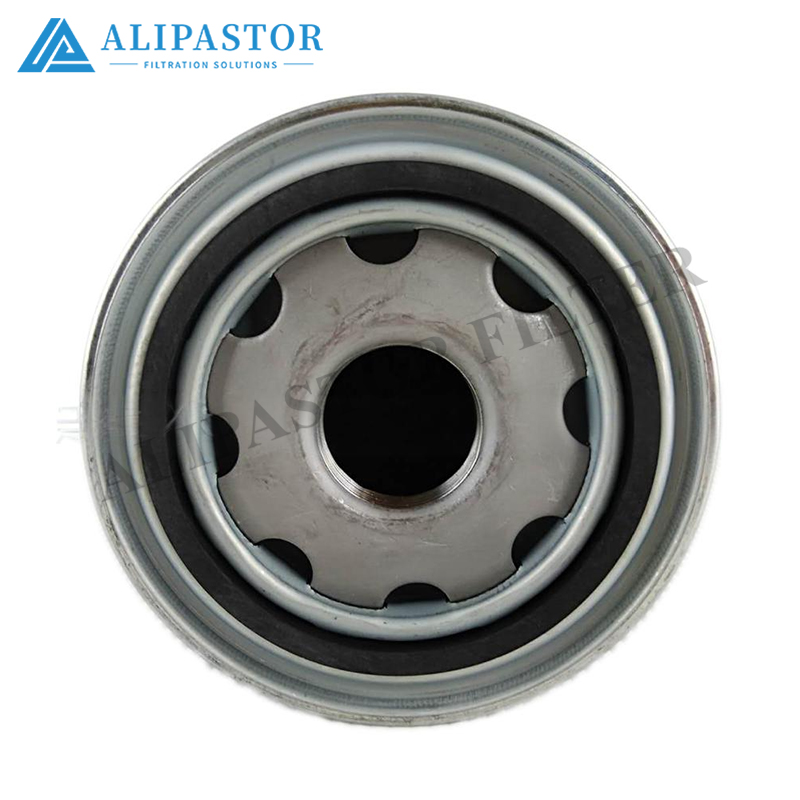

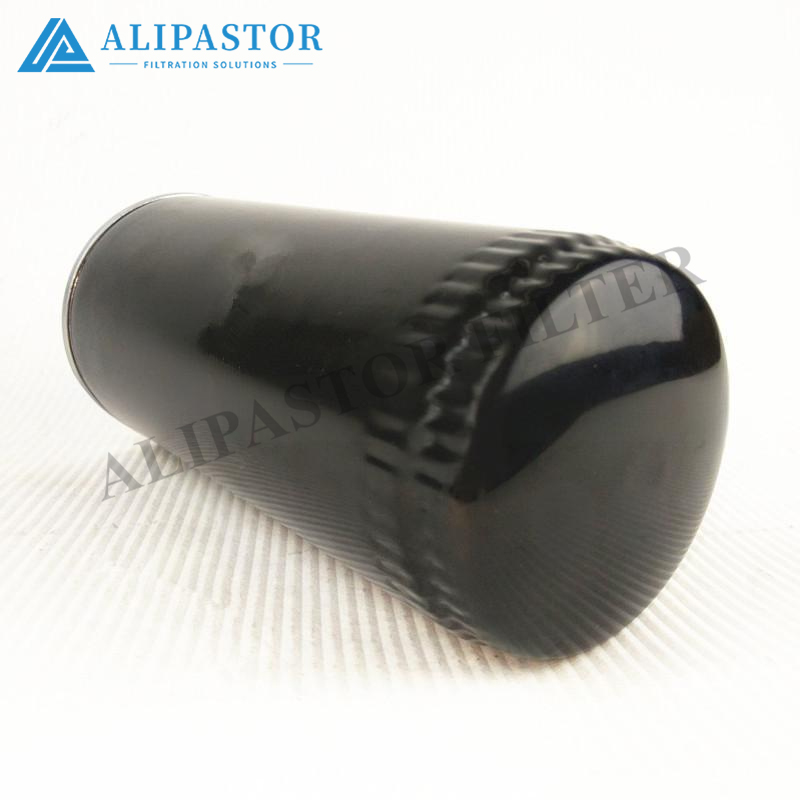

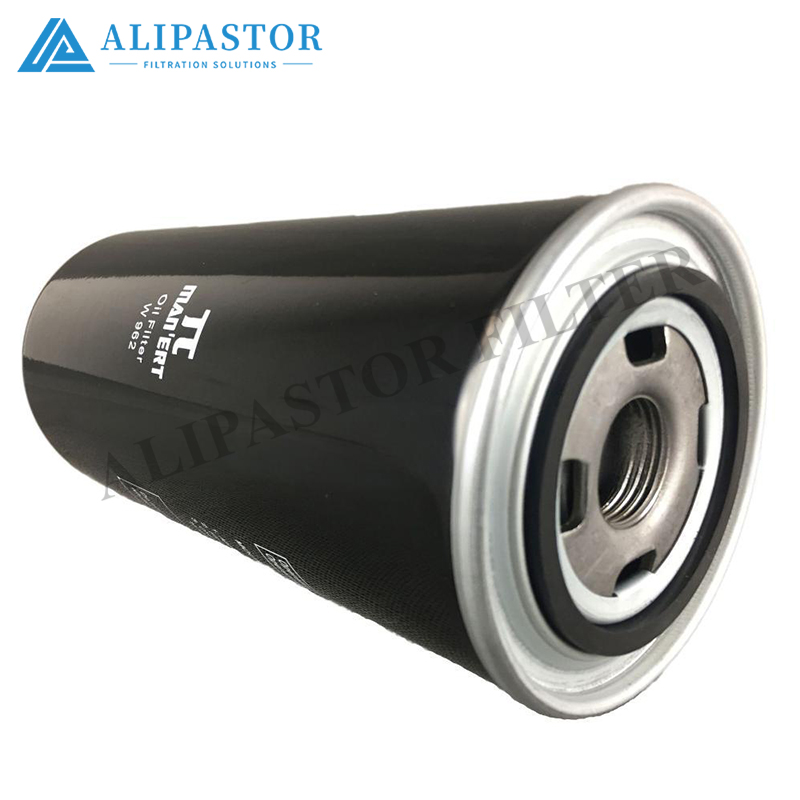

Q/GN001-070-160 GNB-100202019 Oil Filter air Compressor Maintenance Parts

Q/GN001-070-160 & GNB-100202019 Oil Filter Elements – Technical Specifications & Performance Overview

Product Overview

The Q/GN001-070-160 and GNB-100202019 are high-efficiency oil filter elements designed for industrial hydraulic systems, air compressors, and machinery lubrication circuits. Engineered to remove contaminants (e.g., metal particles, dust, sludge) from oil, these filters protect critical components (pumps, valves, cylinders) from wear, extend equipment lifespan, and maintain system reliability. Manufactured to meet international quality standards (e.g., ISO 4406, NAS 1638), they are suitable for demanding applications in manufacturing, construction, and mining.

Key Technical Specifications

Material Composition & Design

Both filters use a multi-layered approach to maximize filtration efficiency and durability:

• Filter Media: A combination of glass fiber (for fine particle capture) and stainless steel mesh (for structural support and coarse particle pre-filtration) ensures high dirt-holding capacity.




• Housing: Constructed from corrosion-resistant aluminum or steel, with a threaded or flanged connection for easy installation.




• Seals: Nitrile (NBR) or fluorocarbon (FKM) seals prevent oil leakage and withstand extreme temperatures.




• End Caps: Reinforced plastic or metal end caps secure the filter media and maintain structural integrity under pressure.




Function & Importance

The primary role of these filters is to maintain oil cleanliness by removing contaminants that can cause:

• Component Wear: Metal particles, dust, and sludge from the oil can scratch pump pistons, valve seats, and cylinder walls, leading to premature failure.




• System Contamination: Contaminated oil can spread throughout the hydraulic system, affecting multiple components and increasing maintenance costs.




• Reduced Efficiency: Clogged filters increase pressure drop, forcing pumps to work harder and consume more energy.




By trapping these contaminants, the Q/GN001-070-160 and GNB-100202019 ensure:

• Extended Component Life: Reduces wear on pumps, valves, and cylinders by up to 50%.




• Improved System Reliability: Minimizes downtime due to oil contamination-related failures.




• Energy Savings: Maintains optimal oil flow, reducing pump load and energy consumption.




Usage Guidelines

Installation

1. Preparation: Shut down the system and relieve pressure from the oil circuit.




2. Removal: Use a filter wrench to loosen the old filter (clockwise to tighten, counterclockwise to loosen).




3. Cleaning: Wipe the filter housing and surrounding area to remove dirt and debris.




4. Installation: Apply a thin layer of clean oil to the new filter’s seal. Screw the filter clockwise until tight (hand-tight plus 1/4 turn).




5. Testing: Refill the system with oil and start the equipment. Check for leaks around the filter housing.




Maintenance

• Inspection: Check the filter housing and seal for leaks or damage monthly.




• Pressure Drop Monitoring: Use a pressure gauge to monitor the pressure drop across the filter. A sudden increase (≥0.05 MPa) indicates clogging.




• Replacement Interval: Replace the filter every 1,000–2,000 operating hours or as specified by the equipment manufacturer.




• Disposal: Dispose of used filters according to local environmental regulations (e.g., hazardous waste collection).




Consequences of Delayed Replacement

Failing to replace the Q/GN001-070-160 or GNB-100202019 on time can lead to severe issues:

• Component Failure: Clogged filters allow contaminants to circulate, causing wear on pumps, valves, and cylinders. This can result in costly repairs (e.g., replacing a damaged pump can cost $5,000–$10,000).




• System Downtime: Contamination-related failures can halt production, leading to lost revenue (e.g., a manufacturing plant losing $10,000 per hour due to downtime).




• Energy Waste: Increased pressure drop forces pumps to work harder, increasing energy consumption by up to 20%.




• Oil Degradation: Contaminants accelerate oil breakdown, reducing its lubricating properties and requiring more frequent oil changes.




Compatibility

The Q/GN001-070-160 and GNB-100202019 are compatible with most industrial hydraulic oils (e.g., ISO VG 32, VG 46, VG 68) and air compressor lubricants. They are suitable for use in:

• Hydraulic Systems: Presses, injection molding machines, and construction equipment.




• Air Compressors: Reciprocating, rotary screw, and centrifugal compressors.




• Industrial Machinery: Lathes, mills, and conveyor systems.




Summary

The Q/GN001-070-160 and GNB-100202019 oil filter elements are reliable solutions for maintaining oil cleanliness in industrial applications. Their high-efficiency filtration media, durable design, and compatibility with various oils make them ideal for protecting critical components and ensuring system reliability. By following proper installation and maintenance guidelines, users can minimize downtime, reduce repair costs, and extend the lifespan of their equipment.
