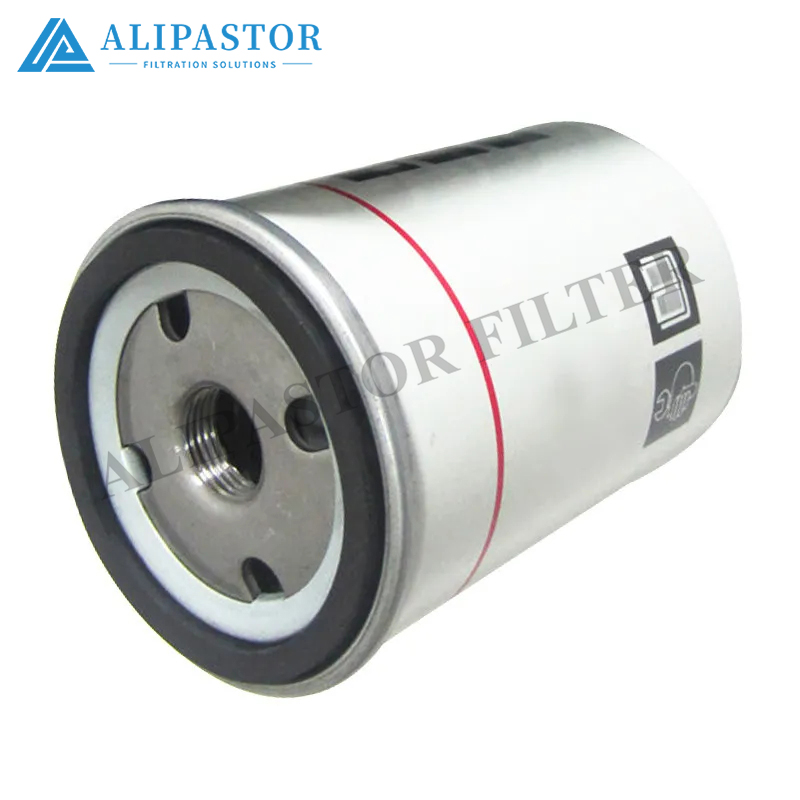

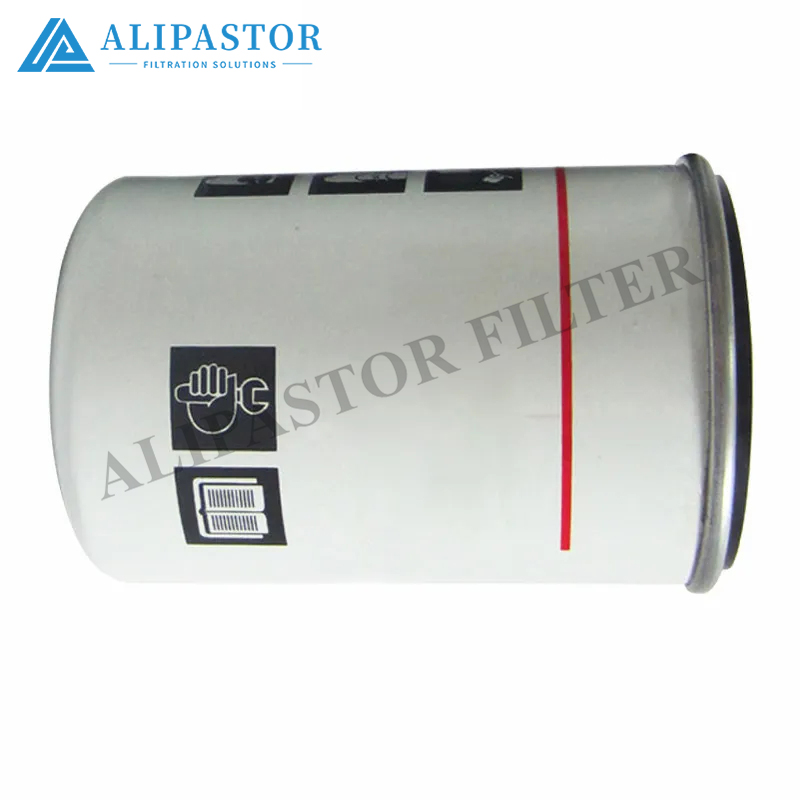

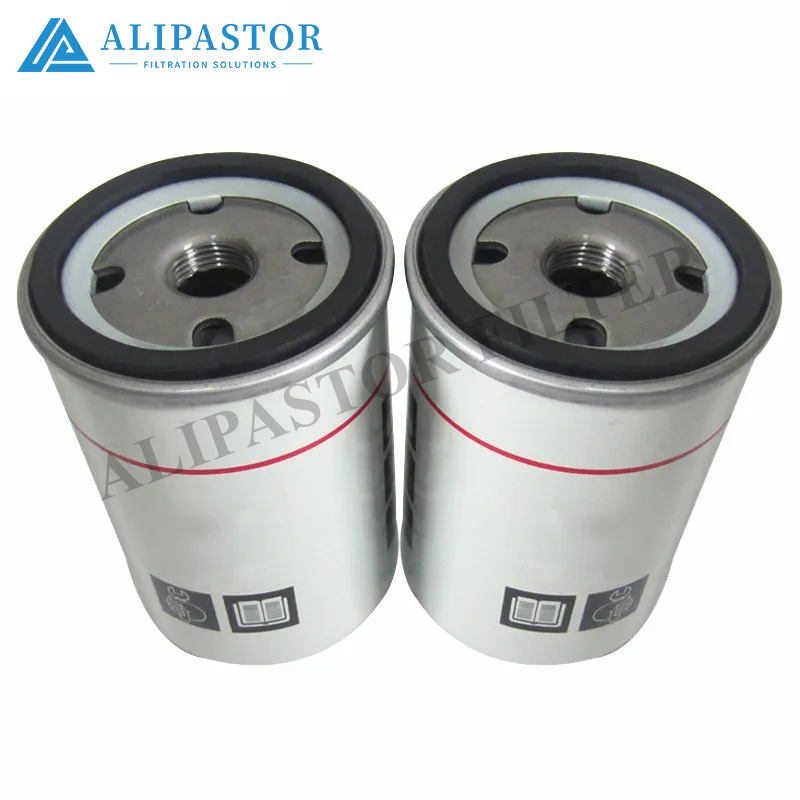

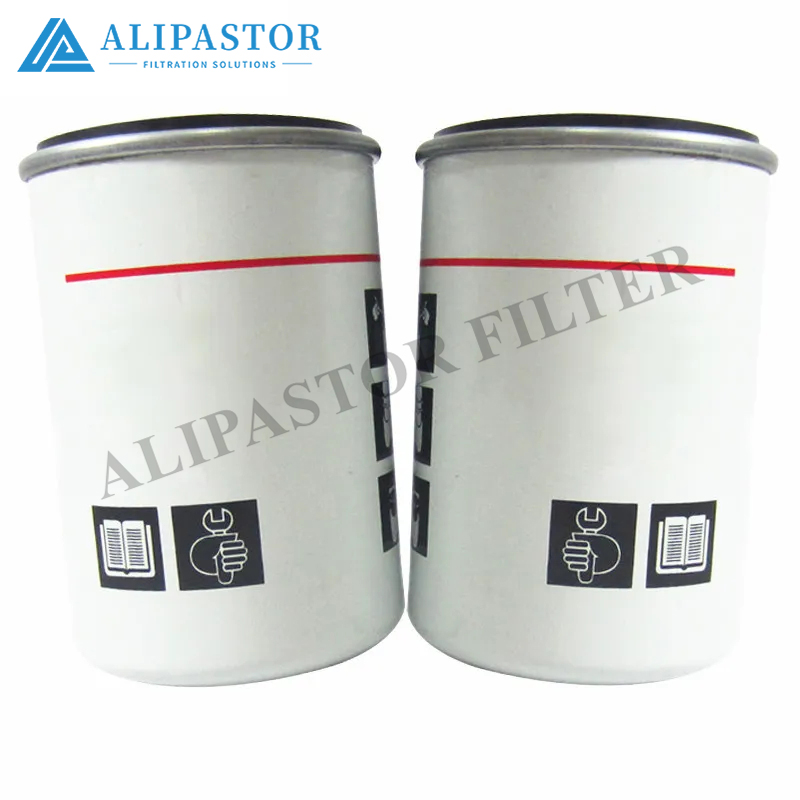

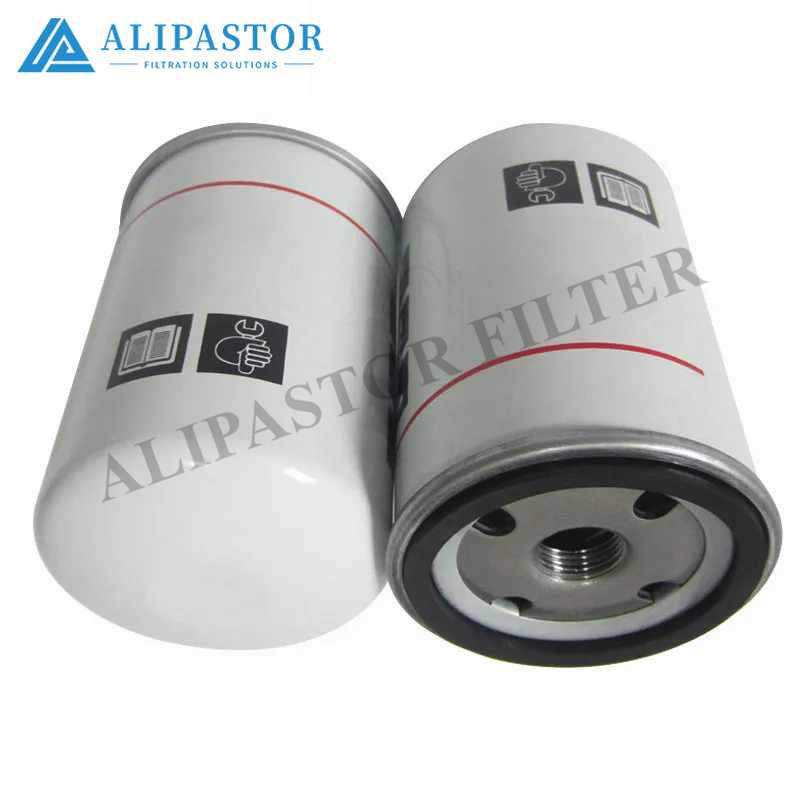

6211472650 6211472800 Multi-layer Media Lube Filter for Sugar Mill Hydraulic System
Similar models
| 2205406508(DF5005) | 2205431901 | 6211472500 | 1625165639 |
| 6221372400(2205117483) | 1631011800 | 6211472600 | 2258290008 |
| 6211472200(2205400005) (LW8149) | 2205400004(LW8119) | 6211472650 | 1631011801 1631011800 |
| 6211472250 | 2205490447(DF5010) | 6211472800 | 1625106576 |
| 2205431902(2205431901) | LW1317 | PN 1631011891 | |
| 6211473550(2205431900) (LW1330)(6211473500) | 2205400006 | 6211441255 |
Basic Info.
Type | Oil Filter | Material | Filter paper |
Warranty | 6 Month | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | Place of Origin | Henan, China |
Brand Name | ALIPASTOR | Application | for air compressor |
Product Name | Oil Filter | Part Number | 6211472650 6211472800 |
Keyword | Oil Filter | Weight | Standard |
Filtration | 3-100micron | Color | Customize |
Filtration Grade | 99% | Warranty | 3 Months |
Production Capacity | 1000 PCS/Week |
Product Parameters
Model Number | 6211472650 6211472800 |
Type | Oil Filter element |
Dimension | Standard |
Working Temperature | According to customer's request |
Work Pressure Different | Customized |
Material | Filter paper |
Filter Precision | 3~100μm |
Life span | 2000h |
MOQ | 1 pieces |
Lead Time | Around 5-7 days after order confirmed |
Package | PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement |
Shipping Method | By sea, by air, by express |
Lube Oil Filter Element – Extended Series (6211472650 / 6211472800)
These two P/Ns extend the 6211472xxx cartridge family logged earlier (6211472500 / 6211472600). All four share the same base geometry and locator, differing only in seal polymer, media grade, collapse reinforcement, and element length — a classic DE/EU filtration OEM's tail-step logic (+50 / +150 from the 2600 base).
Construction (Common to the 6211472xxx Family)
Perforated steel center tube, resin-bonded cellulose/glass-fiber blend media, outer retainer cage (galvanized steel), end caps epoxy- or nitrile-bonded. Designed as spin-in / clip-in cartridges for permanent 62-series heads (7-digit heads elsewhere in the same OEM system, not logged in your BOM yet — likely sit under House #4 NA heavy-equip or House #8/#9 JP cross, or House #11 DE parent). Media is pleated, nominal β₁₀ ≥ 200 standard, collapse ≥ 15 bar (up to 21 bar on reinforced variants).
Tail-Step Logic (Four PNs Now Logged)
Model | Tail vs Base | Seal | µ (nom) | Collapse | Length Variant | Comment |
|---|---|---|---|---|---|---|
6211472500 | base+00 | NBR | 10 | 15 | Std | Mineral oil, standard duty |
6211472600 | +100 | FKM | 10 | 15 | Std | Synthetic/PAO/HVO, FKM swell-safe |
6211472650 | +150 (from 2600) | FKM | 10 | 21 | Std | +wire-back or high-collapse cage — pulsating pump/compressor drive |
6211472800 | +300 (from 2600) | FKM | 20 | 15 / 21 | Long (+~25–30 mm H) | Coarser µ + higher dirt-hold — remote kidney-loop or pre-filter duty |
Reading the steps:
+100 (2500→2600) = seal NBR → FKM (oil chemistry switch)
+50 (2600→2650) = collapse upgrade (15→21 bar) + possibly SS mesh outer (pulsating loads, compressor start-stop)
+300 (2600→2800) = µ 10→20 + length long — either (a) pre-filter ahead of the 10µ main (duplex kidney: 2800 coarse → 2600/2650 fine), or (b) extended-life main for high-dust/ingress environments (compressor on dusty pad, off-road site)
Most likely: plant has two lube circuits per compressor/driver — coarse pre (2800, 20µ) + fine main (2650/2600, 10µ) on a duplex kidney, or 2800 = kidney-loop only (lower µ ok for recirc, protects main filter from overload).
Applications
Screw compressor lube loops (mineral ISO VG 46/68 or PAO synthetic)
Diesel/gen lube (standby/marine) — 2650 (FKM+21 bar) for HVO-blend or high-vibration marine mount
Compressor driver gearbox kidney (2800 coarse as pre, 2650 fine as main)
Retrofit from spin-on lube (e.g., NA 1W-xxxx or JP 16271-xxxx) to cartridge on same pad — 62-series heads support both in some OEM skids
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4.What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q5.What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q6. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q7. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
