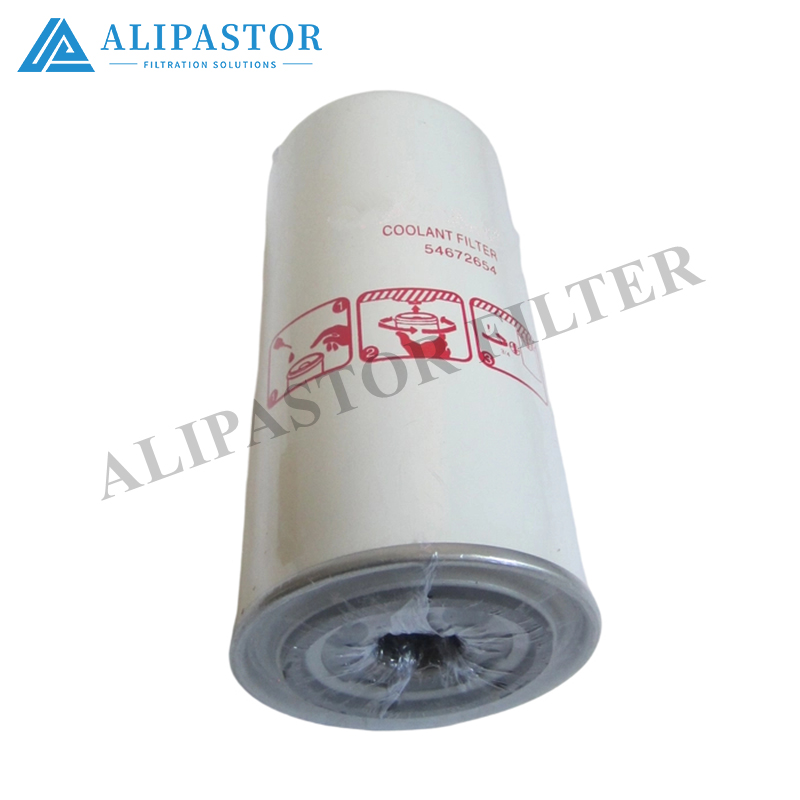

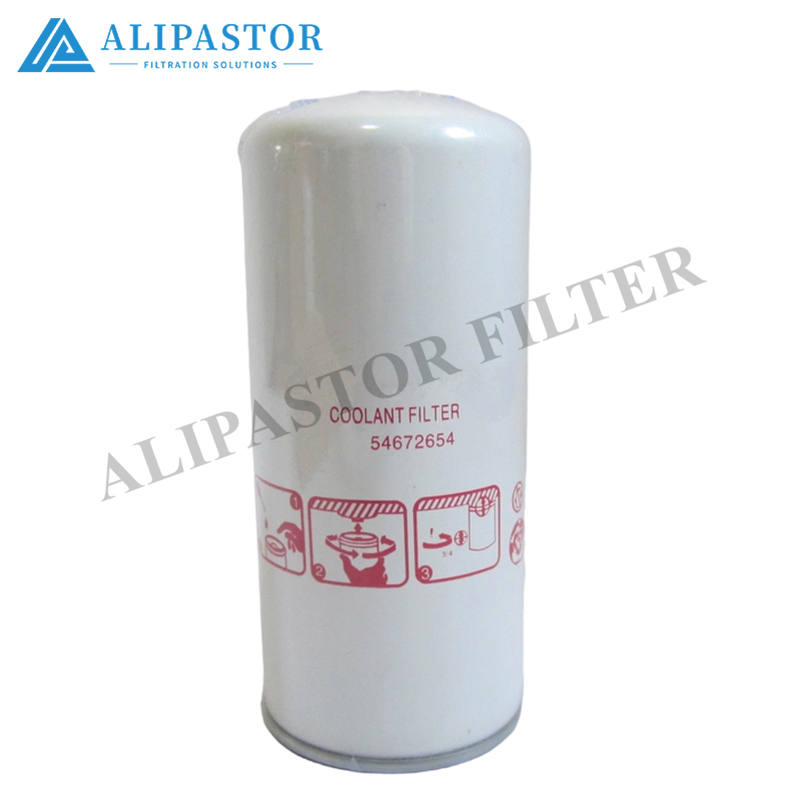

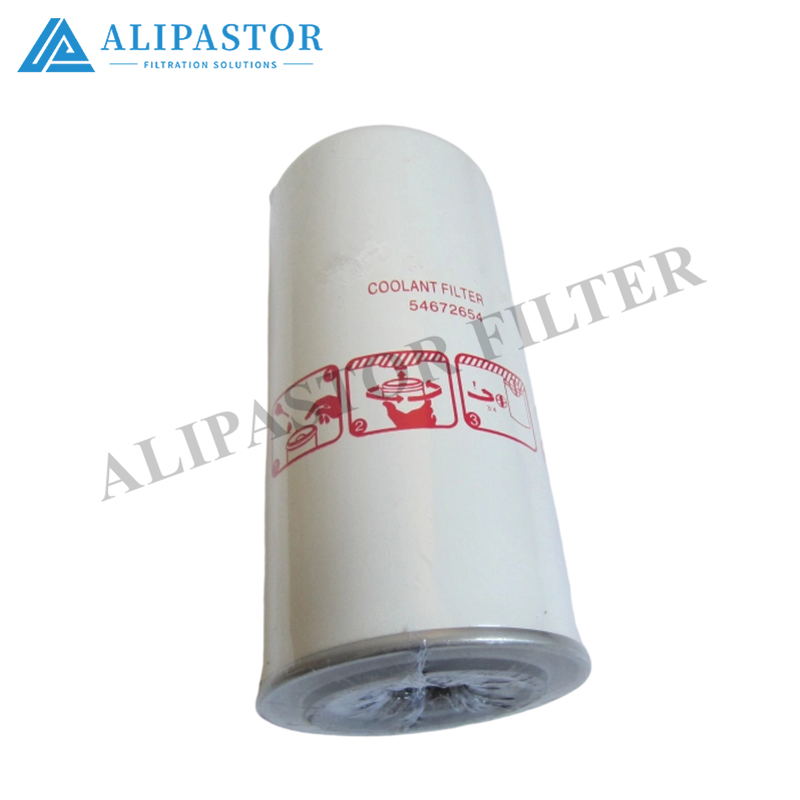

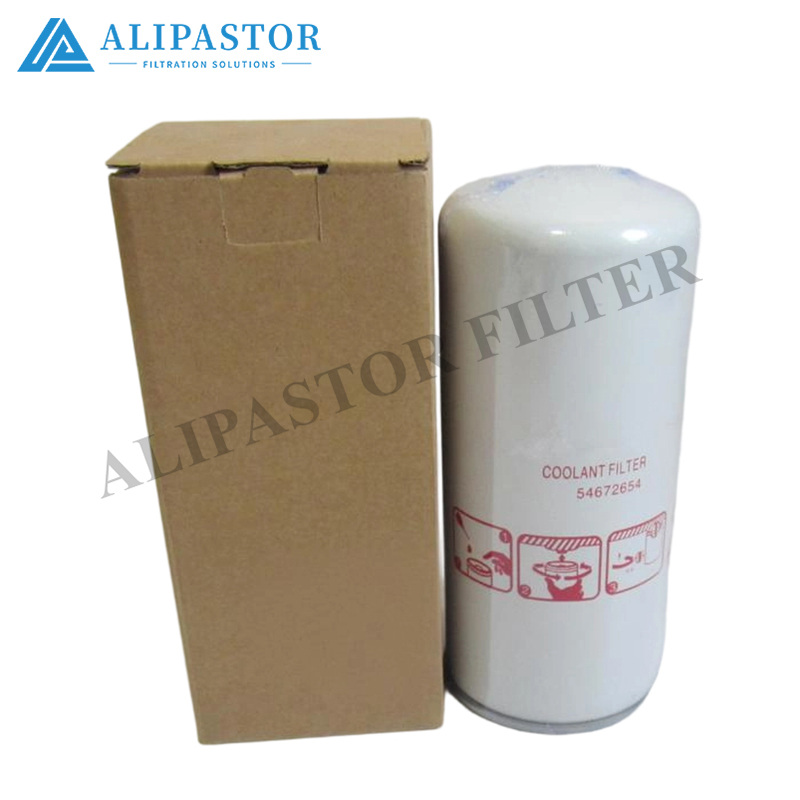

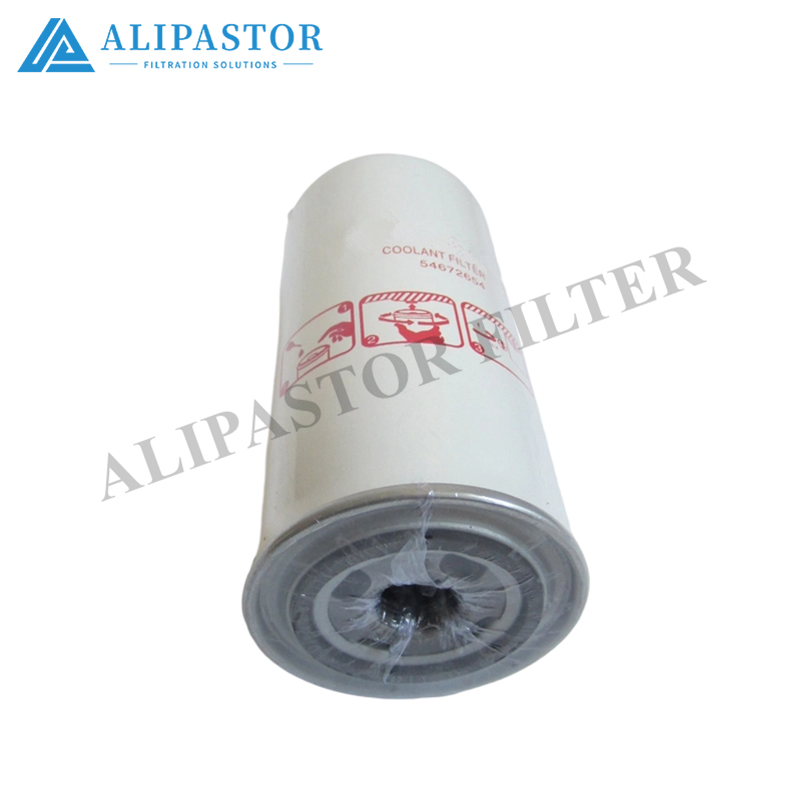

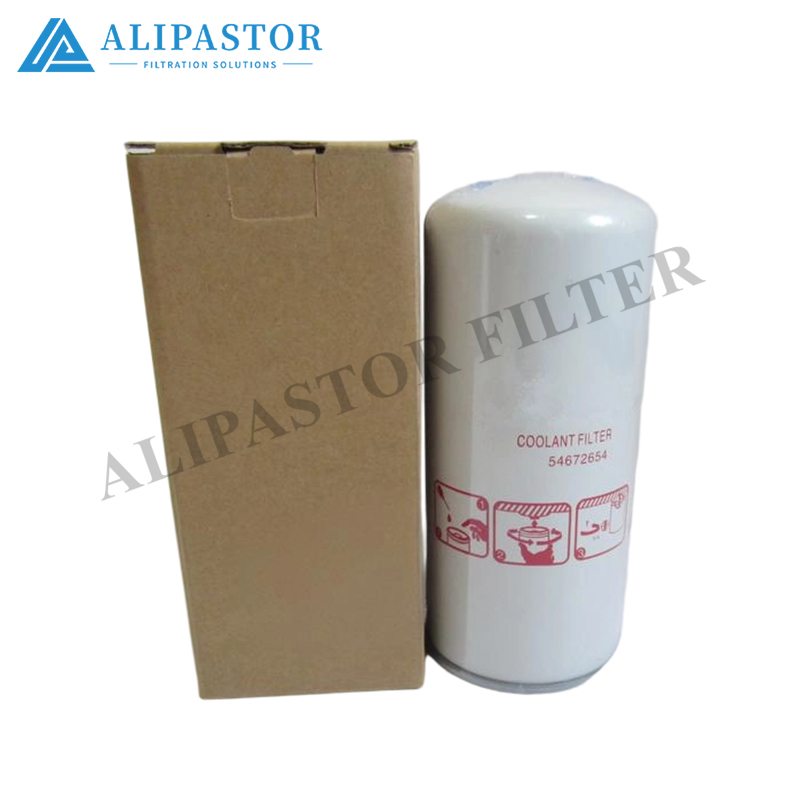

54672654 Replace the Ingersoll Rand Oil Filter Screw air Compressor Filter element

54672654 Oil Filter Element – Technical Specifications & Maintenance Guide

Product Overview

The 54672654 oil filter element is a precision-engineered component designed for industrial air compressors, serving as a critical barrier against contaminants in lubricating oil. It ensures clean oil circulation to protect internal components (e.g., bearings, rotors, pumps) and maintain optimal system performance. Manufactured to meet international quality standards, this filter combines high filtration efficiency with durability to withstand harsh industrial environments.

Key Technical Specifications

Material Composition

The filter element is constructed from high-performance materials to ensure reliability:

• Pleated Filter Media: Multi-layered glass fiber composite (imported borosilicate glass fiber) for optimal particulate capture and flow rate.




• Seals: Nitrile rubber gasket (resistant to oil, water, and temperature extremes) to prevent leaks.




• Core Structure: Galvanized steel sheet (provides rigidity and protects the filter media from deformation).




Function & Importance

The 54672654 filter performs three critical functions for industrial air compressors:

1. Contaminant Removal: Traps solid particles (dirt, metal shavings, carbon deposits) and liquid contaminants (water, sludge) from lubricating oil, preventing them from circulating and damaging critical components.




2. Lubrication Optimization: Ensures clean oil reaches all moving parts, reducing friction and wear, which extends compressor life by up to 30% (per industry studies).




3. System Protection: Prevents abrasive wear, corrosion, and oil degradation, which can lead to costly repairs (e.g., engine overhaul) if left unaddressed.




Usage Guidelines

Proper usage of the 54672654 filter is essential to maximize its effectiveness:

1. Installation

• Preparation: Shut down the compressor, allow it to cool completely, and drain the old oil into a suitable container.




• Removal: Use a filter wrench to loosen the old filter counterclockwise. Wipe the mounting surface clean to remove any residual oil or debris.




• Installation: Screw the new filter clockwise by hand until the gasket makes contact with the mounting surface. Tighten an additional ¾–1 turn using the wrench (do not over-tighten to avoid damaging the gasket).




• Refill: Pour the recommended grade of compressor oil into the system (refer to the manufacturer’s specifications for quantity).




2. Maintenance

• Regular Checks: Inspect the filter every 500 hours for signs of clogging (e.g., increased pressure drop, oil leakage).




• Pressure Monitoring: Use a differential pressure gauge to track pressure drop across the filter. Replace the filter if the pressure drop exceeds 0.08 MPa (indicative of clogging).




• Environmental Adaptation: In dusty or high-humidity environments, shorten the service life to 3,000 hours and increase inspection frequency to every 300 hours.




3. Replacement

• Schedule: Replace the filter every 3,500–5,200 operating hours (or annually, whichever comes first).




• Procedure: Follow the installation steps above to replace the old filter with a new one. Dispose of the used filter according to local environmental regulations (recycle if possible).




Consequences of Delayed Replacement

Failing to replace the 54672654 filter on time can lead to severe operational, financial, and safety risks:

• Increased Compressor Wear: Contaminated oil accelerates wear on bearings, rotors, and seals, reducing compressor life by up to 50%.




• Reduced Energy Efficiency: Dirty oil increases friction, causing the compressor to work harder and consume more energy (up to 5% increase in energy consumption, per EPA estimates).




• Compressor Overheating: Clogged filters restrict oil flow, preventing adequate lubrication and cooling. This can lead to overheating, which may cause catastrophic compressor failure (e.g., seized rotor), costing $10,000–$20,000 to repair.




• Production Downtime: Compressor failure can halt production lines for hours or days. For manufacturing plants, this results in lost revenue of up to $50,000–$100,000 per hour.




• Environmental Impact: Leaked oil from a damaged filter can contaminate soil and water, leading to fines and reputational damage.




Compatibility

The 54672654 filter is compatible with most medium-duty to heavy-duty industrial air compressors, including:

• Applications: Manufacturing, construction, automotive repair, HVAC systems, and oil and gas.




• Oil Types: Mineral oils, semi-synthetic oils, and synthetic oils (check the manufacturer’s specifications for compatibility).




Summary

The 54672654 oil filter element is a reliable, cost-effective solution for maintaining industrial air compressor performance. By adhering to the recommended maintenance guidelines—including timely replacement—you can avoid costly downtime, extend compressor life, and ensure optimal efficiency. For more information on compatibility or technical support, contact the manufacturer or authorized distributors.
