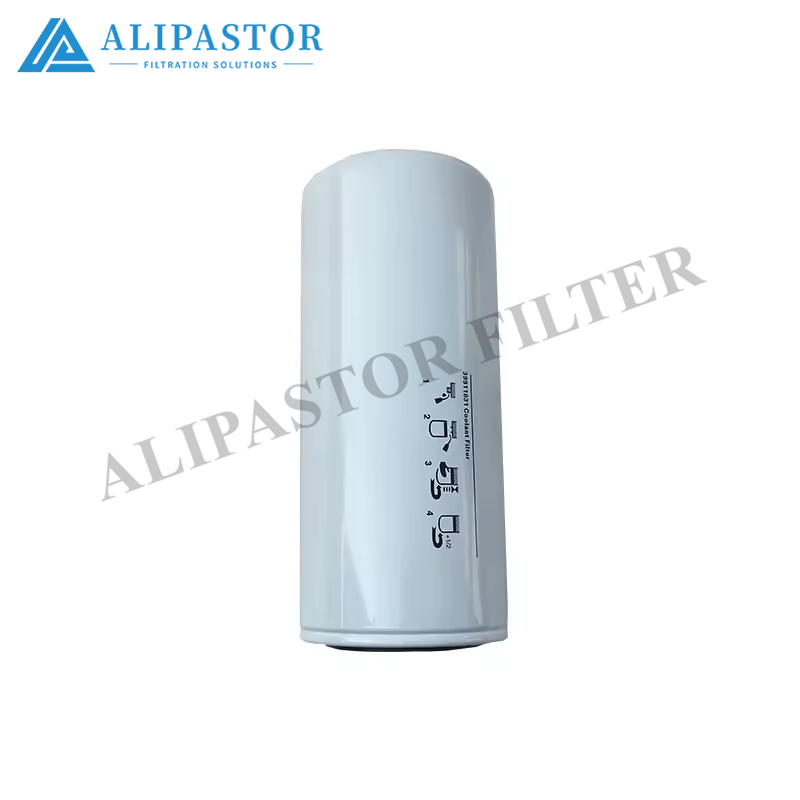

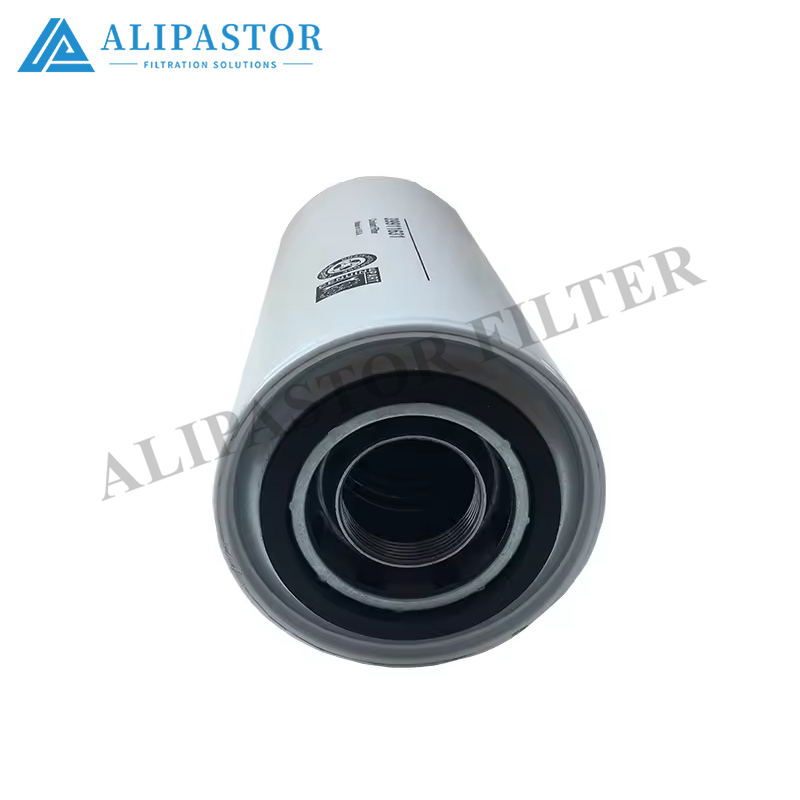

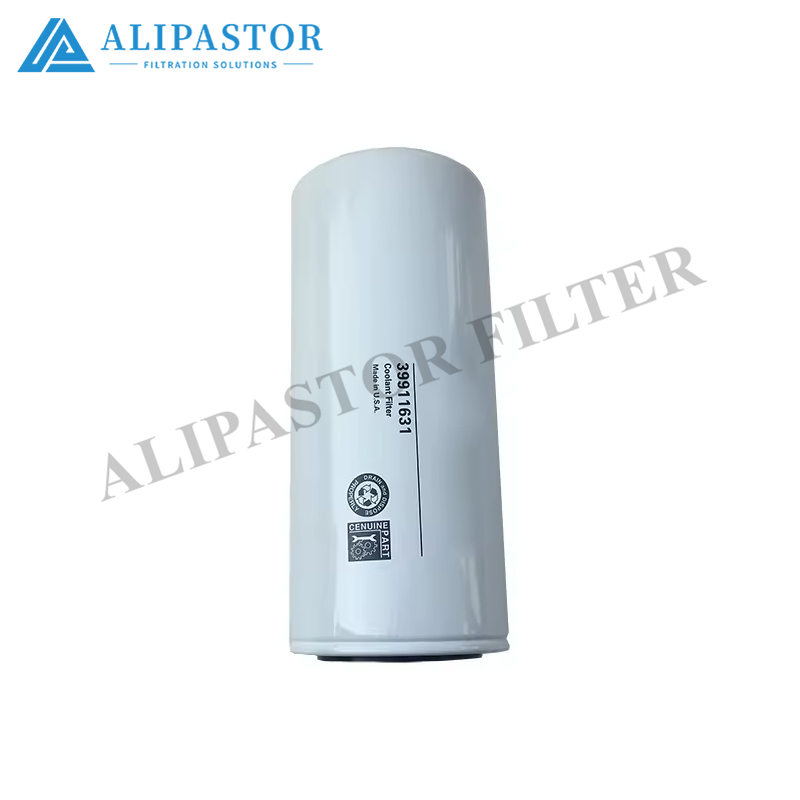

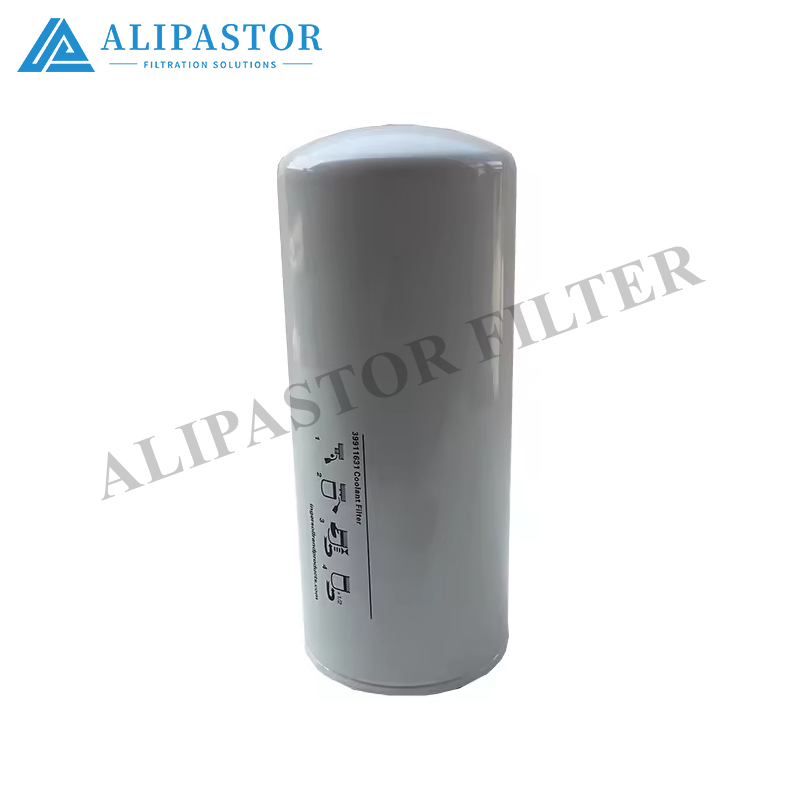

39911631 39856836 36897346 High Efficiency Replacement Ingersoll Air Compressor Parts Oil Filter Element

39911631, 39856836, 36897346 Oil Filter Elements – Technical Specifications & Maintenance Guide

Overview

The 39911631, 39856836, and 36897346 are high-performance oil filter elements designed for industrial air compressors, specifically for screw compressor systems. These filters are engineered to remove contaminants from lubricating oil, ensuring clean oil circulation to protect critical components (e.g., bearings, rotors) and maintain optimal compressor performance. Manufactured to meet international quality standards, they combine durability with efficient filtration to minimize downtime and extend equipment life.

Key Technical Specifications

Material Composition

All three filter elements are constructed from high-performance materials to ensure reliability:

• Synthetic Fiber Blend: The core filtration layer uses a mix of cellulose (for initial coarse filtration) and glass fiber (for fine particle capture), balancing efficiency and dirt-holding capacity.




• Steel Mesh Support: A corrosion-resistant stainless steel mesh wraps the synthetic layer, preventing collapse under high pressure and maintaining structural integrity.




• Nitrile Rubber Seal: Provides a tight seal between the filter and compressor block, preventing oil leaks and contamination ingress.




Function & Importance

The 39911631, 39856836, and 36897346 filters perform three critical functions:

1. Contaminant Removal: Traps solid particles (dirt, metal shavings, carbon deposits) and liquid contaminants (water, sludge) from compressor oil, preventing them from circulating and damaging critical components.




2. Lubrication Optimization: Ensures clean oil reaches all moving parts, reducing friction and wear, which extends compressor life by up to 30% (per industry studies).




3. System Protection: Prevents abrasive wear, corrosion, and oil degradation, which can lead to catastrophic compressor failure (e.g., seized rotors, leaking seals).




Maintenance Guidelines

Proper maintenance of these filters is essential to maximize their effectiveness and lifespan:

1. Replacement Interval

• Standard Use: Replace every 1,000–1,500 operating hours or every 6 months (whichever comes first).




• Severe Conditions: For applications with high dust, frequent idling, or heavy loads, reduce the interval to 750–1,000 hours.




• Warning Signs: Replace immediately if oil pressure drops by more than 10%, oil appears dark and gritty, or the compressor emits unusual noises (e.g., knocking, rattling).




2. Installation Steps

Follow these steps to ensure a proper installation:

• Drain Oil: Allow the compressor to cool, then drain the old oil into a suitable container.




• Remove Old Filter: Use a filter wrench to loosen the old filter counterclockwise. Wipe the mounting surface clean to remove any residual oil or debris.




• Apply Sealant: Coat the rubber gasket of the new filter with a thin layer of clean compressor oil (prevents sticking and ensures a tight seal).




• Install New Filter: Screw the new filter clockwise by hand until the gasket makes contact with the mounting surface. Tighten an additional ¾–1 turn using the wrench (do not over-tighten, as this can damage the gasket).




• Refill Oil: Pour the recommended grade of compressor oil into the system (refer to the manufacturer’s specifications for quantity).




• Check for Leaks: Start the compressor and let it run for 5–10 minutes. Inspect the filter area for any oil leaks—if found, tighten the filter slightly or replace the gasket.




3. Disposal

Dispose of the used filter in accordance with local environmental regulations. Most jurisdictions classify used oil filters as hazardous waste due to residual oil and contaminants. Recycle whenever possible (many auto parts stores accept used filters for recycling).

Consequences of Delayed Replacement

Failing to replace these filters on schedule can lead to severe operational, financial, and safety risks:

• Increased Compressor Wear: Contaminated oil accelerates wear on bearings, rotors, and seals, reducing compressor life by up to 50%.




• Reduced Energy Efficiency: Dirty oil increases friction, causing the compressor to work harder and consume more energy (up to 5% increase in energy consumption, per EPA estimates).




• Compressor Overheating: Clogged filters restrict oil flow, preventing adequate lubrication and cooling. This can lead to overheating, which may cause the compressor to seize or fail catastrophically.




• Production Downtime: Compressor failure can halt production lines for hours or days. For manufacturing plants, this results in lost revenue of up to $50,000–$100,000 per hour.




• Environmental Impact: Leaked oil from a damaged filter can contaminate soil and water, leading to fines and reputational damage.




Compatibility

The 39911631, 39856836, and 36897346 filters are compatible with most medium-duty to heavy-duty industrial air compressors, including:

• Manufacturers: Ingersoll Rand, Atlas Copco, Kaeser, Quincy, Mannesmann.




• Applications: Manufacturing, construction, automotive repair, HVAC systems, and oil and gas.




• Oil Types: Mineral oils, semi-synthetic oils, and synthetic oils (check the manufacturer’s specifications for compatibility).




Summary

The 39911631, 39856836, and 36897346 oil filter elements are reliable, cost-effective solutions for maintaining industrial air compressor performance. By adhering to the recommended maintenance guidelines—including timely replacement—you can avoid costly downtime, extend compressor life, and ensure optimal efficiency. For more information on compatibility or technical support, contact the manufacturer or authorized distributors.
