54625942 Factory Wholesale Price Screw Compressor Oil Separator Filter

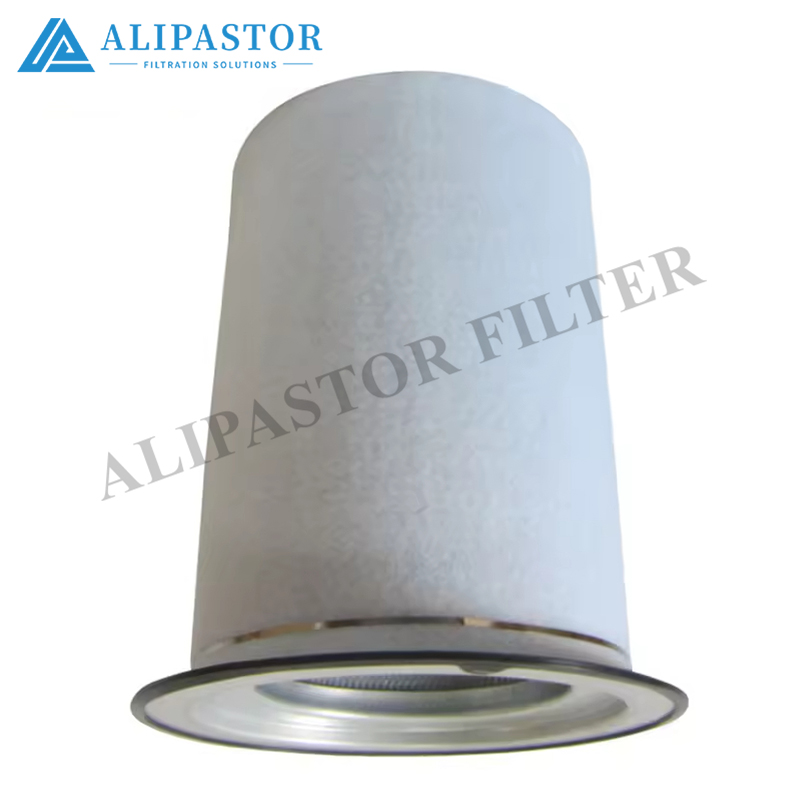

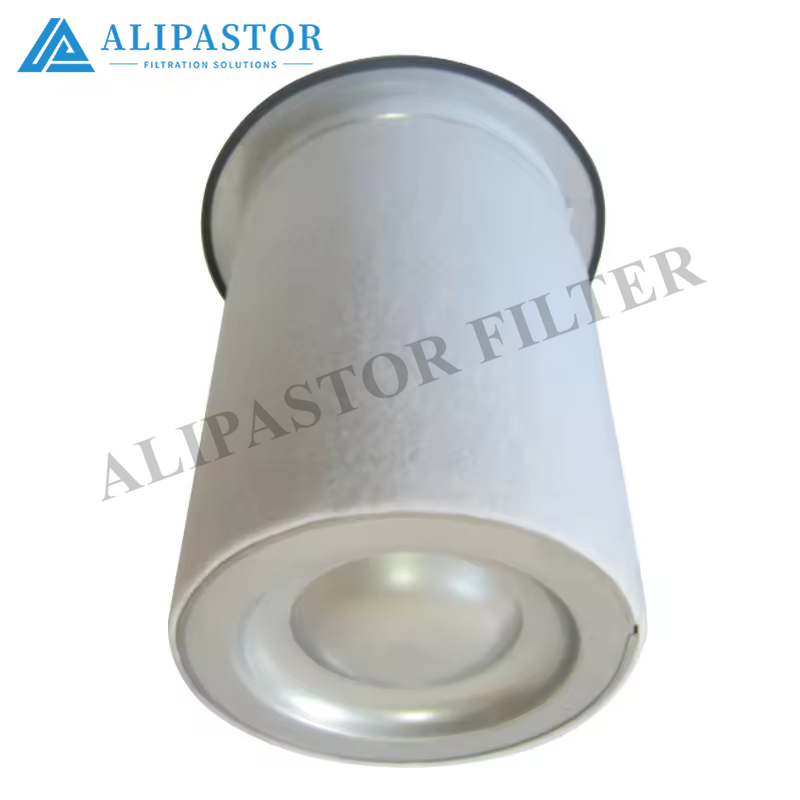

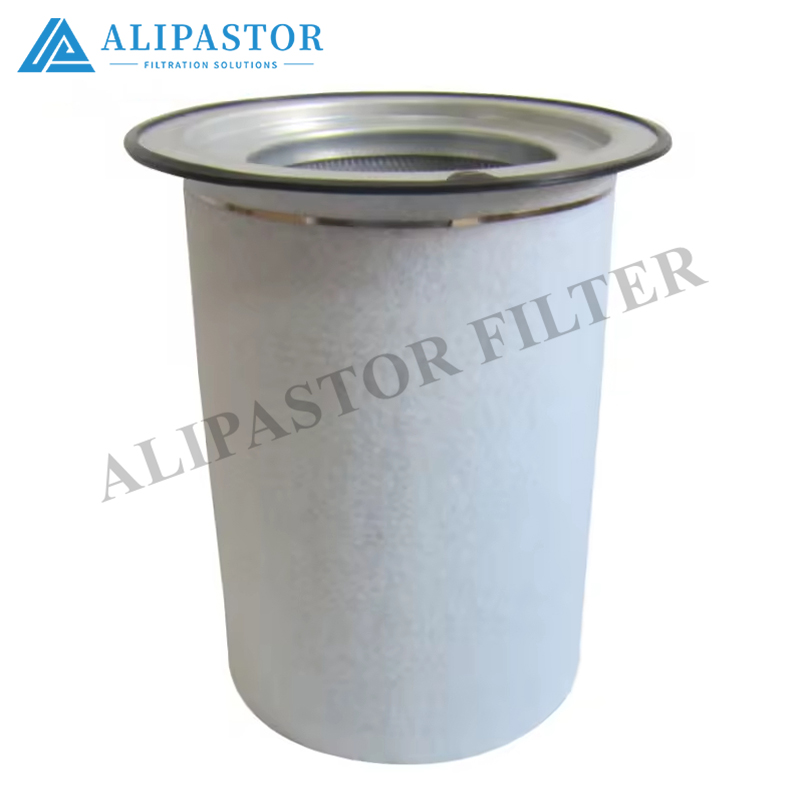

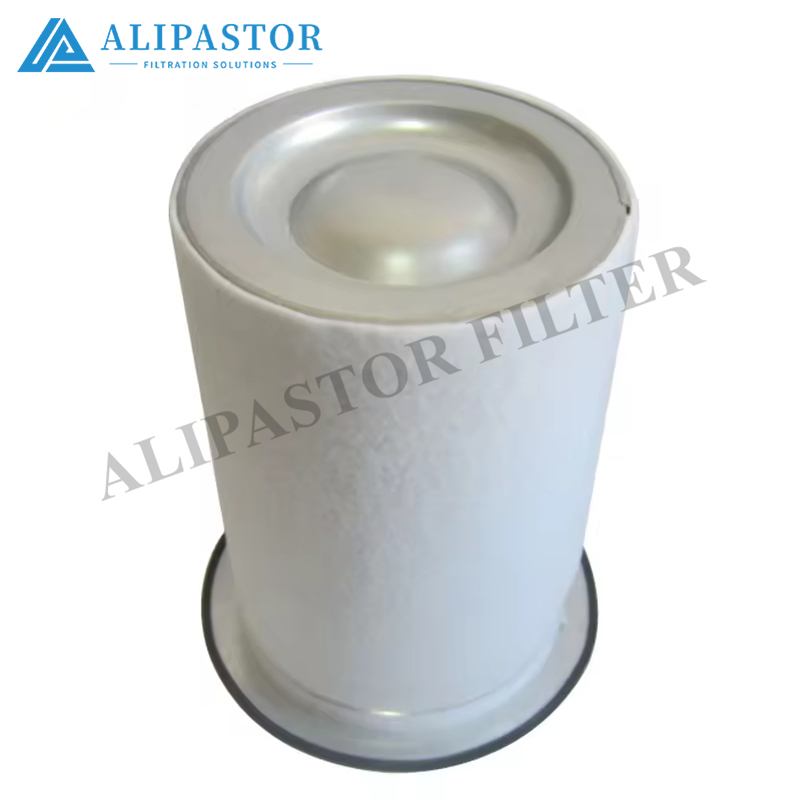

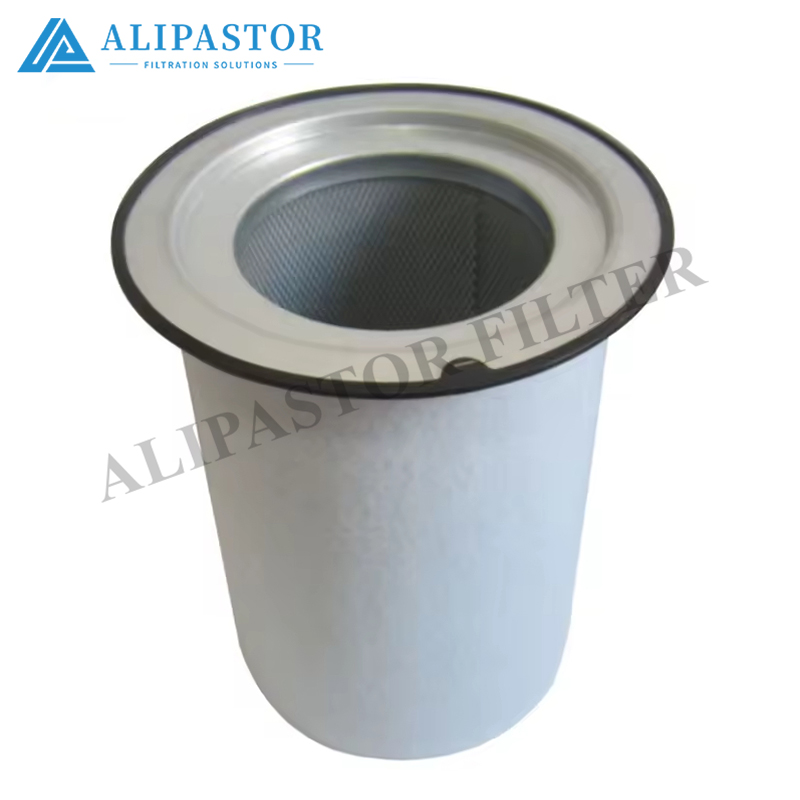

54625942 Oil-Gas Separator Filter for Ingersoll Rand Air Compressors – Precision Filtration & Reliable Performance

Product Overview

The 54625942 is a genuine OEM oil-gas separator filter designed exclusively for Ingersoll Rand air compressors, serving as a critical component to maintain clean, dry compressed air output and extend equipment lifespan. Engineered with advanced multi-layer filtration technology, it effectively removes oil mist, aerosols, and solid contaminants from compressed air, ensuring compliance with strict industrial air quality standards (e.g., ISO 8573-1) while optimizing system efficiency.

Technical Specifications

• Filtration Efficiency: Achieves 99.99% removal of oil aerosols and particles as small as 0.01μm, reducing oil carryover to ≤3ppm in compressed air—meeting ISO 8573-1 Class 1 standards for clean air.




• Initial Pressure Drop: ≤0.02MPa, minimizing energy loss during air compression and reducing operational costs.




• Service Life: 3,500–6,000 operating hours under normal conditions (adjustable based on air quality and usage intensity).




• Operating Temperature: -20°C to 120°C, suitable for diverse industrial environments.




• Compatibility: Optimized for Ingersoll Rand screw air compressors (e.g., R-series, GA-series), ensuring seamless integration with existing systems.




Material & Design Features

• Filtration Media: Constructed with imported HV glass fiber (from companies like Lydall) and Ahlstrom filter paper, the 54625942 offers exceptional durability and resistance to high pressure and corrosion. The multi-layer design enhances particulate capture while maintaining low flow resistance.




• Housing: Manufactured from corrosion-resistant stainless steel, the filter housing is built to withstand harsh industrial conditions and ensure long-term reliability.




• Sealing System: Equipped with high-quality O-rings (NBR or fluororubber) to prevent air leaks and maintain optimal pressure within the system.




Performance Benefits

• Clean Air Guarantee: Effectively removes oil mist and contaminants, ensuring compressed air meets ISO 8573-1 Class 1 standards for oil content (≤0.01mg/m³). This is critical for applications such as food processing, pharmaceuticals, and electronics, where air purity directly impacts product quality.




• Energy Savings: The low initial pressure drop reduces compressor workload, cutting energy consumption by up to 15% compared to generic filters. Over the filter’s lifespan, this translates to significant cost savings for industrial users.




• Equipment Protection: By preventing oil contamination of downstream components (e.g., air dryers, pneumatic tools), the 54625942 extends the lifespan of critical equipment and reduces maintenance costs.




Usage & Maintenance Guidelines

• Installation: Turn off the compressor and relieve all pressure before replacing the filter. Ensure the seal is properly aligned to prevent leaks.




• Monitoring: Check the pressure drop across the filter regularly (using the differential pressure gauge). Replace the filter when the pressure drop exceeds 0.08–0.1MPa or when the service life is reached.




• Storage: Store the filter in a cool, dry place away from direct sunlight to preserve the integrity of the filtration media. Proper storage prevents degradation of the filter media, ensuring it performs as intended when installed.




Consequences of Delayed Replacement

• Reduced Efficiency: A clogged filter increases pressure drop, forcing the compressor to work harder and consume more energy (up to 20% increase in electricity costs). This not only raises operational expenses but also reduces the compressor’s overall efficiency.




• Equipment Damage: Excess oil carryover contaminates downstream components (e.g., air dryers, pneumatic tools), leading to costly repairs (e.g., air dryer failure, pneumatic tool corrosion). In severe cases, oil contamination can cause compressor shutdowns, resulting in lost production time and revenue.




• Production Downtime: Contaminated air can cause product defects (e.g., in food packaging, electronics) or equipment malfunctions, resulting in lost productivity and revenue. For example, a single hour of downtime in a high-volume manufacturing plant can cost tens of thousands of dollars in lost output.




Summary

The 54625942 oil-gas separator filter is a high-performance solution for Ingersoll Rand air compressors, combining exceptional filtration efficiency with durability and energy savings. By maintaining clean compressed air and protecting downstream equipment, it helps industrial users reduce costs, improve productivity, and ensure compliance with air quality standards. Regular maintenance and timely replacement are key to maximizing the benefits of this premium filter.
