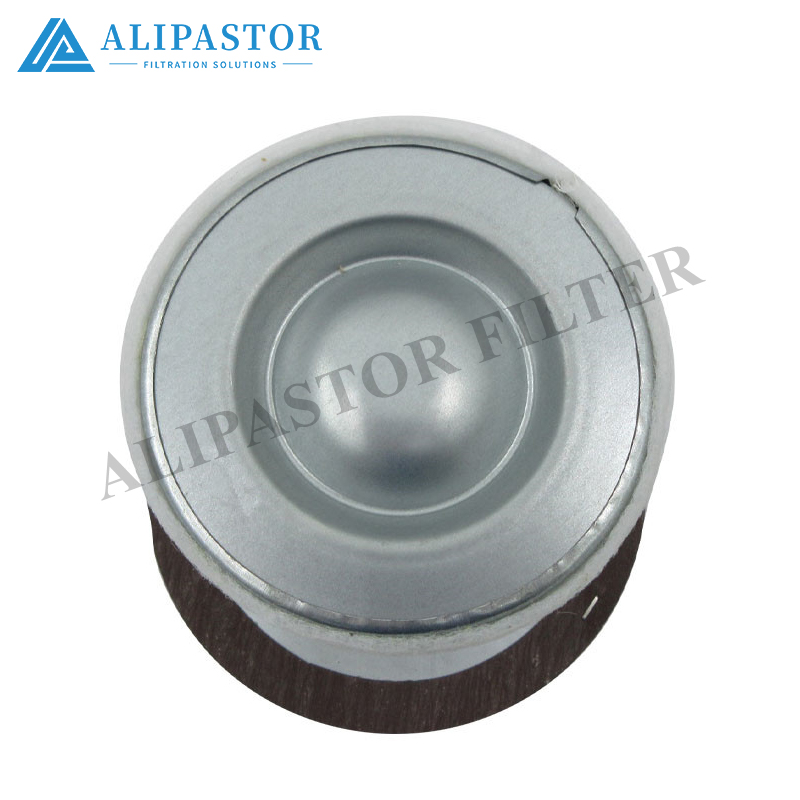

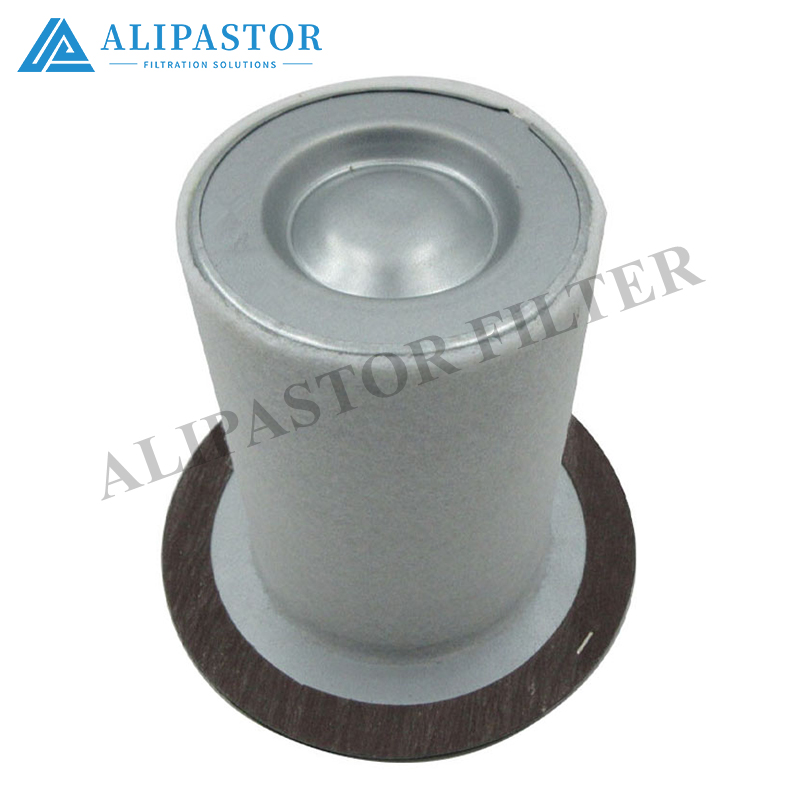

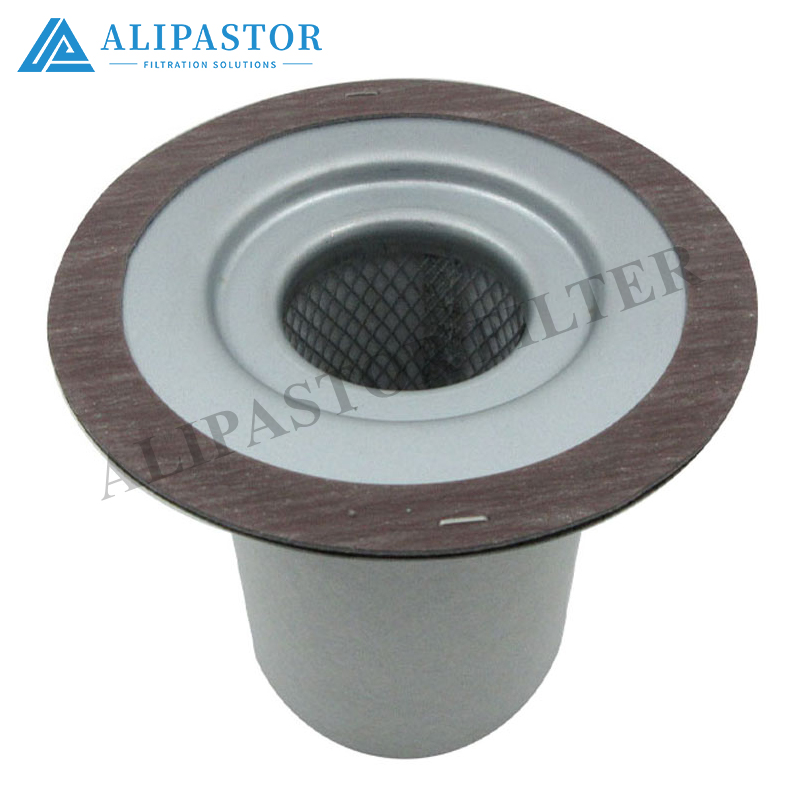

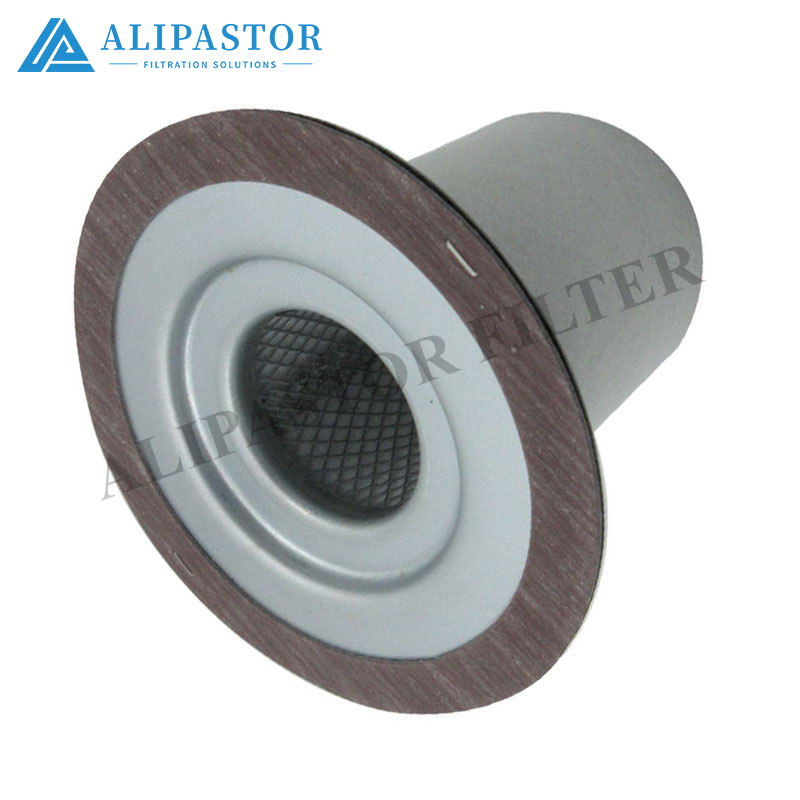

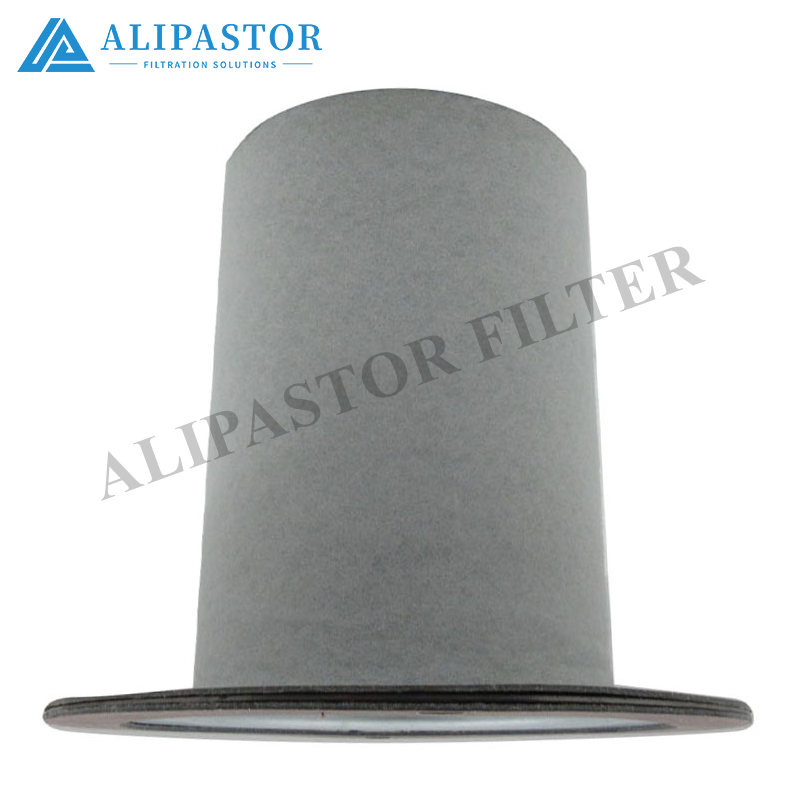

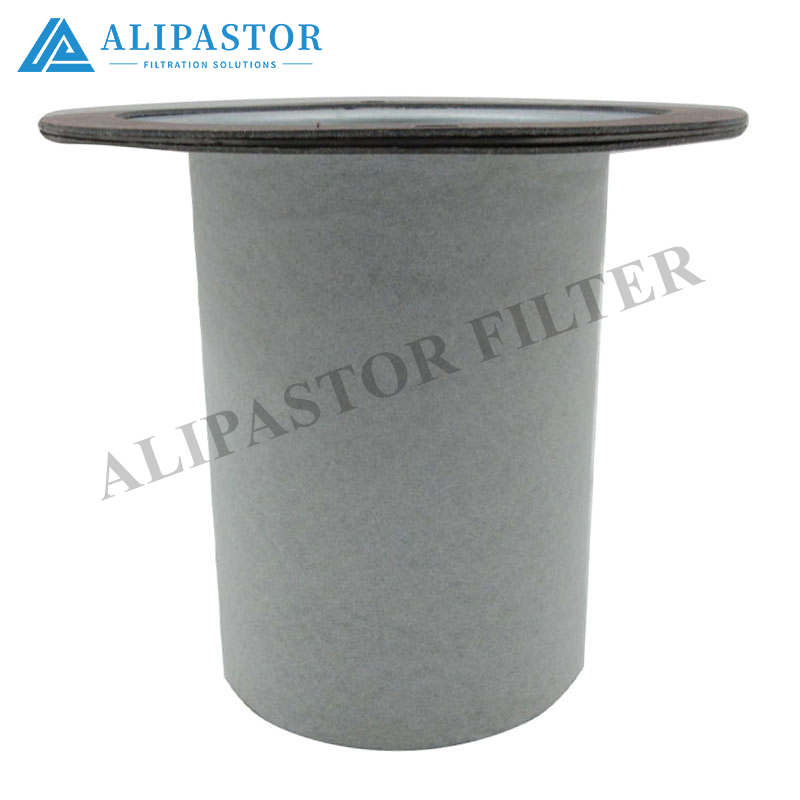

54596705 Replace the Ingersoll Rand Oil Separator Screw air Compressor Filter element

54596705 Oil-Gas Separator Filter for Ingersoll Rand Air Compressors – Technical Specifications & Performance Overview

Product Description

The 54596705 is a high-performance oil-gas separator filter designed exclusively for Ingersoll Rand air compressors, serving as a critical component to maintain clean, dry compressed air output and extend compressor lifespan. Engineered with advanced multi-layer filtration technology, it effectively removes oil mist, aerosols, and solid contaminants from compressed air, ensuring compliance with strict air quality standards (e.g., ISO 8573-1) for industrial applications.

Key Technical Specifications

• Filtration Efficiency: Achieves 99.9% removal of oil aerosols and particles as small as 0.1μm, reducing oil carryover to ≤3ppm in the compressed air output.




• Initial Pressure Drop: ≤0.02MPa, minimizing energy consumption and ensuring optimal airflow.




• Service Life: 3,500–4,000 operating hours (depending on lubricant quality and operating environment).




• Material: Constructed with high-quality imported glass fiber (e.g., HV Binzer or Lydall) for exceptional filtration performance and durability.




• Compatibility: Designed to fit Ingersoll Rand screw air compressors (e.g., R-series, GA-series), ensuring seamless integration with existing systems.




Performance Benefits

• Clean Air Assurance: Effectively removes oil mist and contaminants, delivering compressed air that meets international quality standards for sensitive industrial processes (e.g., food processing, electronics manufacturing).




• Energy Savings: Low initial pressure drop reduces compressor workload, cutting energy costs by up to 15% compared to generic filters.




• Compressor Protection: Prevents oil contamination of downstream components, extending compressor lifespan by 20–30% and reducing maintenance costs.




Usage & Maintenance Guidelines

• Installation: Replace the filter every 3,500–4,000 hours or when the pressure drop exceeds 0.08–0.1MPa (whichever comes first).




• Monitoring: Regularly check the pressure drop using a differential pressure gauge to ensure optimal performance.




• Storage: Store in a cool, dry place away from direct sunlight to preserve filter media integrity.




Consequences of Delayed Replacement

• Reduced Air Quality: Clogged filters allow oil and contaminants to pass through, leading to contaminated compressed air that can damage downstream equipment (e.g., pneumatic tools, spray systems).




• Increased Energy Costs: Higher pressure drop forces the compressor to work harder, increasing energy consumption by up to 20%.




• Compressor Damage: Excessive oil carryover can contaminate lubricants, leading to bearing wear, seal failure, and costly compressor downtime.




Summary

The 54596705 oil-gas separator filter is a reliable, cost-effective solution for maintaining clean compressed air in Ingersoll Rand systems. Its high filtration efficiency, long service life, and compatibility with Ingersoll Rand compressors make it an ideal choice for industrial applications where air quality and compressor reliability are paramount. Regular maintenance and timely replacement are key to maximizing its performance and minimizing operational costs.
