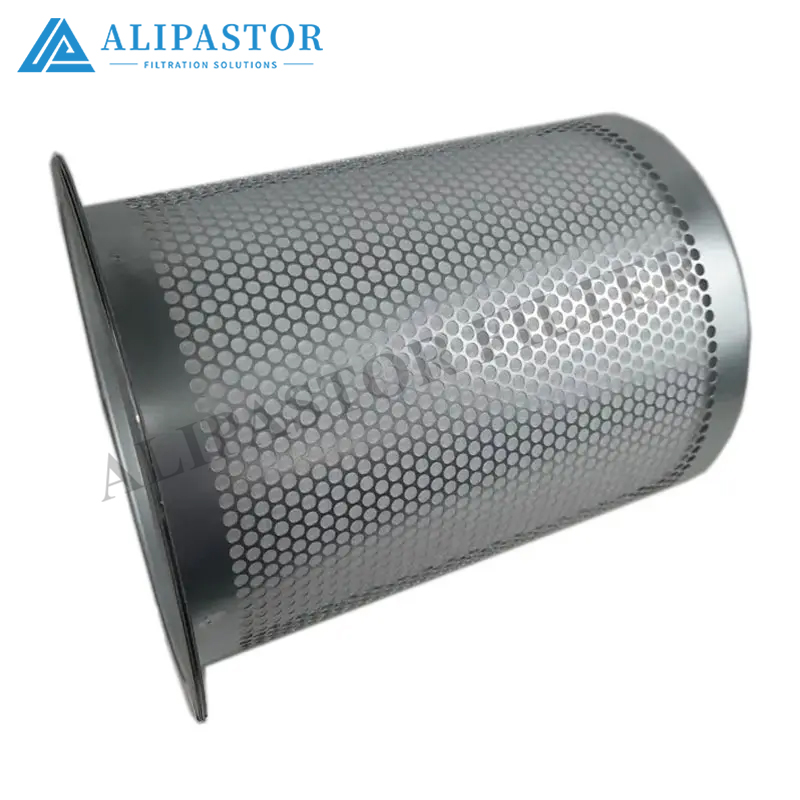

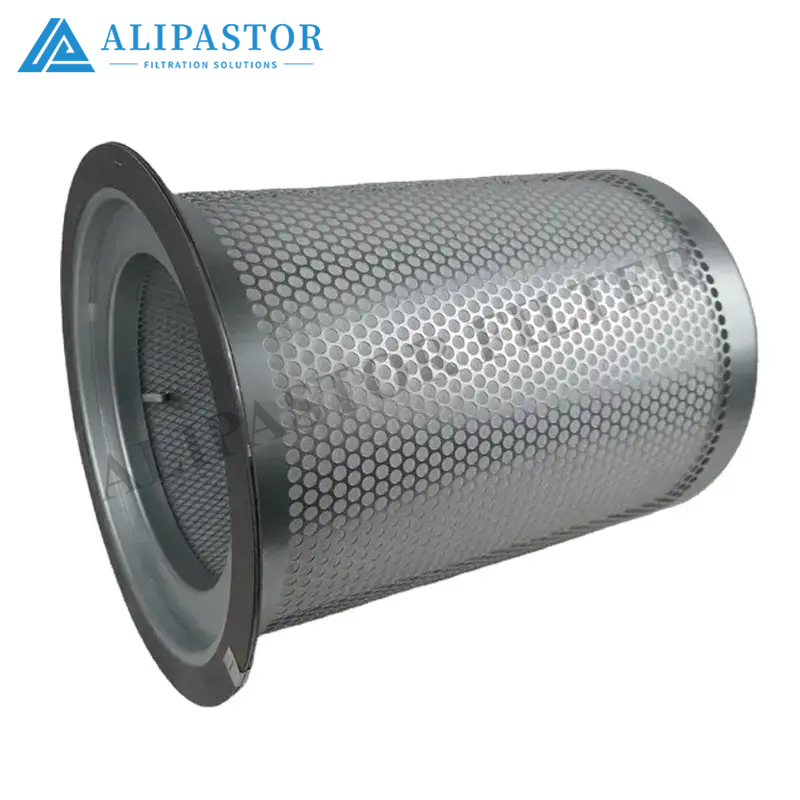

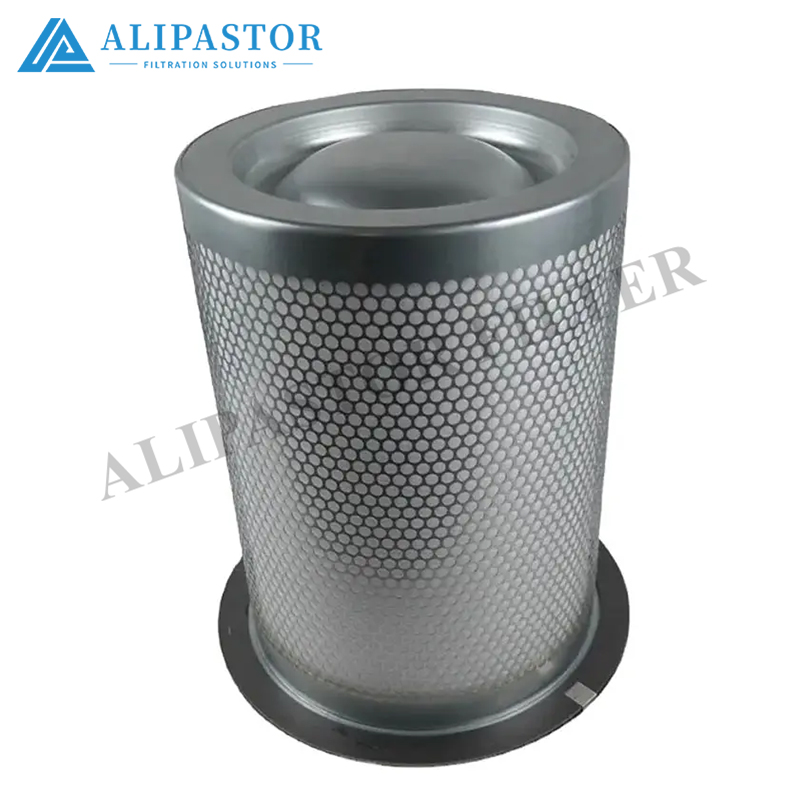

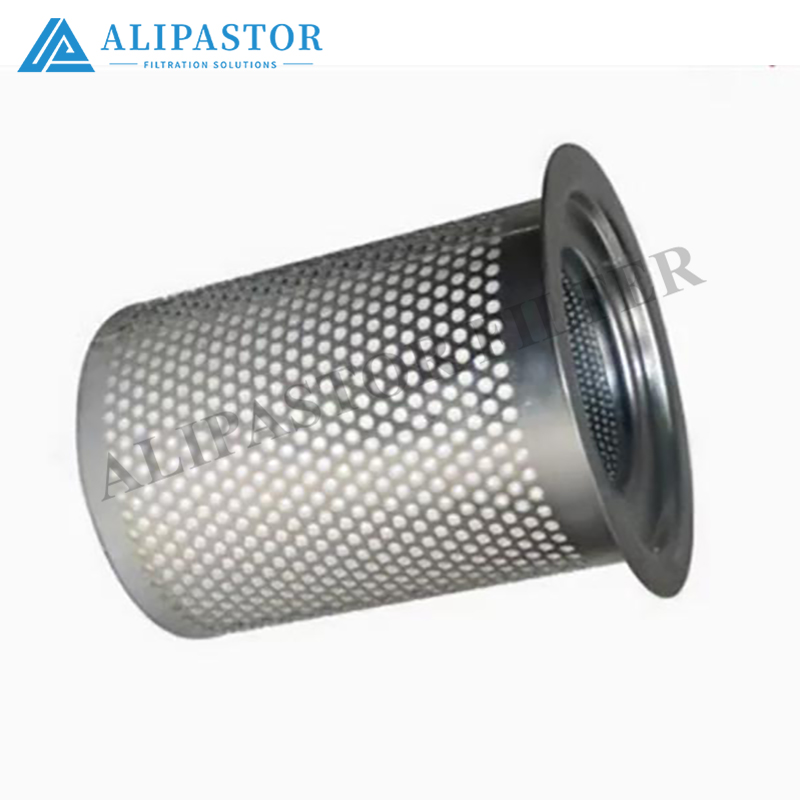

39863881 for Ingersoll-Rand Air Compressors Spare Parts Oil Separator Filter

39863881 Oil-Gas Separator Filter for Ingersoll Rand Air Compressors – Precision Filtration & Cost-Effective Maintenance

Product Description

The 39863881 is a dedicated oil-gas separator filter for Ingersoll Rand screw air compressors, designed to maximize operational efficiency and protect sensitive downstream equipment in 24/7 manufacturing, mining, and power generation environments. It delivers 99.97% separation efficiency at 0.1 microns, effectively removing oil mist, vaporized lubricants, and fine particulates from compressed air to ensure clean, dry output (≤3 ppm oil carryover) for pneumatic tools, sensors, and assembly processes. Built with a multi-layer borosilicate glass fiber composite membrane (resistant to oil swelling and degradation) and a corrosion-resistant stainless steel housing, it withstands pressures up to 16 barg and temperatures ranging from -20°C to 120°C—ideal for harsh industrial settings where continuous, reliable air flow is non-negotiable.

Usage Instructions

1. Installation & Replacement:

   • Preparation: Shut down the compressor and fully relieve pressure in the oil-gas bucket (confirm zero pressure with a gauge) to avoid safety hazards.




   • Disassembly: Remove the bolts securing the bucket cover, then carefully take out the old filter (retain the gasket to prevent oil leakage).




   • Installation: Insert the new filter into the bucket, align the sealing surface, and tighten the cover bolts evenly (use a torque wrench to avoid over-tightening and damaging threads). Reinstall the bucket onto the compressor, connect the inlet/outlet oil pipes and return pipe (ensure the return pipe is inserted 1-2mm into the filter bottom to facilitate oil return to the main engine).







2. Operational Monitoring:

   • Differential Pressure Gauge: Install a gauge before and after the filter to monitor pressure changes in real time.




   • Normal Operation: The initial pressure drop is approximately 0.02MPa. Replace the filter immediately when the pressure drop rises to 0.08MPa (this indicates the filter is clogged, and filtration efficiency has declined).







3. Environmental Requirements:

   • Install the compressor in a dry, clean environment to avoid dust or moisture entering the filter (these contaminants can degrade filtration performance).




   • Maintain the compressor operating temperature between 80-100°C (the optimal temperature for oil-gas separation); excessively high or low temperatures will affect filter performance.







Maintenance Methods

1. Regular Inspection:

   • Monthly Checks: Inspect the filter appearance for damage, deformation, or excessive oil accumulation. If the surface is heavily soiled, clean or replace the filter promptly.




   • Quarterly Checks: Inspect the return pipe for blockages or leaks (a clogged return pipe will cause oil to re-enter the compressed air).







2. Replacement Cycle:

   • Normal Conditions: Under clean environments and high-quality lubricating oil, the filter has a service life of approximately 3500-5200 hours (about 4-6 months for 24/7 operation).




   • Harsh Environments: If the environment is dusty, humid, or the lubricating oil quality is poor (e.g., high impurity content), shorten the replacement cycle to within 3000 hours.







3. Precautions:

   • Genuine Parts: Always use genuine Ingersoll Rand replacement parts (or parts that meet OEM specifications). Avoid using low-quality filters, as they can reduce filtration efficiency or damage the compressor.




   • Sealing Check: Ensure the filter sealing surface is clean and free of debris before installation to prevent oil leakage (leakage will cause the compressed air to exceed the oil content standard).







Consequences of Delayed Replacement

Failure to replace the 39863881 filter on time can lead to severe issues:

1. Reduced Filtration Efficiency & Contaminated Air:

   A clogged filter cannot effectively separate oil mist, causing the compressed air oil content to rise to 10ppm or higher (far exceeding industrial standards). This contaminated air will damage downstream equipment (e.g., dryers, filters) or terminal devices (e.g., pneumatic tools will jam due to oil, painted products will have defects due to oil contamination).




2. Increased Energy Consumption:

   A clogged filter raises the pressure drop in the oil-gas bucket, forcing the compressor to work harder to overcome the higher pressure. This increases motor current and energy consumption by 10%-15% annually (adding ~10,000-20,000 yuan to the annual energy cost per compressor).




3. Compressor Damage & Downtime:

   Excessive backpressure from a clogged filter causes the compressor to overheat, accelerating wear on bearings, rotors, and seals. In severe cases, oil starvation can lead to catastrophic main engine failure (e.g., bearing seizure), requiring costly repairs (50,000-100,000 yuan) and 48+ hours of downtime.




4. Production Losses:

   Contaminated air or compressor failure will halt production lines (e.g., painting lines cannot operate with poor air quality), leading to missed deadlines and significant economic losses.




Summary

The 39863881 oil-gas separator filter is a core component of Ingersoll Rand air compressors, directly affecting compressed air quality and compressor operational efficiency. Timely replacement (every 3500-5200 hours) and regular monitoring (pressure drop ≤0.08MPa) are key to ensuring stable compressor operation and reducing costs. Always use genuine OEM parts and follow the maintenance manual strictly to avoid the severe consequences of delayed replacement.
