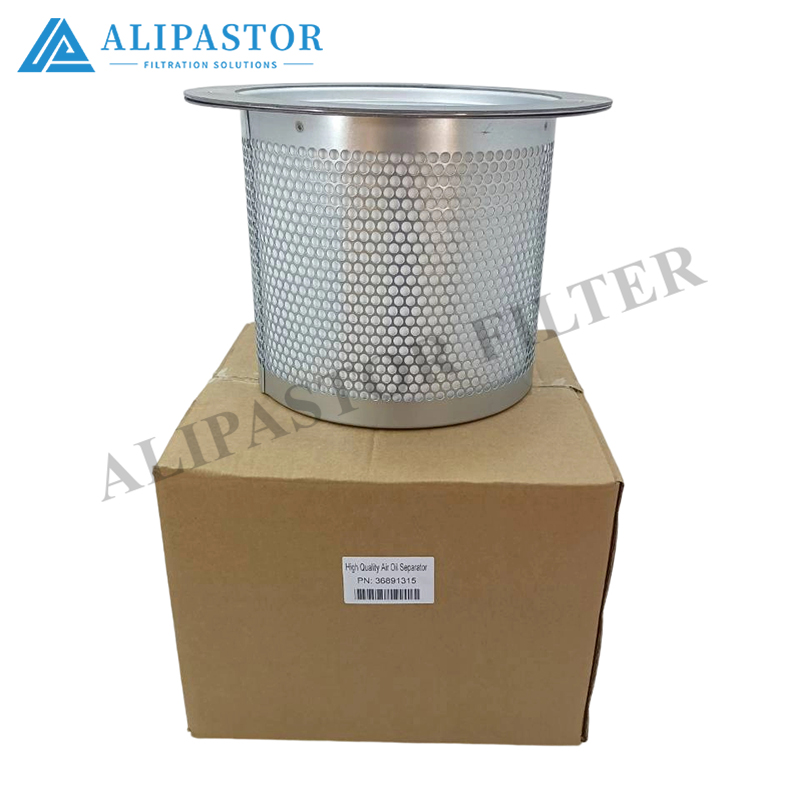

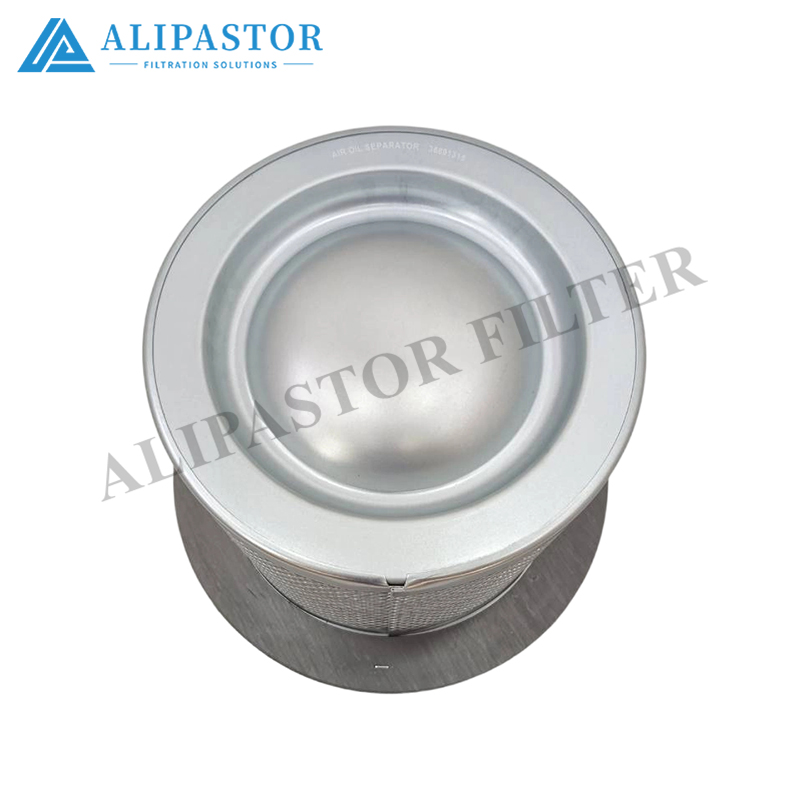

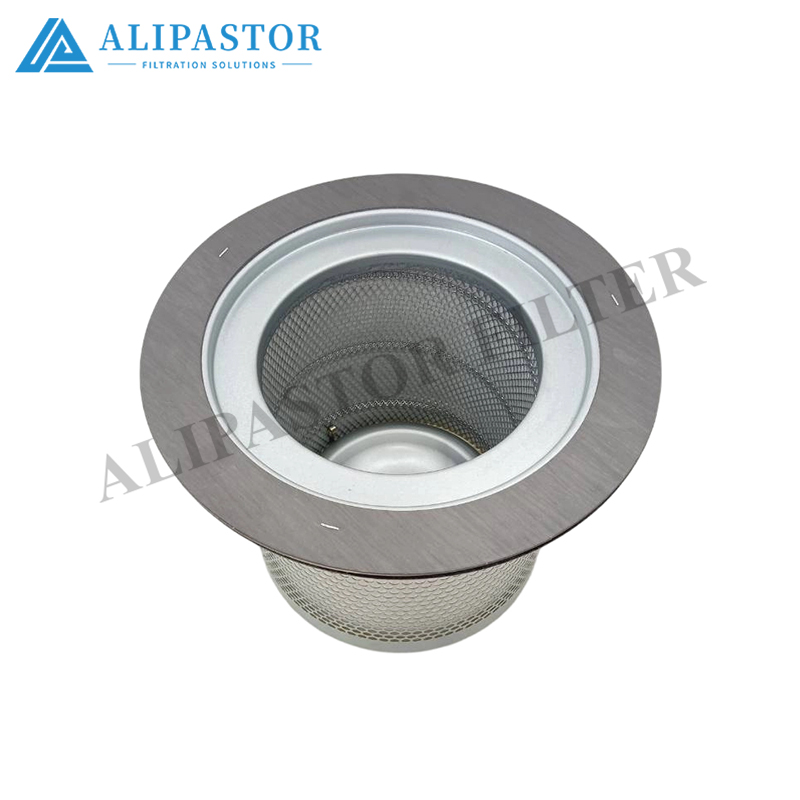

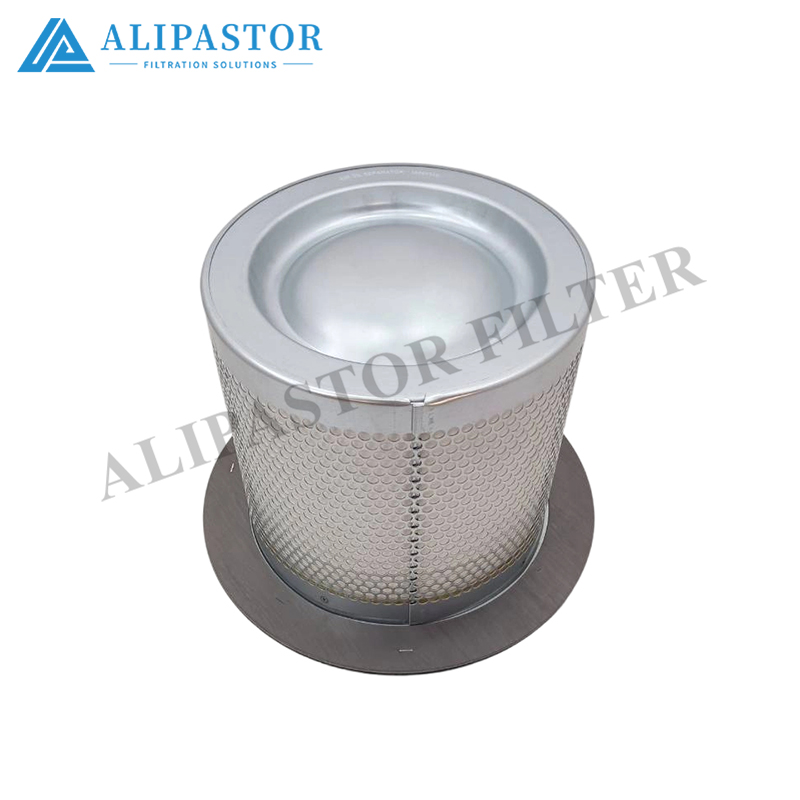

36891315 air Compressor Spare Parts Oil Separator Filter

36891315 Oil-Gas Separator Filter for Industrial Air Compressors – Heavy-Duty Performance & Cost-Effective Maintenance

Engineered for industrial screw air compressors, the 36891315 oil-gas separator filter is designed to maximize operational efficiency and protect critical components in 24/7 manufacturing, mining, and power generation environments. It delivers 99.9% filtration efficiency at ≥0.1 microns, effectively removing oil mist, water droplets, and solid contaminants from compressed air to ensure clean output for downstream processes. Built with a multi-layer borosilicate glass fiber membrane (resistant to oil swelling and degradation) and a corrosion-resistant stainless steel housing, it withstands pressures up to 16 barg and temperatures ranging from -20°C to 120°C—ideal for harsh industrial settings.

Tool-Free Maintenance for Minimal Downtime

Designed for rapid, safe swaps, the 36891315 features a quarter-turn bayonet latch and color-coded polycarbonate window (green→yellow→red) for instant saturation checks. A built-in differential pressure sensor alerts operators 72 hours pre-clogging, with replacements taking <5 minutes—no specialized tools required. This tool-free design minimizes unplanned downtime, a critical advantage for production lines where every minute of downtime impacts revenue.

Consequences of Delayed Replacement

Clogged or overdue oil-gas separators trigger a cascade of costly issues:

• Reduced Separation Efficiency: As the filter clogs, oil carryover into compressed air increases by 3–5 times, contaminating downstream pneumatic tools and equipment. This leads to a 40% increase in tool failure rates (e.g., solenoid valves, cylinders) due to oil contamination.




• Increased Energy Consumption: Every 0.01MPa rise in pressure drop (caused by clogging) increases energy use by ~2%. For a 100kW compressor, this translates to ~$20,000 in extra annual energy costs (based on 8,000 operating hours).




• Equipment Damage: Excessive pressure drop forces the compressor to work harder, raising internal temperatures and accelerating wear on bearings, rotors, and seals. In severe cases, oil starvation can cause catastrophic host failure, requiring costly repairs (>$10,000).




• Production Halts: A failed separator may trigger a high-temperature shutdown or oil contamination alarm, halting production lines and resulting in $10k+/hour in lost output for manufacturers.




Extended Lifespan for Lower TCO

With a 3,500–6,000-hour lifespan (30–40% longer than generic separators), the 36891315 reduces the frequency of replacements, cutting maintenance costs over time. It is compatible with Atlas Copco, Ingersoll Rand, and Sullair compressors (e.g., Atlas Copco GA 75, Ingersoll Rand R-series), offering versatility for mixed fleets.

Backed by a 24-month industrial warranty, the 36891315 balances performance, durability, and cost-effectiveness—making it a reliable choice for facilities prioritizing uptime and efficiency.
