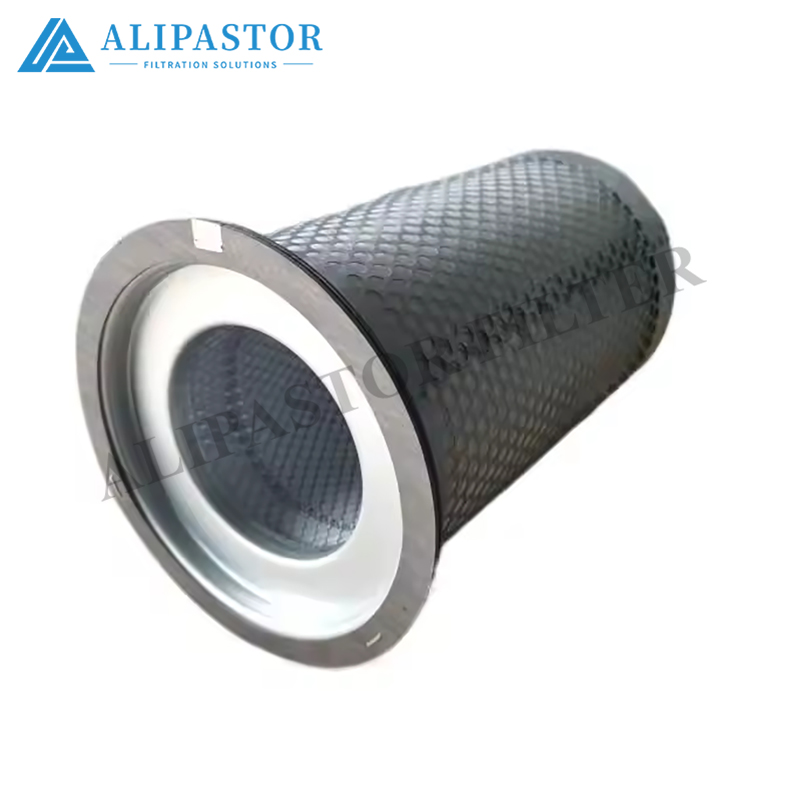

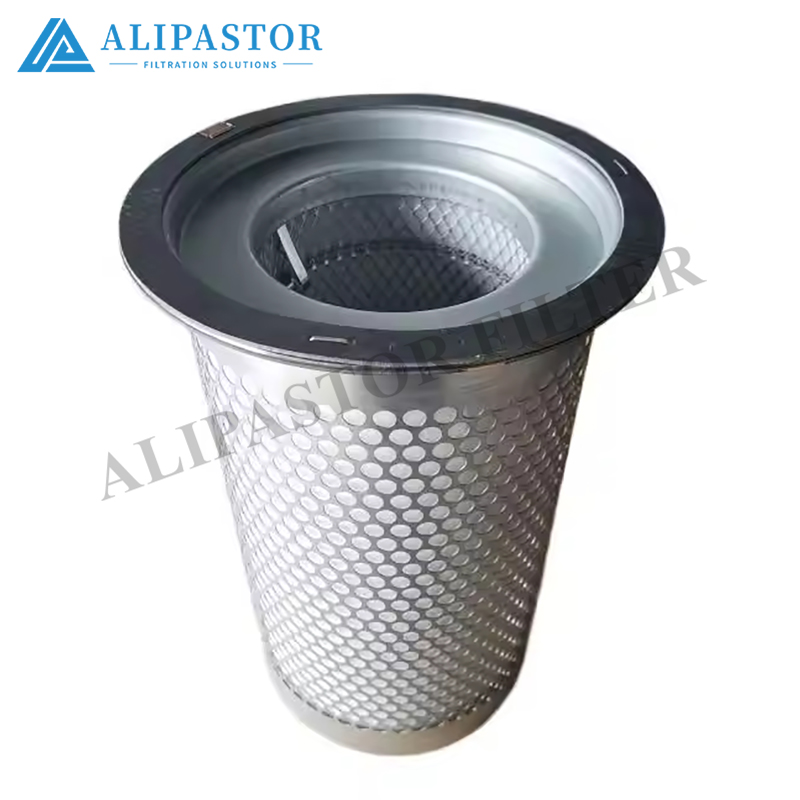

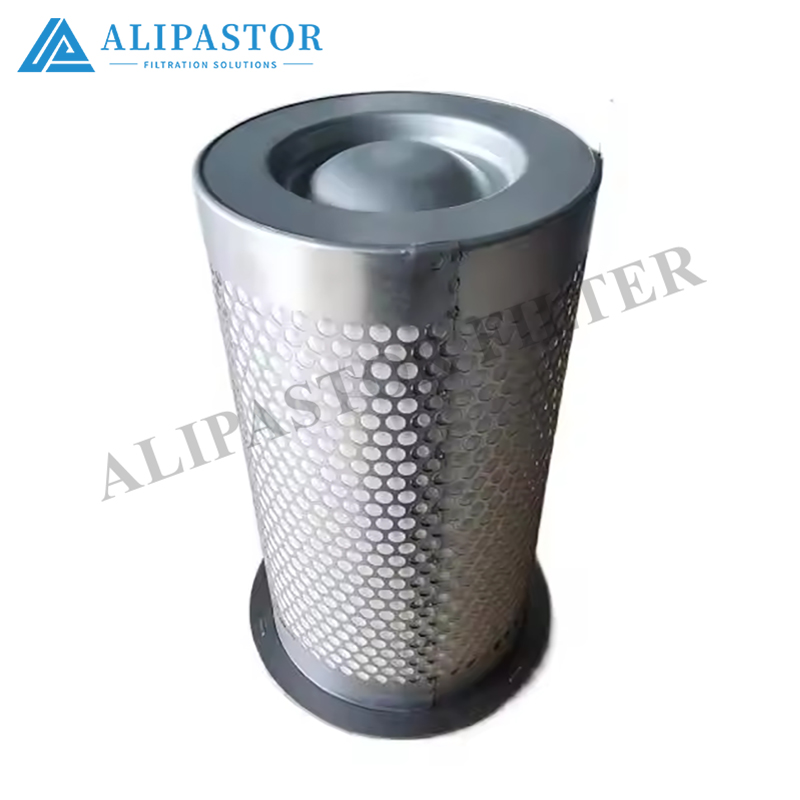

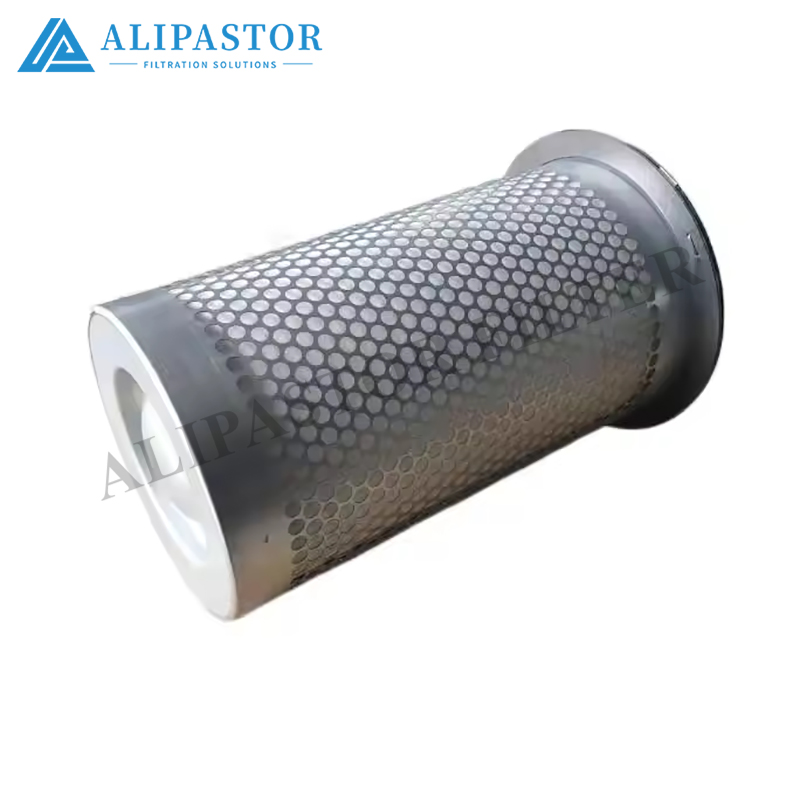

DB2006 Air Compressor Oil and Gas Separator

Similar models

Basic Info.

Product Parameters

DB2006 Industrial Air Compressor Oil-Gas Separator Filter – Precision Purity for High-Performance Compressed Air Systems

Engineered to meet stringent ISO 8573-1 Class 1 oil-free air standards, the DB2006 separator delivers 99.99% efficiency at ≥0.008 microns, capturing sub-micron oil mist, aerosols, and vapor that standard filters overlook—critical for food/beverage pasteurization, electronics assembly, or medical device production where trace contamination risks yield rejection or compliance failures.

Innovative media design: A multi-layered nano-fiber composite—blending electrospun polyamide with anti-adhesion polymers—actively condenses oil vapor while resisting clogging, even in high-humidity or cyclic load conditions. Paired with a corrosion-resistant, anodized aluminum alloy housing, it withstands pressures up to 30 bar and temperatures from -40°C to 130°C—thriving in freezing cold storage, foundries, or coastal plants.

Unmatched longevity: Pleated geometry holds 350g of oil sludge without performance degradation, lasting 10,000+ operating hours—50% longer than legacy filters—slashing replacement downtime and disposal costs.

Seamless integration: Fits 20–80 HP oil-injected compressors (Atlas Copco ZR 55–75, Ingersoll Rand R7–12iX) with a tool-free bayonet system for installation in <5 minutes—minimizing line stoppages in 24/7 operations.

Boosts TCO: Cuts oil carryover by 98%, extending downstream desiccant dryer life by 60% and reducing energy use by 10% via lower pressure drop. Optional IoT-enabled differential pressure monitoring alerts for proactive replacement. Backed by a 24-month warranty, the DB2006 ensures reliable, cost-effective pure air—future-proofing your air system for mission-critical applications.
