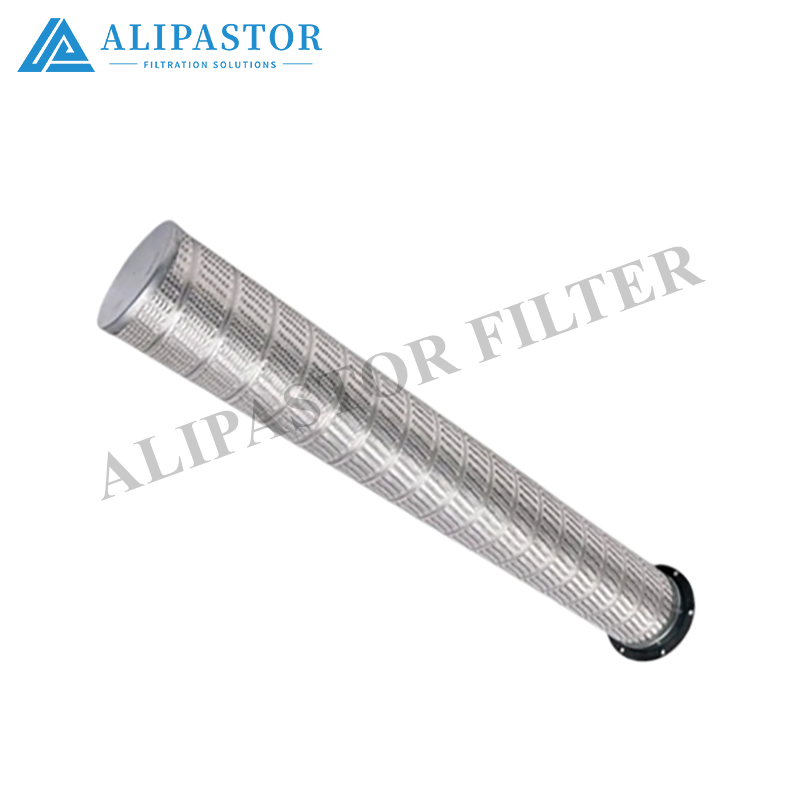

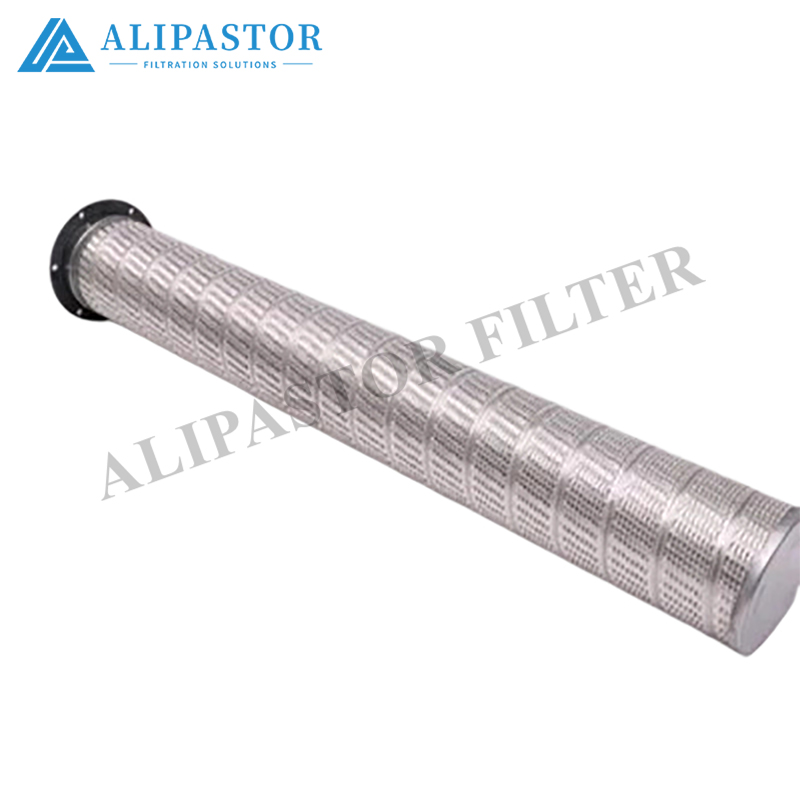

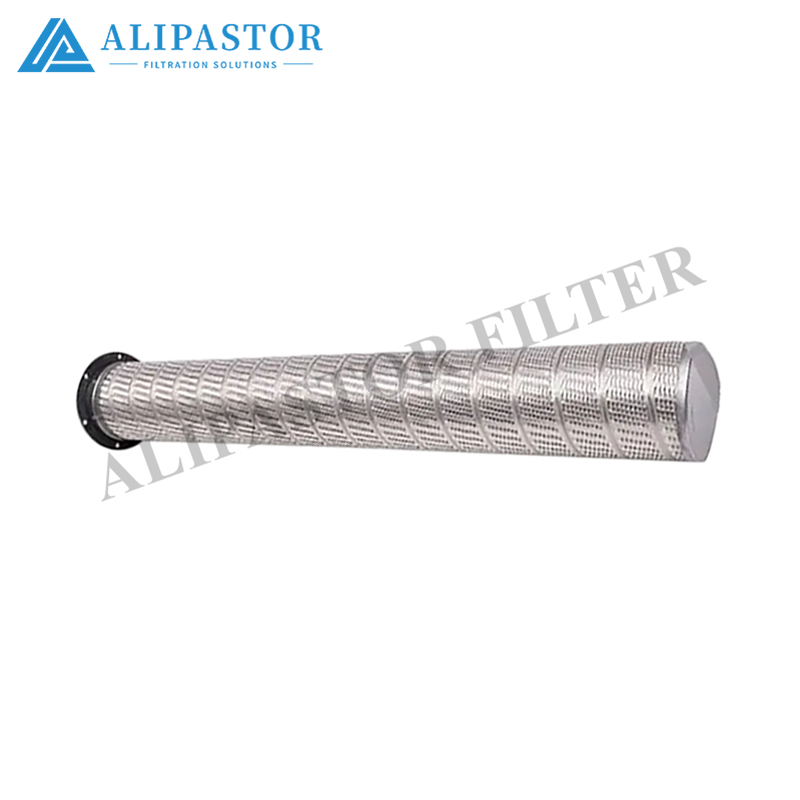

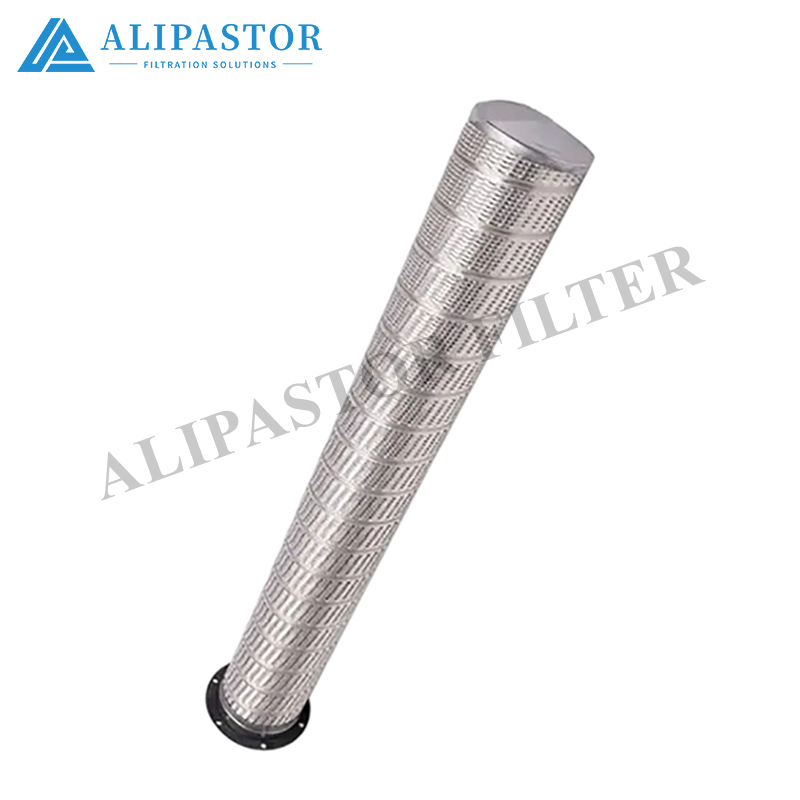

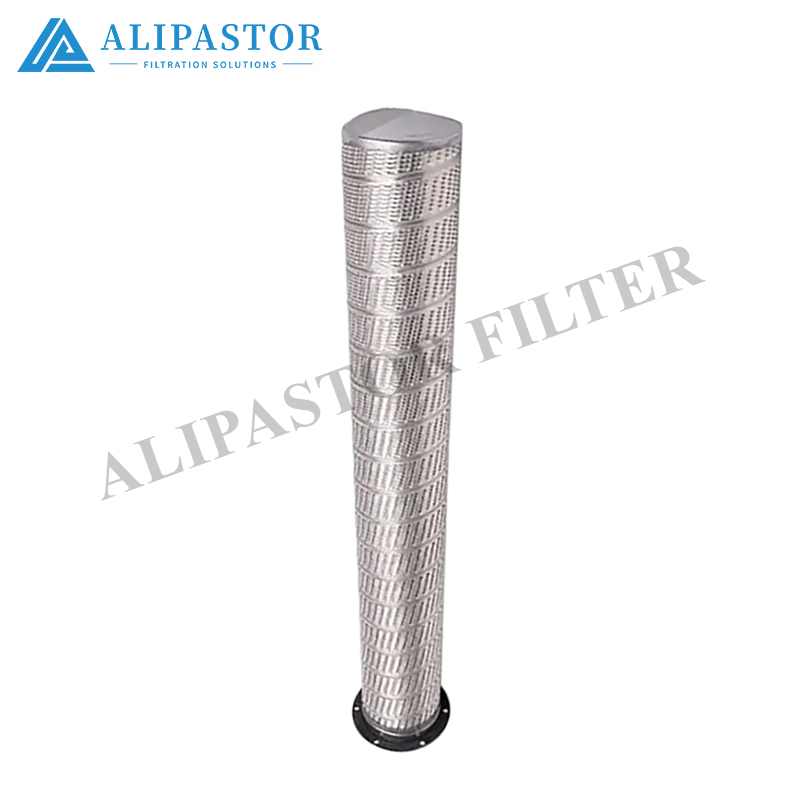

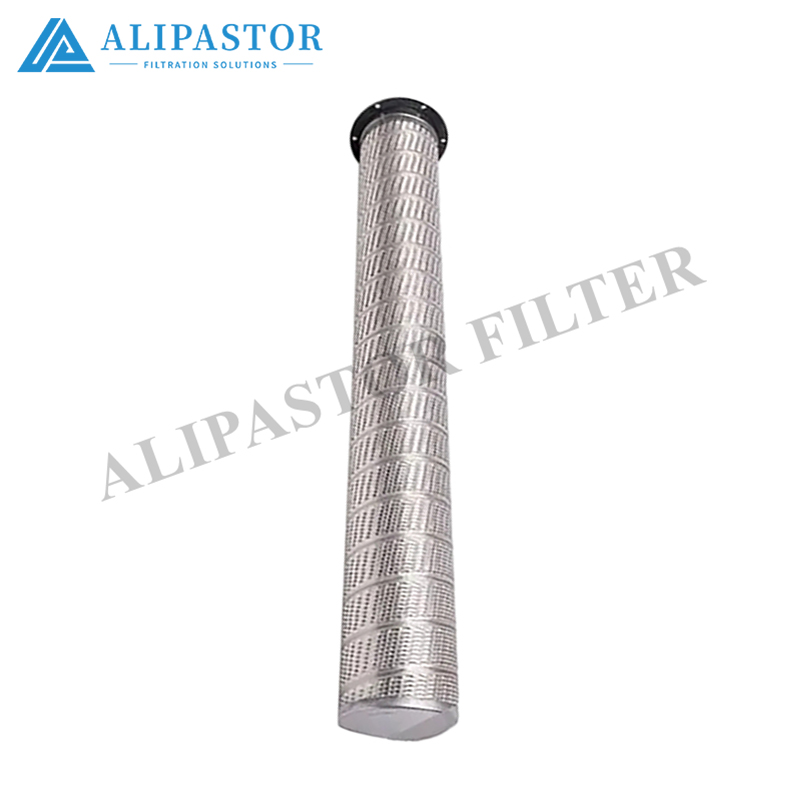

Hydraulic Oil Filter Elements – Models 531B0100H02 & 531B0100H03

Two high-performance pleated hydraulic oil filter elements from the same 531B0100 series, engineered for pressure-line, return-line, and bypass filtration on industrial hydraulic power units, compressor lube circuits, and mobile equipment. Both use glass-fiber composite media qualified to ISO 16889 multi-pass testing, with dual-layer galvanized steel inner and outer skeletons for high collapse resistance. The H02 and H03 suffixes denote different length / dirt-holding grades within the same housing family — confirming the exact dimensional envelope (OD, length, seal configuration) against your existing element is required at time of order.

Key Features

• Glass-fiber composite media, 1–100 µm selectable (β-ratio ≥ 100 per ISO 16889)




• Dual-layer galvanized steel inner + outer skeleton — collapse pressure up to 210 bar




• Gradient-density media structure for high dirt-holding capacity and low initial ΔP




• NBR seals standard (−30 °C to +100 °C); FKM optional for high-temperature or ester-fluid circuits




• Bypass valve optional per housing configuration




• Flow direction outside → inside (standard for pressure/return elements)




Technical Specifications

Exact OD, length, and seal interface (SOE/BH or per drawing) differ between H02 and H03 — confirm against your current element before ordering.

Application Guidance

Both elements serve pressure-line, return-line, and bypass duties on hydraulic power units, injection molding machines, press brakes, compressor lube circuits, and mobile excavator/loader hydraulics. The dual-layer steel skeleton provides the structural integrity needed for high-pressure pump-discharge positions, while the gradient-density glass-fiber media ensures stable β-ratio performance throughout the service life.

Selecting between 531B0100H02 and 531B0100H03 depends on:

• Available housing space (element length)




• Required dirt-holding capacity (longer element → longer service interval)




• Flow rate (higher flow → larger element / higher β-rating)




Micron grade should match circuit position:

• Pressure-line / servo valves: 1–5 µm




• Return line / general hydraulic: 10–25 µm




• Suction or pre-filtration: 50–100 µm




⚠️ Verify the bypass valve setting matches your housing — an incorrectly calibrated element allows unfiltered oil to circulate, causing component wear. Always confirm dimensions and connection type: even small differences in size or thread cause leaks.

Fluid Compatibility

• Mineral hydraulic oil (ISO HM, HV)




• Mineral turbine / gear / compressor oil (lubrication duty)




• Biodegradable esters (HEES, HETG) — use FKM seals




• HFC water-glycol — NBR acceptable; FKM recommended




• Not for phosphate ester (HFDR) without media/seal confirmation




Installation & Service

1. Turn off the equipment and power; close the oil inlet valve.




2. Open the drain port at the bottom of the filter housing and the vent at the top; discharge the oil cleanly.




3. Open the upper cover, remove the old element by its center tube, and clean all filter surfaces.




4. Inspect the housing interior, bypass spring, and seal grooves.




5. Seat the new element — confirm flow direction arrow (outside → inside). Renew all O-rings / seals.




6. Close the cover, torque bolts evenly in cross pattern. Bleed air at the bleed port.




7. Restart and check for leaks at operating pressure.




8. Replace per clogging indicator or 2000–4000 h service interval (depends on micron grade and contamination load).




Quality Assurance

• ISO 16889 – multi-pass filtration performance (β-ratio, dirt capacity, ΔP)




• ISO 2941 – collapse/burst resistance




• ISO 2942 – manufacturing integrity (bubble point)




• ISO 2943 – media/fluid compatibility




• ISO 3723 – end-load compliance




• ISO 3724 – flow fatigue under cyclic differential pressure




• ISO 3968 – differential pressure vs. flow-rate characteristics




Ordering

Specify 531B0100H02 or 531B0100H03 together with:

• Required micron rating (1 / 3 / 5 / 10 / 20 / 25 / 50 / 100 µm)




• Collapse pressure class (21 / 60 / 160 / 210 bar)




• Seal material (NBR / FKM)




• Bypass configuration (with / without)




• Mounting details (OD, length, seal interface of your current element)




Provide your existing element's dimensions or the host machine model and current OEM part number for cross-reference confirmation.

All values nominal; the precise OD, length, and seal interface geometry differ between H02 and H03 suffixes. Confirm against your current element or housing drawing before installation — select micron grade to match circuit position: too fine on suction/pre-filtration accelerates clogging; too coarse on servo circuits leaves precision components under-protected.
