Hydraulic Oil Filter Elements – Models 531B0099H21 & 531A0224H02

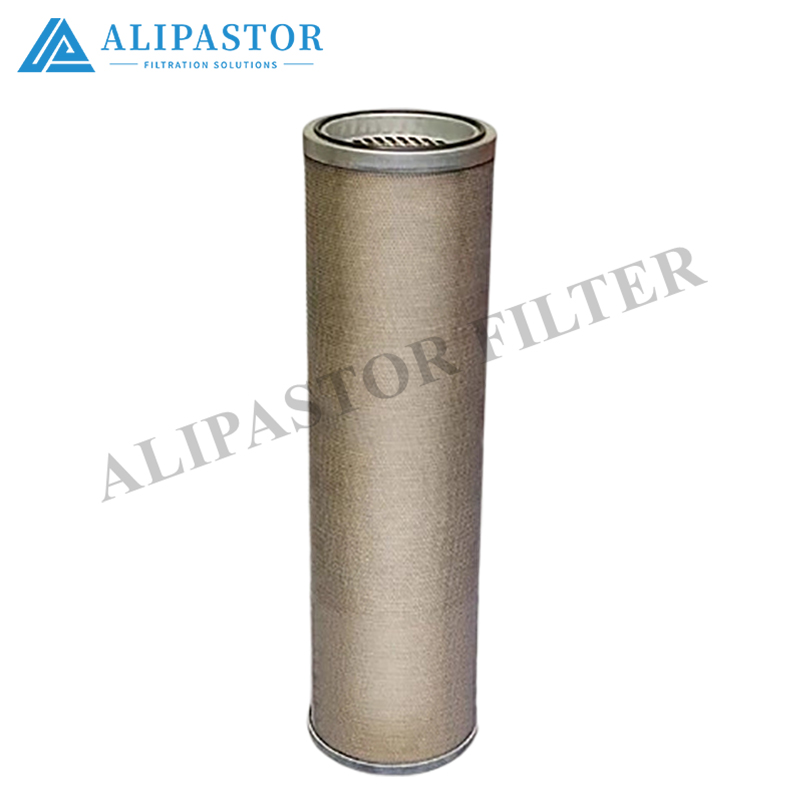

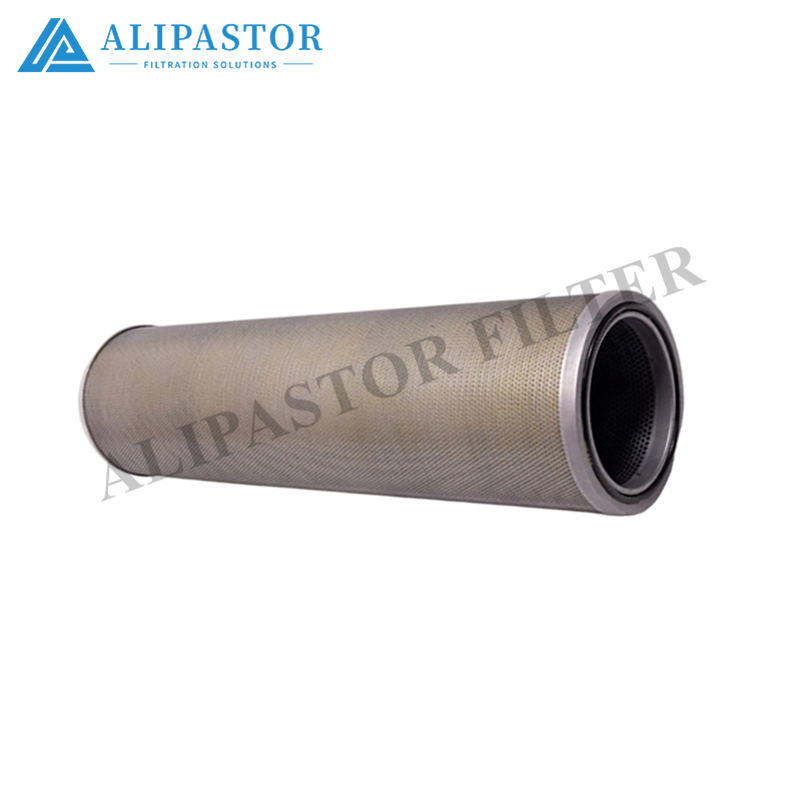

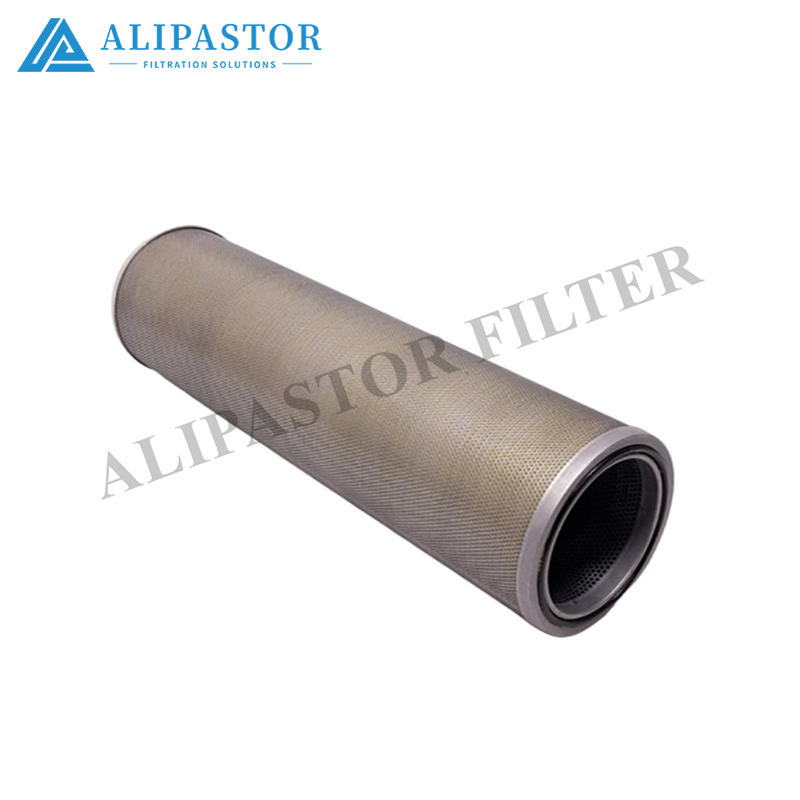

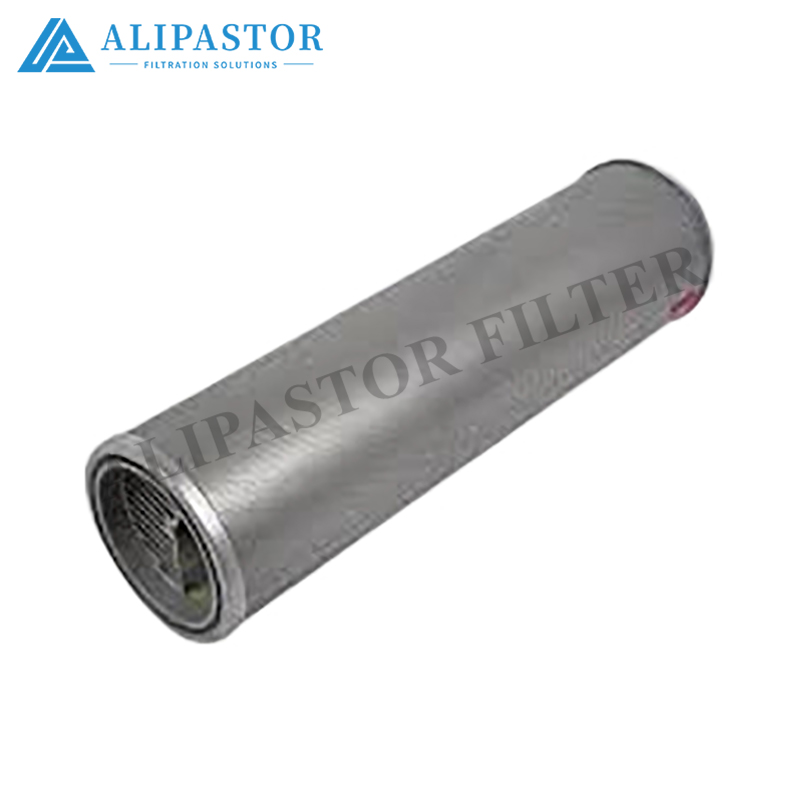

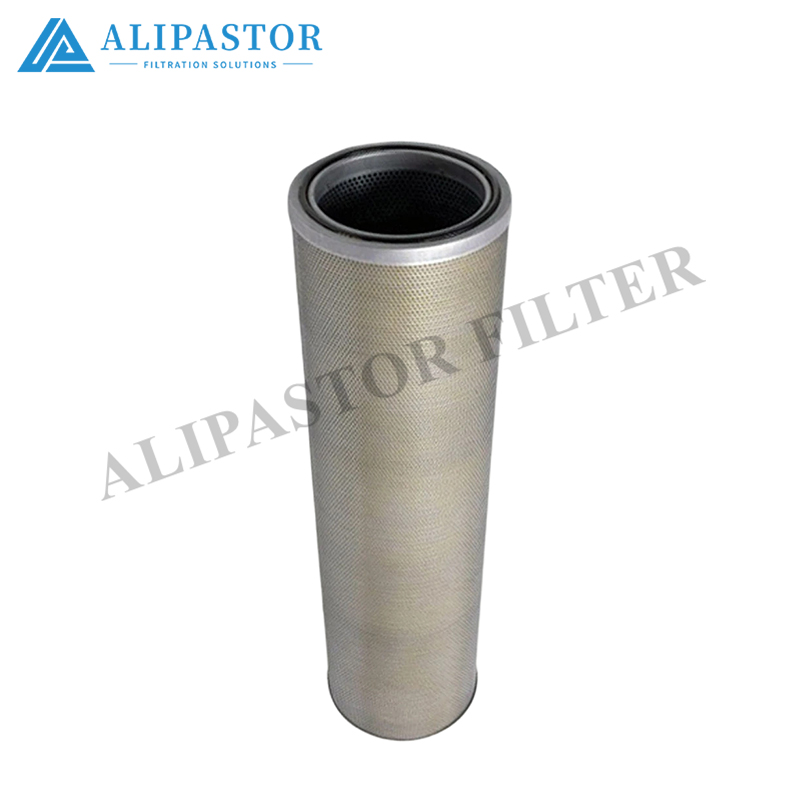

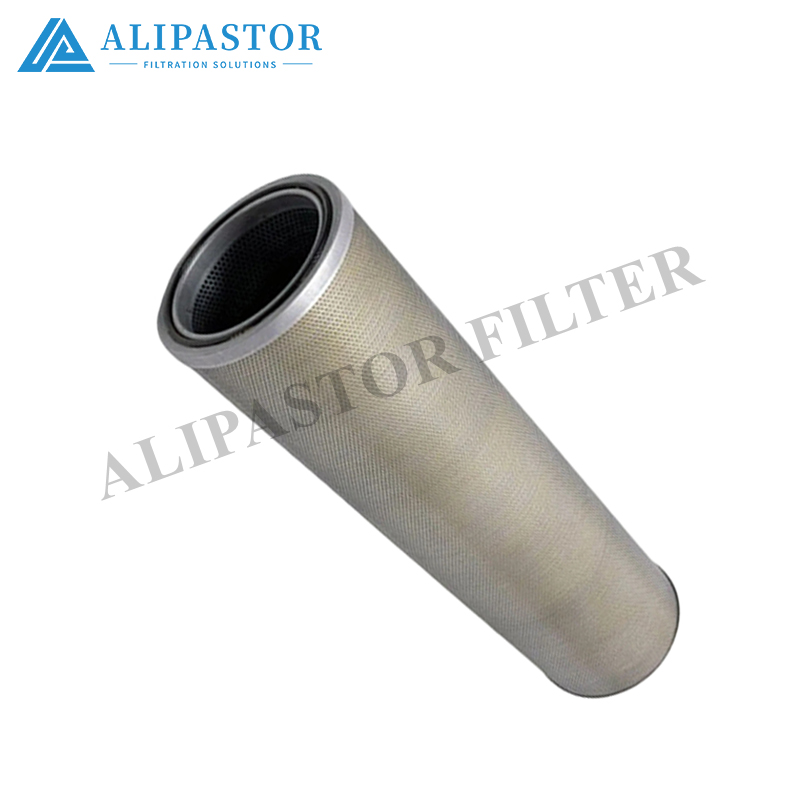

Two high-performance hydraulic oil filter elements engineered for industrial and mobile hydraulic circuits. 531B0099H21 is a coalescing-type element designed to remove oil mist, water aerosols, and sub-micron particles from compressed air / gas streams in screw compressor oil-recovery loops – often deployed as a hydraulic tank breather or oil-mist eliminator on large reservoir systems. 531A0224H02 is a pleated hydraulic oil filter element (152 mm OD × 366 mm length) with dual-layer galvanized steel inner/outer skeleton, suited for pressure-line, return-line, and bypass filtration on hydraulic power units, injection molding machines, and steel-mill hydraulic loops.

Key Features

• 531B0099H21: Multi-layer glass-fiber coalescing media, sub-micron oil-mist capture, 99.9 % separation efficiency, stainless steel inner skeleton, low initial ΔP ≤ 0.02 MPa, bypass valve optional (0.3–0.35 MPa)




• 531A0224H02: Pleated glass-fiber / filter-paper composite, 1–100 µm selectable, dual-layer galvanized steel skeleton, collapse pressure up to 210 bar, NBR seal standard (FKM optional)




• Both: gradient-density media structure, all-metal anti-corrosion plated components, compliant with ISO 16889 / 2941 / 2942 / 2943 / 3724 / 3968




Technical Specifications

Application Guidance

531B0099H21 – Installed on the oil-return line or tank vent of screw compressors and large hydraulic reservoirs to capture oil mist and water condensation. Through inertial impaction, Brownian diffusion, and coalescence, sub-micron droplets merge into larger drops that drain back to the sump, while clean air/gas exits to atmosphere or downstream equipment. Essential for maintaining oil balance, reducing oil carryover, and protecting downstream filters and heat exchangers.

531A0224H02 – A versatile hydraulic element for both industrial and mobile equipment. The selectable micron rating (1 µm for servo-valve protection, 100 µm for coarse suction/pre-filtration) and dual-layer steel skeleton let it be specified for pump-discharge protection, return-line filtration, compressor lube circulation, and bypass filtration. Typical hosts: injection molding machines, steel-mill hydraulic loops, power-plant turbine lube systems, and compressor oil circuits.

💡 Functional distinction: 531B0099H21 performs phase separation (liquid aerosol from gas); 531A0224H02 performs particulate filtration (solid contaminants from liquid oil). They are not interchangeable – H21 fits separator/tank-breather housings; H02 fits standard hydraulic filter heads.

Fluid Compatibility

• Mineral hydraulic oil (ISO HM, HV)




• Mineral turbine / gear / compressor oil




• Glycol and water-glycol mixtures




• Refrigeration compressor lubricating oil




• Oil mist in compressed air / refrigeration gas streams




• Biodegradable esters (HEES, HETG) – use FKM seals




• Not for phosphate ester (HFDR) without media/seal confirmation




Installation & Service

531B0099H21 (coalescer):

1. Shut down compressor/reservoir, isolate power, relieve pressure to 0 bar.




2. Drain oil from housing; place collector beneath before opening.




3. Withdraw spent element by center tube – never strike, drop, or pry.




4. Inspect housing interior, diffuser, and seal groove.




5. Seat new element – confirm flow direction and SOE/BH interface alignment. Renew all O-rings.




6. Close housing, torque bolts evenly. Ramp pressure up gradually.




7. Replace per 5000–8000 h schedule or when oil carryover exceeds 3 ppm.




531A0224H02 (pleated element):

1. Turn off equipment, close oil inlet valve, open drain port and vent.




2. Open upper cover, remove old element, clean all filter surfaces.




3. Install new element – confirm flow direction, renew seals.




4. Close cover, torque evenly, bleed air at bleed port.




5. Replace per clogging indicator or 2000–4000 h interval (depends on micron grade and contamination load).




⚠️ Filter elements are consumables. Avoid scratching, impact, or striking – never apply direct force to the element surface with tools. Normal flow direction is outside → inside; reverse filtration is not recommended.

Quality Assurance

• ISO 16889 – multi-pass β-ratio, dirt capacity, ΔP




• ISO 2941 – collapse/burst resistance




• ISO 2942 – manufacturing integrity (bubble point)




• ISO 2943 – media/fluid compatibility




• ISO 3723 – end-load compliance




• ISO 3724 – flow fatigue under cyclic differential pressure




• ISO 3968 – differential pressure vs. flow-rate characteristics




Ordering

Specify 531B0099H21 (coalescing separator / tank-breather element) with:

• Required efficiency class




• Seal material (NBR / FKM)




• Housing interface (SOE/BH or per drawing)




Specify 531A0224H02 (152 × 366 mm hydraulic element) with:

• Micron rating (1 / 3 / 5 / 10 / 20 / 25 / 50 / 100 µm)




• Collapse pressure class (21 / 60 / 160 / 210 bar)




• Seal material (NBR / FKM)




• Position (pressure / return / bypass)




Provide existing element dimensions or host machine model and current OEM part number for cross-reference confirmation.

All values nominal; 531B0099H21 dimensional envelope must be confirmed against your separator/tank-breather drawing. 531A0224H02 dimensions fixed at 152 × 366 mm. Select micron grade to match circuit position: 1–5 µm for servo valves, 10–25 µm for general hydraulic, 50–100 µm for suction or pre-filtration.
