Hydraulic Oil Filter Elements – Models 026-32831-000 & 026-32386-000

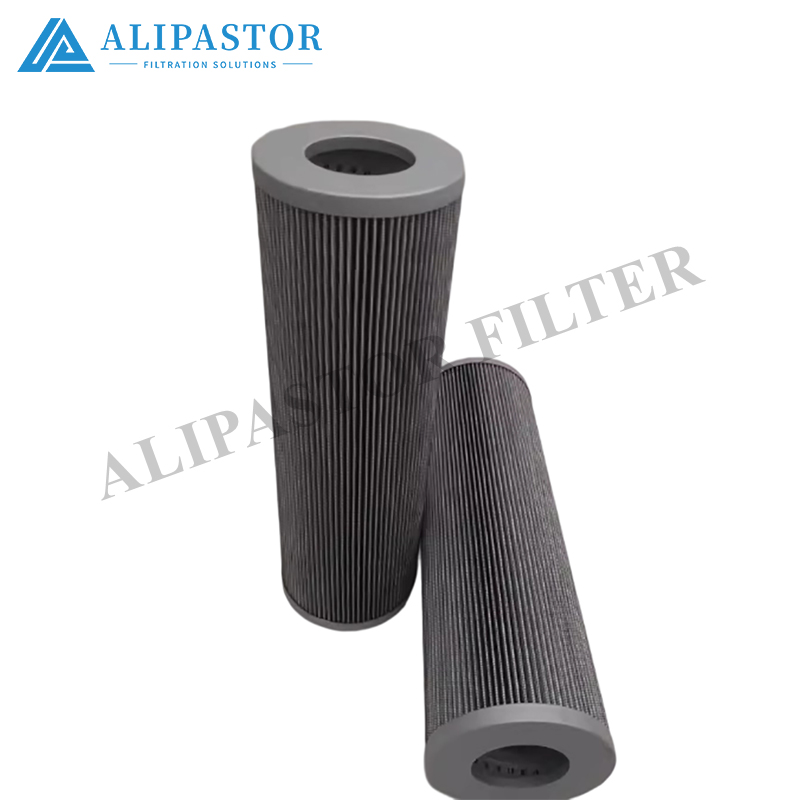

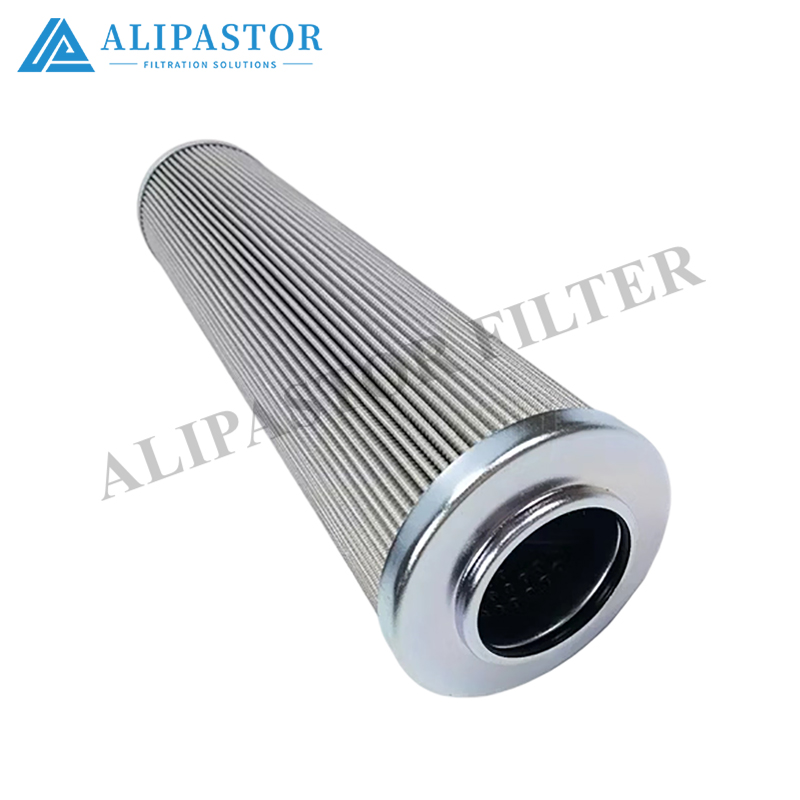

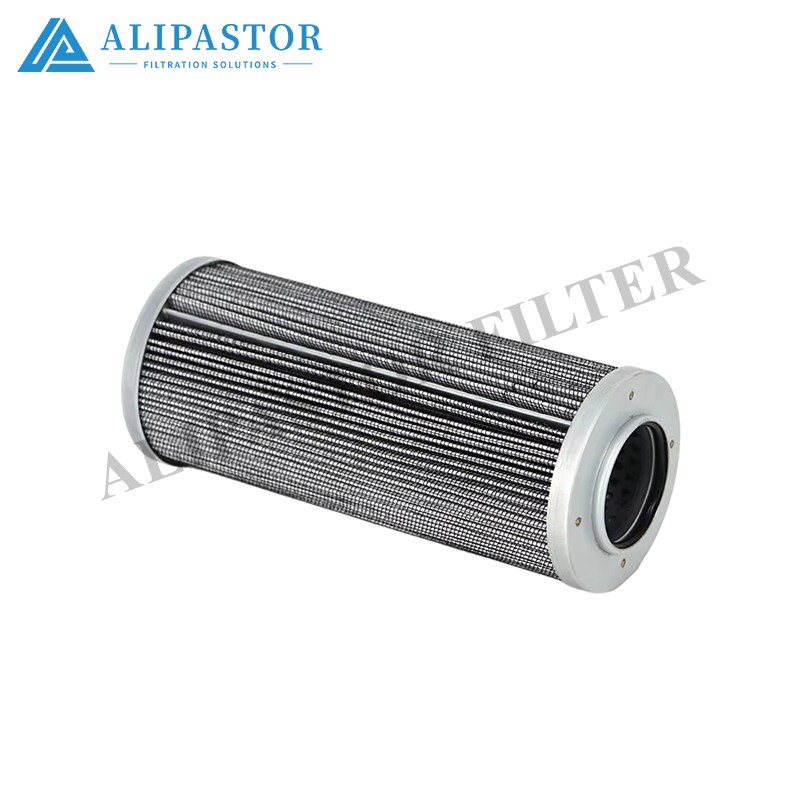

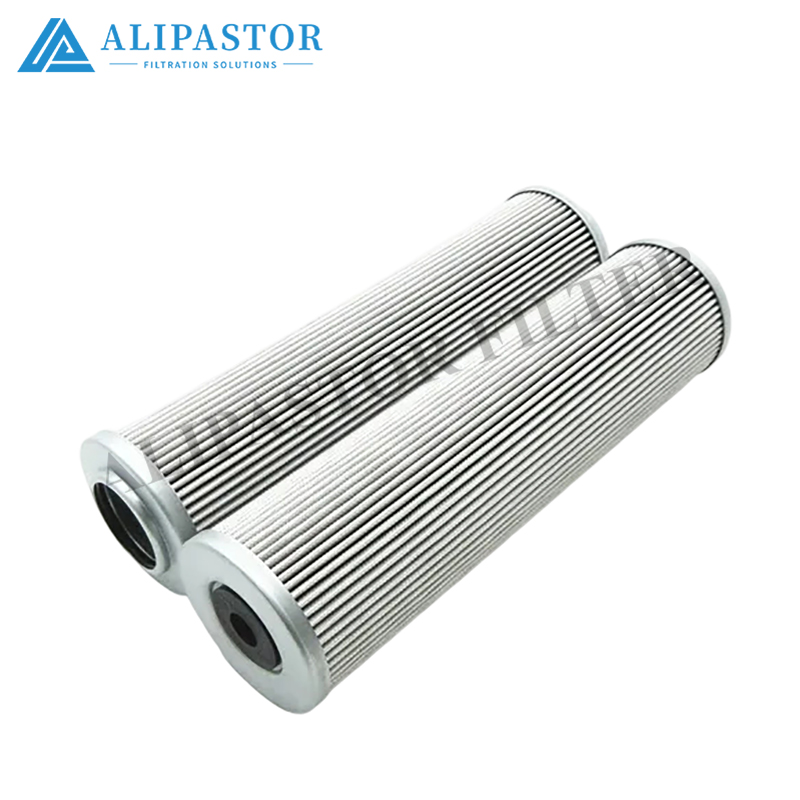

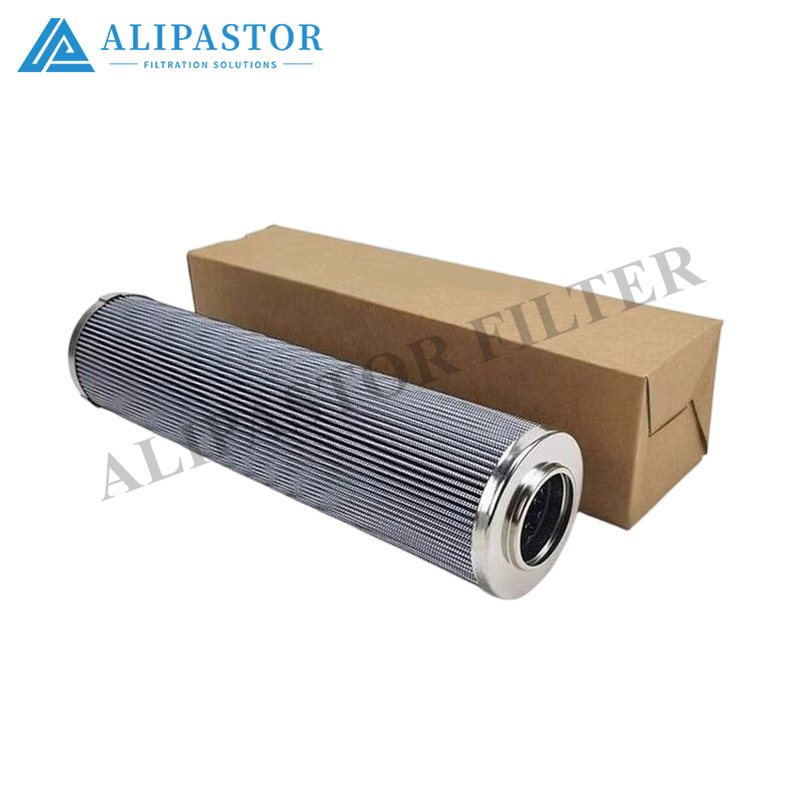

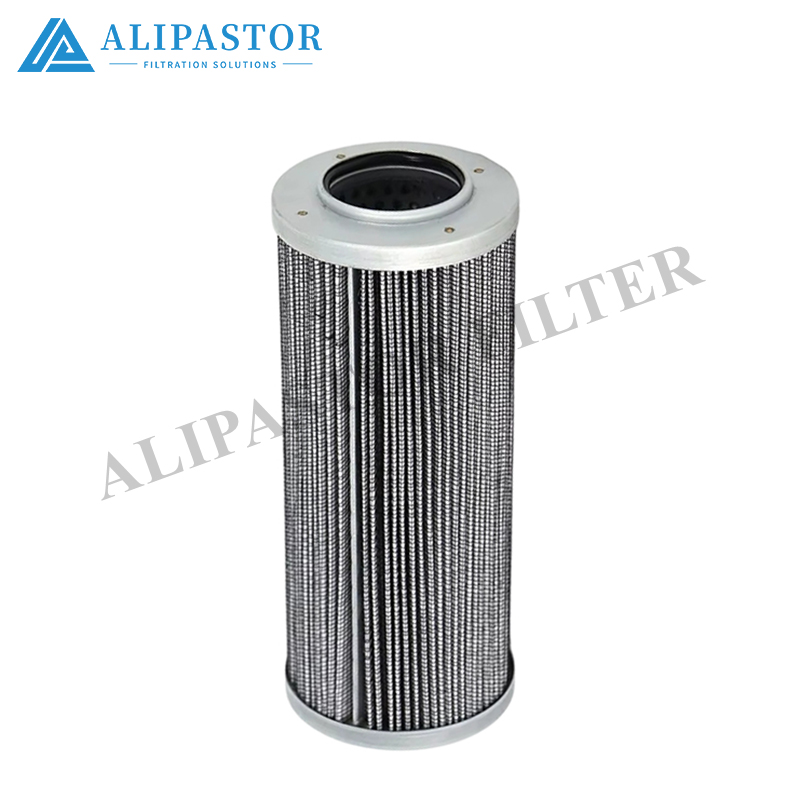

Two replacement hydraulic and lubrication oil filter elements from the same 026-series industrial filter family, designed for oil-filter circuits on refrigeration screw compressors, central HVAC chillers, hydraulic power units, and industrial lubrication systems. 026-32831-000 is specified as a return-line oil filter element (metal mesh media, 50 µm grade, 0.35 MPa collapse rating) for YORK-pattern centrifugal and screw compressor lube loops . 026-32386-000 is the companion oil filter in the same 026 family — dimensional variant within the same housing envelope, configurable to the host machine's micron requirement and pressure class . Both remove metallic wear particles and mechanical impurities from the oil circuit, maintaining oil cleanliness to extend system component life.

Key Features

• 026-32831-000: Metal mesh filtration media, 50 µm grade, flow outside → inside, NBR sealing ring, operating temperature -10 °C to +110 °C, withstanding differential pressure 0.35 MPa, return-line (low-pressure) duty




• 026-32386-000: Same 026-series architecture, configurable micron grade, glass-fiber or metal-mesh media, NBR / FKM seal option




• Both: filter media options include glass fiber, wood pulp filter paper, stainless steel sinter fiber web, and stainless steel wire woven — nominal filtration rating 0.01 µm to 1000 µm




• Operating pressure 21–210 bar (Hydraulic Liquid Filtration)




• O-ring material: Viton (FKM) or NBR




Technical Specifications

Application Guidance

026-32831-000 – Installed in the return-line oil circuit of refrigeration screw compressors (YS-series centrifugal and YEWS screw chiller units) and industrial HVAC systems . Removes metallic wear debris and mechanical impurities generated by bearings, gears, and rotating assemblies, preventing particle recirculation into the compressor and extending component life . The 50 µm grade is tuned for return-line duty where flow is continuous but pressure is modest (≤0.35 MPa ΔP).

026-32386-000 – The companion oil filter in the same 026 family, deployed on refrigeration compressor lube circuits and industrial hydraulic power units. Configurable to the host machine's pressure class: 21 MPa pressure-line trim for pump-discharge protection, or return-line trim for lower-pressure duty. The 20 µm grade (typical for the 026 family) balances filtration efficiency with dirt-holding capacity.

💡 Both elements follow the same principle: maintain oil cleanliness in refrigeration and hydraulic systems. Select micron grade by circuit position — 20 µm for return-line and general lube oil, 50 µm for coarse return filtration, and finer grades (down to 0.01 µm) for specialized separation duties. The 026 family is widely applied across refrigeration/air-conditioning, heavy machinery, petrochemical, power generation, and aviation markets .

Fluid Compatibility

• Mineral refrigeration compressor oil




• Mineral hydraulic oil (ISO HM, HV)




• Phosphate ester hydraulic oil




• Emulsion and water-glycol (HFC)




• Lubricating oil and gear oil




• Not for strong solvents or corrosive chemicals




Installation & Service

1. Shut down the compressor/hydraulic unit; relieve oil pressure to 0 bar.




2. Drain oil from the filter housing — place an oil collector beneath before opening.




3. Withdraw the spent element — never strike, drop, or pry the element; the media pack is precision-formed.




4. Inspect the housing interior, bypass spring (if fitted), and seal groove.




5. Seat the new element — confirm flow direction arrow (Outside → Inside). Renew all O-rings / seals.




6. Close the housing, torque bolts evenly. Ramp system pressure up gradually — do not instantaneously open the valve to full pressure.




7. Check for leaks at operating temperature.




8. Replace per clogging indicator or service interval (return-line 026-32831-000 typical 2000–4000 h; pressure-line trim shorter under high contamination load).




⚠️ Filter elements are consumables. During removal, avoid scratching, impact, or striking — never apply direct force to the element surface with tools. Reverse filtration (inside → outside) is not recommended.

Quality Assurance

• ISO 16889 – multi-pass filtration performance (β-ratio, dirt capacity, ΔP)




• ISO 2941 – collapse/burst resistance




• ISO 2942 – manufacturing integrity (bubble point)




• ISO 2943 – media/fluid compatibility




• ISO 3968 – differential pressure vs. flow-rate characteristics




• 7-point inspection and trial-run validation per OEM replacement protocol




Ordering

Specify 026-32831-000 (50 µm, metal mesh, return-line oil filter for refrigeration compressors) with:

• Seal material (NBR standard)




Specify 026-32386-000 (oil filter, 026 family) with:

• Required micron rating (20 µm typical; 0.01–1000 µm available)




• Media type (glass fiber / metal mesh / stainless steel)




• Pressure class (return-line / 21 MPa pressure-line)




• Seal material (NBR / FKM)




Provide your existing element's dimensions or the host machine model and current OEM part number for cross-reference confirmation.

All values nominal; 026-32831-000 is fixed at 50 µm metal mesh, return-line duty, 0.35 MPa ΔP, -10 °C to +110 °C, NBR seal . 026-32386-000 dimensional envelope and micron grade are configurable per housing pattern — confirm against your current element or housing drawing before installation. Select micron grade to match circuit position: too fine on return-line accelerates clogging; too coarse on pressure-line leaves precision components under-protected.
