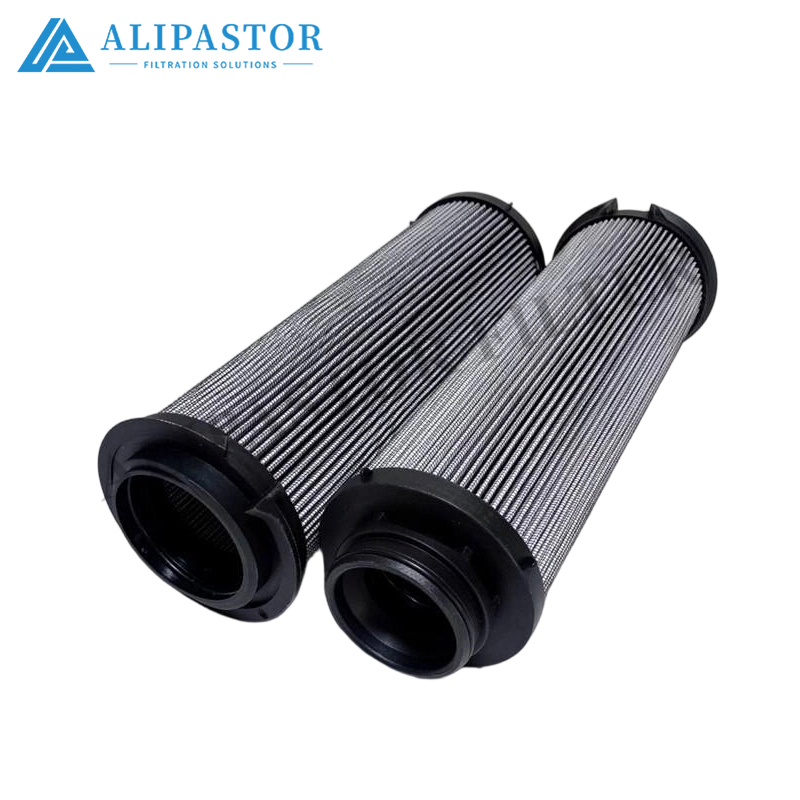

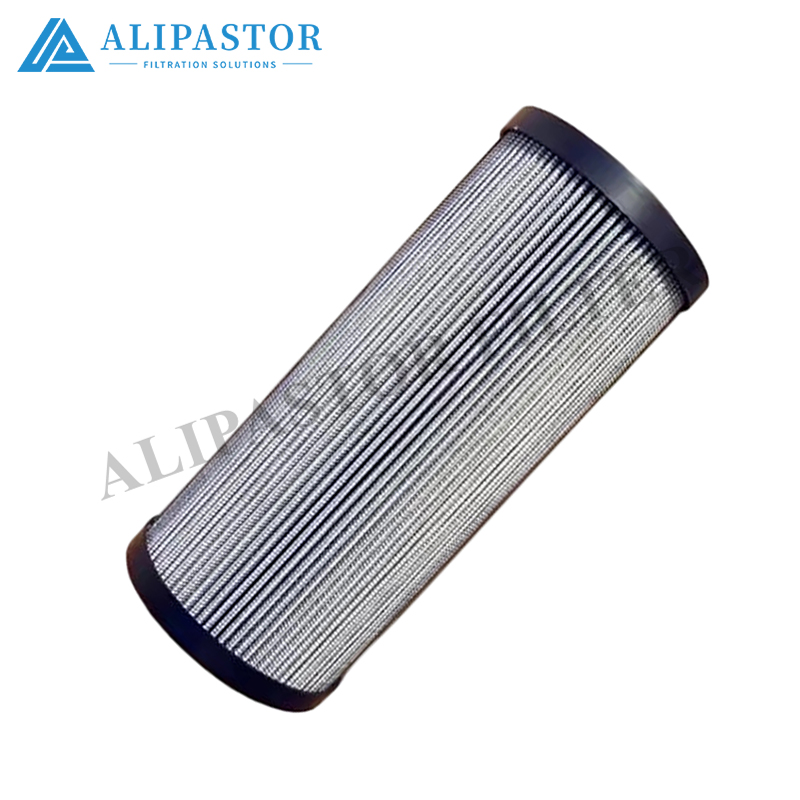

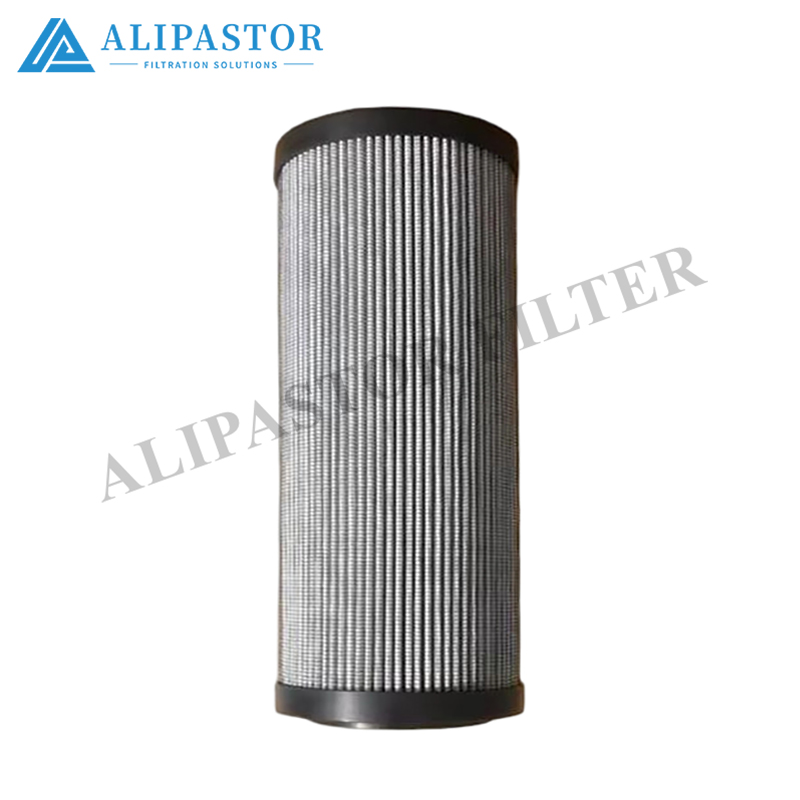

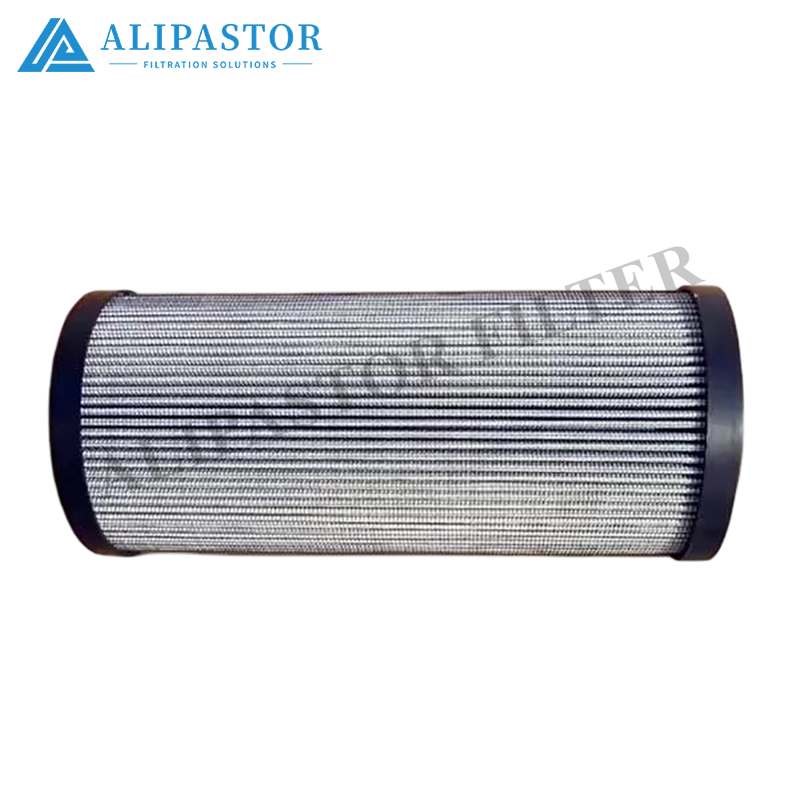

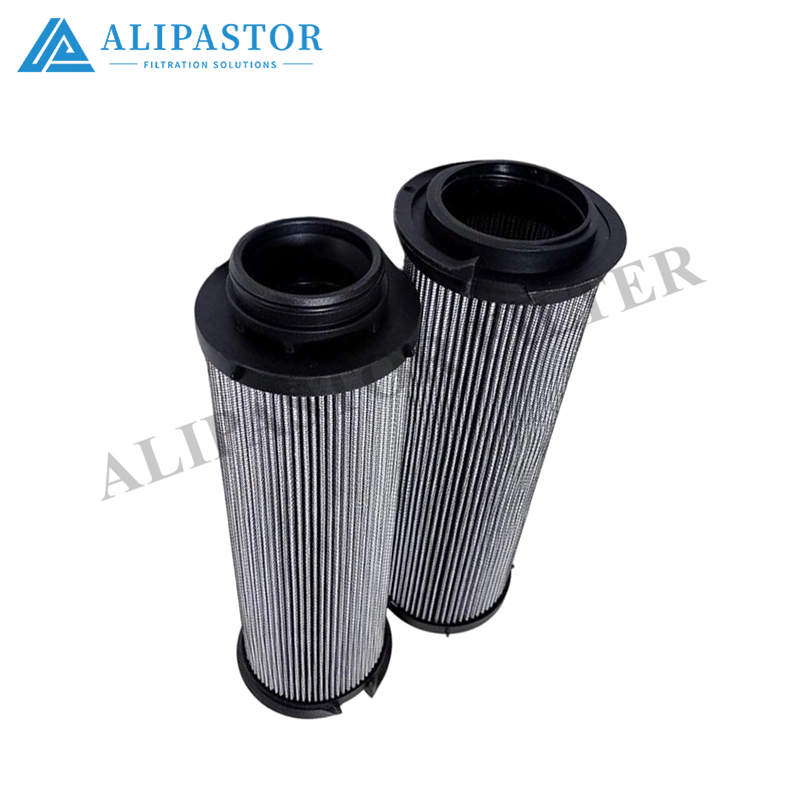

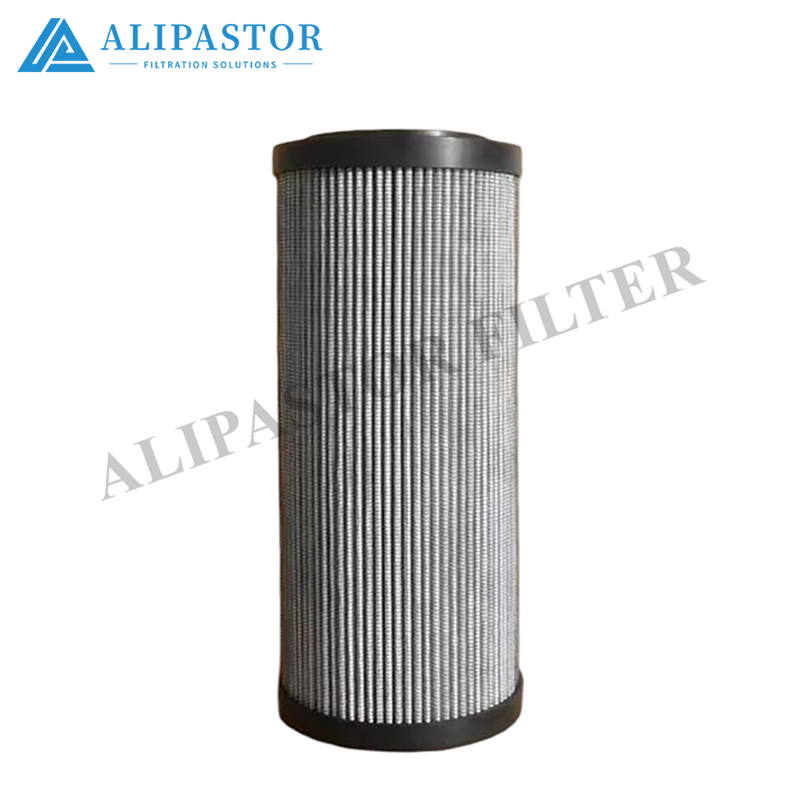

SE045A05B SS024E10B Hydraulic Servo Precision Filter SE045A05B SS024E10B High Efficiency Fiber Media For CNC Machine Tools
Similar models
| SE-070C10 | RE160A10B | SE070G10E/4 | SCF-08 |
| SE-070C03B | RE-014N10B | RE160G10B=0660R | SE-160-H-05-B/4 |
| SE045A05B | RE-300G20B/5-1613 | RFG-536-CE-1 | SP-304E03B |
| SS024E10B | RN016E20B | SE014H10B | RTE90D10B |
| SUS-P-102-B24F-200-125-3 | RN030E20B | SF-6706-MG | NR-630-R-10-B |
| SUS-P-050-B06F-067-125-0 | RTE80D10B | SF-6702-MG | SE-090-G-05-B/4 |
| SS-035B40B | 3970GGCB18 | SP030E03B/4 | RE-070G10B/4 |
| SGB 120-03-B | SP200E05B/4 | SFC-5710E | SE-090G10/4 |
| NR-1000-E-03-B | RE-300-G-10-B/5 | SE-300-G-03-B/4 |
Basic Info.
Type | Hydraulic oil filter | Material | Stainless steel wire mesh |
Warranty | 6 Month | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | Place of Origin | Henan, China |
Brand Name | ALIPASTOR | Application | for Hydraulic system |
Product Name | Hydraulic oil filter | Part Number | SE045A05B SS024E10B |
Keyword | Hydraulic oil filter | Weight | Standard |
Filtration | 1-70micron | Color | Customize |
Filtration Grade | 99% | Warranty | 3 Months |
Production Capacity | 1000 PCS/Week |
Product Parameters
Model Number | SE045A05B SS024E10B |
Type | Hydraulic oil filter element |
Dimension | Standard |
Working Temperature | According to customer's request |
Work Pressure Different | Customized |
Material | Stainless steel wire mesh |
Filter Precision | 3~100μm |
Life span | 2000h |
MOQ | 1 pieces |
Lead Time | Around 5-7 days after order confirmed |
Package | PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement |
Shipping Method | By sea, by air, by express |
Hydraulic / Circulating-Oil Filter Elements — Quick Reference (English)
Items: SE045A05B· SS024E10B
1) SE045A05B— Return-Line / Kidney-Loop Element (Coarser Guard)
What it is
A disposable pleated element in a pipe-mounted canister (clamp-band bowl, flow arrow on the head).
Typical duty: return line or off-line polisher protecting tank/lube cleanliness.
Segment | Practical meaning |
|---|---|
SE | Return/circulating filter family |
045 | Size/flow class → locks OD / height / centre-tube |
A05 | A = media family (fiber/fleece) · 05 ≈ 5 µm class (finer) |
B | Buna-N / NBR seal (black/dark grey) — and usually means an integral bypass ~3 bar is present (so if ΔP is red, oil bypasses unfiltered) |
Check before fitting
Housing nameplate near ports: should read the SE045… model, pressure bar (return class), port size, FLOW ARROW.
Ruler-check new vs old: H / OD / centre-hole.
O-ring colour: black/dark grey (NBR). Brown/red = stop — wrong compound.
Replace (short version)
Stop pump → vent/bleed until 0 bar.
Support bowl → clamp off → pull element straight out.
Check bowl bottom for bright metal (wear).
Thin film clean hydraulic oil on O-ring (no grease).
Seat square on centre tube → close vent → ΔP green / no seep.
Procurement wording
“SE045A05B — Element for SE045-family housing (A05 ≈ 5 µm, B = NBR / integral bypass). Confirm against head nameplate; require OD / H / centre bore / seal compound before delivery.”
2) SS024E10B— Return-Line / Kidney-Loop Element (Standard 10 µm)
What it is
Same “SE/SS” style family logic: disposable pleated canister element, pipe-mounted.
Segment | Practical meaning |
|---|---|
SS | Return/circulating family (often the “smaller-flow” brother of SE…) |
024 | Size class → smaller can than 045 (OD smaller, height shorter) |
E10 | E = media family · 10 ≈ 10 µm class |
B | NBR (black/dark grey) + integral bypass |
Check before fitting
Nameplate should contain SS024…, ports, pressure bar, arrow.
Ruler-check H / OD / centre-hole (this can is noticeably smaller than 045).
O-ring colour = black/dark grey (NBR). Brown/red → stop.
Replace
Same 5-step sequence as above (vent → support → straight pull → oil O-ring → square seat → bleed → green).
Procurement wording
“SS024E10B — Element for SS024-family housing (E10 ≈ 10 µm, B = NBR / bypass). Confirm against head nameplate; require OD / H / centre bore / seal compound before delivery.”
3) Quick Field ID (don’t mix SE045 ↔ SS024)
Look at | SE045A05B | SS024E10B |
|---|---|---|
Can size | Larger bowl / longer element | Smaller bowl / shorter element |
µm intent | 5 µm (finer) | 10 µm (standard) |
Seal | NBR (B) — black/grey | NBR (B) — black/grey |
Mix-up risk | ❌ Wrong OD/H → won’t seat / bypasses | ❌ Wrong locator → same problem |
One-Line BOM (copy-paste)
SE045A05B— Return/kidney-loop element, SE045 family, ≈5 µm, NBR (B), fits SE045 head nameplate onlySS024E10B— Return/kidney-loop element, SS024 family, ≈10 µm, NBR (B), fits SS024 head nameplate only
Rule: the metal nameplate on the head decides.
Paint flaked? → ruler on the old element → write H / OD on the BOM line. That’s all Stores needs to stop “looks the same” mistakes.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4.What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q5.What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q6. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q7. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
