Hydraulic / Circulating-Oil Filter Items — Quick Reference (English)

Items: SE014H10B· RFG-536-CE-1

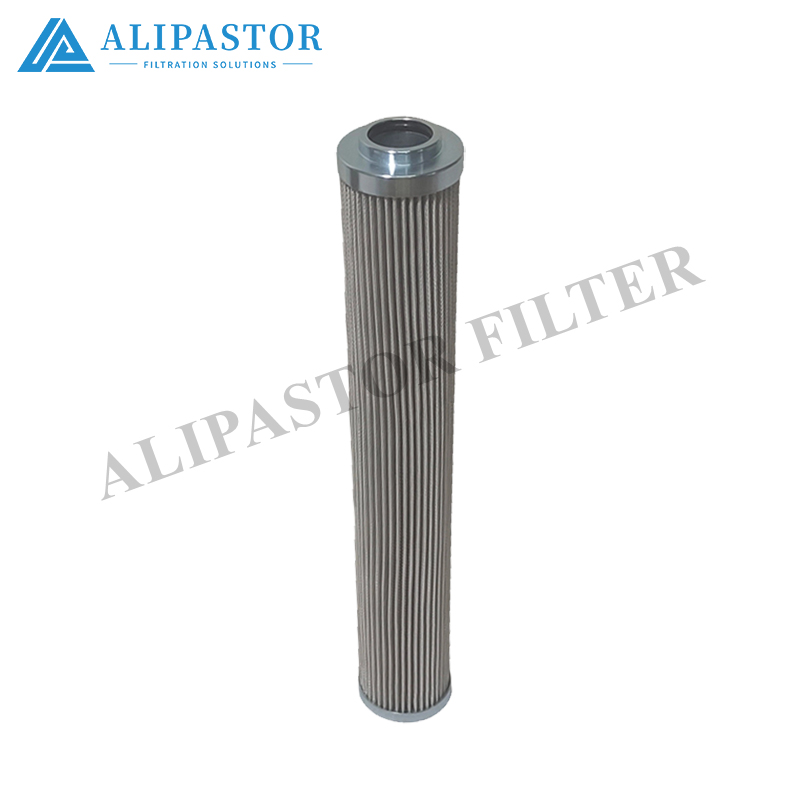

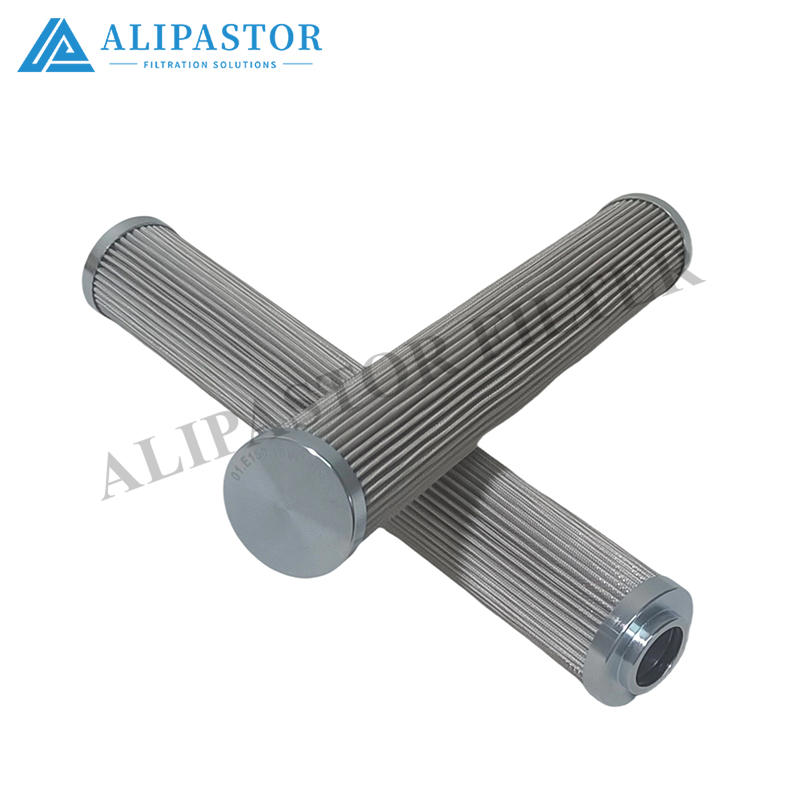

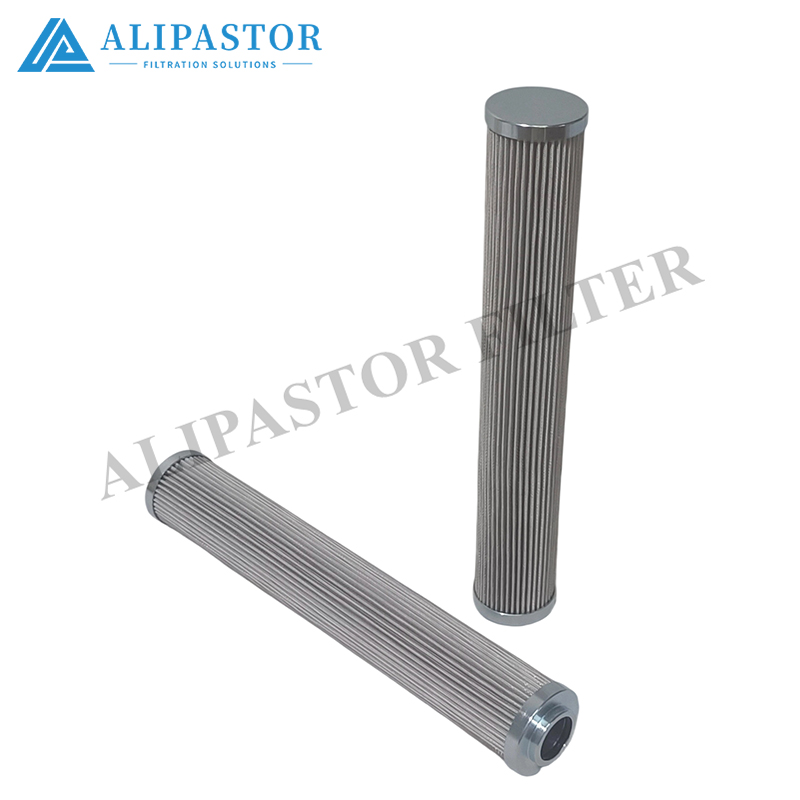

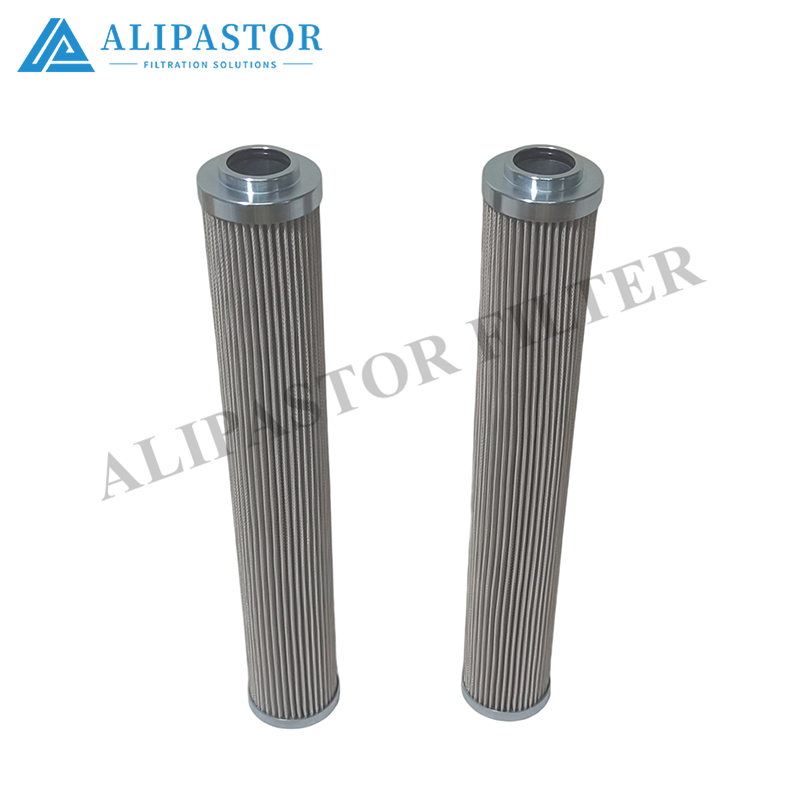

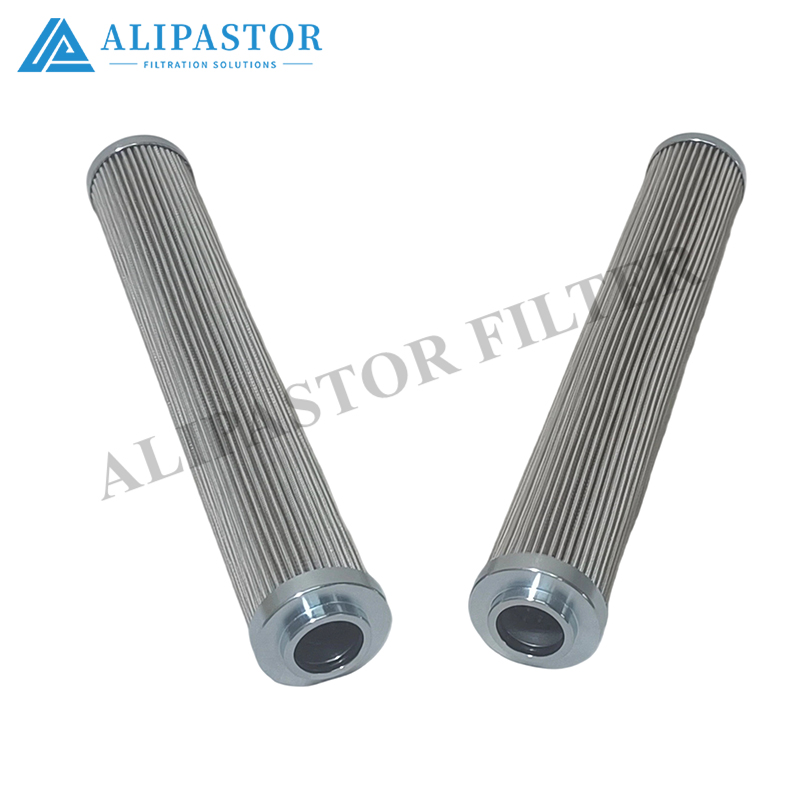

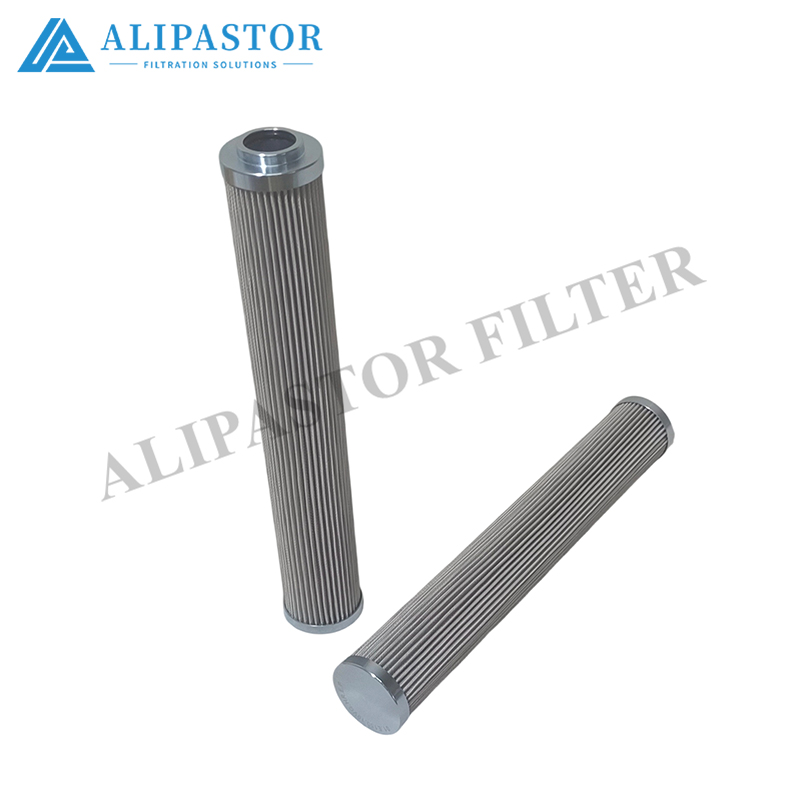

1) SE014H10B— Return-Line / Kidney-Loop Filter Element

What it is

A disposable pleated filter element used in a pipe-mounted canister (clamp-band bowl, flow arrow on the head). In most plants this sits on the return leg or a small off-line purification loop protecting tank/lube cleanliness.

Read the code pattern field-style:

What to check before fitting

• Housing nameplate near the ports: should show the model containing SE014…, pressure rating (return class), port size, and a FLOW ARROW.




• Old → new ruler-check: height / OD / centre-hole must match.




• O-ring colour: should be black/dark grey (NBR). If the old seal is brown/red, stop — you may need the Viton variant, not a “B” spare.




Replacement steps

1. Stop pump → open vent/bleed until pressure = 0.




2. Support the bowl — don’t let it hang on piping.




3. Release clamp band → lift element straight out (no prying against pleats).




4. Check bowl bottom for bright metal shavings (pump/gear wear warning).




5. Wipe sealing face → thin film clean hydraulic oil on O-ring (no grease, no sealant).




6. Seat element square on centre support tube → close vent slowly → ΔP indicator green, no seep.




Procurement wording (safe)

“SE014H10B — Element for SE014-family housing (H10 ≈ 10 µm, B = NBR / integral bypass). Confirm against head nameplate; require supplier to state OD / height / centre bore / seal compound before delivery. No ‘looks close’ substitute.”

2) RFG-536-CE-1— Duplex / Lube-Oil Filter Element (Circulating-Oil Duty)

What it is

The RFG-536 form points to a duplex filter body — two bowls + a switch handle — typically used on lube-oil / thin-oil circuits (gearboxes, turbines, compressors, pump bearings).

This is not a high-pressure pump-discharge guard; it’s a continuous-protection device so the system can keep running while one side is serviced.

• 536 = duplex body size class (fixes centre distance / bowl depth / port DN)




• CE / C portion = NBR seal (black/dark grey, mineral lube oil)




• -1 = side/index or length variant — treat as “part of the identity”; don’t drop it when reordering




What to check before fitting

• Read the body nameplate / ID plate on the duplex casting: model RFG-536…, pressure rating (often 1.0–1.6 MPa / 10–16 bar for lube duty), port size/DN, and the A / B side markings.




• Old cartridge: ruler-check height / OD / centre-hole; note end style (usually double-open, slides on the centre rod).




• O-ring colour: CE/C = NBR → black/dark grey. Brown/red = stop.




Replacement — duplex method (system keeps running)

1. Rotate the handle to put the side you’re opening offline (confirm flow stops on that side by listening/feeling).




2. Open the drain on that side (duplex bowls can be tall — catch oil).




3. Unbolt the cover → lift cartridge straight out → check for bright metal shavings (bearing/journal wear signal).




4. Wipe sealing face → thin film of clean lube/hydraulic oil on the O-ring (nothing else).




5. Seat square on the centre rod → close cover → bleed air.




6. When work is complete, you can rotate back or leave as your procedure says — never leave the handle halfway.




Procurement wording (safe)

“RFG-536-CE-1 — Lube/duplex filter element for RFG-536 body (CE = NBR seal, -1 variant). Issue / reorder against the housing model on the body nameplate; require supplier to confirm height / OD / centre bore from our existing element before delivery. No ‘same-size’ substitute.”

3) One-Line BOM (copy-paste)

• SE014H10B— Return-line / kidney-loop element, SE014 family, ≈10 µm, NBR (B), integral bypass ~3 bar, fits SE014 head nameplate only




• RFG-536-CE-1— Duplex lube-oil element, RFG-536 body, NBR (CE/C), fits RFG-536 body nameplate only — operate by A/B handle, not by “swap whichever looks dirty”




Field rule (simple, safe)

• SE014 canister: vent until 0, seat square on the centre tube, watch the ΔP light.




• RFG-536 duplex: the handle shows which side is online — never open the “wrong” side, and always write the A/B side on the work order so the next shift isn’t guessing.




If paint hides the nameplate, stand the old element upright, ruler against it, and write H = ___mm / OD = ___mm on the BOM line — that alone makes both spares bulletproof without any brand name.
