Filter Items — Quick Reference (English)

Items: P4618-10A· 3870-01-094-GEJ

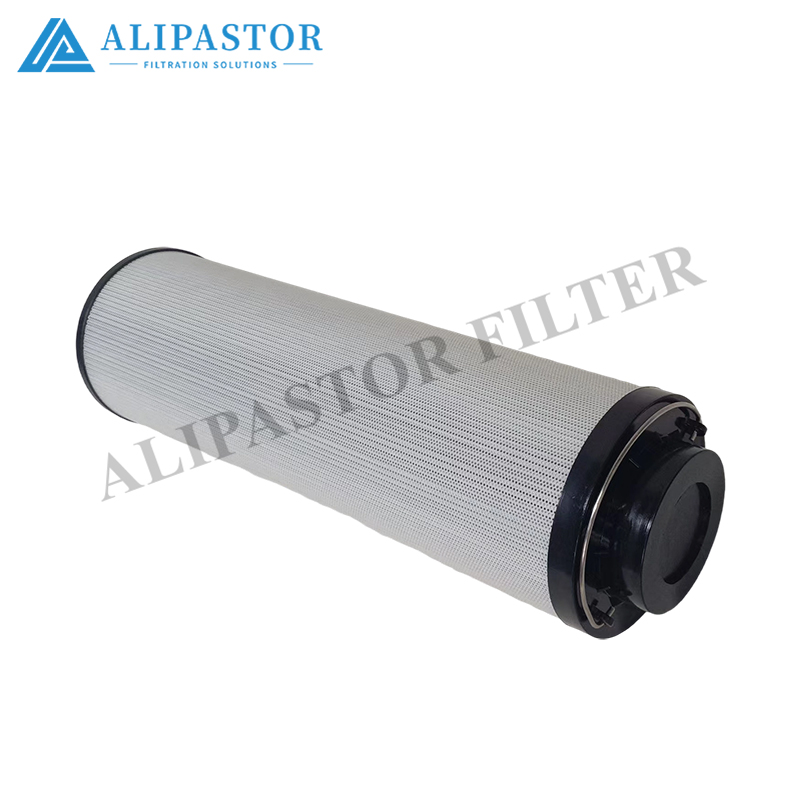

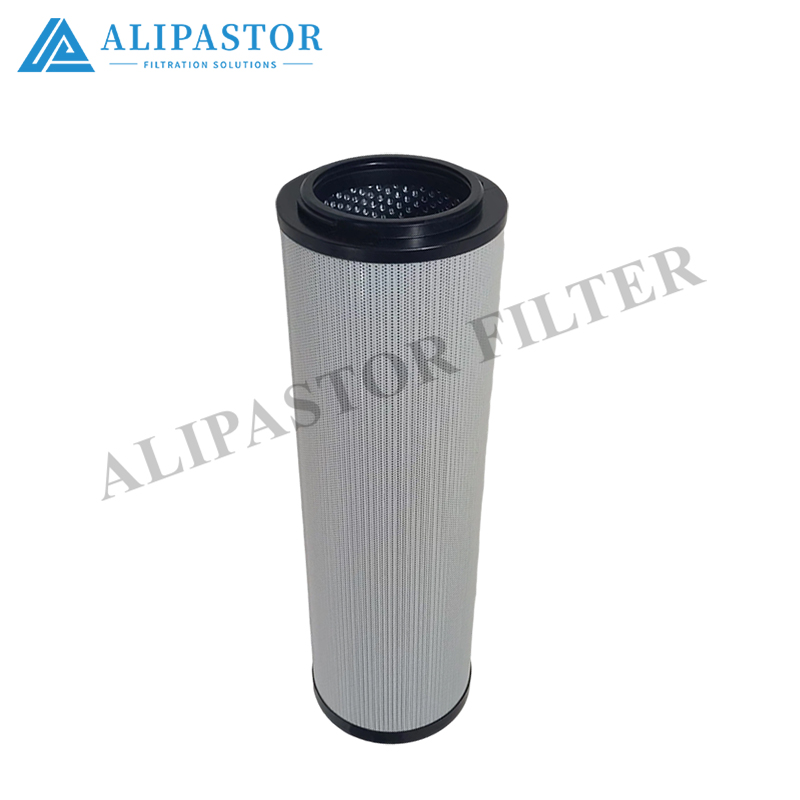

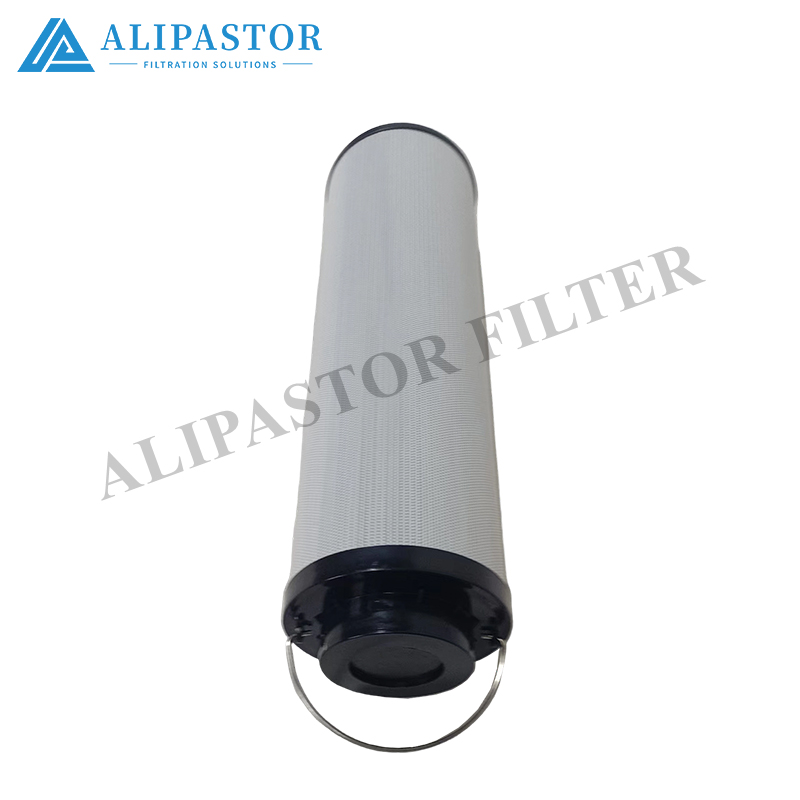

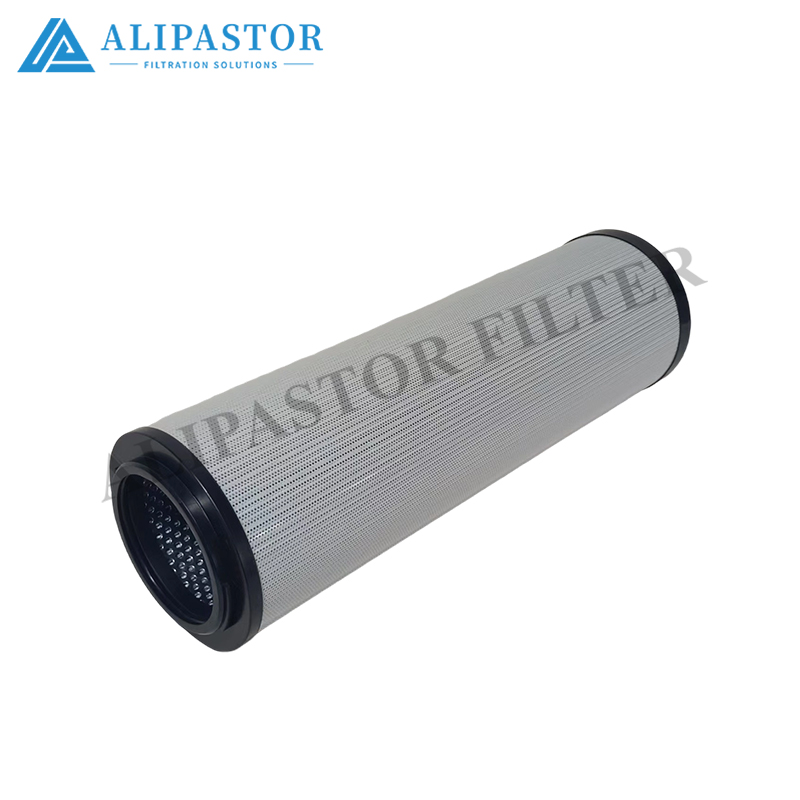

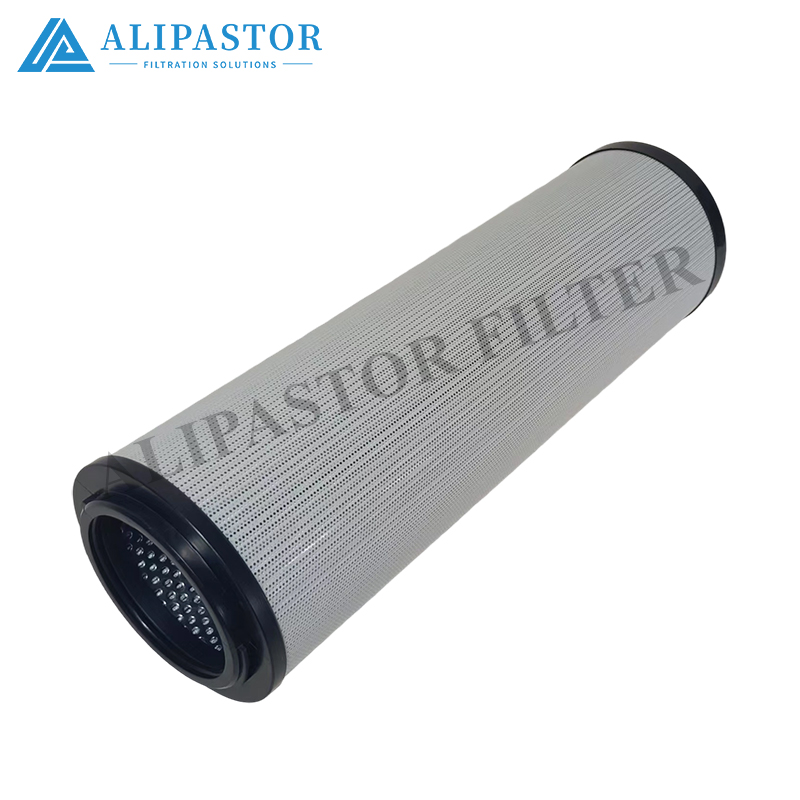

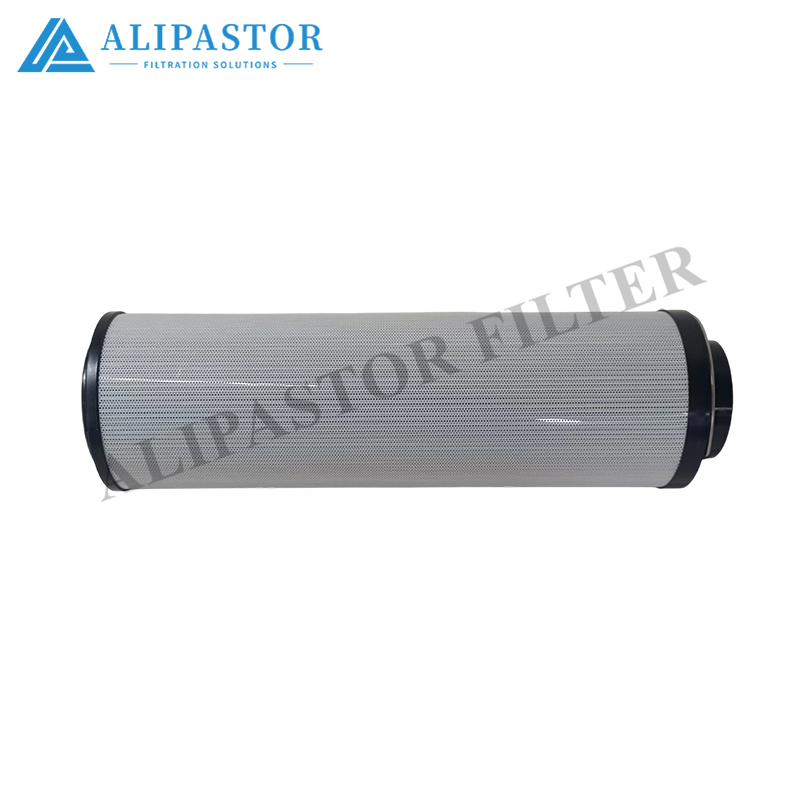

1) 3870-01-094-GEJ— Lubrication Oil / Compressor Oil Filter Cartridge

(the “GEJ” suffix is normally a project/option tag — the core identity is 3870-01-094)

What it is (plain English)

A tall disposable pleated cartridge used on a lube-oil / sealing-oil circuit of a compressor or turbine train (duplex filter body or vertical housing). Its job is to protect bearings and seals by keeping wear particles and sludge precursors out of the oil.

What to check before fitting

• Read the housing nameplate / ID plate on the filter body:

  it should show the model family (3870…), pressure rating, port size/DN, and a flow arrow or inlet/outlet marking.




• Old cartridge: confirm overall height / OD / centre-hole with a ruler.




• Seal colour: many of these units run NBR (black/dark grey) in standard mineral lube oil; if yours is brown/red, the fluid or temperature spec may require Viton/FKM — match exactly, don’t swap by guess.




Replacement — safe sequence

1. Switch to the other side if it’s a duplex; otherwise stop flow and vent/bleed until pressure = 0.




2. Drain the isolated bowl (lube circuits often hold a lot of warm oil).




3. Open cover → lift cartridge straight out → check for bright metal shavings (bearing/journal wear signal).




4. Wipe sealing face → thin film of clean lube/hydraulic oil on the O-ring (no grease).




5. Seat square on the centre rod → close → bleed air.




6. When closed, bring pressure back slowly → watch for leaks under heat.




Procurement wording (safe)

3870-01-094-GEJ — Cartridge for 3870-family lube/oil housing — confirm against the housing nameplate model; require supplier to state height / OD / centre bore / seal compound before delivery. Treat the “GEJ” as the project suffix — not something you guess from digits.

2) P4618-10A— Return-Line / Kidney-Loop Filter Element

(often lives on an auxiliary lube skid or filter panel — not the high-pressure pump discharge)

What it is (plain English)

A disposable pleated element mounted in a pipe-mounted canister (clamp-band bowl, flow arrow on the head).

The “10A” style points to an approximately 10 µm class glass-fiber/synthetic media — finer than the coarse chips-guard level — used where the circuit cares about oil cleanliness (bearings, tight-clearance pumps).

What to check before fitting

• Head nameplate near the ports: must show the model the element belongs to (the “4618” family marking) + pressure bar + flow arrow.




• Ruler-check: new element H / OD / centre-hole matches the old one.




• O-ring colour: should be black/dark grey (NBR) for standard mineral oil; if brown/red, stop and confirm fluid spec.




Replacement — safe sequence

1. Stop pump / isolate → vent/bleed until pressure reads zero.




2. Support the bowl — don’t let it hang on piping.




3. Release clamp → pull element straight out → inspect for metal shavings.




4. Clean seal lands → thin film clean hydraulic oil on O-ring only.




5. Seat square on centre tube → close vent → ΔP indicator green, no seep.




Procurement wording (safe)

P4618-10A — Element for the 4618-family housing shown on the head nameplate — require supplier to confirm OD / height / centre bore / seal compound before delivery; no substitute by “looks the same”.

3) One-Line BOM (copy-paste)

• 3870-01-094-GEJ— Lube/oil cartridge, ~39.5" tall class, fits 3870-family housing per body nameplate (verify seal: NBR vs Viton from sight)




• P4618-10A— Return-line / kidney-loop element, ~10 µm class, NBR, fits 4618-family housing per head nameplate




One rule that covers both

The plate on the housing is the boss.

If paint hides the model, use a ruler on the old cartridge (H / OD) and the seal colour as your fallback ID — and write those numbers next to the part number on the BOM so Stores can never “guess by digits.”
