Filter Elements — Quick Reference (English)

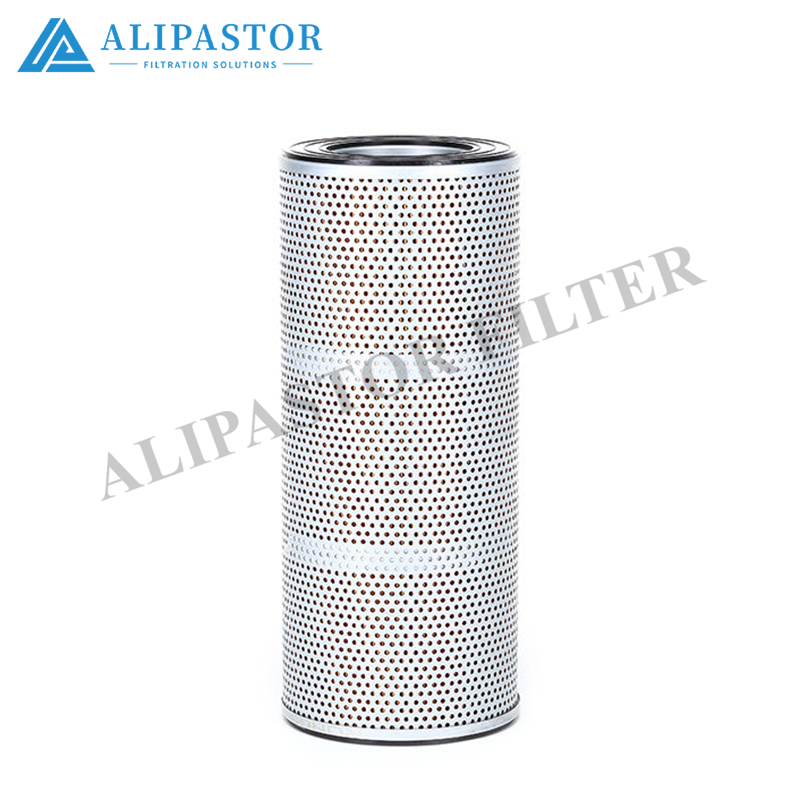

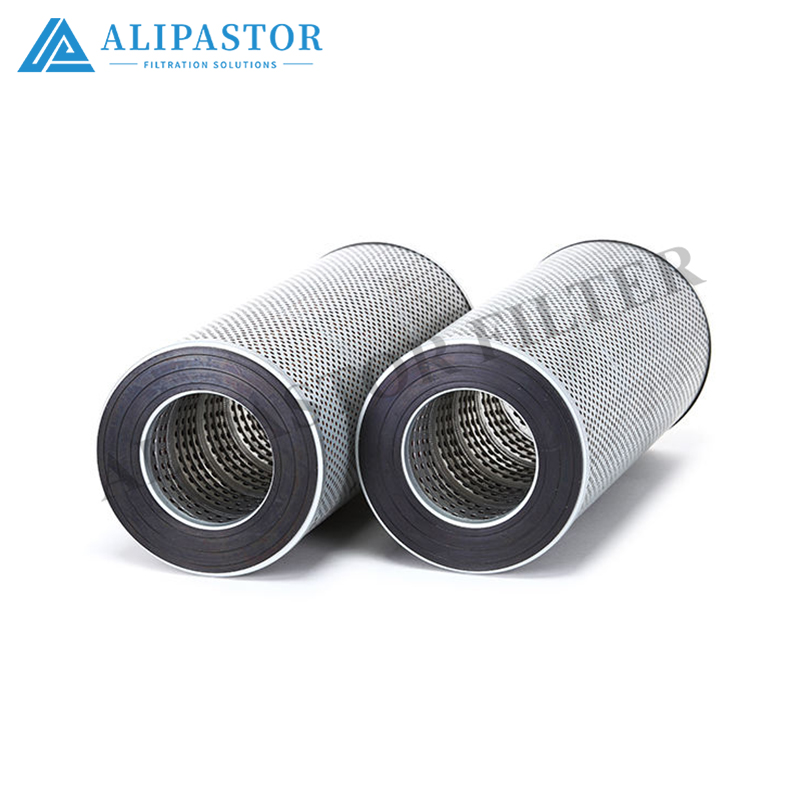

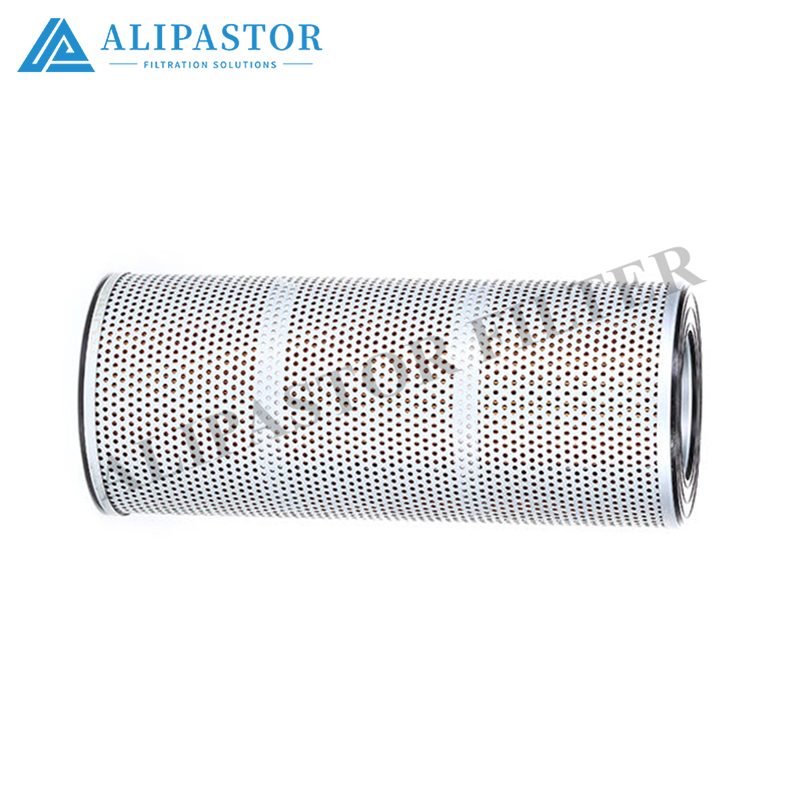

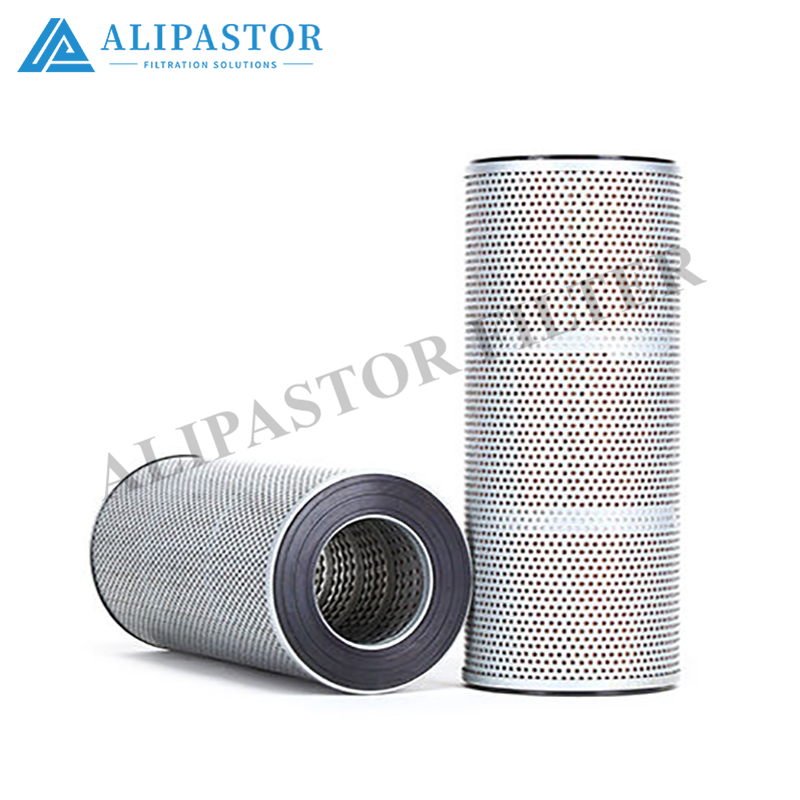

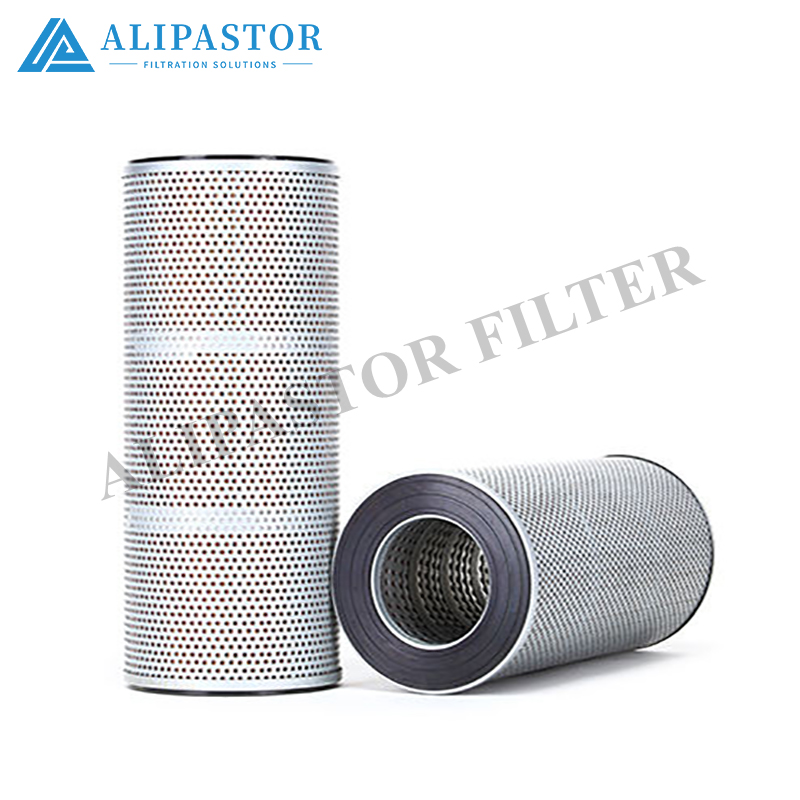

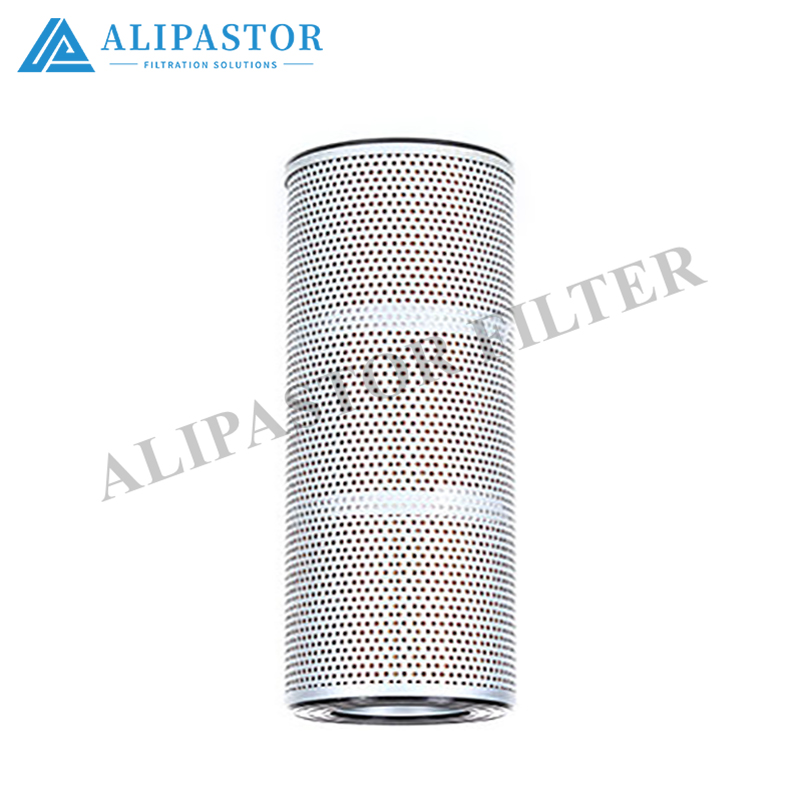

Items: HS611-200-GWB· HS833-200-C1

1) HS611-200-GWB— Coalescer / Liquid-Separation Element

(not a plain particle filter — it separates droplets from the stream)

What it does

This element lives in a coalescing / separator vessel (fuel polishing, lube-oil de-watering, or gas-stream mist removal).

Its media is specially treated so small water / oil droplets join into larger drops, then gravity carries them to the drain — the goal is clean fluid + removed free water, not just “10 µm particles.”

What to check before fitting

• Housing nameplate must show the coalescer/separator model (HS611 family) + max pressure + temperature range.




• Make sure the housing has been drained before opening (expect watery sludge at the bottom — normal for this duty).




• Seal colour: GWB-type fittings usually run NBR (black/grey) unless the nameplate calls out FKM — never swap compounds blindly.




Replacement steps

1. Isolate the vessel → slowly open the top vent until pressure = 0.




2. Open the bottom drain valve into a suitable container — let accumulated water/oil drain completely.




3. Open the closure → withdraw the cartridge straight, protecting the outer surface (scratched media performs worse).




4. Inspect the housing bottom for sludge layers (tells you if upstream drying/stages are overloaded).




5. Thin film of compatible fluid on the O-ring → seat cartridge square and centred (off-centre lets droplets bypass the separator screen).




6. Close drain → close vent only after repressurising slowly and watching that no droplets carry over into the clean outlet.




Procurement wording

“HS611-200-GWB — coalescer/separator cartridge for HS611-family vessel only — confirm length / OD / end-cap style / seal compound against the housing nameplate before delivery.”

2) HS833-200-C1— Hydraulic / Lube Oil Filter Element

What it is

A disposable pleated element for a pipe-mounted canister on a hydraulic power unit or lube-oil loop.

• 833 = size/flow class (fixes OD, height, centre-tube)




• C1 = NBR seal (black/grey, mineral oil), standard option




What to check before fitting

• Housing head nameplate: model containing HS833…, pressure bar, port size, FLOW ARROW.




• Ruler-check: new element H / OD / centre-hole matches the old one.




• O-ring colour = black/dark grey (NBR). Brown/red = wrong seal for “C1”.




Replacement steps

1. Stop pump → vent/bleed until pressure = 0.




2. Support bowl → clamp off → pull element straight out.




3. Check for bright metal shavings (wear warning).




4. Thin film clean hydraulic oil on O-ring → seat square → close vent → ΔP green, no seep.




Procurement wording

“HS833-200-C1 — element for HS833 housing only; confirm OD / height / centre bore / seal (NBR) against head nameplate before delivery.”

3) One-Line BOM (copy-paste)

• HS611-200-GWB— Coalescer/separator cartridge (drops → drain), fits HS611-family vessel per nameplate




• HS833-200-C1— Hydraulic/lube canister element, NBR seal (C1), fits HS833 housing per head nameplate




Quick rule for crews

• If it says coalescer/separator on the nameplate: drain the bottom first and expect water, not just dirty oil.




• If it says filter with a flow arrow: treat it as normal particle filtration, and always vent the top first.
