High-Performance Hydraulic Oil Filters – Models FC-1824 & FC-1503

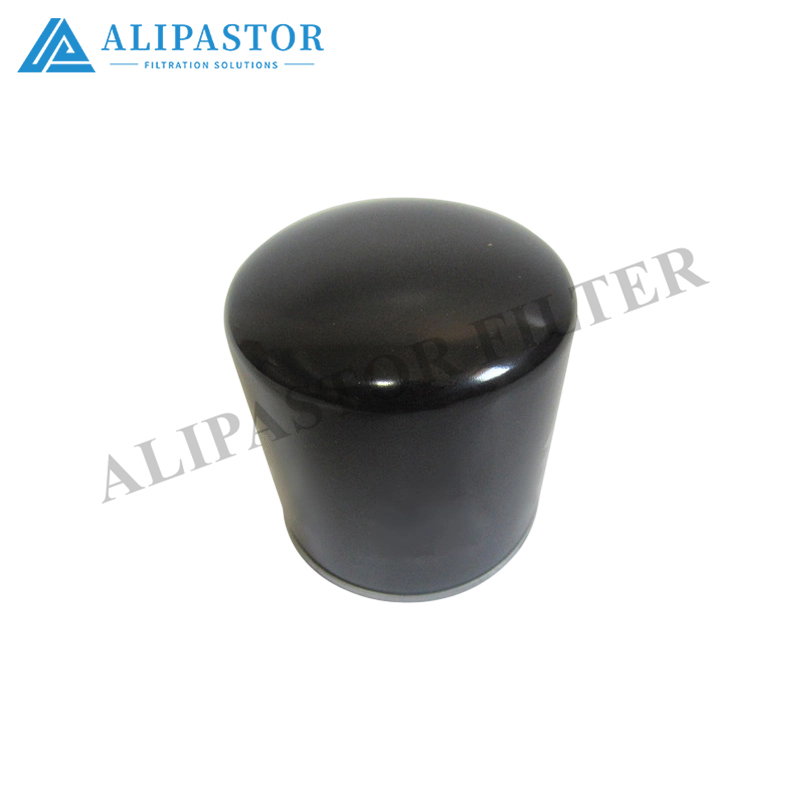

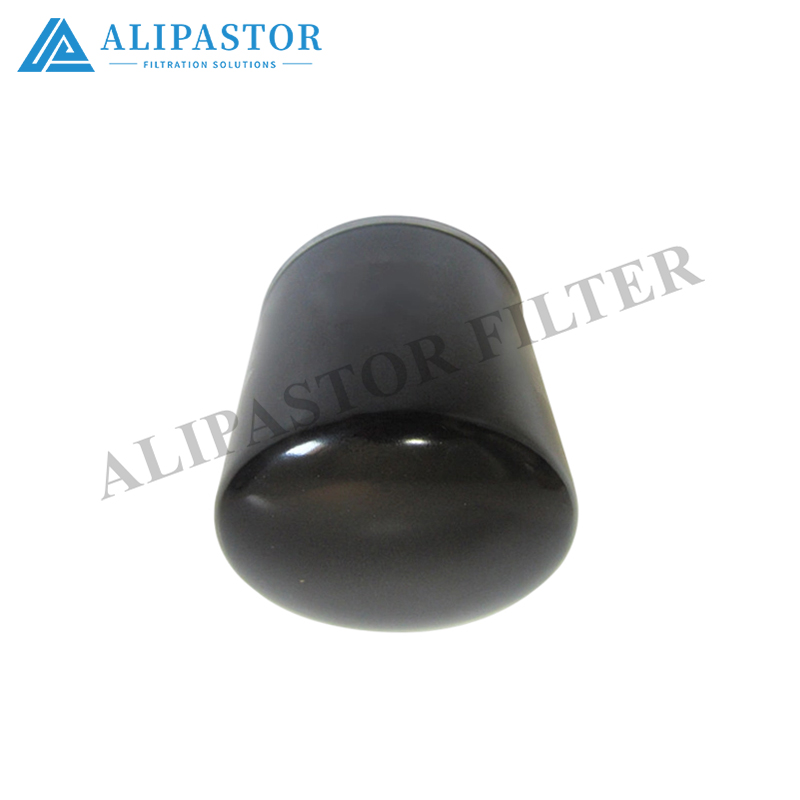

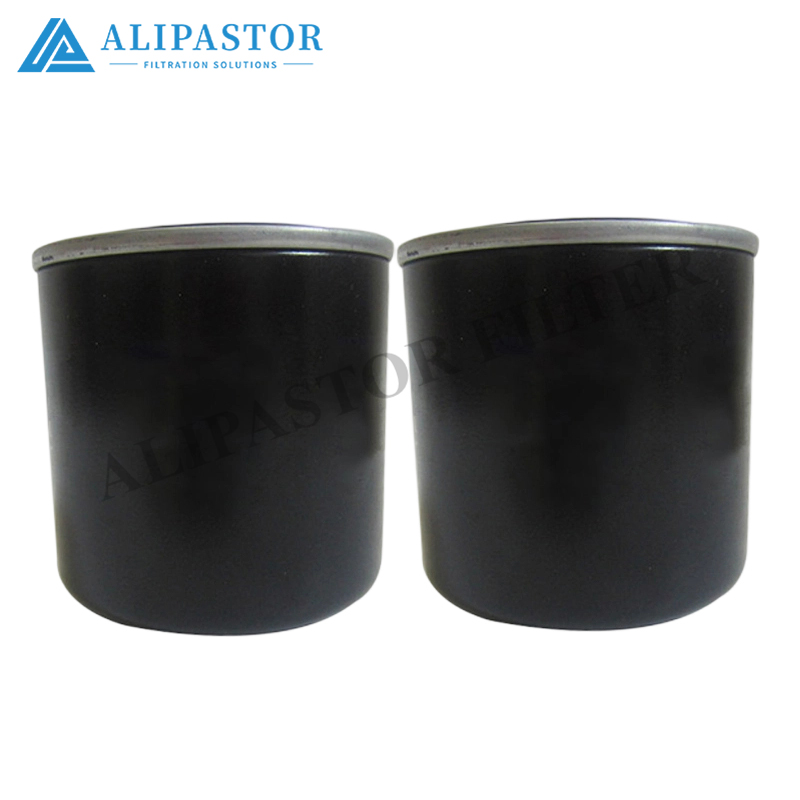

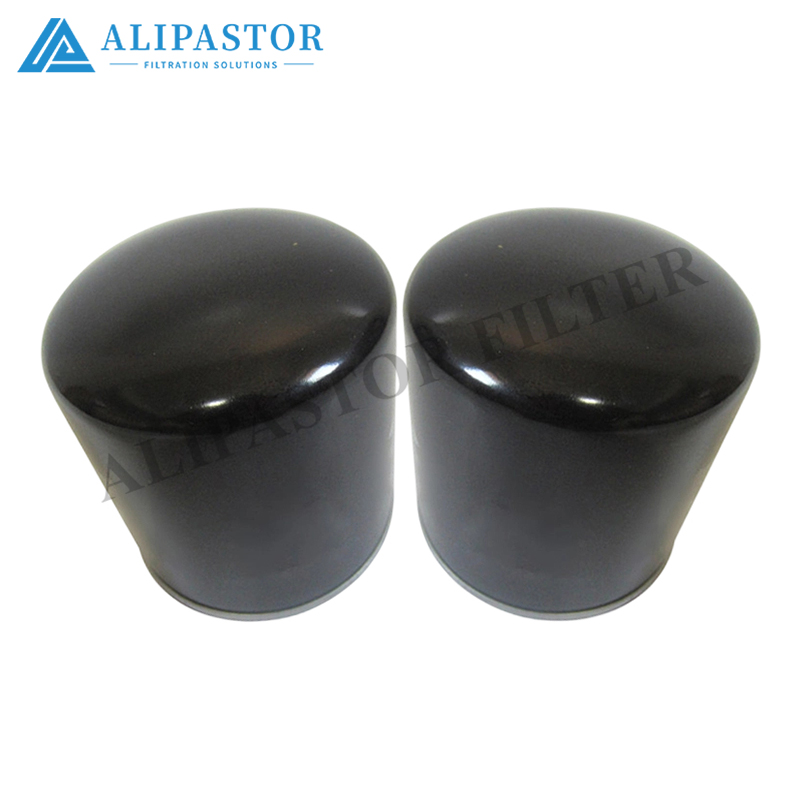

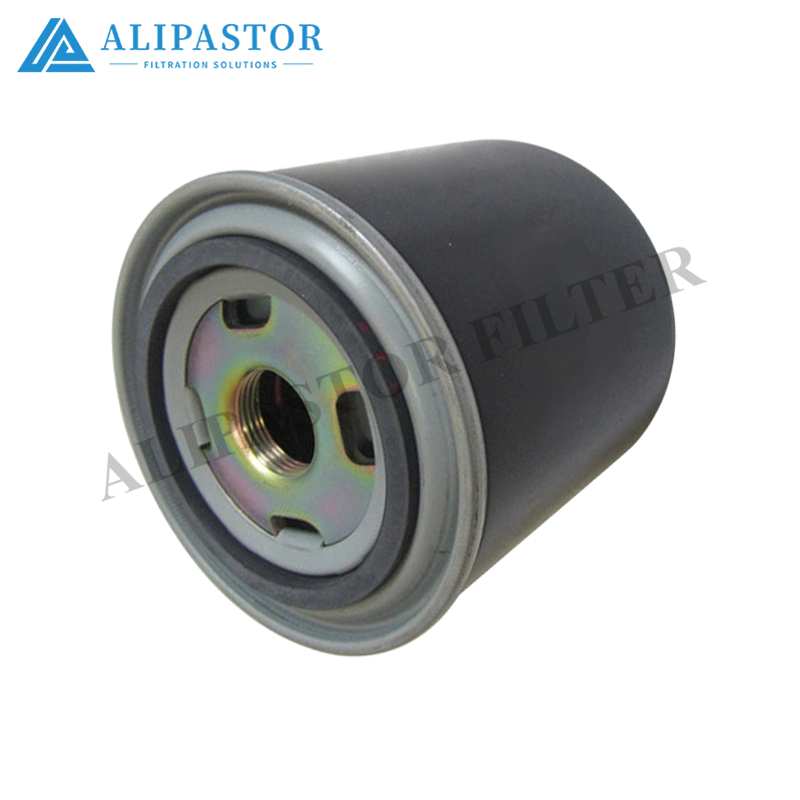

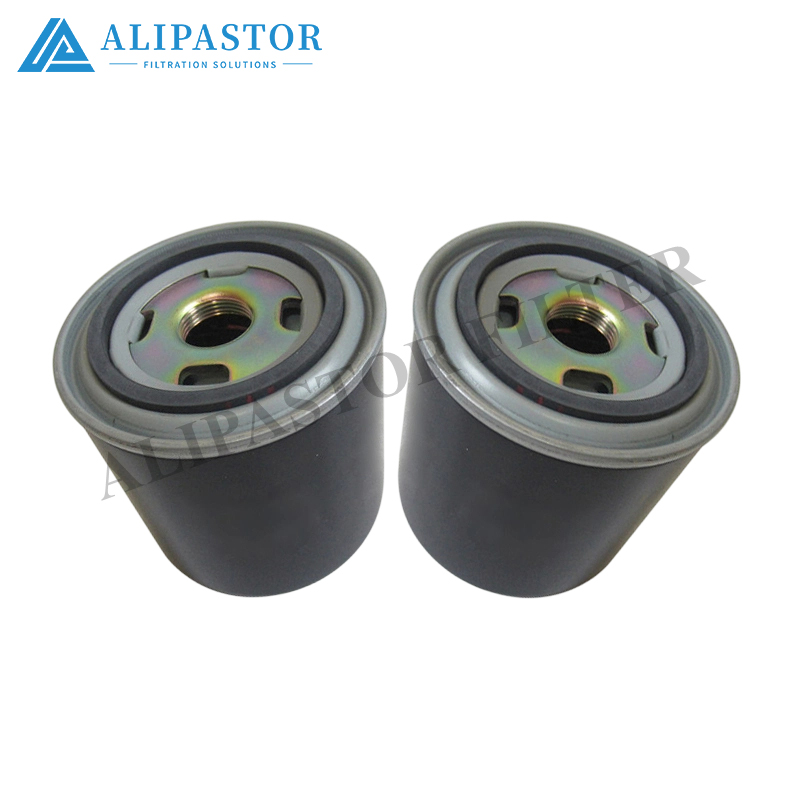

Two spin-on hydraulic filter cartridges from the same FC-series family, covering compact return/steering loops and mid-size main return circuits on mobile equipment and industrial power units. FC-1503 is the smaller canister (3/4-16 UNF thread, ~70–80 mm OD × ~150–170 mm length) for mini excavators, skid steers, and agricultural tractor auxiliary circuits. FC-1824 is the larger sibling (1-12 UNF or M20×1.5 class, ~93–100 mm OD × ~210–240 mm) for mid-size wheel loaders, excavators (20–30 t class), and compressor-lube loops where higher dirt-holding is required.

Key Features

• FC-1503: Glass-fiber media, 10 µm (β₁₀ ≥ 200), compact 3/4-16 UNF head, bypass ~2.0 bar, nitrile gasket std.




• FC-1824: Glass-fiber media, 10–15 µm (β₁₀ ≥ 200), larger 1-12 UNF head, bypass ~2.5 bar, higher dirt-holding (~30–40 % more than FC-1503)




• Rolled carbon-steel shell, zinc-plated end caps, corrosion-resistant finish




• NBR gasket standard; FKM available for high-temperature or ester-fluid duty




• Anti-drain-back membrane (both) prevents dry starts on pressure-line or pump-guard placement




• Laser-etched part number and flow arrow on canister shoulder




Technical Specifications

Application Guidance

FC-1503 – Compact return, steering-return, or pilot-loop filtration on mini excavators (3–6 t class), skid steer loaders, telehandlers, and agricultural tractors. The 3/4-16 UNF head and ~70–80 mm OD fit tight bays where a larger spin-on would clash with the engine block or loader arm. Also deployable as compressor-lube or PTO-loop guard on compact power packs.

FC-1824 – Main return-line or pump-discharge guard on 20–30 t excavators, wheel loaders, and industrial hydraulic power units. The taller canister and 1-12 UNF head deliver extended service intervals in dusty construction cycles. Can also serve as a cooler-loop filter on compressor skids and generator hydraulic packages.

⚠️ Thread mismatch: FC-1503 = 3/4-16 UNF (small head), FC-1824 = 1-12 UNF or M20×1.5 (large head) — not head-interchangeable. Confirm your filter head thread before ordering; some FC-1824 sub-revisions use M20×1.5 instead of 1-12 UNF depending on the head pattern.

Fluid Compatibility

• Mineral hydraulic oil (ISO HM, HV)




• Biodegradable esters (HEES, HETG) – use FKM seals




• HFC water-glycol – NBR acceptable; FKM recommended




• Not for phosphate ester (HFDR) without seal/media confirmation




Installation & Service

1. Clean filter head face; inspect threads, center tube, and gasket groove.




2. Lubricate gasket with clean hydraulic oil, spin on by hand until seated + ¾ turn. No strap wrench on the canister — over-torque deforms the rolled shell and cracks the bypass seat.




3. For pressure-line or pump-guard placement: pre-fill if head design allows to reduce startup starvation.




4. For return duty: confirm flow arrow (canister → head) and bypass direction before closing.




5. Replace per OEM interval (FC-1503 ~1000–1500 h compact duty; FC-1824 ~2000 h construction duty) or when ΔP reaches bypass setting.




6. In dusty environments (quarry, demolition), shorten interval 30–40 % — the indicator will climb faster than hour-meter suggests.




Quality Assurance

• ISO 16889 – multi-pass β-ratio & dirt capacity




• ISO 2941 – collapse/burst resistance




• ISO 3968 – pressure drop vs. flow




• ISO 2943 – media/fluid compatibility




• Shell burst test per batch (≥ 4× working pressure)




Ordering

Quote FC-1503 (70–80×150–170 mm, 3/4-16 UNF, compact return/steering) or FC-1824 (93–100×210–240 mm, 1-12 UNF or M20×1.5, main return/LP guard) with seal material and quantity. Cross-reference to common FC-series OEM patterns available on request — provide your machine model and existing part number for confirmation.

All dimensions nominal; confirm thread (3/4-16 vs. 1-12 / M20×1.5), gasket OD/ID, and head pressure class against your actual filter head before installation.
