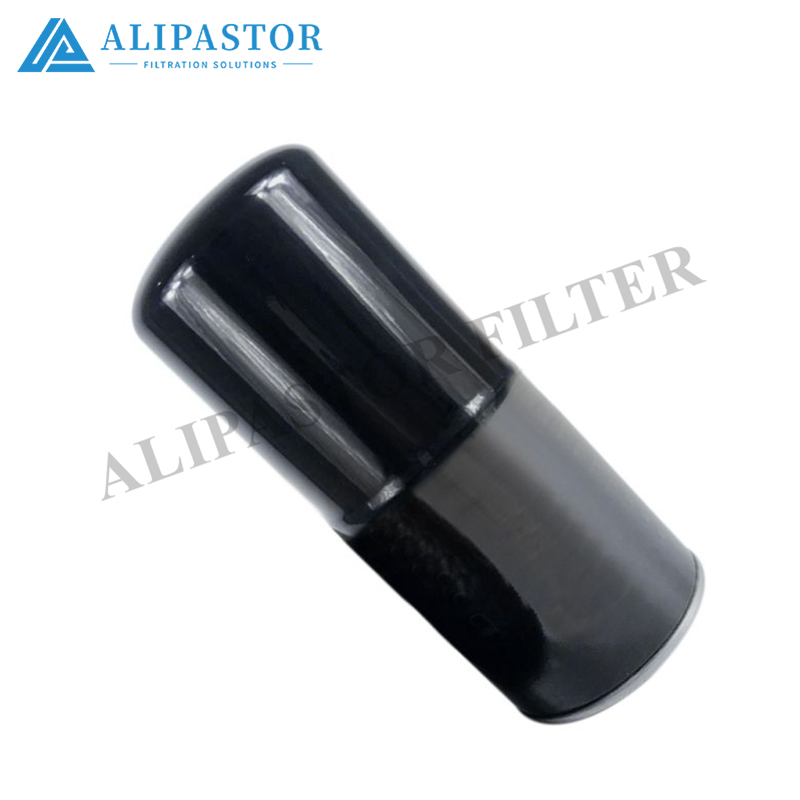

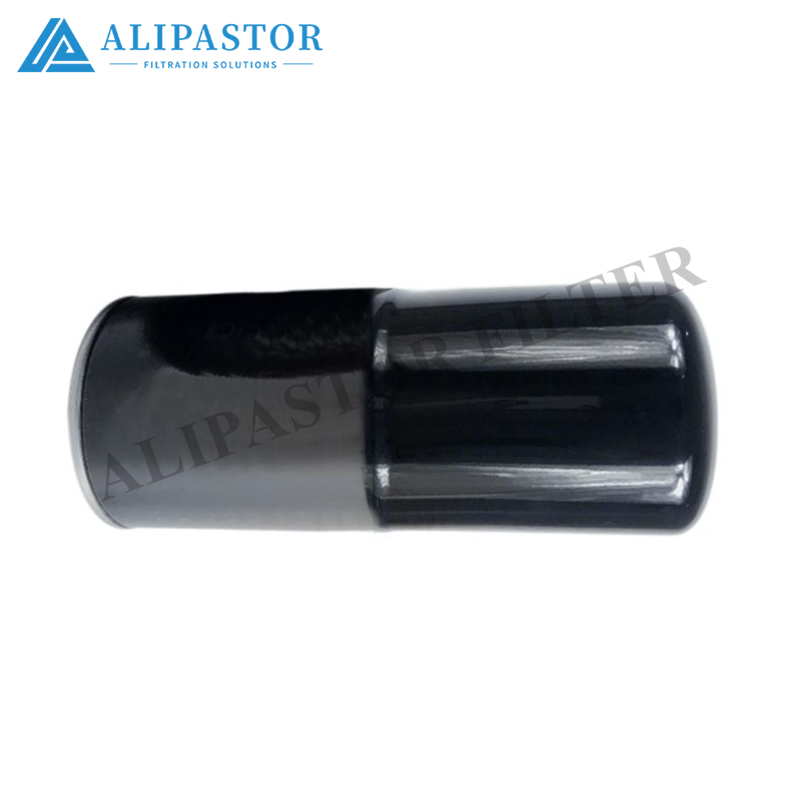

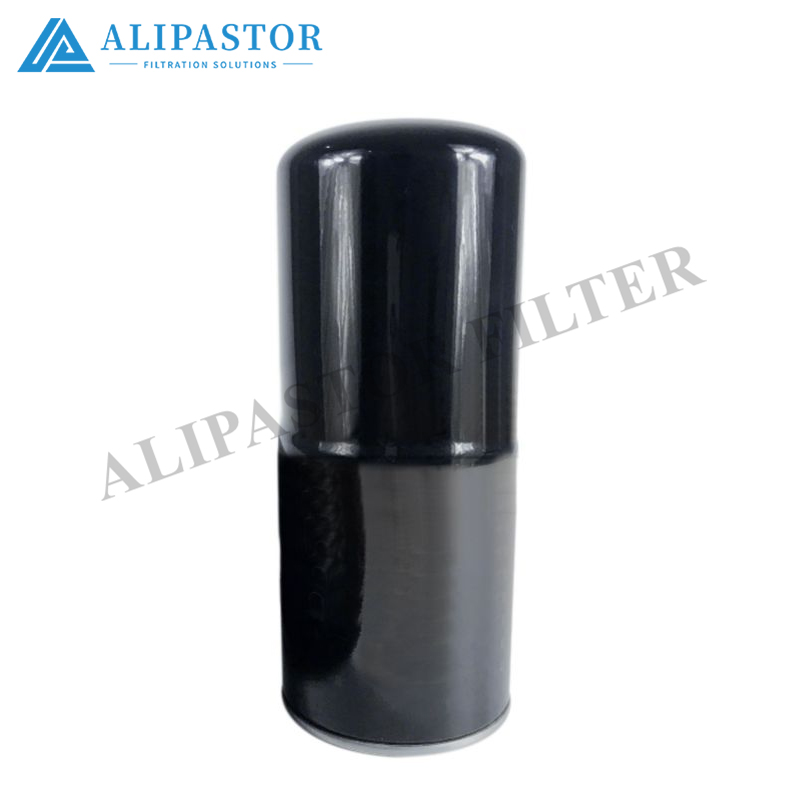

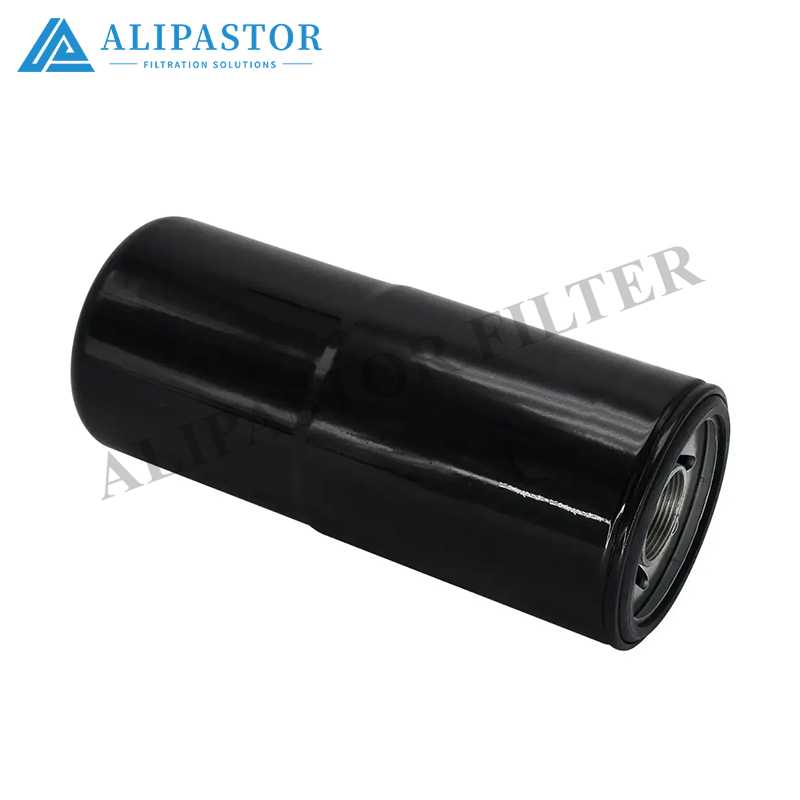

Heavy-Duty Fuel Filter Pair – Models 600-311-3550 & 600-311-4510

Two spin-on fuel filters from the same heavy-duty platform family, covering primary and pre-filter duties across large excavators, wheel loaders, dump trucks, and dozers. 600-311-3550 is the larger canister (1 5/8-12 UNF thread) specified as a primary fuel filter on 100+ ton excavators and 70–90 t class dump trucks, while 600-311-4510 is a slightly slimmer pre-fuel / secondary spin-on (1 1/4-12 UNS-2B) for 40–50 t excavators, large wheel loaders, and mid-size dumpers. Both use high-efficiency cellulose/composite media and carry bypass protection, and a glass-fiber 10–15 µm variant of each is optionally offered for hydraulic-auxiliary or compressor-lube duty on the same chassis.

Key Features

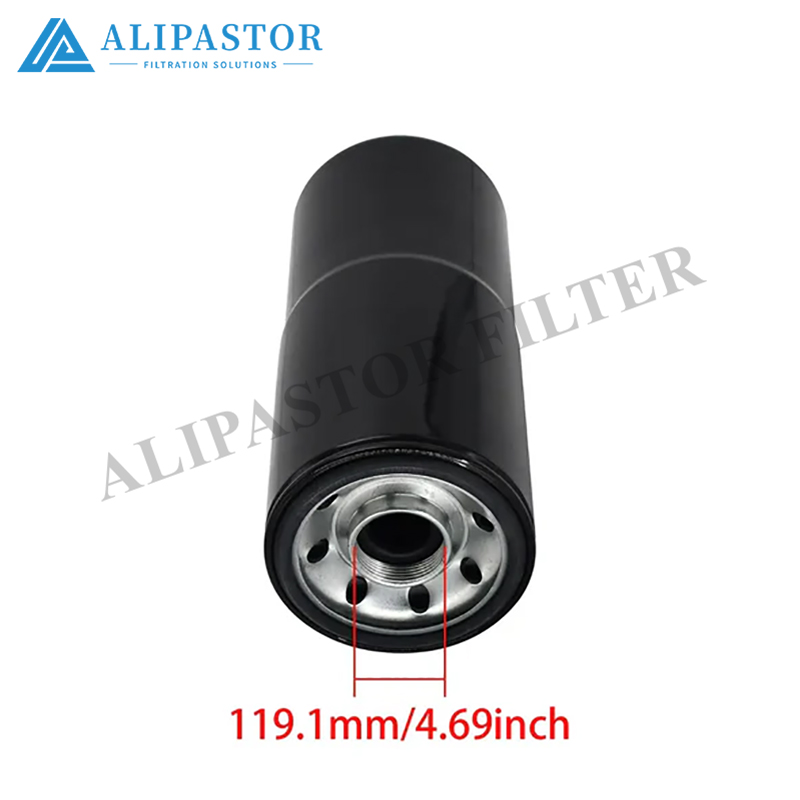

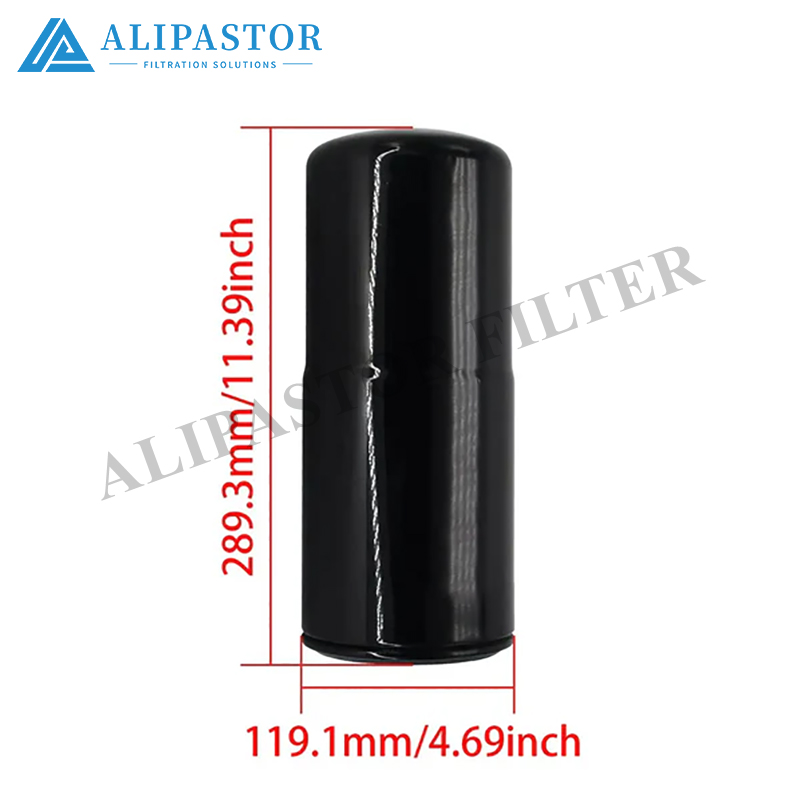

• 600-311-3550: OD 115.5–119 mm × H 286–288 mm, 1 5/8-12 UNF, 99.9 % @ 5 µm class, steel-reinforced shell, bypass integrated




• 600-311-4510: OD ~122 mm × H 250–255 mm, 1 1/4-12 UNS-2B, pre-fuel grade (higher micron than primary to protect upstream/downstream components), water-separation media option




• NBR gasket standard; FKM available for high-temperature estates




• Anti-drain-back membrane on primary version; drain-bowl provision on head side for water-sep duty




• Glass-fiber 10–15 µm variant available for hydraulic-aux / compressor-lube loops (same canister geometry)




Technical Specifications

Application Guidance

600-311-3550 – Primary fuel filtration on PC2000-8 excavators, HD785-7 dump trucks, HM350-2 / HM400-2 articulated dumpsters, and SAA6D140E-class engine platforms. The 1 5/8-12 UNF large-bore head handles high fuel-flow demand from 23–46 L displacement diesels under continuous mining/quarry load. Also crosses to common BF7948 / P553500 / 33948 patterns.

600-311-4510 – Pre-fuel / secondary fuel duty on PC400LC-8, PC450LC-8 excavators; WA470-5/6, WA480-5/6, WA500-6/6R wheel loaders; HD255-5, HD325-7, HD405-6/7 dump trucks; HM250/300/350/400 articulated dumpsters; D85EX-15R / D85PX-15R dozers; GD825A-2E0 motor graders. Engine coverage spans SA6D125E-3, SA6D140E-3/5, SAA12V140E families. Crosses to BF1288-O / H549WK / 33942 patterns. The "pre-fuel" positioning means a slightly coarser grade than the primary — pair it upstream of the main 3550-type canister on dual-filter heads, or standalone on mid-size platforms.

📎 When ordering glass-fiber hyd-aux variants for compressor-lube or PTO-hyd loops on the same chassis, specify 10–15 µm / β₁₀ ≥ 200 — the standard fuel-spec cellulose should remain on fuel duty.

Fluid Compatibility

• Diesel / middle-distillate fuel (both, fuel spec)




• Mineral hydraulic oil (HM/HV) – glass-fiber hyd-aux variant only




• HFC water-glycol – NBR acceptable; FKM recommended




• Not for phosphate ester (HFDR) without seal upgrade




Installation & Service

1. Clean filter head face; inspect center tube, threads, and drain-bowl O-ring (water-sep heads).




2. Lubricate gasket with clean diesel, spin on by hand until seated + ¾ turn. No strap wrench on the canister.




3. Prime fuel system per engine procedure; bleed air at head before load. For water-sep heads, drain bowl at each service.




4. Replace per OEM hour/km interval (typical 500 h mining / 250–500 h general construction) or when ΔP / water indicator signals.




5. On dual-filter heads (pre + primary), replace both together to maintain staged efficiency.




Quality Assurance

• ISO 4020 – fuel-filter performance & water separation




• SAE J1985 – filtration efficiency




• Shell burst / pressure-deformation test per batch (30+ bar rating)




• Media integrity & bubble-point sampling




Ordering

Quote 600-311-3550 (primary, 115.5×286 mm, 1 5/8-12 UNF, PC2000-8 / HD785-7) or 600-311-4510 (pre-fuel, ~122×250 mm, 1 1/4-12 UNS-2B, PC400-8 / WA470 / HD325) with duty (fuel cellulose / hyd-aux glass-fiber), micron, and seal choice. Cross to common patterns (BF7948, P553500, 33948 / BF1288-O, H549WK, 33942 equivalents) available on request — provide your machine model and existing OEM number for confirmation.

All values nominal; confirm thread (1 5/8-12 vs. 1 1/4-12), gasket, and head type (single vs. pre+primary dual) against your actual filter head before installation.
