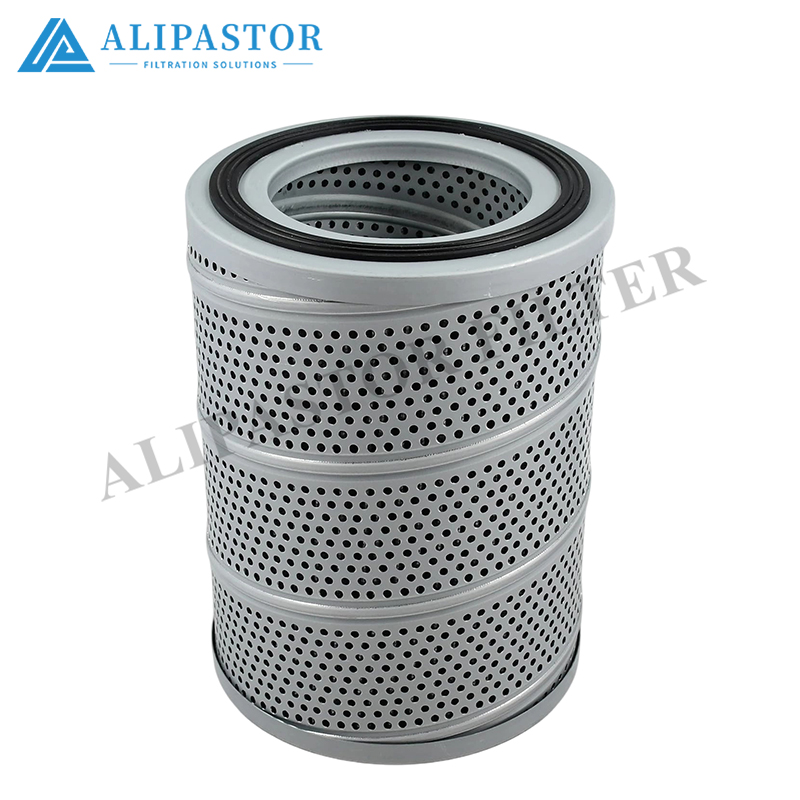

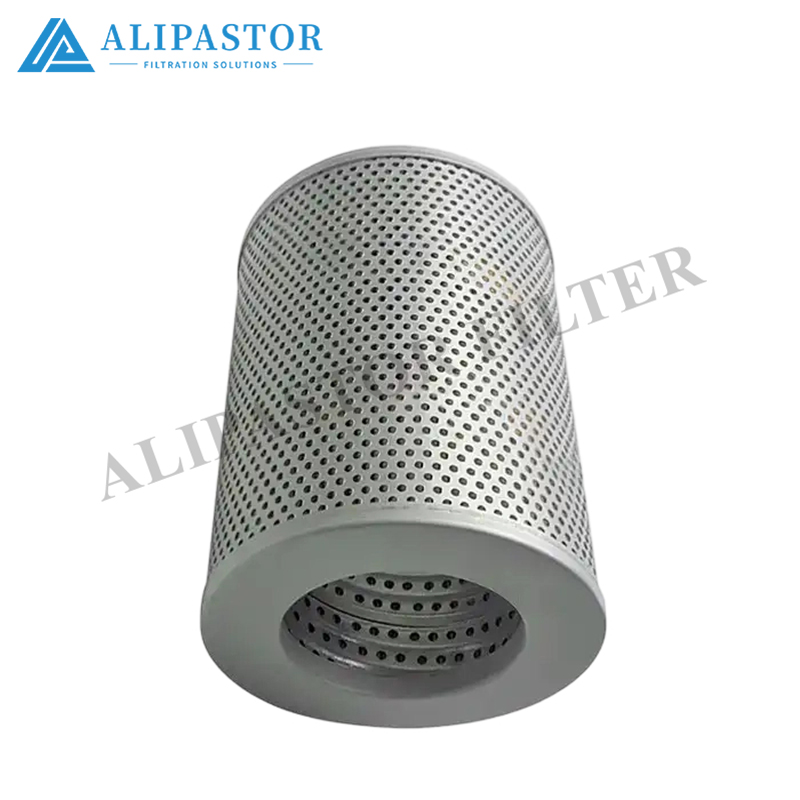

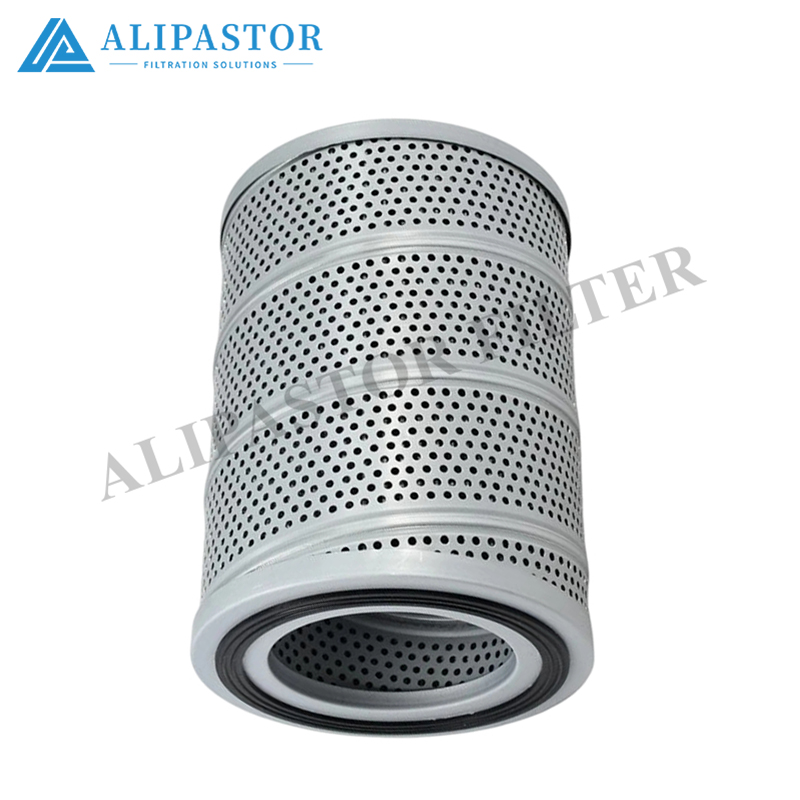

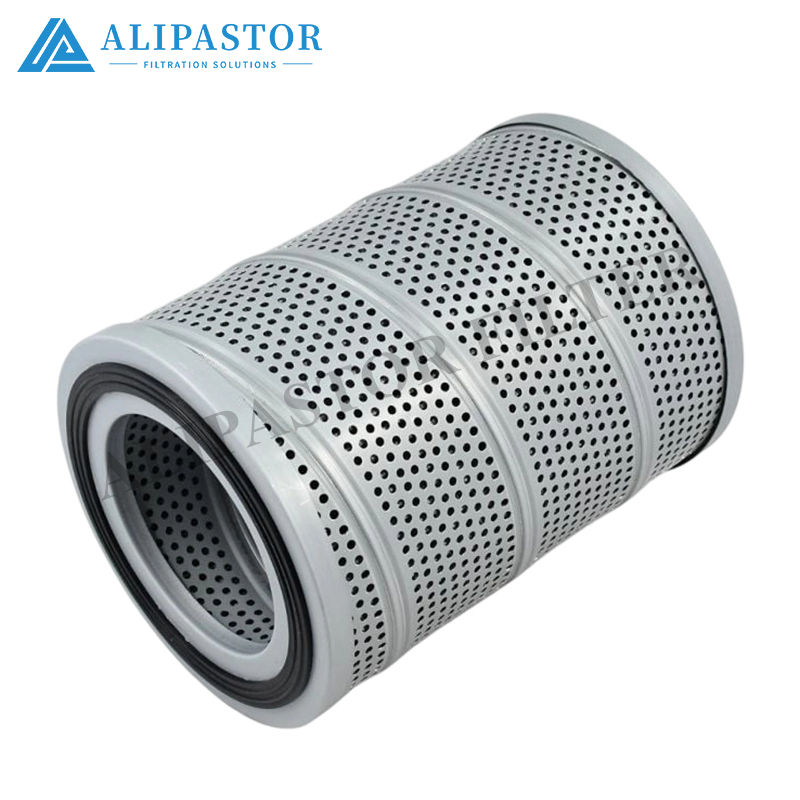

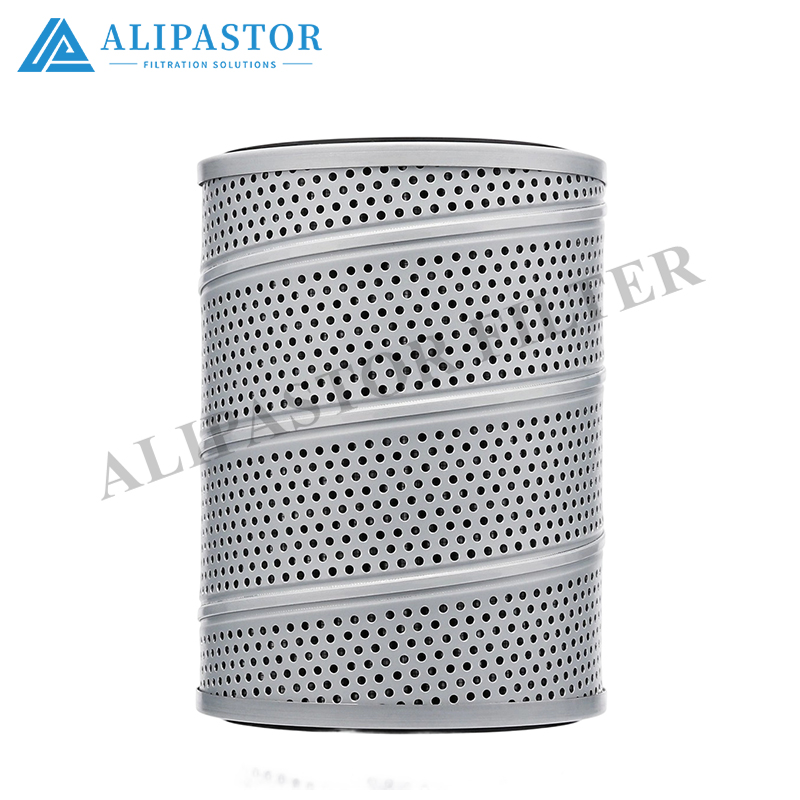

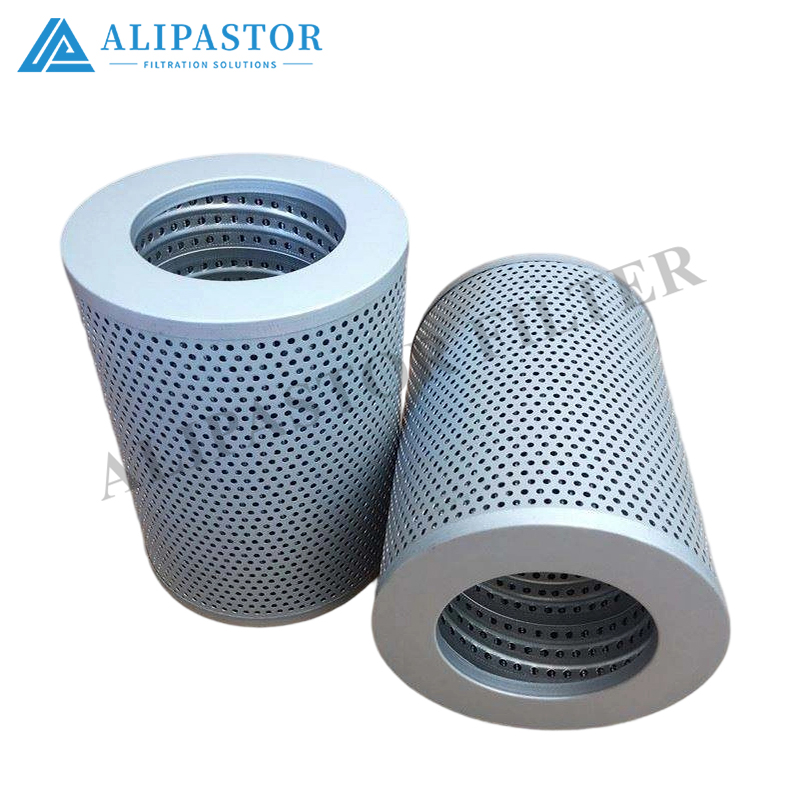

Hydraulic Oil Filter Pair – Models 207-60-71182 & 20Y-62-51691

Two complementary hydraulic elements from the same heavy-duty excavator/crawler-platform ecosystem, but serving very different duties. 207-60-71182 is a return-line canister (tank-mounted) protecting pump-discharge and valve circuits on mid-to-large excavators, while 20Y-62-51691 is a compact pilot/secondary cartridge guarding the pilot-control loop and sensitive servo valves on smaller and mid-size machines. Together they cover the main return path and the fine-pilot path on overlapping platform families.

Key Features

• 207-60-71182: Glass-fiber media, 10–15 µm, 98 % efficiency, ~2000 h service life, return-line duty, tank-mounted




• 20Y-62-51691: Dual-beta glass-fiber cartridge, Beta 2 @ 6 µm / Beta 75 @ 20 µm, pilot/secondary duty, inside-out flow




• Both: NBR seals standard; FKM optional for high-temperature or ester-fluid estates




• Bypass integrated on 207-60-71182 head; 20Y-62-51691 relies on housing bypass (typical 2.0–2.5 bar)




Technical Specifications

Application Guidance

207-60-71182 – Return-line filter on 20 t and 30 t class excavators (-7 series and early -8 variants with non-threaded breather tank). Protects downstream valves and actuators from pump-wear debris and tank-born contamination. The 10–15 µm glass-fiber pack and ~2000 h life suit continuous digging/loading cycles.

20Y-62-51691 – Pilot/secondary cartridge on mini through mid-size excavators (PC20 through PC60 families, plus PC200-8 / S6D107 pilot loop), and cross-referenced to D155AX-8, HB215-1LC, HB365LC-3, and various loader/compactor hydraulics. The dual-beta rating (2@6µm / 75@20µm) is tuned for pilot spools and proportional valves where even 6–10 µm chips cause stick-slip. Also interchanges with Baldwin PT9537-MPG, Donaldson P502540/R010088, Fleetguard ST1659, Man-filter HD 5007, SF HY93712, and Volvo 14532686 / 14533119 patterns.

⚠️ Do not swap the two: 207-60-71182 is a return canister (high flow, coarser pack), 20Y-62-51691 is a pilot cartridge (low flow, much finer). Installing 20Y in the return line will blind it fast; installing 207 in the pilot line leaves servo valves under-protected.

Fluid Compatibility

• Mineral hydraulic oil (ISO HM, HV)




• Biodegradable esters (HEES/HETG) – use FKM seals




• HFC water-glycol – NBR acceptable; FKM recommended




• Not for phosphate ester (HFDR) without media/seal confirmation




Installation & Service

1. 207-60-71182: Depressurize tank, unscrew canister (strap-wrench OK on the hex ring, not the shell). Clean head face, lube gasket, hand-tight + ¾ turn. For return circuits, confirm flow arrow and bypass direction.




2. 20Y-62-51691: Open pilot-filter housing, lift old cartridge, wipe housing interior, seat new element with flow arrow (inside→out typical), torque housing bolts evenly.




3. Replace 207 per ~2000 h or ΔP indicator; replace 20Y per pilot-loop interval or when pilot drift / sluggish response appears.




4. Log hours — pilot-element clogging often shows up as joystick lag before a pressure gauge catches it.




Quality Assurance

• ISO 16889 – multi-pass β-ratio (both)




• ISO 2941 – collapse (207 canister / 20Y cage)




• ISO 2943 – media/fluid compatibility




• Burst/shell check per batch




Ordering

Quote 207-60-71182 (return canister, 10–15 µm, ~2000 h) or 20Y-62-51691 (pilot cartridge, 42×21×82 mm, Beta 2@6 / Beta 75@20) with seal material and quantity. Cross to Baldwin PT9537-MPG, Donaldson P502540, Fleetguard ST1659, Volvo 14532686, etc. available on request — provide your machine model and existing OEM number for confirmation.

All values nominal; confirm duty (return vs. pilot), housing type, and seal choice before installation.
