Hydraulic Filter Items — Quick Reference (English)

Items: PS312-104-CGVSS· 02CS060

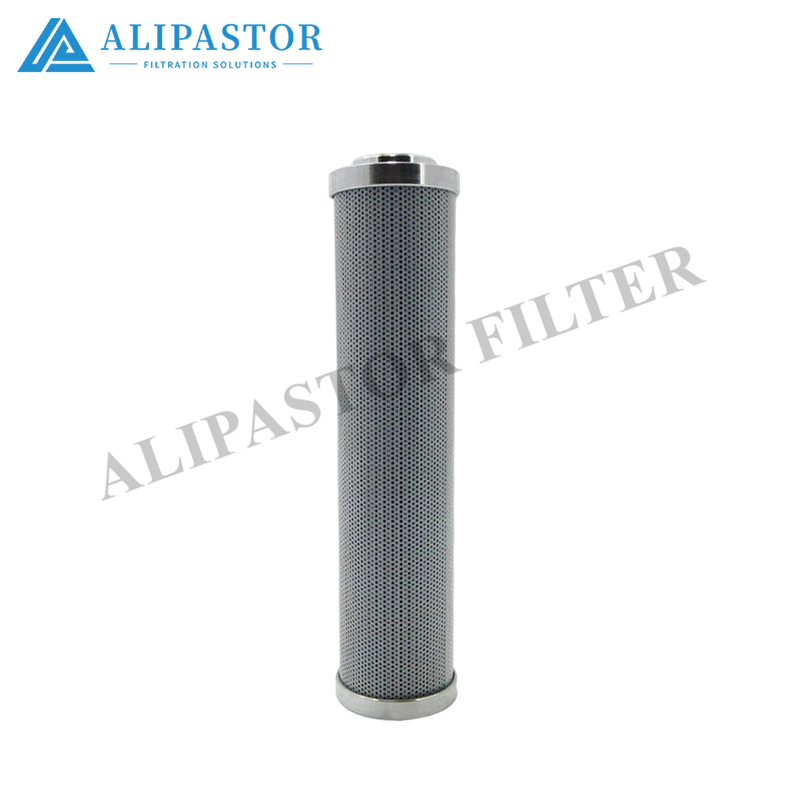

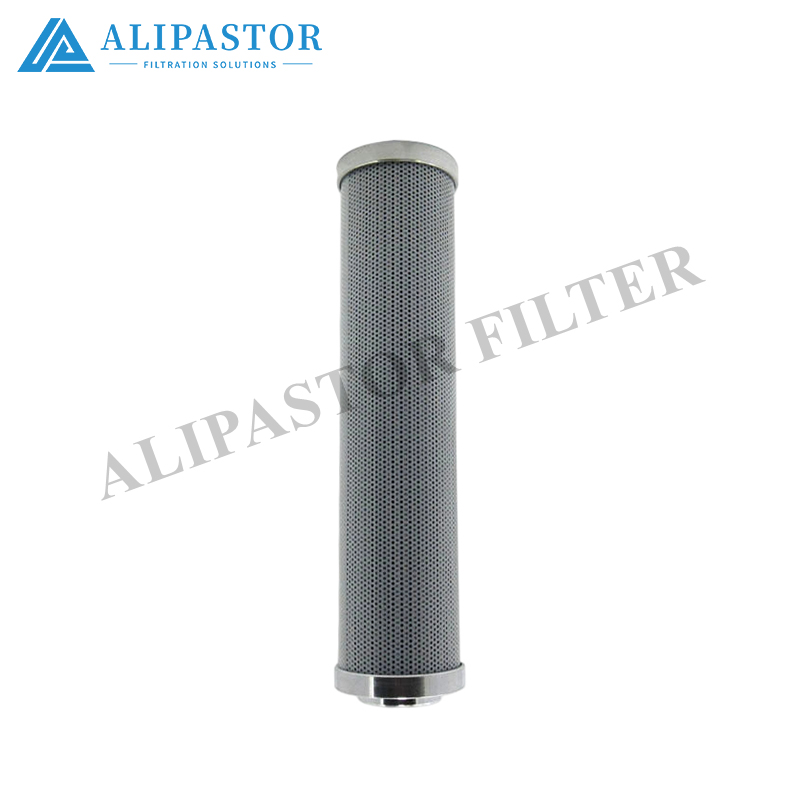

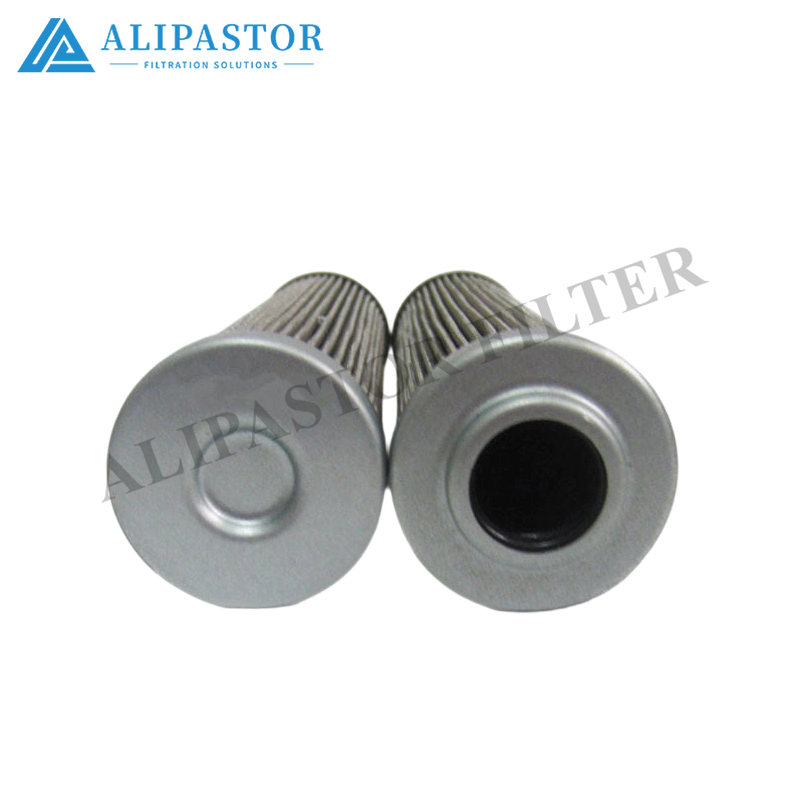

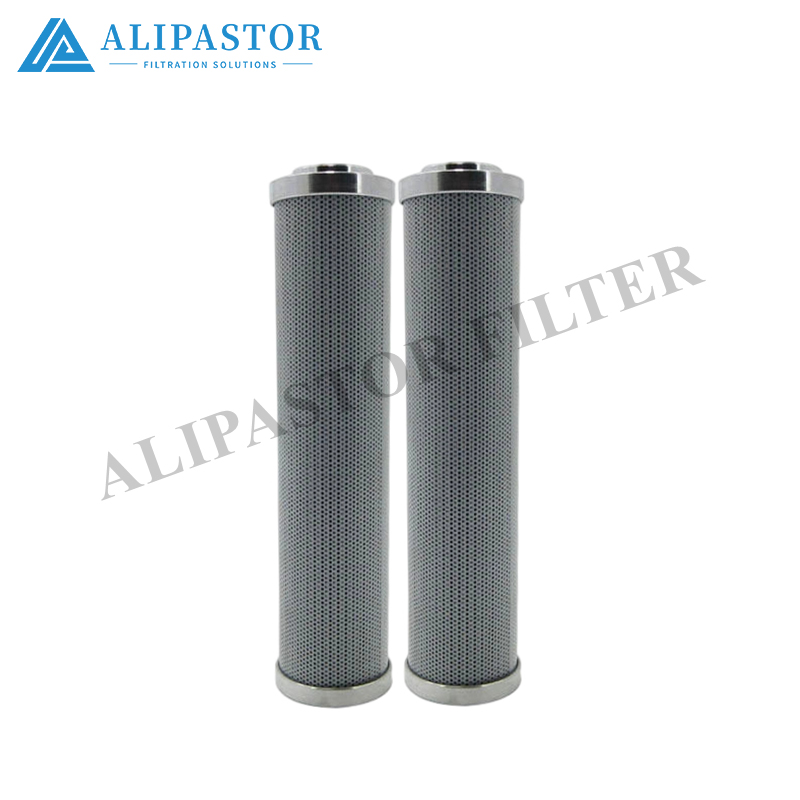

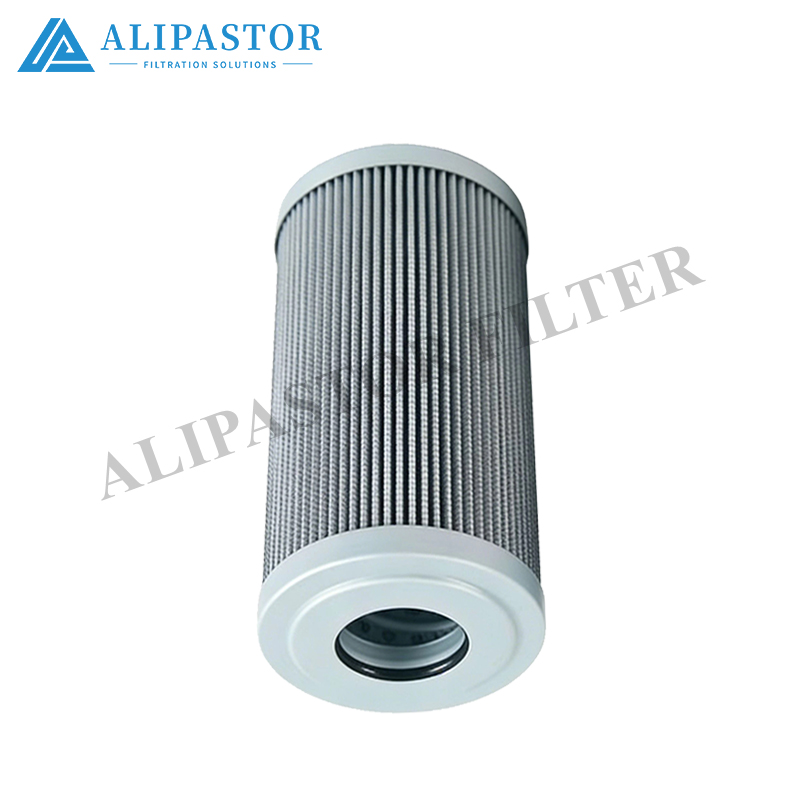

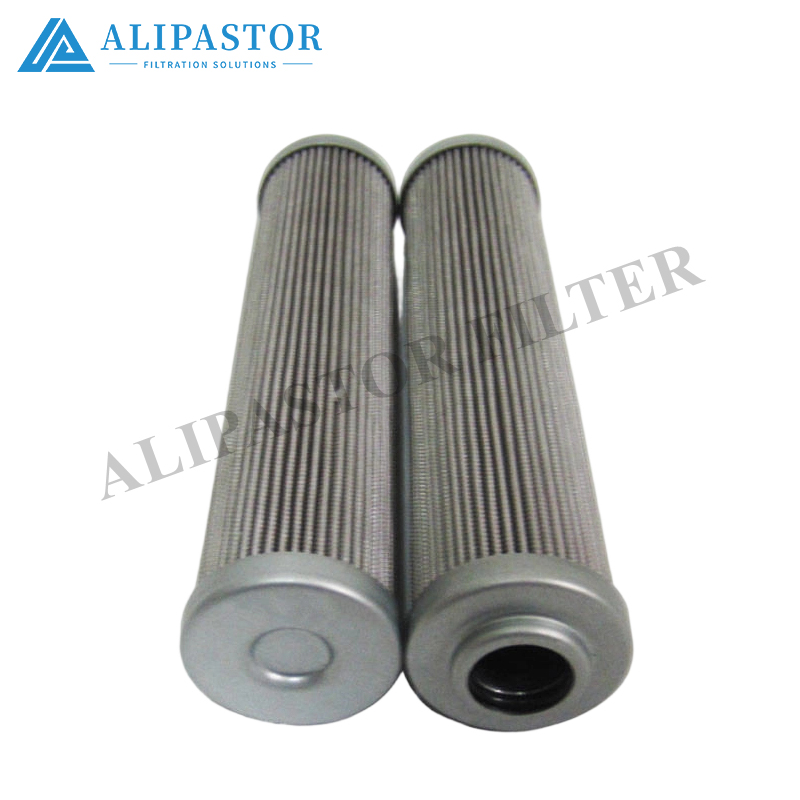

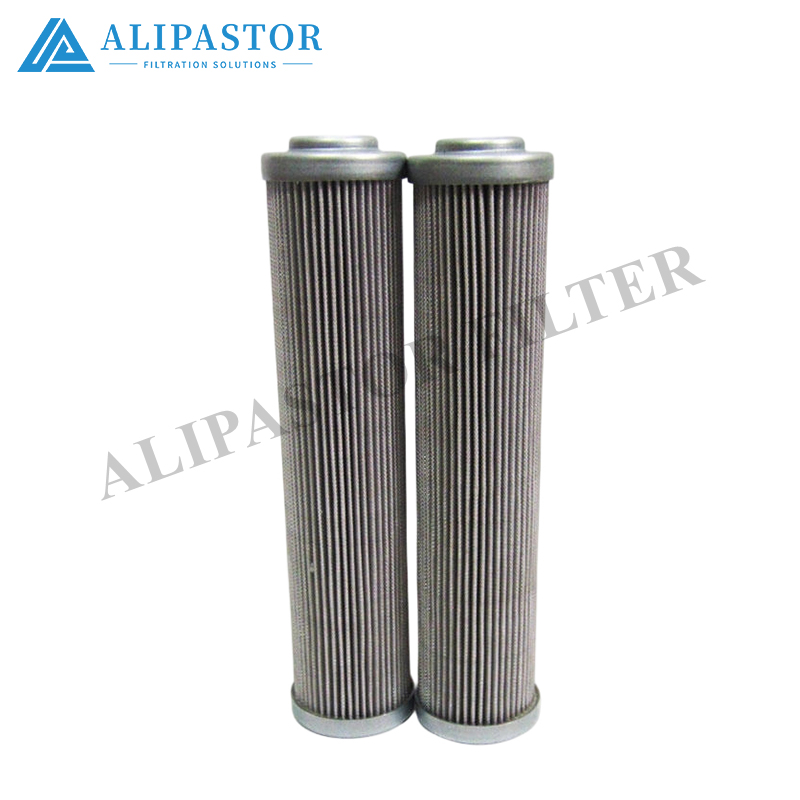

1) PS312-104-CGVSS— Pressure-Line Filter Element

What it is

A disposable pleated filter element installed in a heavy cast-steel head mounted on the pump-discharge leg (between pump and valves).

Oil exiting the pump passes through this filter before reaching sensitive components, so this position is critical — and it is pressurized, which means extra caution during service.

• PS312 = housing family (defined by the head casting near the ports)




• 104 = length/size index (sets overall element height and dirt-holding capacity)




• CGVSS = bundled identifier covering seal compound + end-cap/bypass variant + surface treatment

  • The C portion normally points to NBR-type (black/dark grey) for mineral oil




  • V / SS portions warn you that there may be a higher-temp or stainless-related detail — if the old O-ring is brown/red (Viton-type) or the housing nameplate mentions higher temperature fluid, treat the seal seriously and match it exactly







What to check before fitting

1. Read the metal nameplate on the filter head (near inlet/outlet ports):

   it must show the model containing PS312…, max working pressure (often up to ~350–420 bar class), port size/type (SAE flange or metric thread), and a FLOW ARROW.




2. Ruler-check the old element: confirm height / outer diameter / centre-hole — especially important if more than one PS312 length lives on the same skid.




3. O-ring colour: black/dark grey = NBR base; brown/red = likely not “plain C” — stop and verify fluid/temperature spec before forcing a black NBR spare.




Replacement — pressure-side (extra care)

1. Close upstream isolation if fitted → bleed slowly at the head vent until gauge reads 0 bar and no more hissing.




2. Support the bowl — heavy hardware; don’t let it hang on piping.




3. Release retainer → lift element straight out (follow the flow arrow on the head; some pull up, some pull down).




4. Check bowl bottom for bright metal shavings (pump/valve wear — report it).




5. Wipe sealing faces → thin film of clean hydraulic oil on the O-ring (no grease, no sealant).




6. Seat element square on centre support (off-centre under pressure = bypass or crush risk).




7. Reassemble → torque evenly → close vent.




8. Bring pressure up slowly → stay close for first few minutes and watch for leaks.




Procurement wording (safe)

“PS312-104-CGVSS — Pressure-line element for PS312-family housing (104 length index, CGVSS variant). Supply exact match confirmed against the head nameplate model; require OD / length / centre bore / seal compound before delivery. No ‘same-size’ substitute.”

2) 02CS060— Internal Stock / Material Number (Must Be Verified)

What it is

A plant stock/material number (ERP number / bin label). It could be:

• a filter element for a specific housing, or




• a seal/repair kit (O-rings, gaskets, drain plug seal…), or




• a small breather/desiccant/auxiliary cartridge depending on your plant’s coding




How to qualify it (one minute)

• Check the bag/bin label (or the BOM line): does it say “element / cartridge” or “seal kit / repair kit / O-ring kit”?




• If it is an element: carry it to the filter it belongs to and match it to the housing nameplate model (ports + pressure + flow arrow) and the old element dimensions (height, OD, centre hole).




• If it is a kit: use it only for the equipment/model the BOM states — not as a filter element.




Procurement wording (safe)

“02CS060 — Internal stock/material No. — issue against the equipment tag / housing model written in the BOM. If anyone delivers an element, require housing model + OD + height + seal compound first. If it is a seal/repair kit, issue only as the specified kit.”

3) One-Line BOM (copy-paste)

• PS312-104-CGVSS— Pressure-line element, PS312 family (104 length), fits PS312 head nameplate only — depressurize fully, support bowl, seat square, pressure up slow




• 02CS060— Internal stock/material number — confirm from housing nameplate / bin tag whether element or kit before use




One rule that covers both

Vent until the gauge reads zero, not until “it looks calm.”

After that, pressure-side or not, it’s always: square seating + clean O-ring + pressure up slow.

If you want this pair locked to exact mm (OD / H / centre-tube) without any brand names appearing, send

1. housing nameplate photo (ports + arrow + pressure rating)




2. old element upright next to a ruler

   — and I’ll return the same clean sheet with only the fit-critical numbers filled in.
