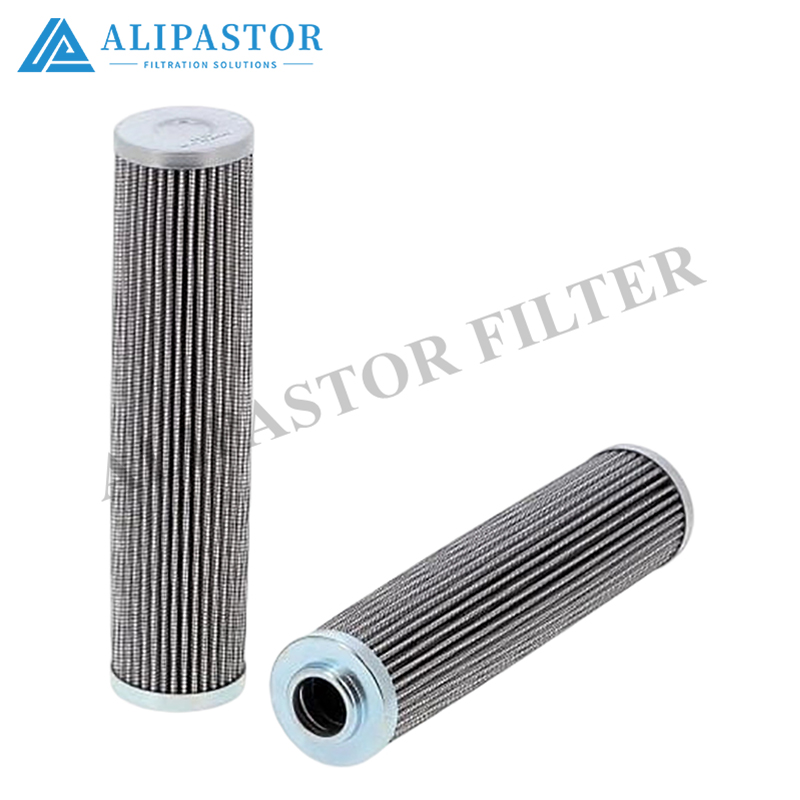

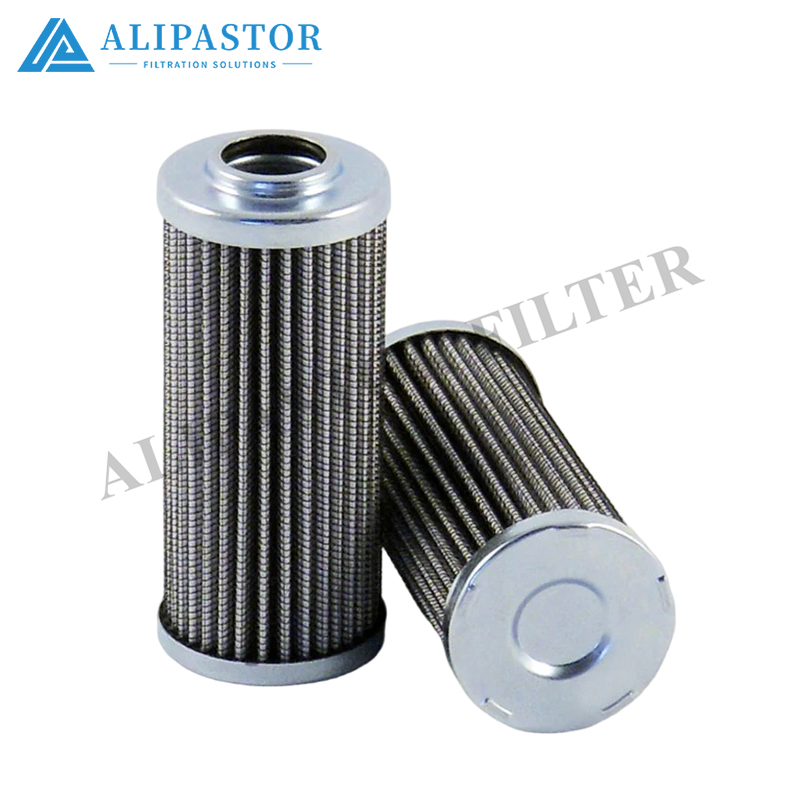

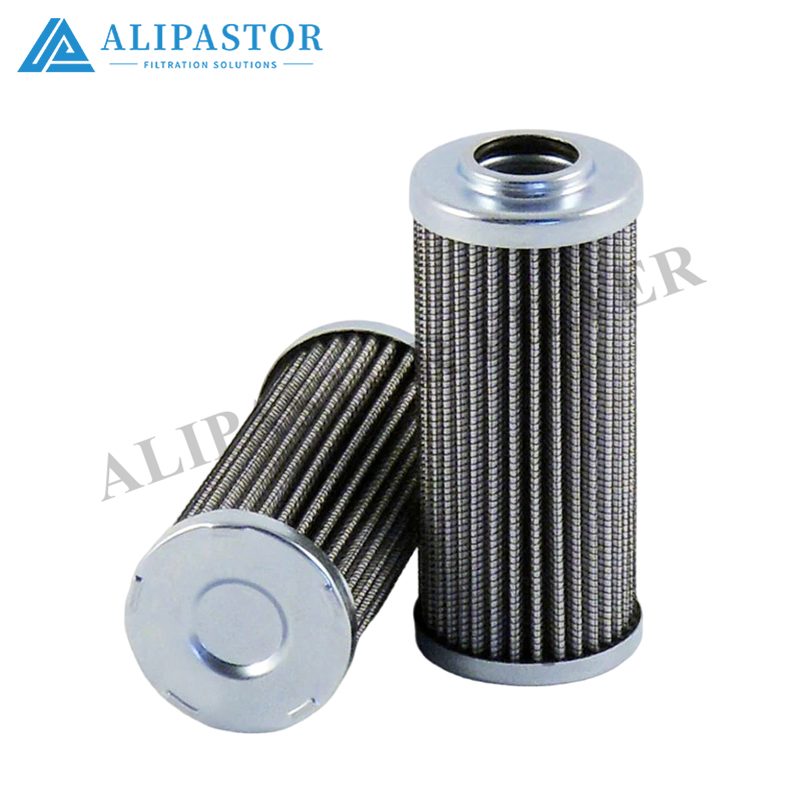

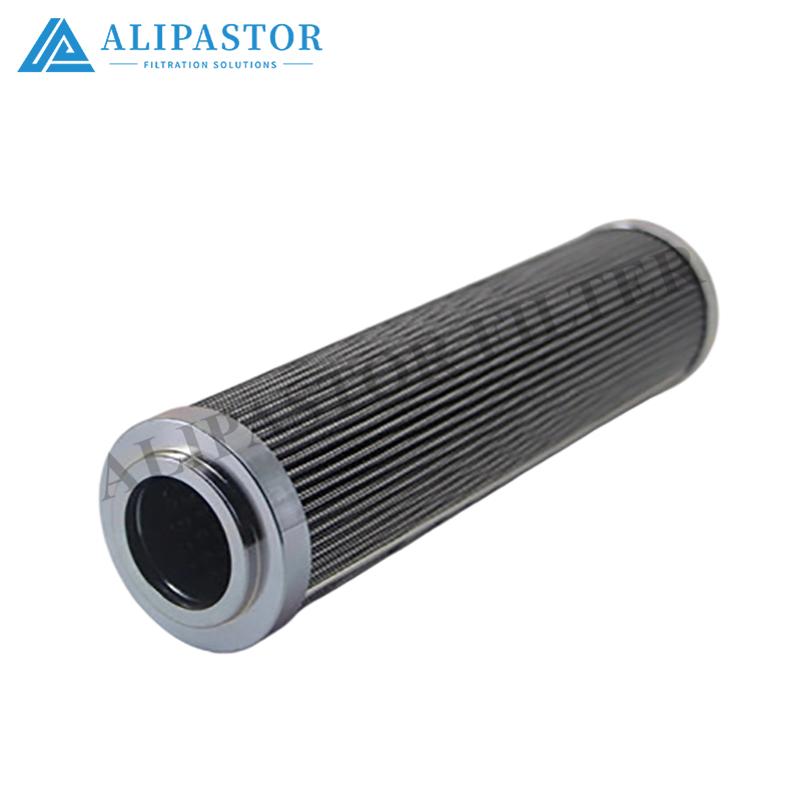

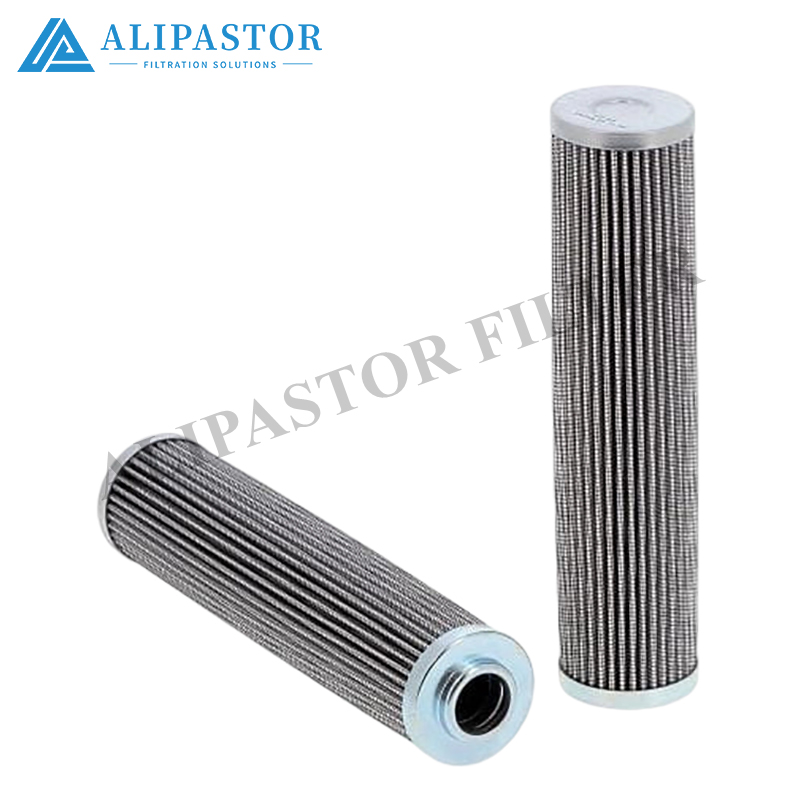

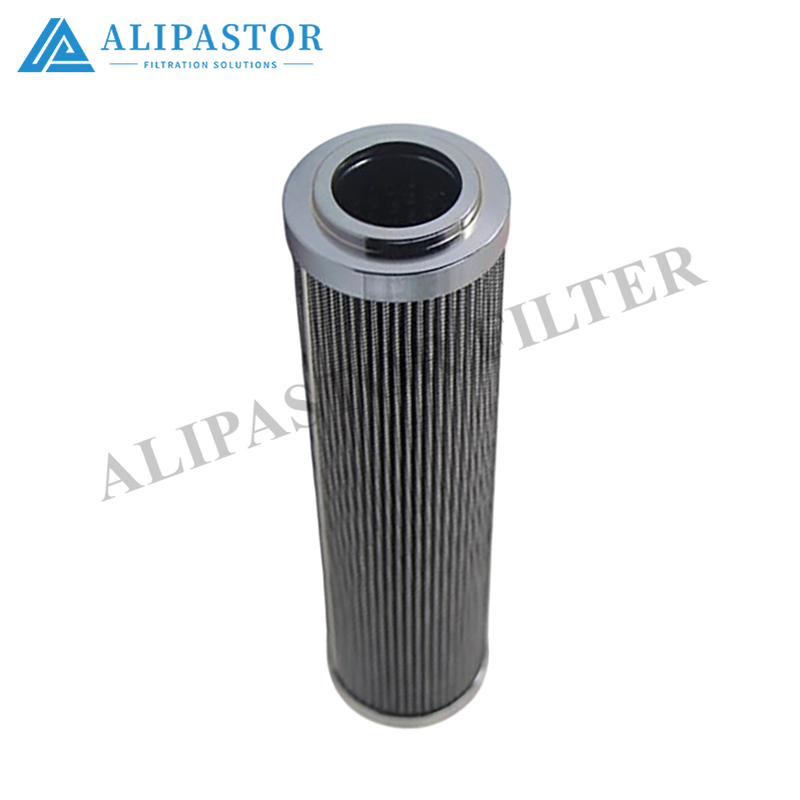

V3.0520-03 V3.0520-06 Hydraulic Oil Filter Cartridge Standard Replacement Part for Hydraulic Machinery
Similar models
| V2-0920-08 L36 | P3.0520-01 | V3.0510-13 | V3.0520-06 |
| V2.1234-06 | P3.0730-52 | V3.0833-08 | V3.0520-08 |
| S2.0613-10 | P3.0720-62 | V3.0620-56 | V3.0520-13 |
| P2.0923-01 | P7.0820-11 | S2.0613-15 | V3.0520-18 |
| V3.0823-06 | V2.1460-26 | V3.0520-58 | V3.0520-53 |
| V3.0510-06 | V3.0510-08 | V3.0817-06 | V3.0520-56 |
| V3.0833-16 | P3.0510-11 | V3.0823-08 | V7.1460-07 V7146007 HY10393 SH52266 1035024892 |
| V3 0520-56 | V3092408 | P3.0823-01 | P3.0520-01K3 |
| V3 0510-56 | V0120 | AS150-01 | V3.0510-96 |
| V3.0520-16 | V3.0817-16 | AS100-01 | V7.0833-06 |
| V3.0934-08 | V2.1440-03 | AS010-00 | V2.0833-06 |
| V3.0730-56 | V3.0823-16 | V7.0833-08 | V3.0620-58 |
| V3.0617-08 | V3.0520-03 | P2.0617-11 | V2.1250-06 |
| S2.1234-00 |
Basic Info.
Type | Hydraulic oil filter | Material | Stainless steel wire mesh |
Warranty | 6 Month | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | Place of Origin | Henan, China |
Brand Name | ALIPASTOR | Application | for Hydraulic system |
Product Name | Hydraulic oil filter | Part Number | V3.0520-03 V3.0520-06 |
Keyword | Hydraulic oil filter | Weight | Standard |
Filtration | 1-70micron | Color | Customize |
Filtration Grade | 99% | Warranty | 3 Months |
Production Capacity | 1000 PCS/Week |
Product Parameters
Model Number | V3.0520-03 V3.0520-06 |
Type | Hydraulic oil filter element |
Dimension | Standard |
Working Temperature | According to customer's request |
Work Pressure Different | Customized |
Material | Stainless steel wire mesh |
Filter Precision | 3~100μm |
Life span | 2000h |
MOQ | 1 pieces |
Lead Time | Around 5-7 days after order confirmed |
Package | PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement |
Shipping Method | By sea, by air, by express |
Filter Elements — Quick Reference (English Only)
Codes: V3.0510-13/ V3.0833-08
1) Identification
Both codes belong to the V3 Series (commonly associated with ARGO-HYTOS style filter housings).
Code | Likely Family / Size |
|---|---|
V3.0510-13 | V3 Series, Size 0510 (Medium/Large canister) |
V3.0833-08 | V3 Series, Size 0833 (Larger canister / Higher flow) |
⚠️ Suffixes (
-13,-08) define the micron rating, media type, and seal material. These cannot be guessed from the numbers alone.
2) What You Must Check (On-Site Verification)
A) Housing Nameplate
Look for the model stamped near the ports (e.g., V3.0510..., V3.0833...).
B) Old Element Print
Check the end-cap for the full code and seal color.
Check | Action |
|---|---|
Seal Color | Black/Grey = NBR (Standard) |
Flow Arrow | Ensure the arrow on the head/housing matches the system flow. |
3) Replacement Procedure (Standard for V3 Series)
ISOLATE & DEPRESSURIZE: Shut the system down. Open the vent/bleed screw on the filter head until pressure reads zero.
SUPPORT BOWL: Do not let the bowl hang by the piping.
OPEN: Loosen the clamp band or retaining nut.
INSPECT: Pull the element. Check for metal shavings (sign of pump/component wear).
SEAL: Apply a thin film of clean hydraulic oil to the new O-ring. Never reuse a cut or flattened seal.
INSTALL: Seat the element squarely on the center support tube.
REASSEMBLE: Tighten the clamp band evenly. Close the vent.
RESTART: Check for leaks. Ensure the differential pressure (ΔP) indicator is in the GREEN zone.
4) Procurement Information
Item | Procurement Description |
|---|---|
V3.0510-13 | V3.0510-13 Filter Element — Confirm micron rating, media, and seal (NBR/Viton) against the existing element/housing nameplate before ordering. |
V3.0833-08 | V3.0833-08 Filter Element — Confirm micron rating, media, and seal (NBR/Viton) against the existing element/housing nameplate before ordering. |
Critical Note for Suppliers
"Supply V3.0510-13 and V3.0833-08 to the exact specifications of the existing elements. Do not substitute based on size alone. Provide the manufacturer's datasheet confirming collapse pressure and seal material."
One-Line BOM Entries (Copy-Paste)
V3.0510-13— V3-Series element, Size 0510. Verify micron/media/seal from housing nameplate.V3.0833-08— V3-Series element, Size 0833. Verify micron/media/seal from housing nameplate.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4.What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q5.What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q6. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q7. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
