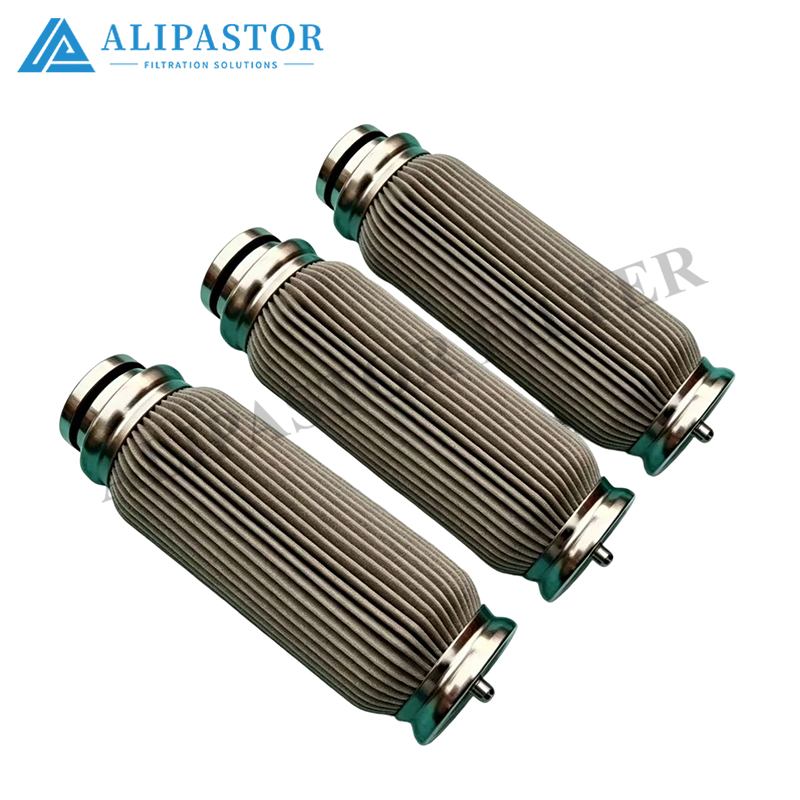

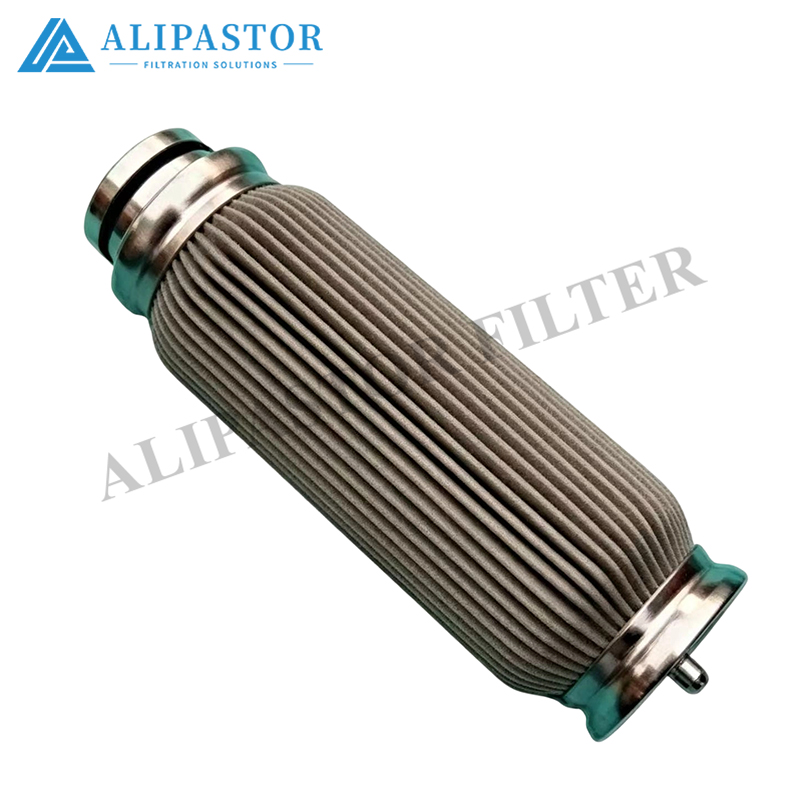

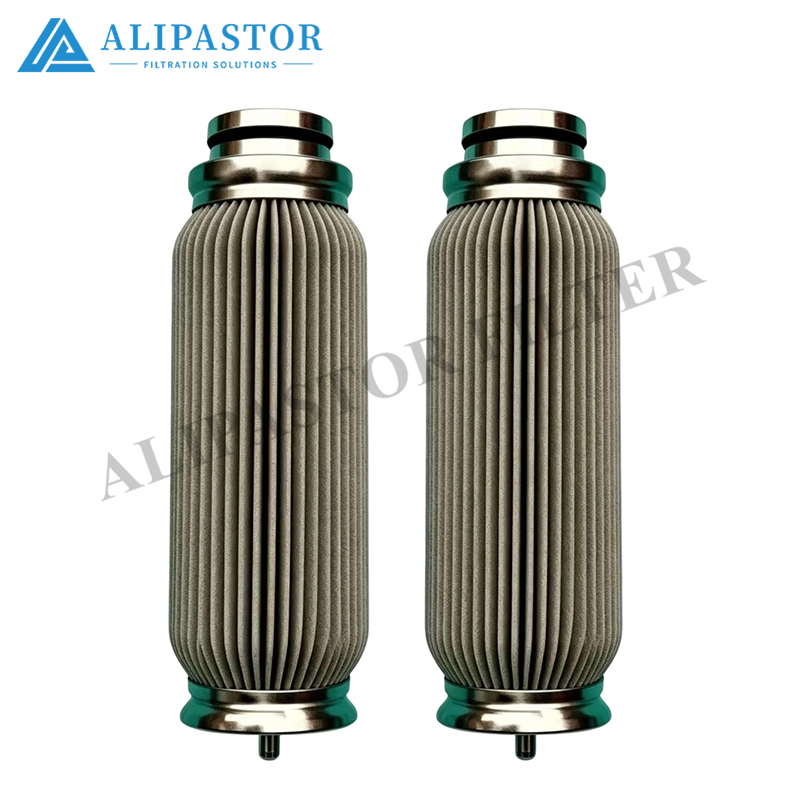

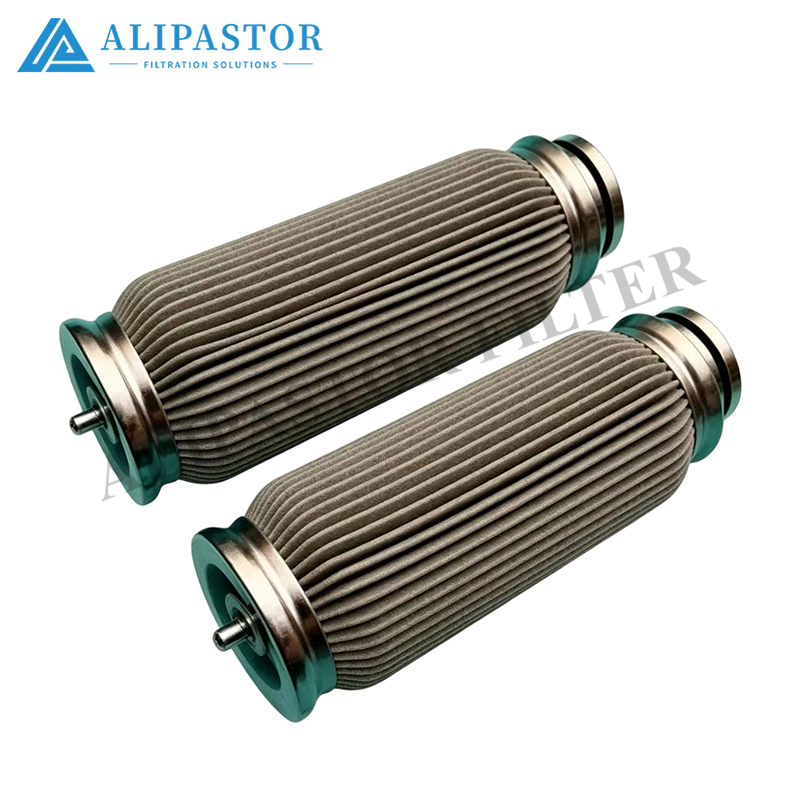

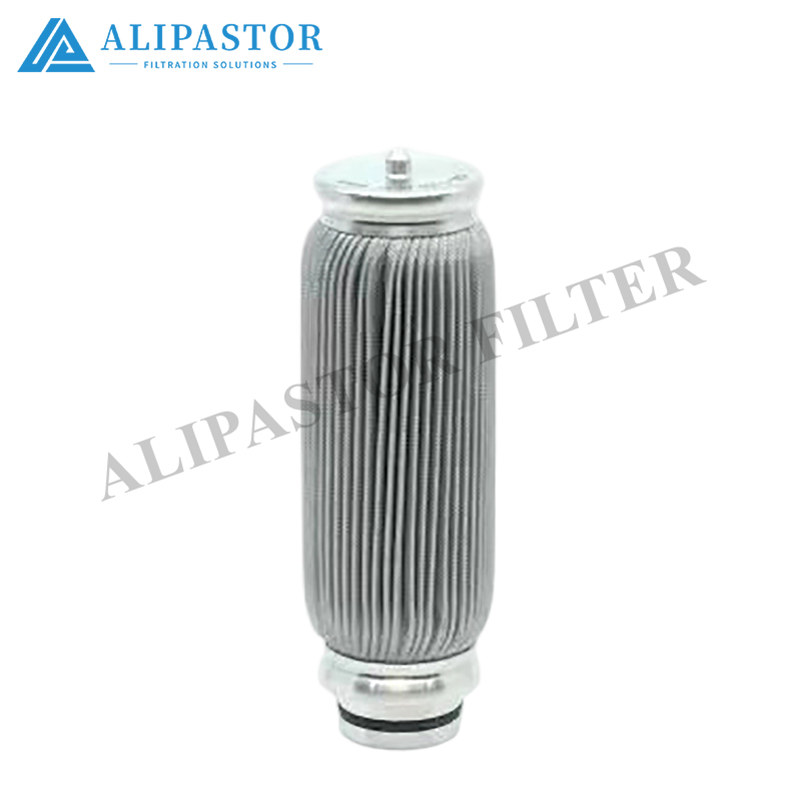

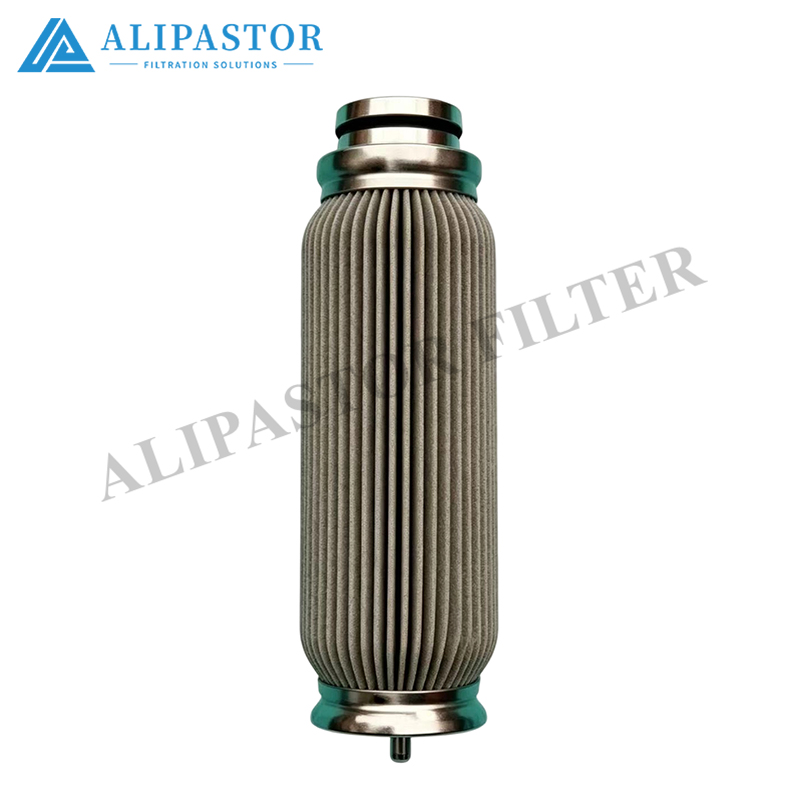

SZ-0-100-DV Hydraulic Oil Filter Element Premium industrial filtration part for removing solid contaminants from hydraulic fluids
Similar models
| 1346138 | SZ-0-25-D-V |
| 1345376 | SZ-1-100-D-V |
| 1345392 | SZ-1-40-D-V |
| 1345329 | SZ-1-60-D-V |
| 1345123 | SZ-2-25-D-V |
| 1346101 | SZ-3-25-DS-V |
Basic Info.
Type | Hydraulic oil filter | Material | Stainless steel wire mesh |
Warranty | 6 Month | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | Place of Origin | Henan, China |
Brand Name | ALIPASTOR | Application | for Hydraulic system |
Product Name | Hydraulic oil filter | Part Number | SZ-0-100-DV |
Keyword | Hydraulic oil filter | Weight | Standard |
Filtration | 1-70micron | Color | Customize |
Filtration Grade | 99% | Warranty | 3 Months |
Production Capacity | 1000 PCS/Week |
Product Parameters
Model Number | SZ-0-100-DV |
Type | Hydraulic oil filter element |
Dimension | Standard |
Working Temperature | According to customer's request |
Work Pressure Different | Customized |
Material | Stainless steel wire mesh |
Filter Precision | 3~100μm |
Life span | 2000h |
MOQ | 1 pieces |
Lead Time | Around 5-7 days after order confirmed |
Package | PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement |
Shipping Method | By sea, by air, by express |
Filter Element — Quick Card (English)
Code: SZ-0-100-DV
Type: HYDAC SZ Series (Process / Kidney-Loop)
1) Key Facts
Item | Description |
|---|---|
Size | SZ-0 (Mini cartridge, approx. Ø65 × H88 mm) |
Filtration | 100 µm (Stainless steel mesh) |
Media | D = Metal screen (Rigid support cage) |
Seal | V = Viton (Brown/Red) — High Temp |
Location | Off-line / Circulation filter (Small vertical housing) |
2) Replacement Steps
STOP pump → Vent pressure.
Open housing (Top cap / Clamp ring).
Lift element straight out.
Check for metal shavings (wear sign).
Clean seal face → Light oil on Viton O-ring.
Install square → Torque evenly → Bleed air.
⚠️ Warning: Do NOT swap Viton (V) for NBR (Black) unless fluid/temp allows.
3) Procurement Line
Order as: SZ-0-100-DV
Spec: HYDAC SZ-0, 100µm SS mesh, Viton seal, mini cartridge.
One-Line BOM
SZ-0-100-DV — HYDAC SZ-0 kidney-loop element, 100µm mesh, Viton, Ø65×H88mm
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4.What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q5.What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q6. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q7. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
