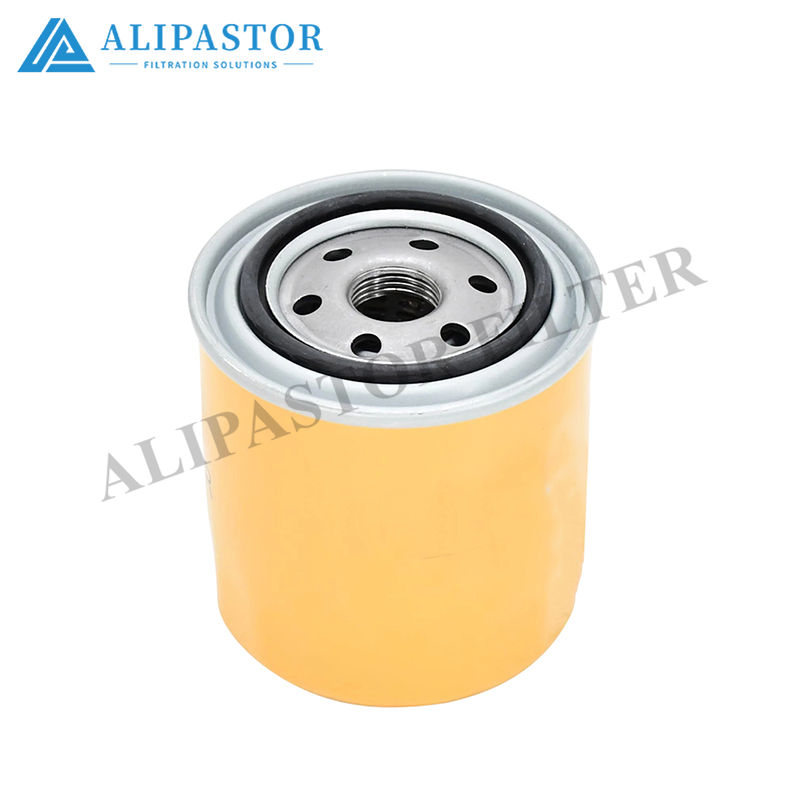

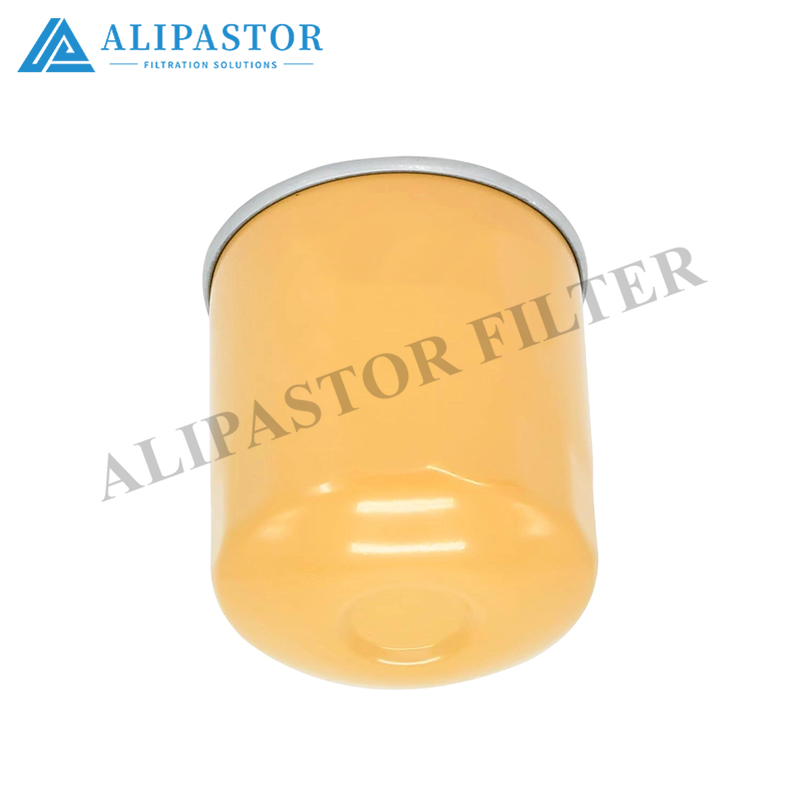

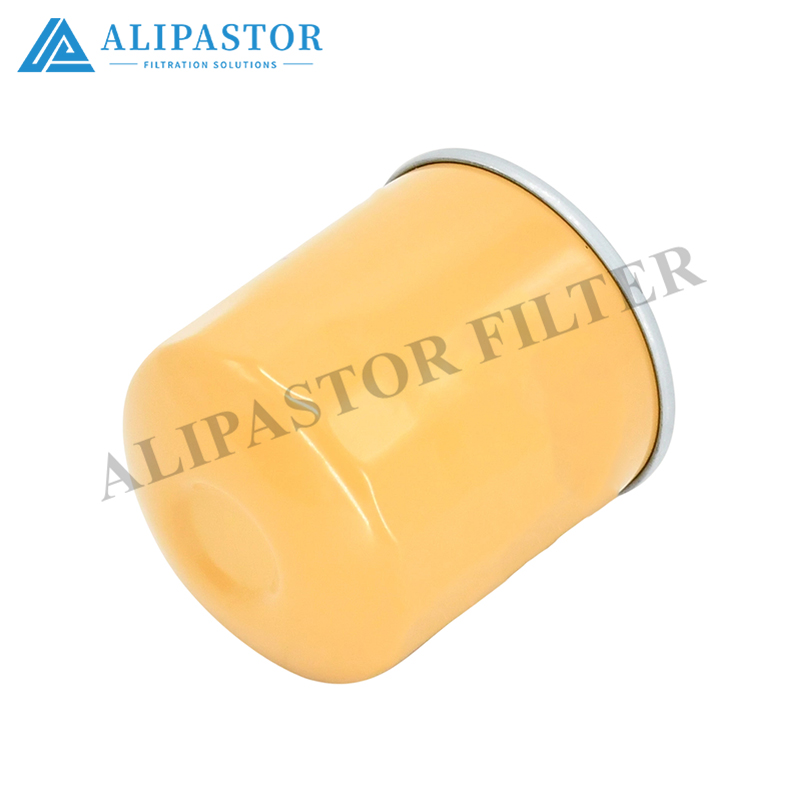

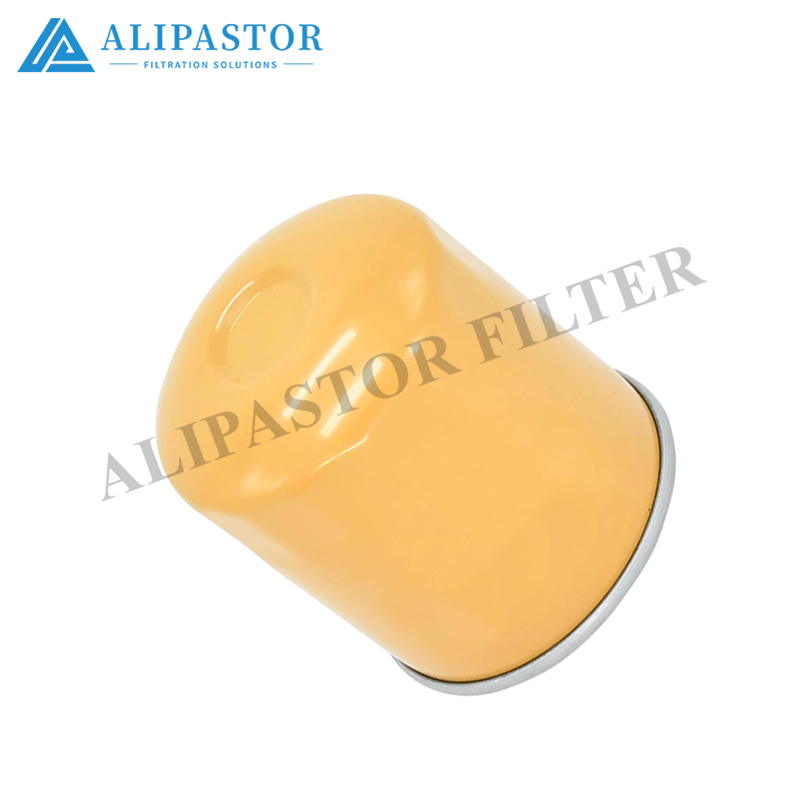

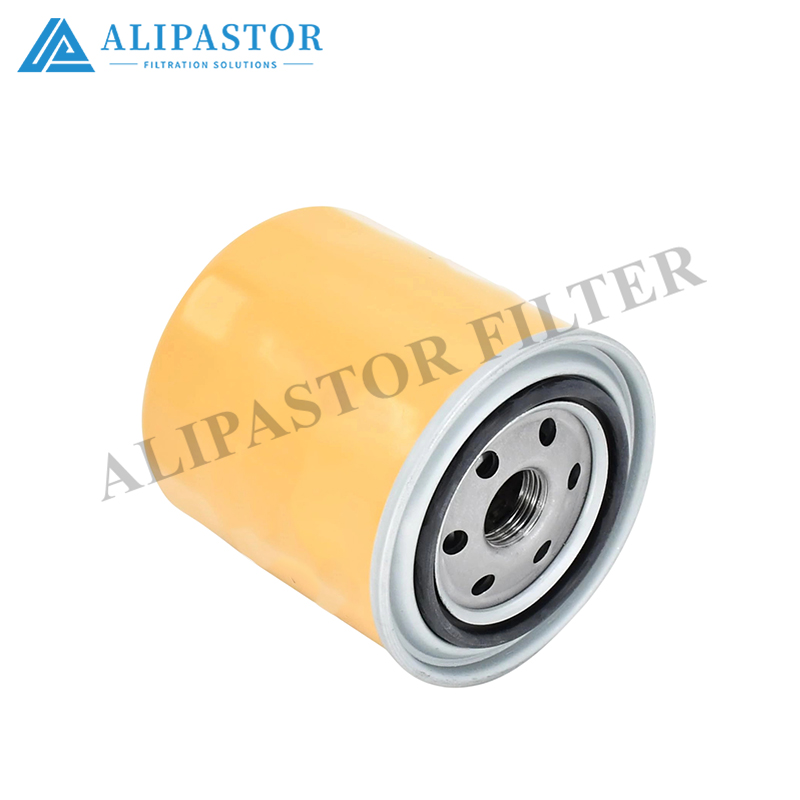

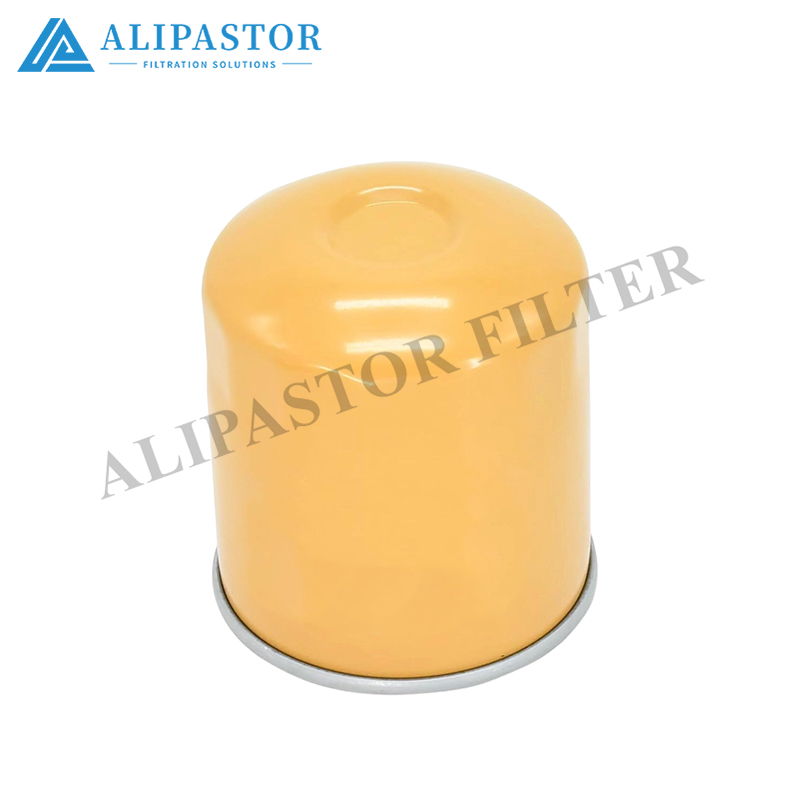

Hydraulic Oil Filter Elements – Models 4616543 & 4616544

Two high-performance replacement filter cartridges engineered for return-line, suction-line, and low-pressure inline hydraulic oil circuits across excavators, wheel loaders, and industrial power units. Originally specified as diesel fuel filters by the original equipment manufacturer, these elements are now widely supplied as hydraulic oil filter alternatives with upgraded media to meet ISO 16889 multi‑pass requirements.

Key Features

• 4616543: Imported glass‑fiber media; 10–15 µm typical (1–200 µm configurable); 98 % filtration efficiency; 2000 h service life; 0–100 °C operating range; collapse pressure 21–210 bar; NBR/FKM seal options




• 4616544: Similar glass‑fiber media architecture; 5–10 µm fine grade available; robust pleated construction; high dirt‑holding capacity; compatible with mineral hydraulic oil, water‑glycol, and phosphate‑ester fluids (FKM seals mandatory for the latter)




• Both: Gradient‑density pleated structure – maximizes effective area, minimizes initial ΔP




• Laser‑cut and laser‑welded seams – leak‑tight under vibration




• End caps: carbon steel, stainless steel, aluminum, or nylon (configurable)




• Disposable – do not attempt to clean




Technical Specifications

Note: Exact outer diameter, length, inner diameter, and end‑cap pattern depend on the host filter housing. Always measure your existing element before ordering.

Application Guidance

These elements are deployed on hydraulic power units, mobile construction machinery, compressor lube circuits, and various filtering mechanical equipment. The glass‑fiber pleated media provides 5–15 µm particulate control, protecting pumps, valves, cylinders, and bearings from abrasive wear. Select the micron grade according to circuit position:

• 1–5 µm – servo and proportional valve protection




• 5–10 µm – high‑pressure piston pumps




• 10–20 µm – vane/gear pumps and general return loops




• 20–40 µm – coarse pre‑filtration and suction lines




Over 70 % of hydraulic system failures originate from fluid contamination. Matching the correct micron grade and β‑ratio is the single most cost‑effective maintenance decision.

Fluid Compatibility

• Mineral hydraulic oil (ISO HM, HV) – NBR seals




• Water‑glycol (HFC) – NBR acceptable; FKM recommended




• Phosphate‑ester (HFDR) – FKM seals mandatory




• Biodegradable esters (HEES, HETG) – FKM recommended




Installation & Service

1. Shut down equipment; relieve system pressure to 0 bar and isolate the filter housing.




2. Open the housing cover; withdraw the spent cartridge by its center tube.




3. Inspect housing interior, bypass spring (if fitted), and seal grooves. Check spent media for metal particles – copper/iron debris indicates pump or valve damage.




4. Seat the new element – confirm flow direction (outside → inside). Renew all O‑rings.




5. Close the housing; torque bolts evenly. Bleed air at the bleed port.




6. Restart and gradually ramp up to working pressure.




7. Replace per clogging indicator or 2000‑hour service interval in moderate contamination; 250–500 h in heavy‑duty environments.




8. Glass‑fiber elements are disposable – never attempt to clean.




Ordering

Specify 4616543 or 4616544 together with:

• Required micron rating (1–200 µm)




• Media type (glass‑fiber / filter paper / stainless steel mesh)




• Collapse pressure class (21 / 60 / 160 / 210 bar)




• Seal material (NBR / FKM)




• End cap material (carbon steel / stainless steel / aluminum / nylon)




• Mounting dimensions (OD, length, ID, end‑cap pattern)




Provide your existing element’s dimensions or the host machine model for cross‑reference confirmation. Custom configurations are available on request.
