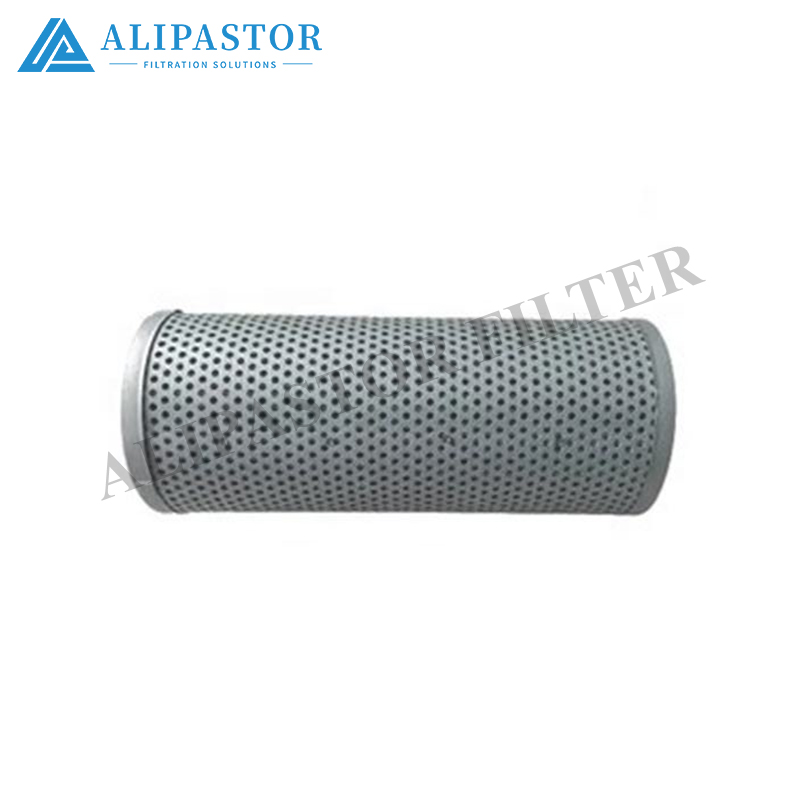

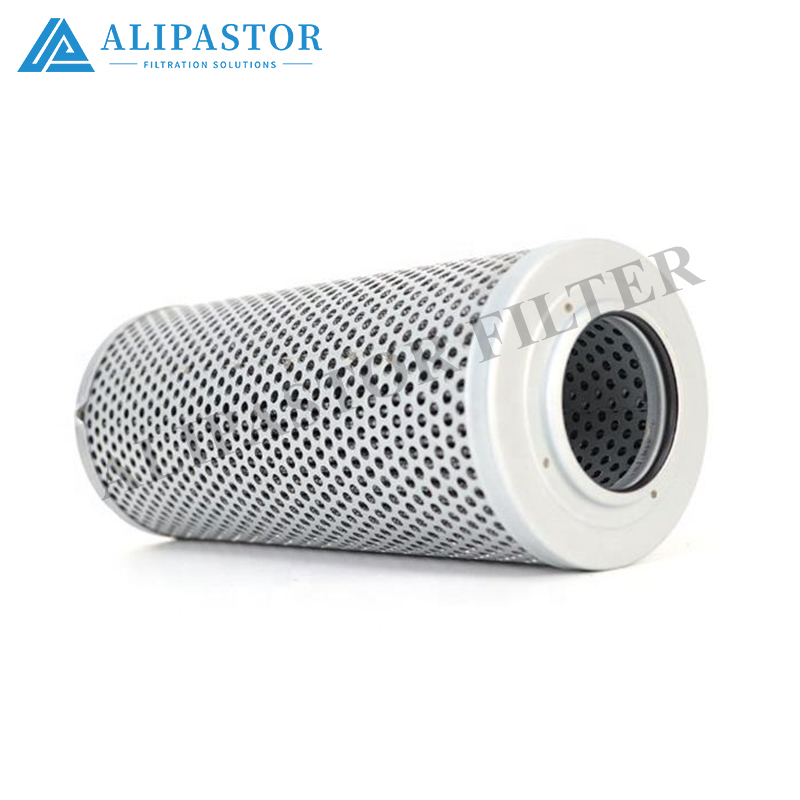

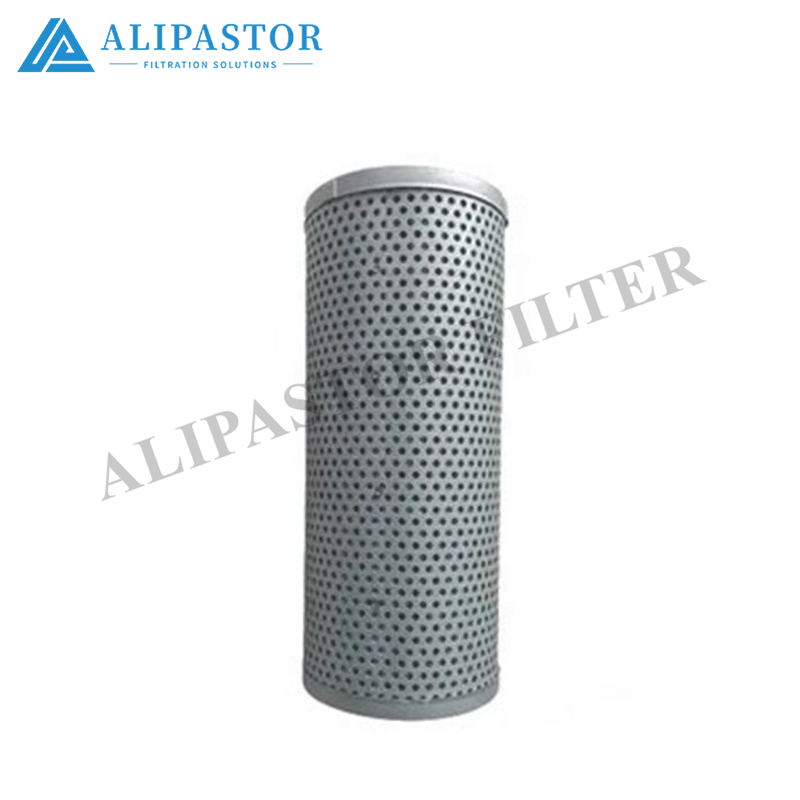

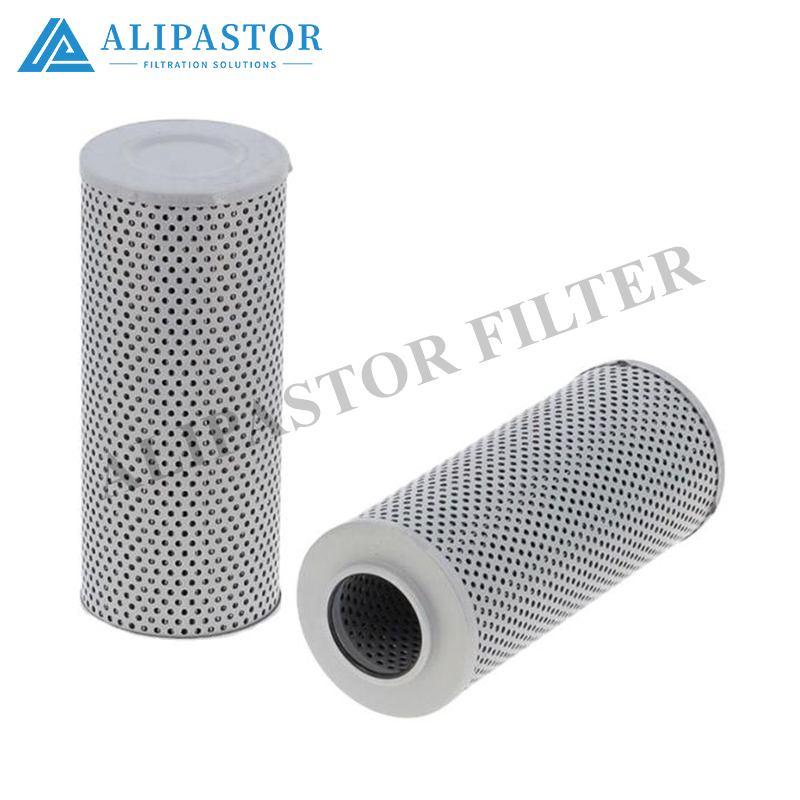

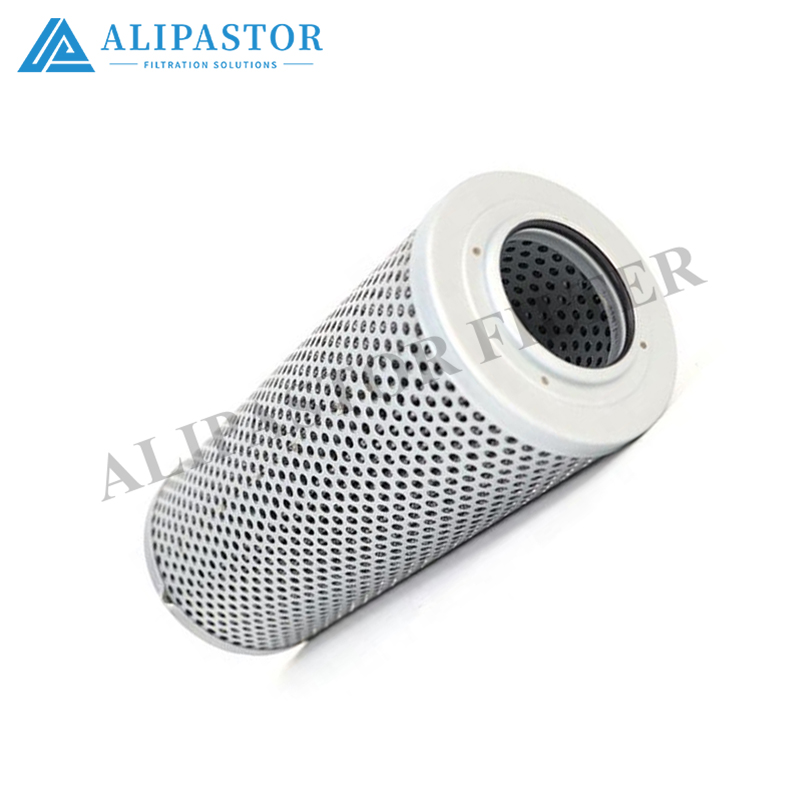

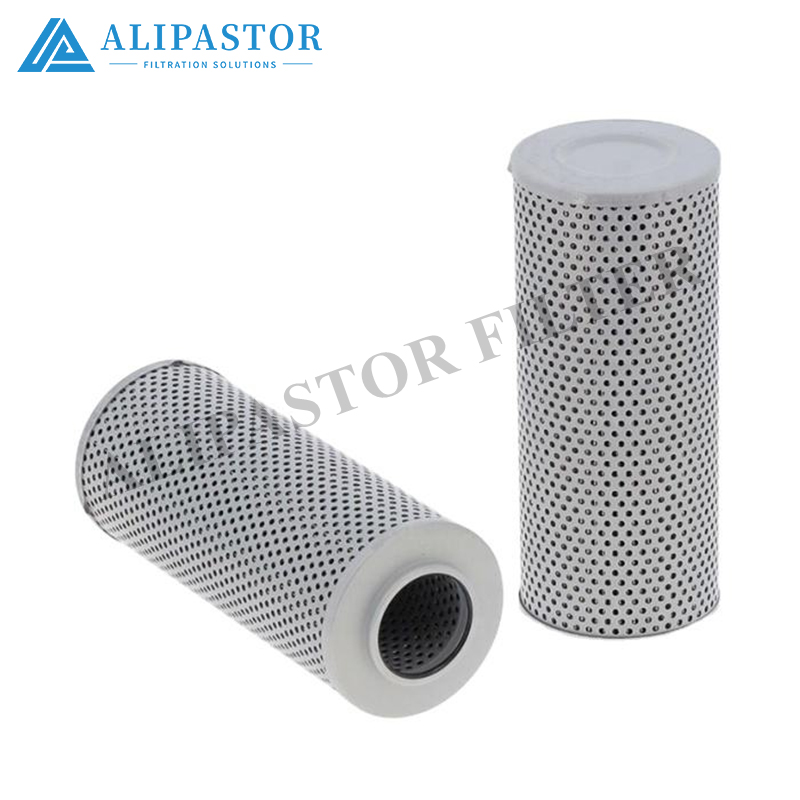

High-Performance Hydraulic Oil Filters – Models 07063-11046 & 07063-01054

Two spin-on/cartridge hydraulic elements from the same 07063 filter family, positioned at different precision and pressure classes. 07063-11046 is a 10–15 µm return-line / low-pressure guard (100 × 227 mm) for excavators, dozers, and loader backhoes. 07063-01054 is a finer, higher-pressure 5 µm canister (100 × 210 mm) built for heavy-duty truck and mining hauler hydraulic circuits where burst resistance and anti-over-tightening protection matter.

Key Features

• 07063-11046: Glass-fiber media, 10–15 µm / 98 % efficiency, ~2000 h service life, suited to return and pump-guard duty on 20–40 t class excavators and crawler dozers




• 07063-01054: Triple-layer microglass pleats, 5 µm absolute, stainless-steel mesh backing, 150 bar burst (ISO 2941), Viton + PTFE dual-seal, laser-etched 25 Nm torque indicator on flange — designed for mining trucks and 30+ t class haulers




• 6061-T6 aluminum housing option (01054) with helical titanium reinforcement for high-vibration quarry cycles




• NBR std. / Viton (FKM) optional on 11046; Viton std. on 01054




Technical Specifications

Application Guidance

07063-11046 – Return-line or pump-discharge guard on mid-size excavators, crawler dozers, and wheel loaders where a 100 mm OD canister fits standard tank-head or in-line housings. The 10–15 µm grade protects spools and cylinders in general construction duty; 2000 h interval matches typical undercarriage service schedules.

07063-01054 – Hydraulic circuits on mining trucks, quarry haulers, and large excavators (PC360-11 / HD785-7 class platforms). The 5 µm absolute rating and 150 bar burst make it suitable for pressure-line placement or high-vibration return loops where debris from hose wear and cylinder scrap is aggressive. The torque-indicator flange reduces gasket crush failures during field service — a common failure mode on remote sites.

⚠️ 01054 is a finer, higher-pressure element than 11046. Do not substitute 11046 into a 01054 pressure-line slot (under-filtered); avoid 01054 in a dirty return-first position (will blind fast) unless staged behind a coarser pre-filter.

Fluid Compatibility

• Mineral hydraulic oil (ISO HM, HV)




• Phosphate ester (HFDR) – confirmed on 01054 (PTFE/Viton seals); 11046 requires seal check




• Emulsion & water-glycol (HFC/HFA) – 11046 std.; 01054 confirmed per listing




• Biodegradable esters (HEES/HETG) – Viton seals recommended on both




Installation & Service

1. Clean head/housing mating face; inspect threads and seal groove.




2. 11046: Lubricate gasket with clean hydraulic oil, spin on by hand + ¾ turn. No strap wrench on the shell.




3. 01054: Tighten to 25 Nm using the laser-etched indicator on the flange — do not exceed; the torque-control flange is the over-tightening protection.




4. For pressure-line duty, pre-fill if head design allows; bleed air at housing bleed port.




5. Replace 11046 per ~2000 h or ΔP indicator; replace 01054 per ~3000 h interval (mining/heavy truck schedule) or when bypass signals.




Quality Assurance

• ISO 16889 – multi-pass β-ratio (both)




• ISO 2941 – collapse/burst (150 bar validated on 01054)




• ISO 2942 – structural integrity




• ISO 2943 – media/fluid compatibility




• MIL-STD-810H vibration (01054); 10,000 h pressure-cycling test (01054)




Ordering

Quote 07063-11046 (100×227 mm, 10–15 µm, excavator/dozer return) or 07063-01054 (100×210 mm, 5 µm absolute, mining truck/high-pressure, Viton+PTFE, torque-indicator flange) with seal material and quantity. Cross-reference to common OEM hydraulic spin-on patterns in the 07063 family available on request — provide your machine model and existing OEM number for confirmation.

All values nominal; confirm housing type, pressure class, and seal compatibility (especially HFDR service) before installation.
