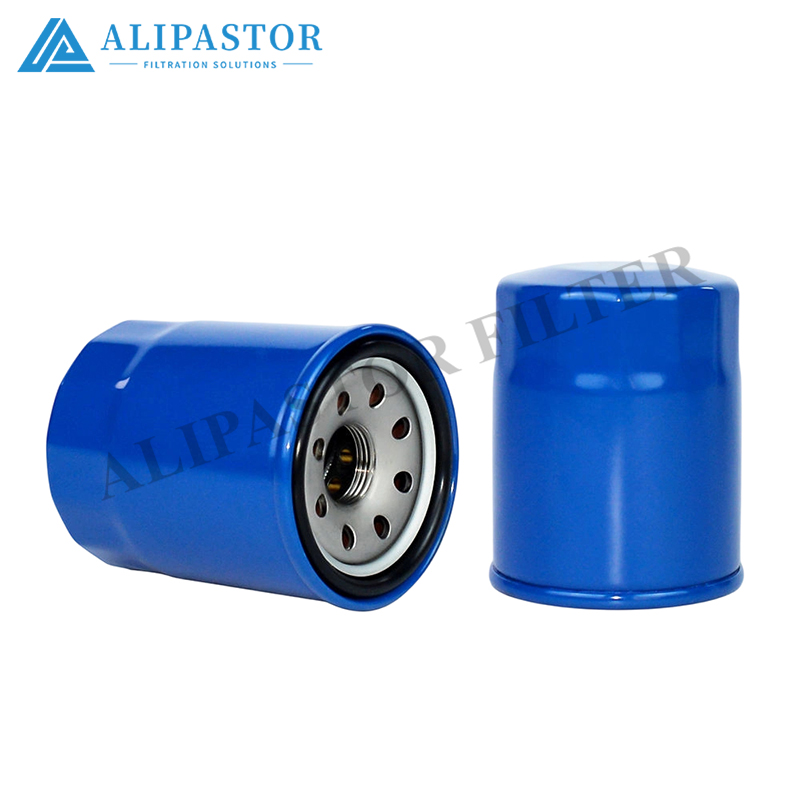

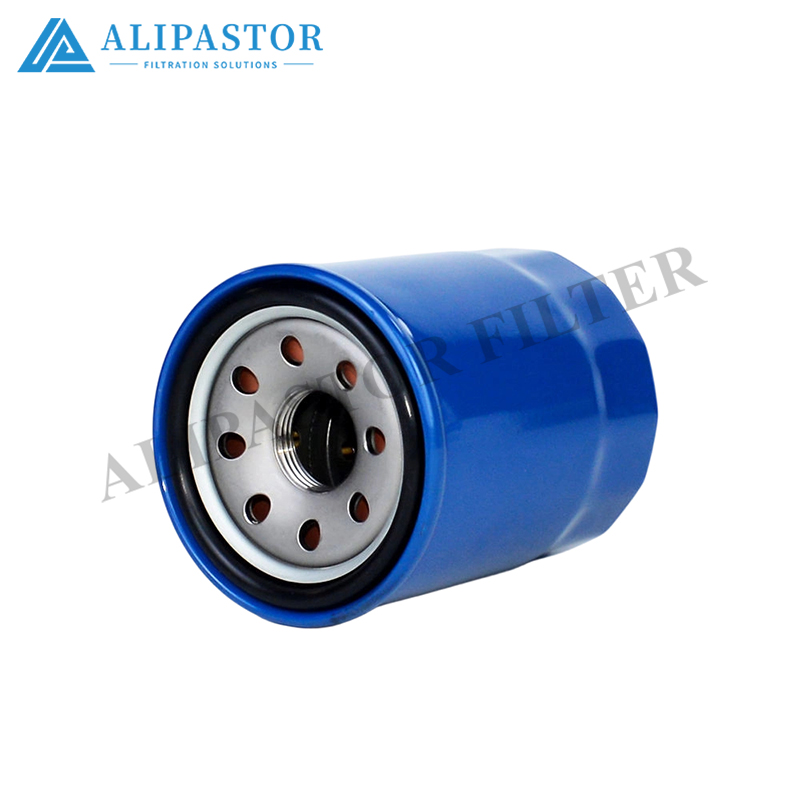

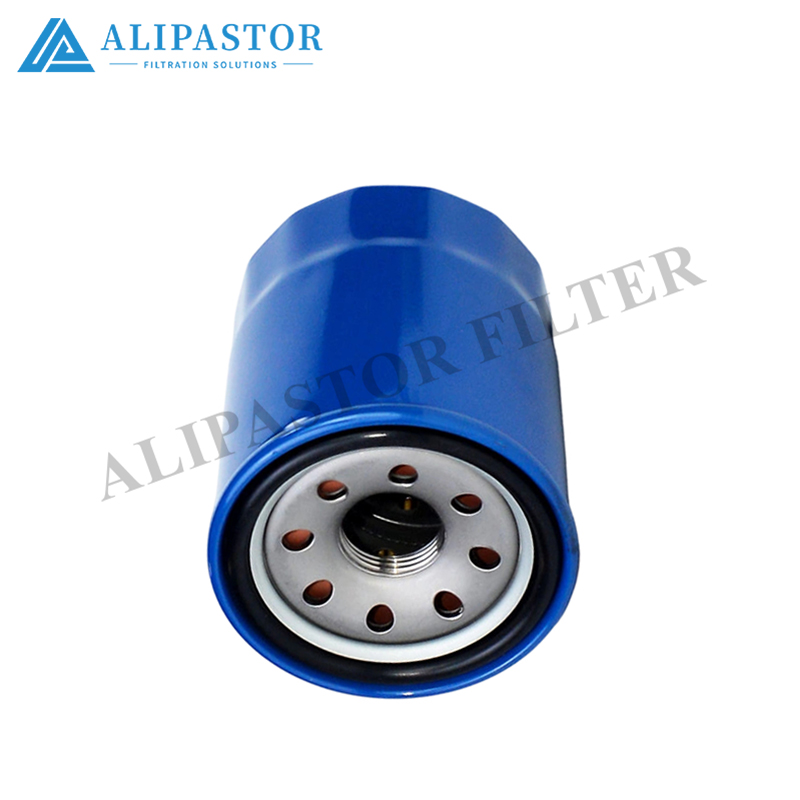

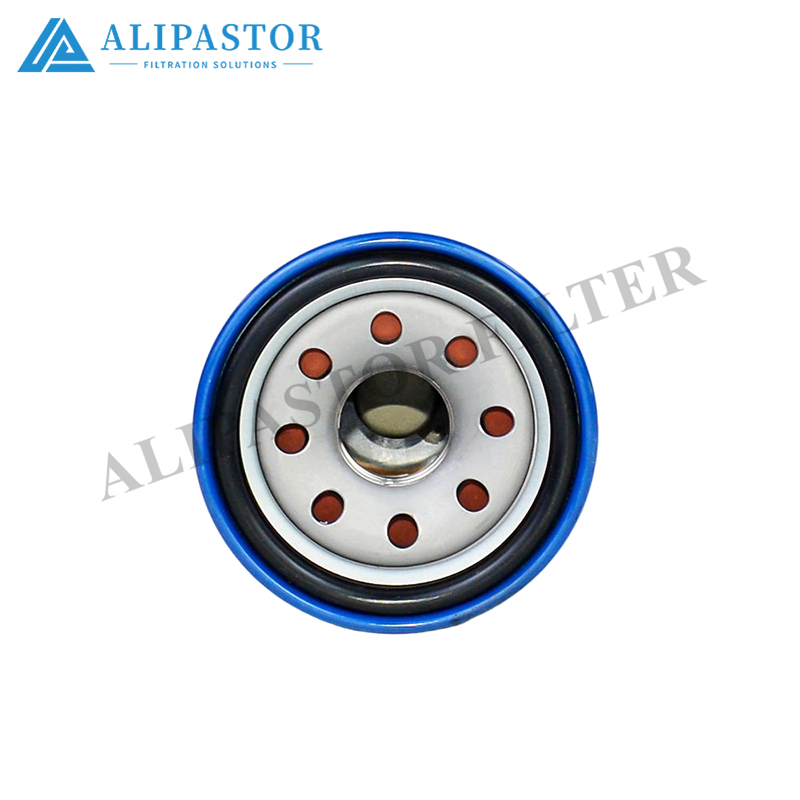

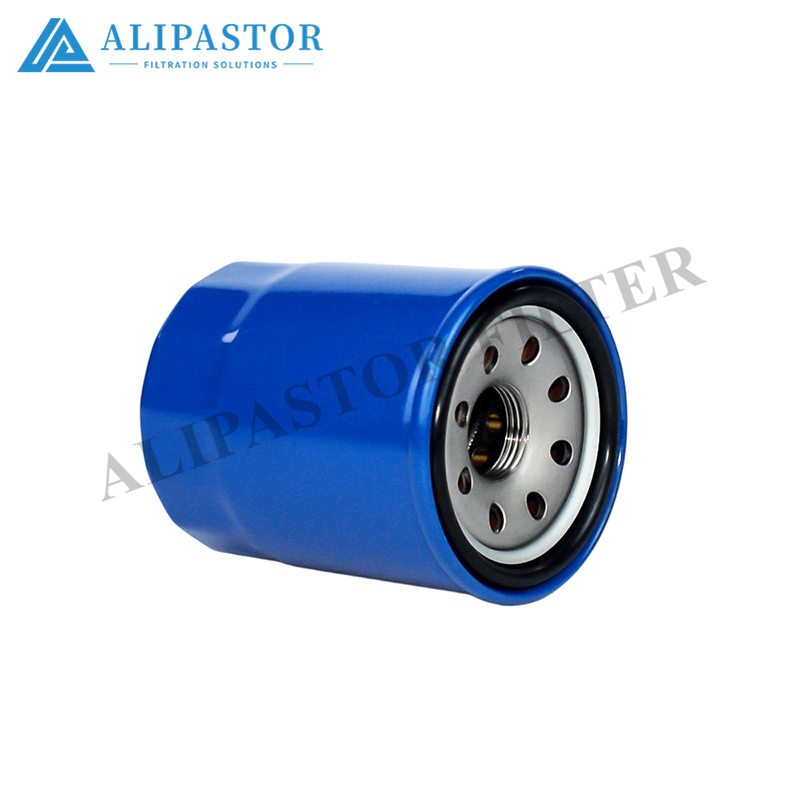

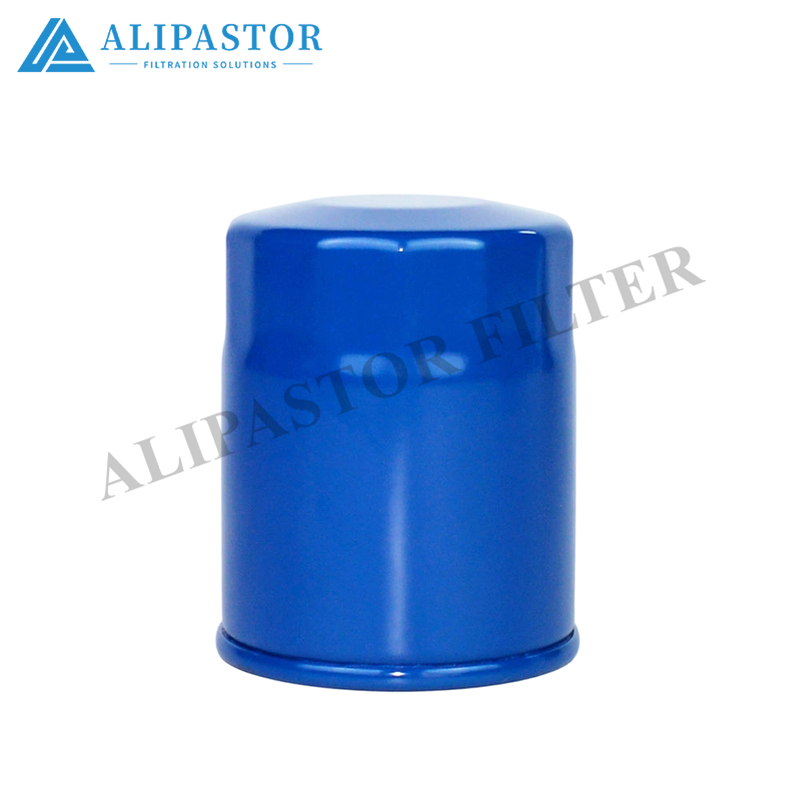

Spin-On Lube & Hydraulic-Aux Filter – Model 15400-PR3-004

Originally specified as a full-flow lube-oil spin-on for Honda/Acura passenger-car and light-commercial platforms (Civic, Integra, Accord, CR-V, Legend among others), this M20×1.5 canister also crosses to Hyundai Accent, Elantra, Santa Fe, Mitsubishi Eclipse/Galant, Subaru Impreza/Legacy, and related engine families. A glass-fiber 10–15 µm variant is additionally offered for hydraulic-auxiliary and compressor-lube duty on the same chassis — making it a dual-purpose service item across engine and ancillary circuits.

Key Features

• Std. lube version: Resin-impregnated cellulose, 20–25 µm nominal, anti-drain-back valve, bypass integrated in the head circuit




• Hyd-aux variant: Glass-fiber composite, 10–15 µm, β₁₀ ≥ 200, deployable on power-steering return, PTO-lube, or compressor loops of the same vehicles




• Rolled steel shell, zinc-plated end caps, corrosion-resistant finish




• NBR gasket standard; FKM available for high-temperature estates




• Compact 84 mm OD × 81 mm length — fits tight bay layouts on Civic/Integra engine bays




Technical Specifications

Application Guidance

Lube duty – Primary full-flow filtration on B-series, D-series, K-series, and related Honda/Acura engines (Civic 6th–9th gen, Integra, Accord 4th–7th, CR-V 2.0/2.4, Legend). Also cross-referenced to Hyundai/Kia (Accent, Elantra, Santa Fe, Tucson, Sedona, Sorento), Mitsubishi (Eclipse, Galant, Montero), Subaru (Impreza, Legacy, Forester, Outback) under shared OE number patterns (LF3462, H13W01, W814/80 equivalents).

Hyd-aux duty (glass-fiber variant) – Power-steering return guard, compressor-lube loop, or PTO-lube on the same chassis where a compact M20 spin-on is preferred over a larger canister. The 10–15 µm grade protects servo valves in steering racks and variable-displacement compressor bearings.

📎 When ordering, specify lube (cellulose, 20–25 µm) vs. hyd-aux (glass-fiber, 10–15 µm) — the part number is identical across both trims at the catalog level; media code differentiates them.

Fluid Compatibility

• Mineral engine oil (API SN Plus, SP, CK-4 crossover on diesel variants)




• ATF / power-steering fluid (hyd-aux version)




• Mineral hydraulic oil (ISO HM/HV) – hyd-aux version only




• HFC water-glycol – NBR acceptable; FKM recommended




• Not for phosphate ester (HFDR)




Installation & Service

1. Clean filter head / engine block mounting face; inspect the engine's center tube (if present) and threads.




2. Lubricate the new gasket with clean oil, spin on by hand until gasket contacts, then tighten ¾ turn — do not over-torque; no strap wrench on the canister.




3. For lube duty: pre-fill the canister if the head design allows, start the engine, and check for leaks at operating pressure.




4. For hyd-aux duty: bleed the loop per chassis procedure; replace when ΔP reaches bypass (~2.5 bar) or per service interval.




5. Typical lube interval: 5,000–8,000 km / 5,000–10,000 hours depending on engine spec — follow OEM schedule.




Quality Assurance

• SAE J1858 / ISO 4548 (lube) – efficiency & capacity




• ISO 16889 (hyd-aux) – multi-pass β-ratio




• ISO 2941 – collapse/burst (hyd-aux cage)




• ISO 2943 – media/fluid compatibility




• Shell burst test per batch




Ordering

Quote 15400-PR3-004 with duty (lube / hyd-aux), micron rating, and seal material. Cross-reference to common OEM numbers (LF3462, H13W01, W814/80, MD001450/MD005450 patterns) available on request — provide your vehicle/engine model and existing OE number for confirmation.

All values nominal; confirm thread (M20×1.5), gasket dimensions, and head pressure class against your actual engine or aux-loop filter head before installation.
