Filtration Pair – Models MB220900 & MD603446

Two complementary filter elements drawn from the same heavy-duty platform family: MB220900 is a spin-on canister originally specified for diesel-fuel circuits but widely crossed into hydraulic auxiliary and compressor-service duty, while MD603446 is a vertical finned air-filter cartridge protecting the same engine/compressor packages' intake side. Both are stocked as high-turnover service items across L-series vans, light commercials, forklifts, and mini-excavator power units.

Key Features

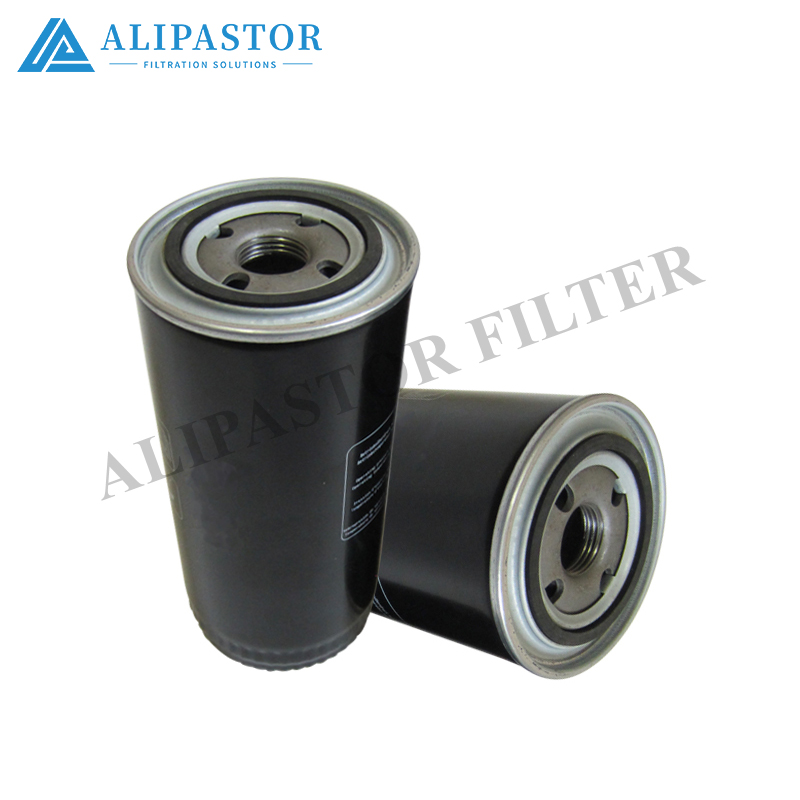

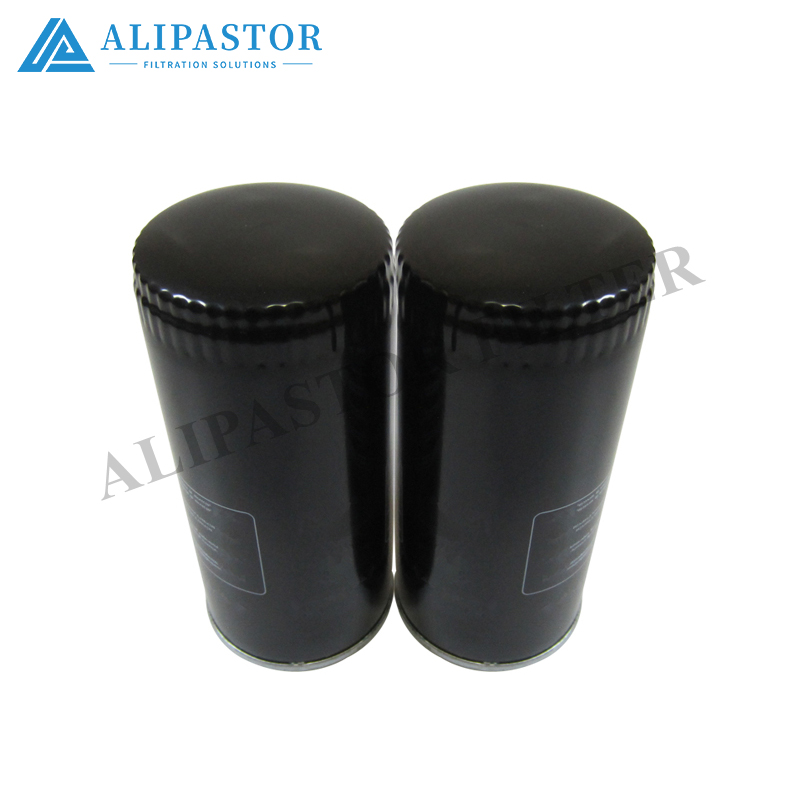

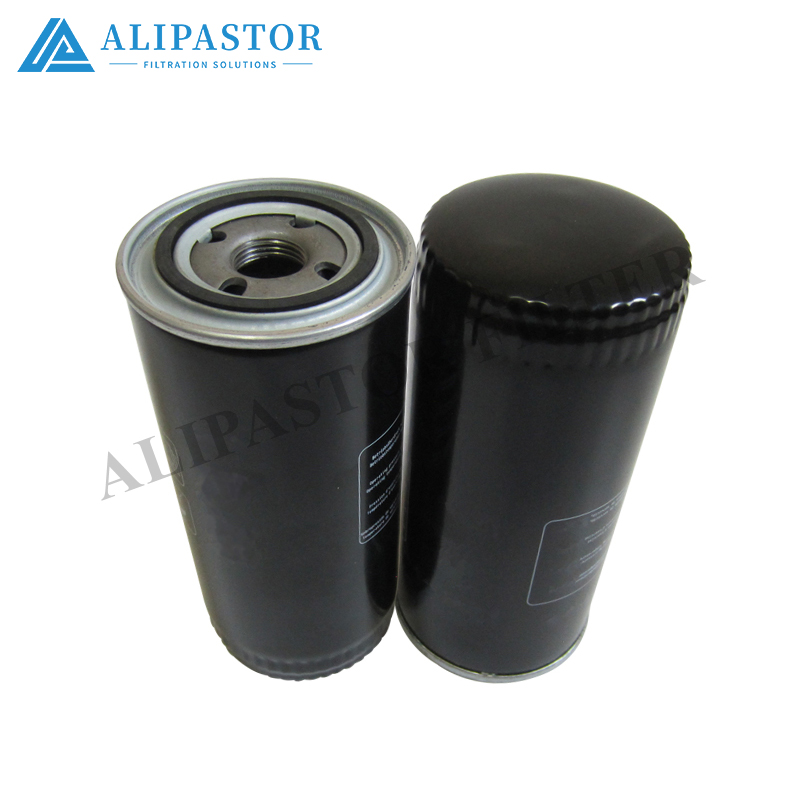

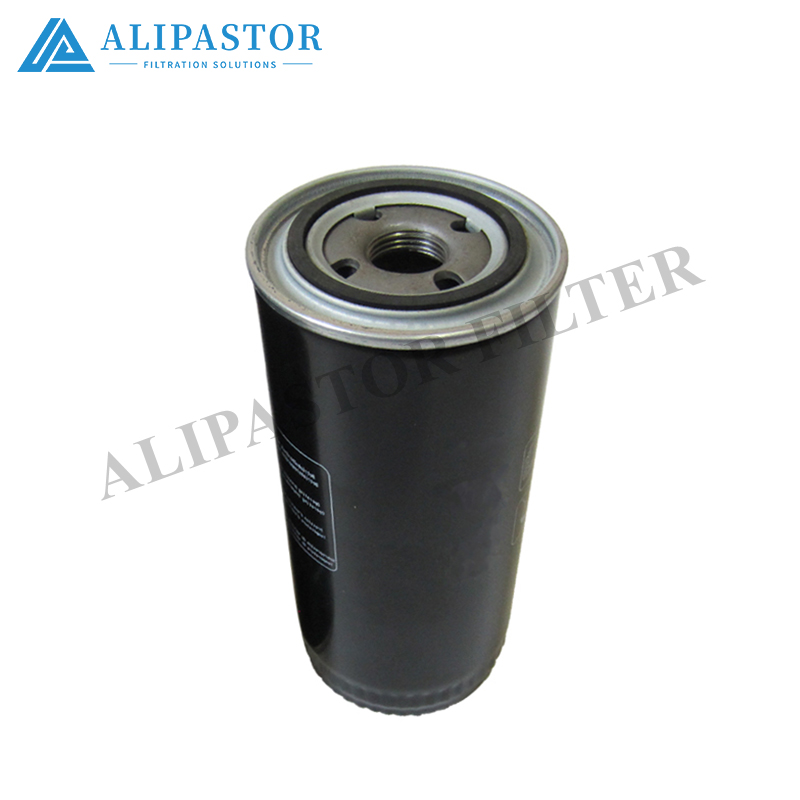

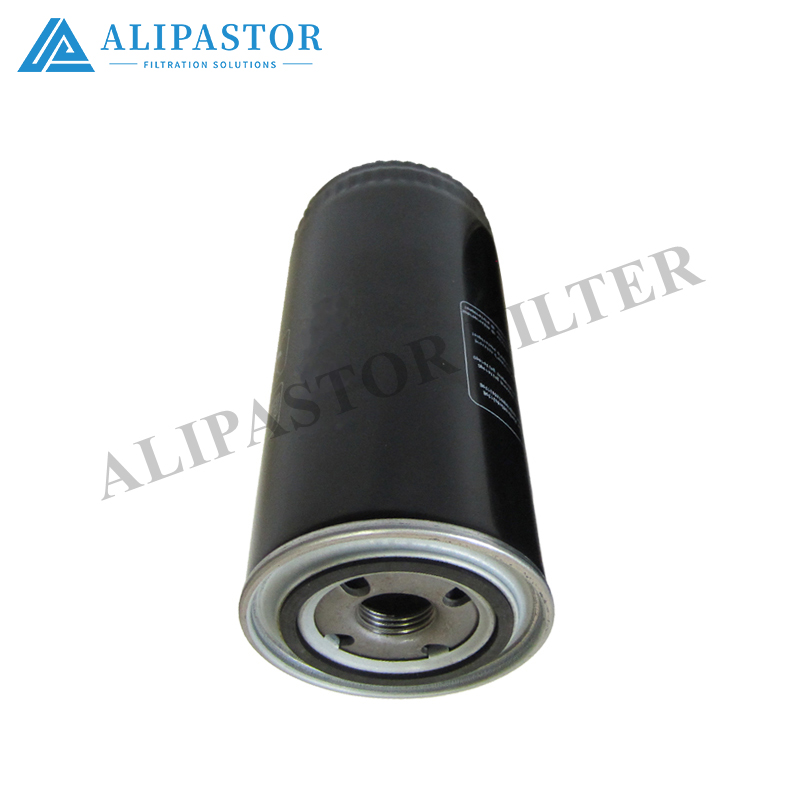

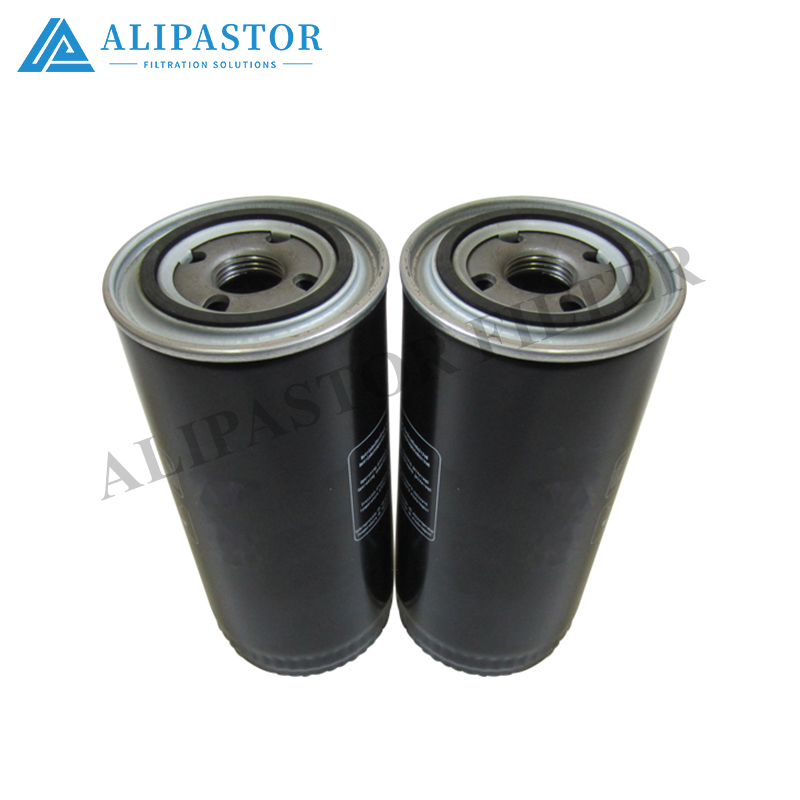

• MB220900: Spin-on, M20×1.5 thread, rolled steel shell, gasket 65×72 mm, 10–15 µm glass-fiber version available for hydraulic-aux duty in addition to cellulose fuel spec




• MD603446: Finned cylindrical cartridge, OD 133.5 mm / ID 67 mm / H 289.5 mm, 16.76 mm bolt-hole, cellulose media, 99.95 % efficiency (≥5 µm, ISO 5011)




• MB220900 anti-drain-back optional; MD603446 polyurethane gasket/seal ring, vibration-resistant pleats




• Both NBR-sealed standard; FKM on request for high-temp estates




Technical Specifications

Application Guidance

MB220900 – Primary diesel-fuel filter on 2.5 L CRDi light commercials and L200/L300-family vans; also crossed to mini-excavator fuel loops (e.g. S4S/S4F engine platforms) and, in its glass-fiber 10–15 µm version, deployed as a hydraulic auxiliary / return-guard on compact loader and forklift circuits where a spin-on canister simplifies field service. Interchanges with common WK940/11, KC46, H17WK09 patterns.

MD603446 – Vertical air-intake cartridge for S4S, 4D55, 6DR5, S4E2, 4DQ50C engine families used on forklifts (FD20–FD35), mini-excavators (MS040/MS070), and light trucks. The finned profile maximises media area in a narrow bay; steel-reinforced end caps take vibration from compressor-adjacent mounts. Also cross-referenced to AF25438, P50-0014 patterns.

📎 Note: MB220900 in glass-fiber 10–15 µm trim is the version positioned for hydraulic-aux duty; the standard fuel-spec (cellulose, 3 µm 99.9 %) should stay on fuel circuits. MD603446 is an air-intake element — for reservoir breather duty a desiccant-breather variant of the same OD/height would be the correct substitution.

Fluid / Media Compatibility (MB220900 hyd-aux version)

• Mineral hydraulic oil (ISO HM/HV)




• Diesel / middle-distillate (fuel version)




• HFC water-glycol – NBR acceptable; FKM recommended




• Not for phosphate ester (HFDR) without seal upgrade




Installation & Service

• MB220900: Clean head face, lube gasket, spin on by hand + ¾ turn. Do not strap-wrench the canister. For hydraulic-aux duty, pre-fill if the loop allows. Replace per OEM hour/km or when ΔP signals clogging.




• MD603446: Unclip the air-housing, lift old cartridge, wipe the housing interior, seat the new element on the center stud, torque nut to spec (typical 1.5–2 N·m, don't over-tighten the PU end). Check the housing lid seal each service.




Quality Assurance

• MB220900: SAE J1985 efficiency (fuel) / ISO 16889 multi-pass (hyd-aux glass-fiber ver.) / shell burst test




• MD603446: ISO 5011 gravimetric & dust-capacity test, JIS D1611 reference, pleat-bond integrity check




Ordering

Quote MB220900 (spin-on, M20×1.5, fuel or hyd-aux 10–15 µm glass-fiber) or MD603446 (air cartridge, 133.5×67×289.5 mm) with quantity and seal/media choice. Cross-reference to common OEM numbers (Mann WK940/11, Mahle KC46, Fleetguard AF25438, etc.) available on request — provide your engine/model and existing OEM number for confirmation.

All values nominal; confirm thread, gasket, and duty (fuel vs. hyd-aux) before selecting MB220900 variant.
