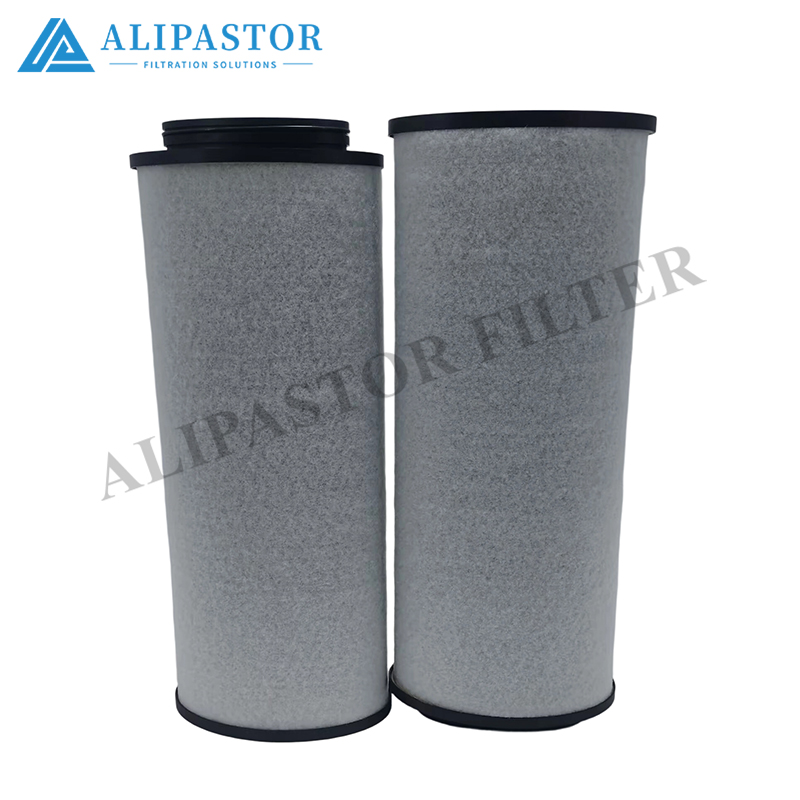

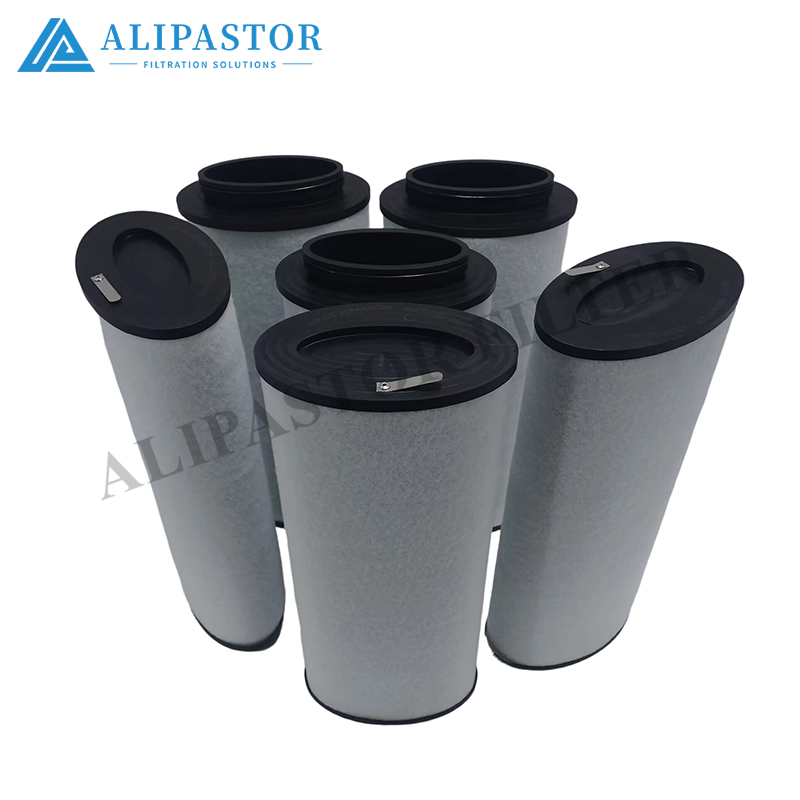

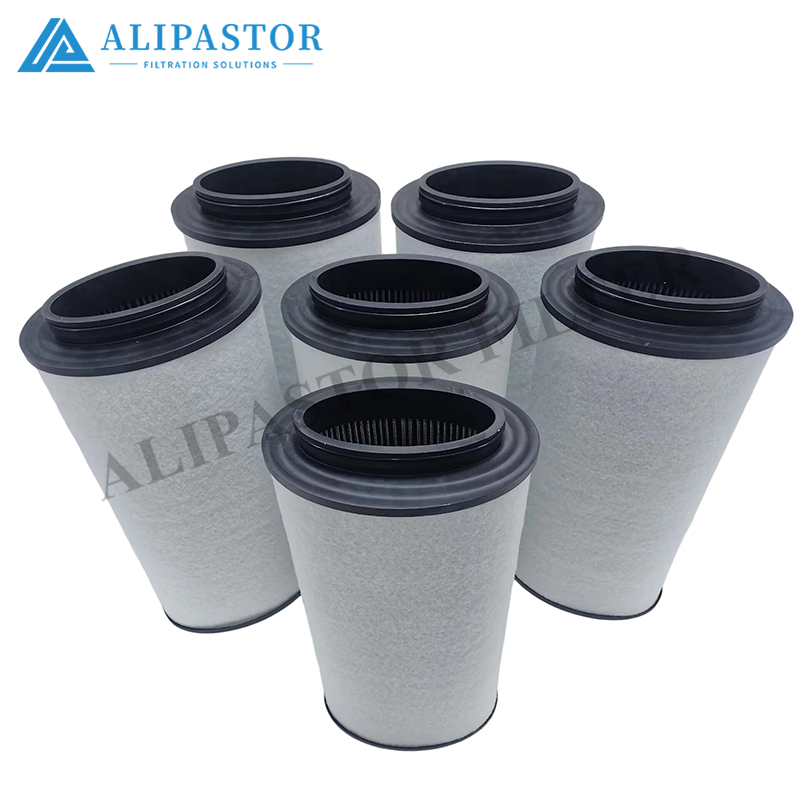

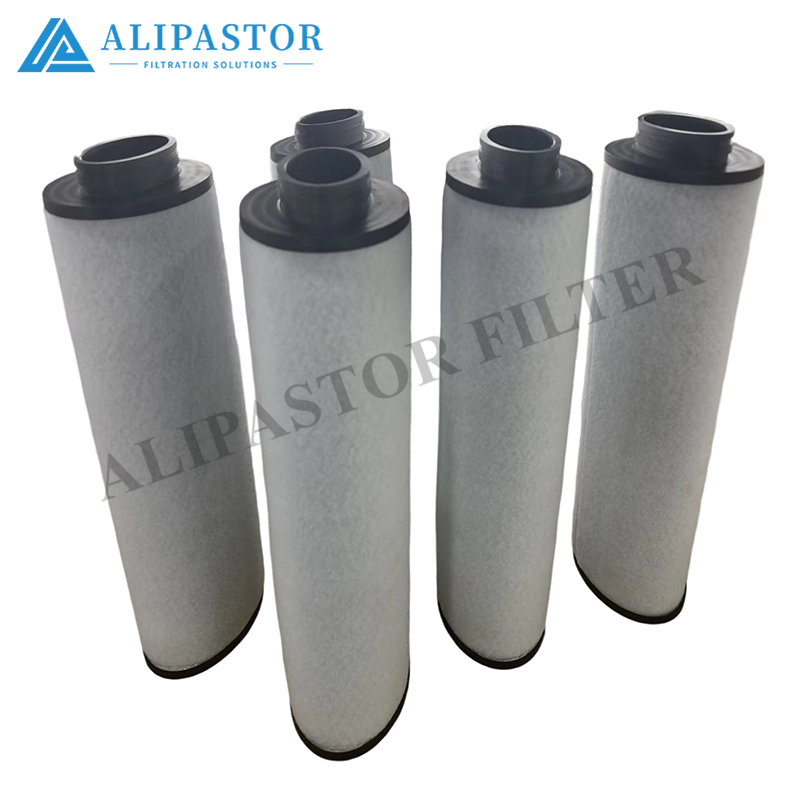

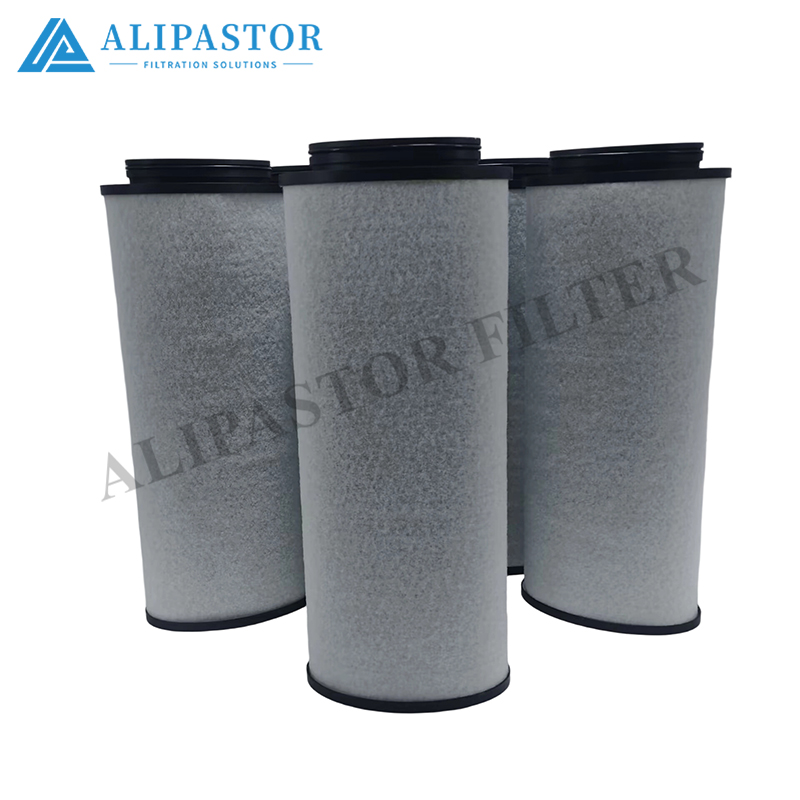

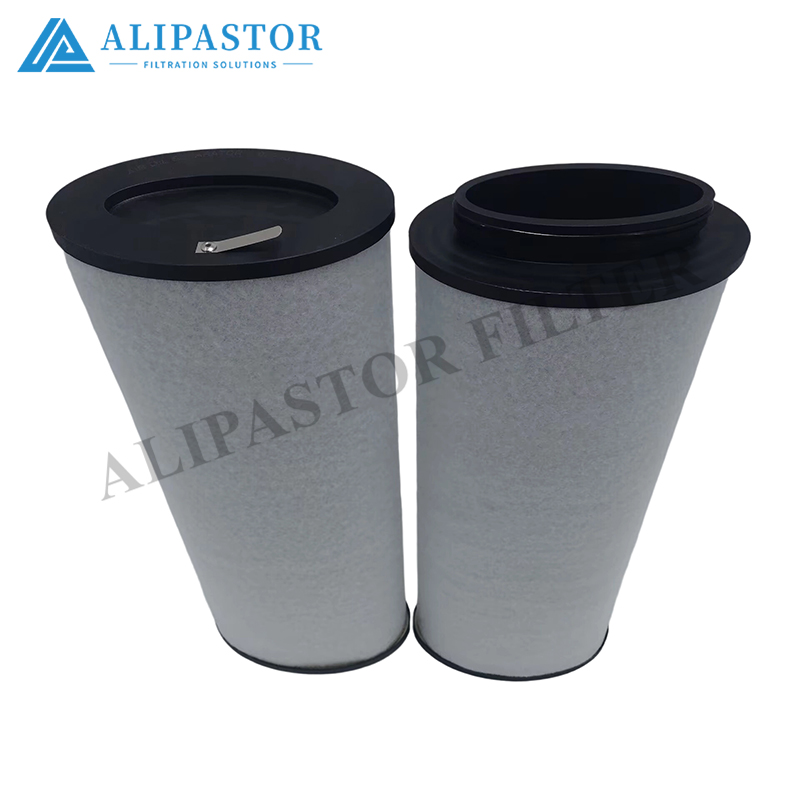

02250160845 02250160-845 OEM Paper Air Dust Cartridge Filter Element for Equipment
Similar models
| 02250160845 | 02250160-845 |
Basic Info.
Type | Other filter | Material | Stainless steel wire mesh |
Warranty | 6 Month | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | Place of Origin | Henan, China |
Brand Name | ALIPASTOR | Application | for Industrial filter cartridge |
Product Name | Other filter | Part Number | 02250160845 02250160-845 |
Keyword | Other filter | Weight | Standard |
Filtration | 1-70micron | Color | Customize |
Filtration Grade | 99% | Warranty | 3 Months |
Production Capacity | 1000 PCS/Week |
Product Parameters
Model Number | 02250160845 02250160-845 |
Type | Industrial filter cartridge |
Dimension | Standard |
Working Temperature | According to customer's request |
Work Pressure Different | Customized |
Material | Stainless steel wire mesh |
Filter Precision | 3~100μm |
Life span | 2000h |
MOQ | 1 pieces |
Lead Time | Around 5-7 days after order confirmed |
Package | PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement |
Shipping Method | By sea, by air, by express |
02250160-845 Air/Oil Separator Element – Industrial Technical Reference Guide
1. Product Overview
The 02250160-845 is a premium air/oil separator element specifically engineered for Sullair industrial rotary screw air compressors. It is most commonly utilized in Sullair's large stationary units, such as the LS Series (e.g., LS20, LS25) and other heavy-duty compressed air systems .
Its primary function is to separate the compressed air from the lubricating oil in the compressor's sump tank. By utilizing advanced borosilicate microglass media, it ensures that the compressed air leaving the vessel contains less than 3 parts per million (ppm) of residual oil aerosol, while simultaneously returning clean oil to the compression circuit .
2. Technical Specifications
The following parameters represent the standard technical benchmarks for the 02250160-845 separator element :
Parameter | Specification | Notes |
|---|---|---|
OEM Part Number | 02250160-845 | Direct replacement for Sullair OEM part number |
Filtration Media | Borosilicate Microglass / Composite Fiber | Pleated structure for maximum surface area and dirt-holding capacity |
Filtration Rating | 0.1 μm ( nominal) | Captures >99.9% of oil aerosols and fine particulates |
Residual Oil Content | < 3 ppm | Ensures high-quality, oil-free compressed air output |
Outer Diameter (OD) | 240 mm (9.45 inches) | Must match the separator vessel interior |
Inner Diameter (ID) | 130 mm (5.12 inches) | Fits securely onto the central pick-up tube |
Overall Height | 450 mm (17.72 inches) | Critical for ensuring a proper top seal |
Design Type | Concentric (Inside-to-Outside flow) | Standard Sullair tank-mounted configuration |
Operating Temp. Range | -40°F to 250°F (-40°C to 121°C) | Suitable for continuous heavy-duty industrial cycles |
Max. Differential Pressure | 0.02 MPa (0.2 bar) / 3 psi | Collapse pressure rating of the media |
End Cap / Seal Material | Powder-coated Steel / Viton (FKM) | High-temperature and chemically resistant |
3. Core Advantages & Performance Features
Ultra-High Efficiency Media: Utilizing a proprietary blend of borosilicate glass fibers, this element achieves a 99.9% separation efficiency. This drastically reduces oil carryover, protecting downstream equipment (dryers, filters) and saving thousands of dollars in makeup oil costs annually .
Exceptionally Low Pressure Drop: The scientific pleat geometry and high-porosity media ensure minimal restriction to airflow. Maintaining a low differential pressure (typically < 2 psi across the element) directly reduces the compressor's energy consumption and prevents unnecessary wear on the main drive motor .
Robust Structural Integrity: Constructed with heavy-duty, corrosion-resistant steel end caps and a reinforced center core, the 02250160-845 is built to withstand the constant pulsations and elevated temperatures of industrial compressor operations .
4. Maintenance & Replacement Guidelines
Condition / Indicator | Recommended Action |
|---|---|
Scheduled Service Interval | Every 4,000 – 8,000 operating hours |
Differential Pressure Alarm | Replace immediately when ΔP reaches 0.02 MPa (0.2 bar / 3 psi) |
Visible Damage or Leaks | Replace if the element shows signs of crushing, rust, or oil bypass |
Installation Best Practices:
Vessel Preparation: Before installing the new 02250160-845, thoroughly drain any residual oil and sludge from the bottom of the separator vessel. Wipe down the mounting flange to ensure a clean, debris-free sealing surface.
Inspect the O-rings: Always use the new O-rings provided with the replacement element. Lightly coat them with clean compressor oil or high-temperature grease to prevent pinching or twisting during installation.
Proper Torque: Carefully lower the element into the vessel, aligning it perfectly with the center standpipe. Hand-tighten the mounting nut initially, then use a wrench to tighten it to the manufacturer's specified torque (usually around 25-30 ft-lbs). Over-tightening can crack the filter media or distort the end caps.
Post-Installation Check: Once the system is restarted, monitor the differential pressure gauge for the first few hours to ensure it stabilizes within the normal operating range (typically 0.1 - 0.3 psi when new).
5. Summary
The 02250160-845 is a mission-critical consumable for maintaining the efficiency, reliability, and air quality of Sullair industrial screw compressors. Opting for a high-quality replacement element with certified microglass media—rather than a cheap, generic substitute—will directly result in lower energy bills, reduced oil consumption, and extended service intervals for your downstream air treatment equipment.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required sepcifications and drawings.
Q3. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4.What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q5.What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q6. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q7. What's your sample policy?
A: We can supply the sample if we have stock, but the customers have to pay the sample cost and the courier cost at first, and we will refund sample cost in your next order.
