Drive Belts & Belt Drive Accessories – Models QX100590 & SPB1500

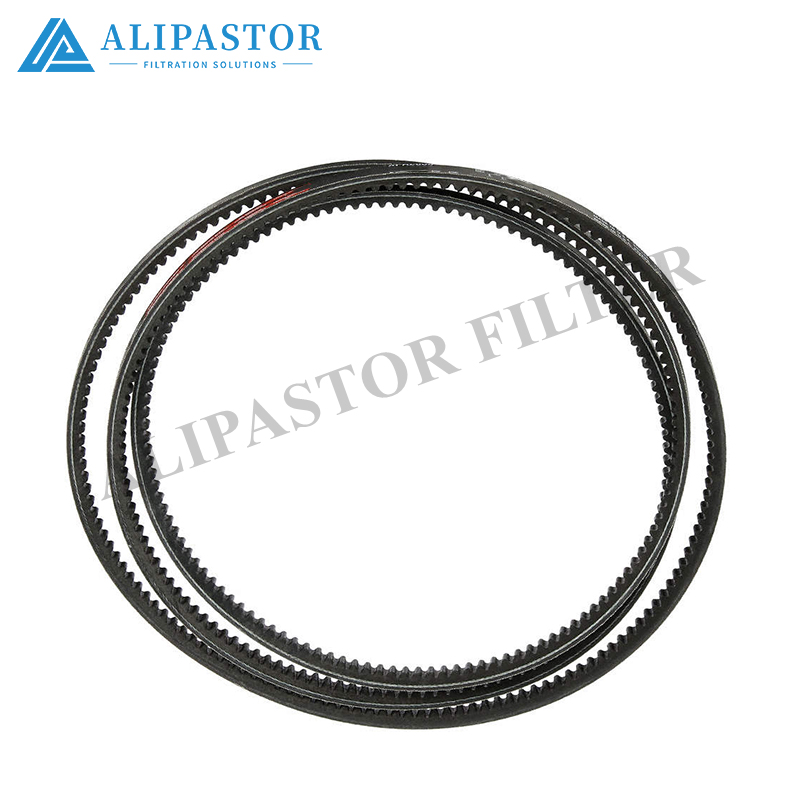

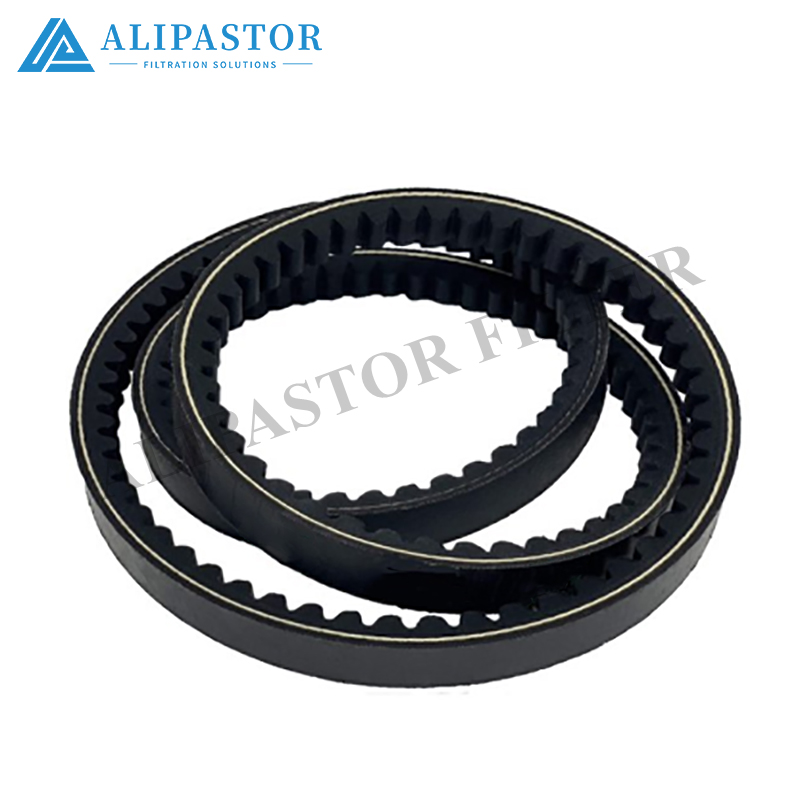

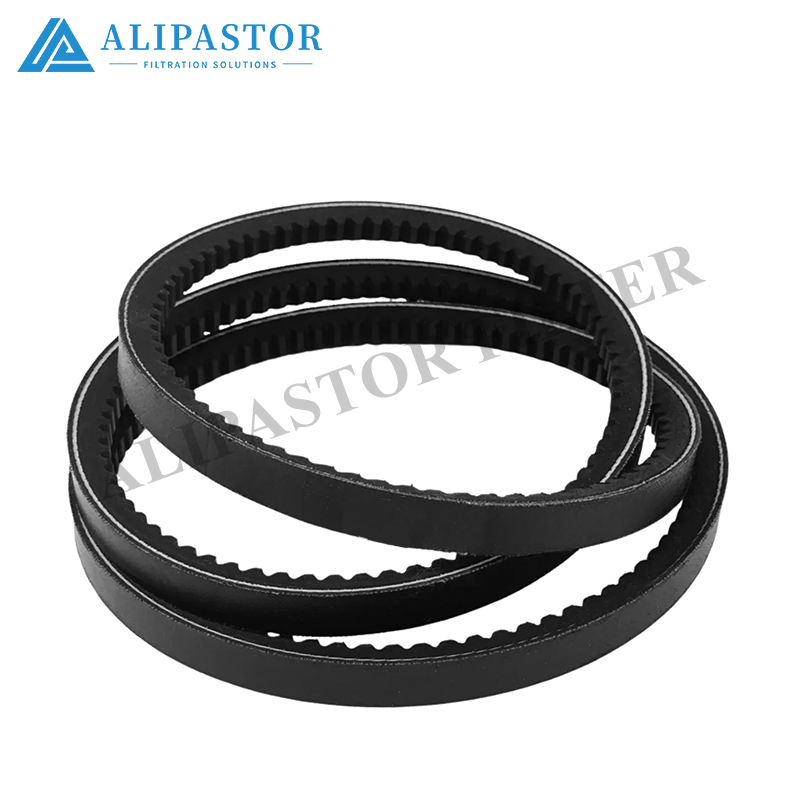

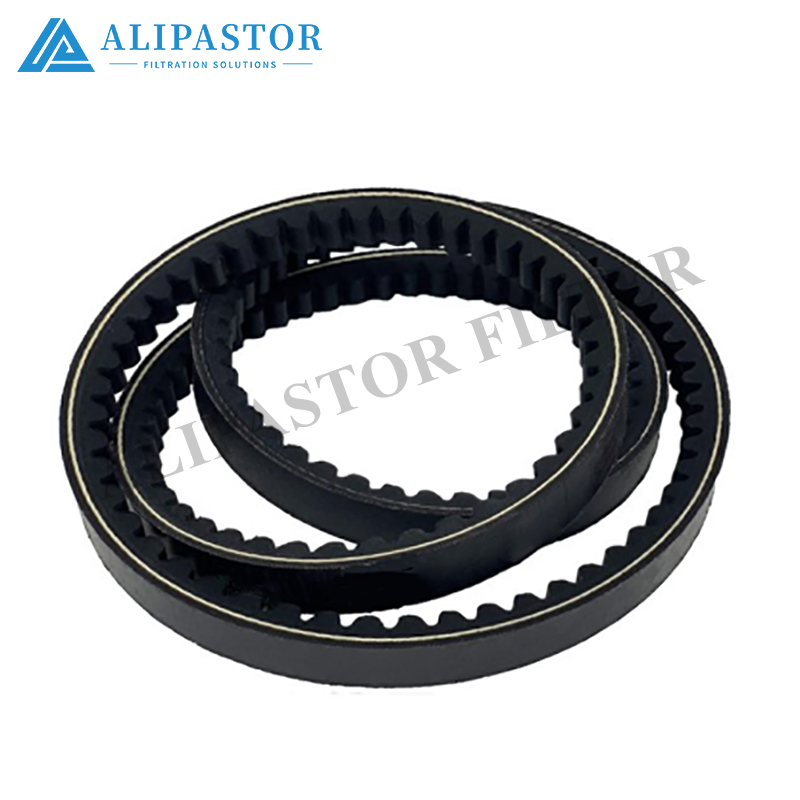

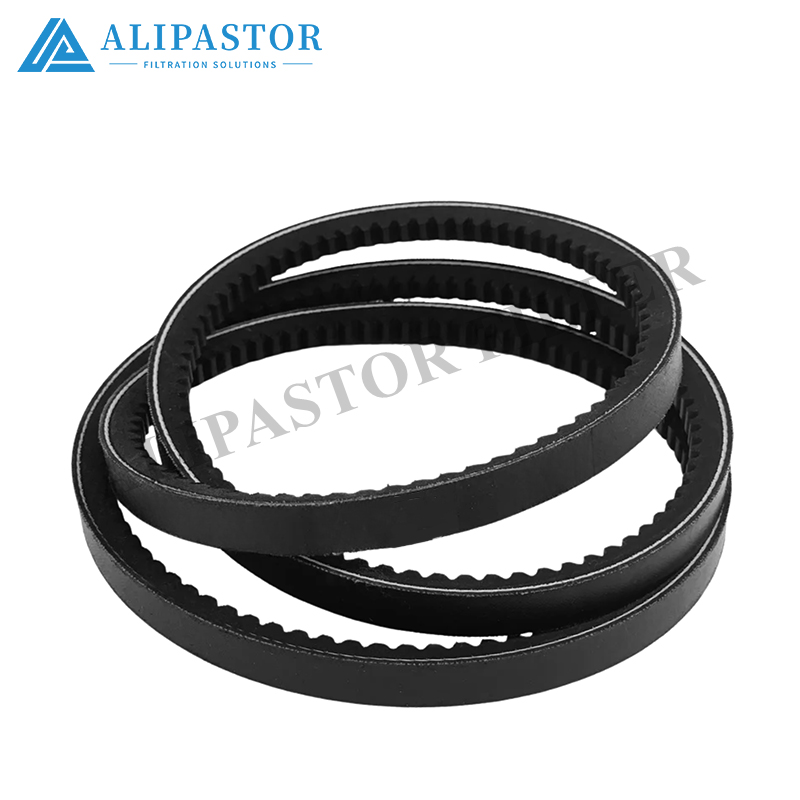

Two power-transmission components engineered for belt-drive systems across transport refrigeration units, industrial machinery, automotive auxiliaries, and mobile equipment. SPB1500 is a wrapped wedge V-belt with a fixed SPB-section profile (16.3 mm top width × 13 mm height, 1500 mm pitch length) qualified for heavy-duty power transmission . QX100590 is a belt-drive component specified for transport refrigeration and truck-mounted cooling systems — typically a multi-rib serpentine or V-belt driving the compressor, alternator, or condenser fan. Both are high-turnover service items replaced on a preventive schedule to avoid unexpected drive failure.

Key Features

• SPB1500: Wrapped wedge V-belt, SPB section, 16.3 mm top width × 13 mm height, 1500 mm pitch length, chloroprene (CR) body, polyester tensile cords, fully wrapped cover




• QX100590: Belt-drive component for transport refrigeration units — serpentine or V-profile per host machine, oil- and heat-resistant compound, anti-static




• Both: low elongation during operation, high transverse rigidity, abrasion-resistant wrapped cover




• Oil- and heat-resistant; adequate conductivity for normal static hazards




• Stable dimensional integrity under continuous load and temperature cycling




Technical Specifications

Application Guidance

SPB1500 – Classic SPB wedge-section V-belt for industrial power transmission: driving compressors, pumps, fans, blowers, and auxiliary machinery from an electric motor or engine crankshaft. The 1500 mm pitch length with 16.3 × 13 mm cross-section delivers high load-carrying capacity with minimal slip, suitable for 7.5–30 kW drive powers depending on pulley diameters and speed ratio. The wrapped cover provides excellent abrasion resistance in dusty or outdoor environments.

QX100590 – Belt-drive component for transport refrigeration units (truck-mounted and trailer cooling systems). Drives the compressor from the diesel engine, or the alternator / condenser fan on all-electric configurations. The exact profile (serpentine multi-rib or classic V) depends on the host unit model — always confirm the belt routing diagram and tensioner layout before replacement. Transport refrigeration belts run under high cyclic load (engine on/off, compressor clutch engagement), making periodic replacement critical to avoid roadside failure.

⚠️ These two parts are not interchangeable — SPB1500 is a standardized wedge V-belt with fixed dimensions; QX100590 is an application-specific belt-drive component. Confirm your machine's belt routing label and existing part number before ordering. A mismatched belt length or profile causes slip, premature wear, and potential accessory damage.

Belt-Drive Maintenance Recommendations

• Replace on schedule: industrial V-belts every 2000–4000 operating hours; transport refrigeration belts every 1000–1500 h or annually (whichever comes first)




• Replace as a set: when running multiple belts in a matched drive, replace all simultaneously — mixing old and new belts causes uneven load distribution and rapid failure




• Inspect the tensioner while the belt is off: a worn auto-tensioner or seized idler pulley will destroy a new belt within days




• Check pulley alignment — misaligned sheaves cause edge wear and belt walk-off




• Correct tension: under-tensioned belts slip and generate heat; over-tensioned belts overload bearings. Use a tension gauge for critical drives




• Never pry a belt on with a screwdriver or bar — this damages the tensile cords. Use the tensioner relief or adjustable motor base




Installation & Service

1. Note the routing — photograph or sketch the belt path before removal (critical for serpentine drives)




2. Relieve tension — rotate the auto-tensioner (serpentine) or loosen the motor base / adjustable idler (V-belt)




3. Remove the old belt — slip it off the smallest pulley first for easier extraction




4. Inspect pulleys — check for glazing, wear grooves, or misalignment; dress minor issues, replace damaged pulleys




5. Install the new belt — route per diagram, ensuring it seats fully in every groove




6. Apply correct tension:

   • Auto-tensioner: release the tensioner arm, seat belt, release — arm should rest at the specified angle




   • Manual V-belt: adjust motor base / idler until the belt deflects ~1/64 of span per pound of tension (use a gauge for precision)







7. Run & re-check: operate for 5–10 minutes under load, then re-check tension (new belts stretch slightly during initial run-in)




8. Re-tension if necessary after first 50 hours of operation




Quality Assurance

• ISO 4184 – classical V-belt dimensions and tolerances




• DIN 7753 / EN 16906 – wrapped wedge V-belt standards




• Static dissipation – meets requirements for normal static hazard environments




• Oil & heat resistance – validated per industry belt specifications




• Dimensional stability – low elongation polyester cords maintain tension over service life




Ordering

Specify SPB1500 (wrapped wedge V-belt, 16.3 × 13 mm, 1500 mm pitch) — universal SPB-section part, fits any drive designed for this standard profile.

Specify QX100590 with:

• Host machine make and model (transport refrigeration unit)




• Belt function (compressor drive / alternator / condenser fan)




• Existing belt part number for cross-reference




Provide your drive details — pulley diameters, center distance, power requirement — for SPB1500 applications to confirm suitability. For QX100590, the host unit's belt routing label and existing OEM number guarantee correct fitment.

SPB1500 dimensions are fixed per ISO 4184 / DIN 7753 . QX100590 configuration varies by host machine — confirm profile, length, and rib count against your existing belt or routing diagram before installation. Always replace belts as a matched set on multi-belt drives, and inspect the tensioner and pulleys during every belt service.
