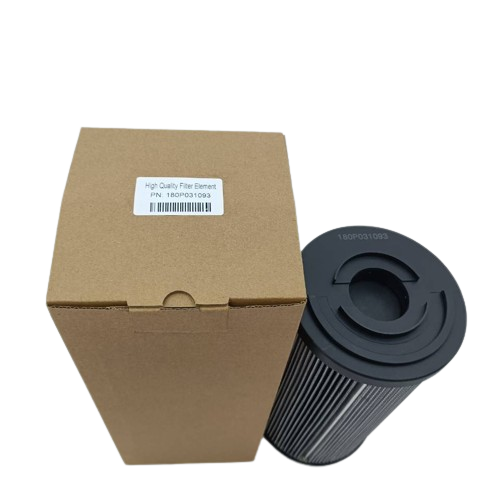

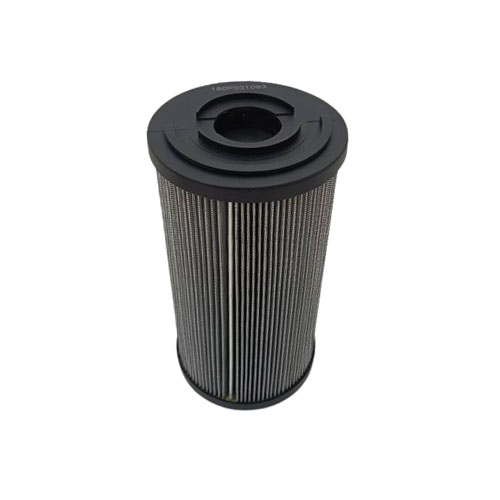

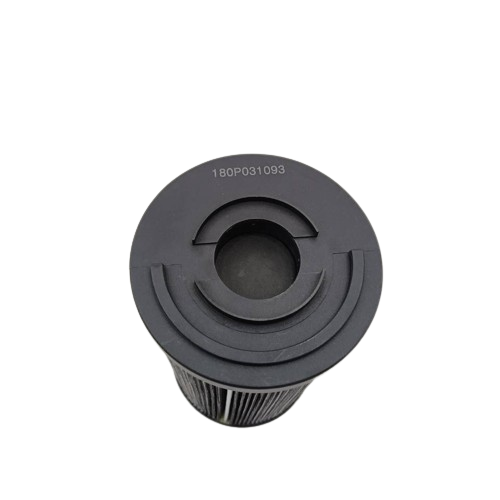

180P031093 Hydraulic Oil Filter High-Performance Replacement Filter Element
Is your heavy machinery losing efficiency? Contaminated hydraulic oil is often the hidden culprit behind system failures and costly downtime. The 180P031093 Hydraulic Oil Filter is meticulously engineered to provide superior contaminant control, ensuring your hydraulic systems operate at their absolute peak.
Whether you are looking for a direct replacement or an upgrade, this filter element guarantees exceptional filtration performance and robust durability.
Technical Specifications
Note: The following specifications are typical values for this filter series. Please verify with your system manual before purchasing.
Part Number: 180P031093
Filter Media: High-strength glass fiber / Stainless steel wire mesh
Filtration Accuracy: 10 Microns / 20 Microns (Options available)
Working Pressure: Up to 21 bar (305 psi)
Collapse Pressure Rating: 30 bar (435 psi)
Operating Temperature: -20℃ to +100℃
Seal Material: Viton (FKM) / NBR
Flow Direction: Outside-in (Typical)
Key Features & Benefits
1. Superior Contaminant Removal
Featuring a multi-layer glass fiber media, the 180P031093 traps even the tiniest abrasive particles. This significantly extends the service life of your expensive hydraulic pumps, valves, and actuators.
2. Exceptional Durability & High Flow
Built with a heavy-duty internal support core and robust end caps, this filter can withstand extreme pressure fluctuations and high flow rates without collapsing.
3. Low Pressure Drop
The advanced pleated design maximizes the filtration area, ensuring optimal oil flow while minimizing pressure drop. This helps in reducing overall energy consumption.
4. Perfect Compatibility & Leak-Free Seal
Manufactured to strict OEM standards, it ensures a perfect fit and a reliable, leak-free operation in your existing filter housing.
Wide Range of Applications
The 180P031093 hydraulic oil filter is highly versatile and trusted across various demanding industries:
Construction Machinery: Excavators, loaders, cranes, and bulldozers.
Industrial Equipment: Injection molding machines, presses, and CNC machines.
Agricultural Machinery: Tractors and harvesters.
Mining & Material Handling: Heavy-duty mining trucks and conveyor systems.
Installation & Maintenance Guide
Proper installation is key to maximizing the lifespan of your hydraulic filter:
Preparation: Safely depressurize the hydraulic system and drain the fluid below the filter level.
Removal: Unscrew the filter bowl or unscrew the old filter element from the head. Clean the interior of the bowl thoroughly.
Installation: Lubricate the new O-ring/gasket with clean hydraulic oil. Carefully insert the 180P031093 filter element, ensuring it sits perfectly in the base.
Reassembly: Tighten the bowl or housing by hand first, then use appropriate tools to secure it firmly. Avoid over-tightening.
System Check: Refill the reservoir, bleed air from the system, and check for any leaks before resuming full operation.
💡 Pro Tip: Always replace your hydraulic oil filter at the intervals recommended by your machinery manufacturer, or sooner if you notice a significant drop in system pressure.
Frequently Asked Questions (FAQ)
Q1: Is the 180P031093 an OEM or aftermarket part?
A: The 180P031093 is a high-quality replacement filter element designed to meet or exceed the original OEM specifications, offering excellent performance at a competitive price point.
Q2: How do I know when my hydraulic filter needs replacing?
A: Most modern machinery is equipped with a visual or electronic clogging indicator. If the indicator triggers, or if you notice sluggish machine performance and unusual noises from the hydraulic pump, it's time to check and likely replace the filter.
Q3: Can I wash and reuse the 180P031093 filter?
A: No, this filter utilizes depth-type media (glass fiber/paper) which traps contaminants within its fibers. Once saturated, it cannot be effectively cleaned and must be replaced to maintain system integrity.
