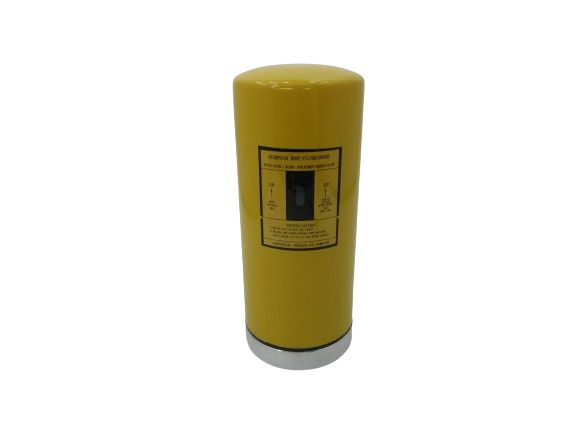

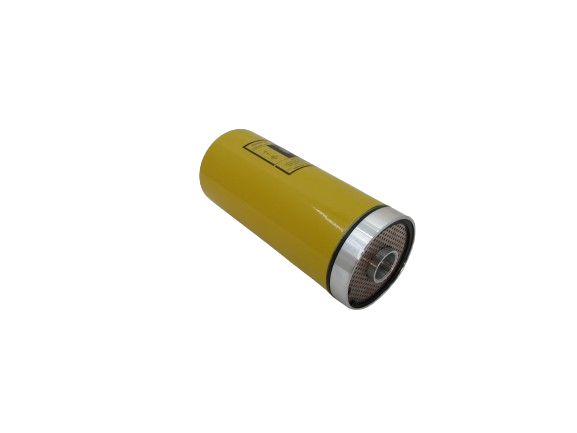

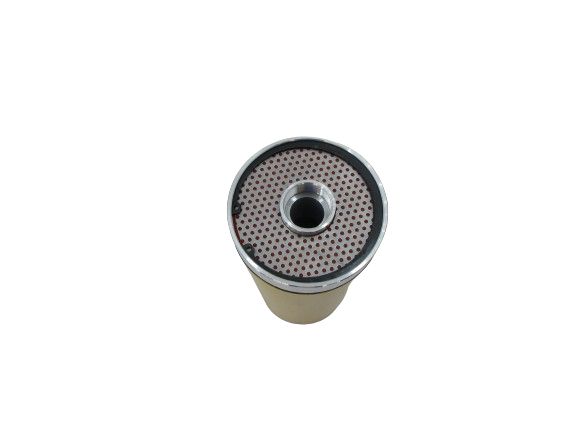

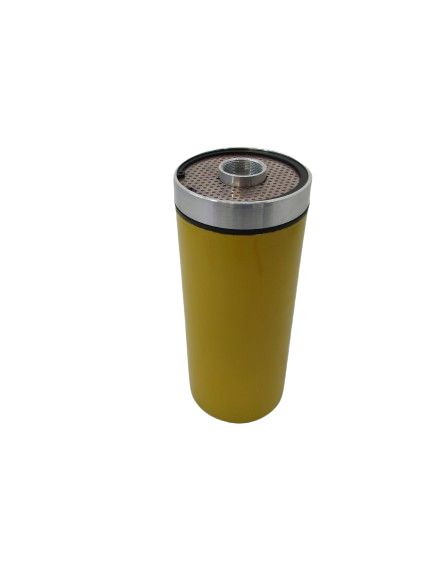

PFD-12AR Air Filter Element: Durable Filtration Solutions for Industrial Applications

The PFD12AR Air Filter Element is a critical component for maintaining air and hydraulic fluid cleanliness in industrial systems. Designed to remove dust, moisture, and contaminants, it safeguards equipment like turbines, pumps, and compressors from premature wear. Compatible with EH oil tanks and hydraulic systems, this filter ensures optimal performance in power plants, manufacturing, and heavy machinery applications.

Key Specifications

• Model: PFD-12AR




• Filter Media: Stainless steel mesh + glass fiber composite




• Filtration Efficiency: 99.9% for particles ≥3µm




• Temperature Range: -20°C to +120°C




• Dimensions: 200 mm × 100 mm × 100 mm




• Flow Rate: 30 L/min (standard operating conditions)




• Certifications: ISO 2941, CE






Core Features

1. Dual-Layer Filtration

• Combines coarse stainless steel mesh and fine glass fiber for multi-stage contamination removal .




2. High Durability

• Corrosion-resistant materials withstand harsh environments, including high-pressure hydraulic systems .




3. Low Differential Pressure

• Optimized media design minimizes energy loss while maintaining airflow efficiency .




4. Easy Maintenance

• Replaceable cartridge design simplifies servicing and extends service life .







Applications

• Power Generation: Protects turbines and boilers in fossil/nuclear plants .




• Hydraulic Systems: Filters oil in excavators, cranes, and industrial presses .




• Oil & Gas: Removes moisture and particulates in pipeline systems .




• Transportation: Ensures clean air in automotive and marine engines .




Installation Guide

1. Drain the System: Release pressure and drain residual fluid.




2. Locate the Filter Housing: Typically near hydraulic pumps or reservoirs.




3. Replace the Filter:

   • Use a wrench to remove the old element.




   • Install PFD-12AR with a hand-tight + ¼ turn.







4. Test the System: Monitor pressure drop (≤5 bar under normal conditions) .




Pro Tip: Pair with a pre-filter for extended service life.

Maintenance Tips

• Replacement Interval: Every 6–8 months or 500–800 operating hours.




• Pressure Monitoring: Sudden drops indicate clogging or media degradation.




• Disposal: Recycle used elements at certified facilities .




FAQ

Q1: Compatible with non-OEM systems?

A: Yes, designed for universal use in hydraulic pipelines .

Q2: Max flow rate?

A: 30 L/min at 7 bar pressure.

Q3: How to check filter condition?

A: Use differential pressure gauges or visual inspection for media discoloration .

Why Choose PFD-12AR?

• ISO-Certified Quality: Meets global standards for hydraulic filtration .




• Cost Efficiency: Reduces energy consumption and maintenance costs.




• Global Availability: Trusted by OEMs and distributors worldwide .
